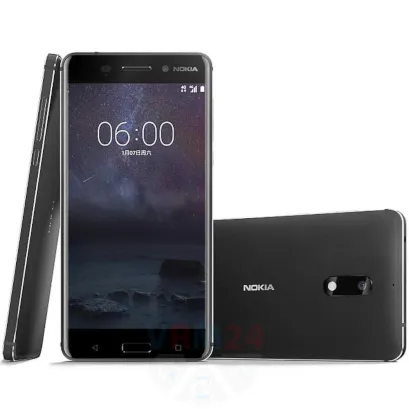

Nokia 6 (2017) TA-1021
Nokia 6 (2017) TA-1021
Teardown difficulty:
Hard
Duration:
14 min

Recommended tools

Heat gun Heat gun
Screwdriver Phillips #000 Screwdriver phillips #000
Opening tool / Spudger Opening tool / spudger
Tweezers Tweezers

Disassembly/Repair of the mobile device Nokia 6 (2017) TA-1021 with each step description and the required set of tools.

Vadim Popoff

Author, currently - Quality Assurance Specialist

How to disassemble Nokia 6 (2017) TA-1021, Step 1/1

Step 1.

Separate the display module from the cover.

⚠️ Warning!

For careful separation, we recommend using a heat gun. At the same time, it is necessary to heat carefully in order, not to damage the surface of the device.

How to disassemble Nokia 6 (2017) TA-1021, Step 2/1 How to disassemble Nokia 6 (2017) TA-1021, Step 2/2

Step 2.

Lift up the display module and using a screwdriver (Phillips 1.5 mm PH000), unscrew 1 bolt remove the bracket holding the connectors.

How to disassemble Nokia 6 (2017) TA-1021, Step 3/1 How to disassemble Nokia 6 (2017) TA-1021, Step 3/2 How to disassemble Nokia 6 (2017) TA-1021, Step 3/3

Step 3.

Disconnector the battery and display module connector.

How to disassemble Nokia 6 (2017) TA-1021, Step 4/1

Step 4.

The case / housing and the display module.

How to disassemble Nokia 6 (2017) TA-1021, Step 5/1 How to disassemble Nokia 6 (2017) TA-1021, Step 5/2

Step 5.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 1 bolt and remove the bracket holding the connector.

How to disassemble Nokia 6 (2017) TA-1021, Step 6/1 How to disassemble Nokia 6 (2017) TA-1021, Step 6/2 How to disassemble Nokia 6 (2017) TA-1021, Step 6/3

Step 6.

Disconnect the connector and remove Home / fingerprint button cable.

How to disassemble Nokia 6 (2017) TA-1021, Step 7/1 How to disassemble Nokia 6 (2017) TA-1021, Step 7/2

Step 7.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 17 bolts in the frame of the phone.

How to disassemble Nokia 6 (2017) TA-1021, Step 8/1 How to disassemble Nokia 6 (2017) TA-1021, Step 8/2 How to disassemble Nokia 6 (2017) TA-1021, Step 8/3

Step 8.

Disconnect the middle frame.

⚠️ Warning!

On the inside are the battery and earpiece (speaker).

How to disassemble Nokia 6 (2017) TA-1021, Step 9/1 How to disassemble Nokia 6 (2017) TA-1021, Step 9/2

Step 9.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 4 bolts in the lower PCB.

How to disassemble Nokia 6 (2017) TA-1021, Step 10/1 How to disassemble Nokia 6 (2017) TA-1021, Step 10/2 How to disassemble Nokia 6 (2017) TA-1021, Step 10/3

Step 10.

Disconnect the coaxial cable connector.

How to disassemble Nokia 6 (2017) TA-1021, Step 11/1 How to disassemble Nokia 6 (2017) TA-1021, Step 11/2 How to disassemble Nokia 6 (2017) TA-1021, Step 11/3

Step 11.

Turn over the board. Using a screwdriver (Phillips 1.5 mm PH000), unscrew 1 bolt and disconnect the inter-boars connector.

How to disassemble Nokia 6 (2017) TA-1021, Step 12/1 How to disassemble Nokia 6 (2017) TA-1021, Step 12/2

Step 12.

Pry and remove the buzzer (speaker) assembly and vibration motor.

How to disassemble Nokia 6 (2017) TA-1021, Step 13/1 How to disassemble Nokia 6 (2017) TA-1021, Step 13/2

Step 13.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 6 bolts and remove the bracket holding the connectors.

How to disassemble Nokia 6 (2017) TA-1021, Step 14/1 How to disassemble Nokia 6 (2017) TA-1021, Step 14/2 How to disassemble Nokia 6 (2017) TA-1021, Step 14/3

Step 14.

Disconnect connectors on the PCB.

How to disassemble Nokia 6 (2017) TA-1021, Step 15/1 How to disassemble Nokia 6 (2017) TA-1021, Step 15/2 How to disassemble Nokia 6 (2017) TA-1021, Step 15/3

Step 15.

Overturn the board, disconnect the connector from the inside and remove it.

How to disassemble Nokia 6 (2017) TA-1021, Step 16/1 How to disassemble Nokia 6 (2017) TA-1021, Step 16/2 How to disassemble Nokia 6 (2017) TA-1021, Step 16/3

Step 16.

Parts are in the case \ housing.

Detailed disassembly instructions of Nokia 6 (2017) TA-1021 in the video, made by our mobile repair & service center:
