Nokia 8600 LUNA RM-164
Nokia 8600 LUNA RM-164
Teardown difficulty:
Hard
Duration:
9 min

Recommended tools

Screwdriver Torx T5 Screwdriver torx t5
Screwdriver Torx T6 Screwdriver torx t6
Opening tool / Spudger Opening tool / spudger
Tweezers Tweezers

Disassembly/Repair of the mobile device Nokia 8600 LUNA RM-164 with each step description and the required set of tools.

Vadim Popoff

Author / Content specialist with 10+ years of experience

How to disassemble Nokia 8600 LUNA RM-164, Step 1/1 How to disassemble Nokia 8600 LUNA RM-164, Step 1/2

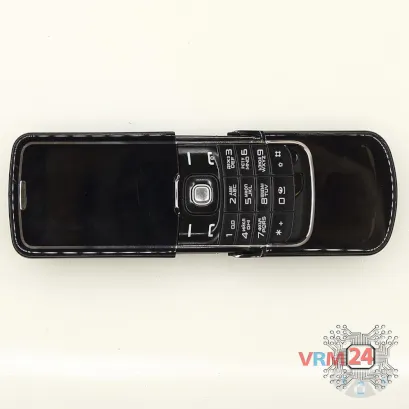

Step 1.

Slide the phone down.

How to disassemble Nokia 8600 LUNA RM-164, Step 2/1 How to disassemble Nokia 8600 LUNA RM-164, Step 2/2

Step 2.

Open the back cover and lift and remove the battery.

How to disassemble Nokia 8600 LUNA RM-164, Step 3/1 How to disassemble Nokia 8600 LUNA RM-164, Step 3/2

Step 3.

Using a screwdriver (hex T6), unscrew 2 bolts.

How to disassemble Nokia 8600 LUNA RM-164, Step 4/1 How to disassemble Nokia 8600 LUNA RM-164, Step 4/2

Step 4.

Open the lower cover.

How to disassemble Nokia 8600 LUNA RM-164, Step 5/1 How to disassemble Nokia 8600 LUNA RM-164, Step 5/2

Step 5.

Remove the upper cover.

How to disassemble Nokia 8600 LUNA RM-164, Step 6/1 How to disassemble Nokia 8600 LUNA RM-164, Step 6/2 How to disassemble Nokia 8600 LUNA RM-164, Step 6/3

Step 6.

Remove the cover on the front side.

How to disassemble Nokia 8600 LUNA RM-164, Step 7/1 How to disassemble Nokia 8600 LUNA RM-164, Step 7/2

Step 7.

Remove the plastic cover.

How to disassemble Nokia 8600 LUNA RM-164, Step 8/1 How to disassemble Nokia 8600 LUNA RM-164, Step 8/2

Step 8.

Using a screwdriver (hex T5), unscrew 2 bolts.

How to disassemble Nokia 8600 LUNA RM-164, Step 9/1 How to disassemble Nokia 8600 LUNA RM-164, Step 9/2

Step 9.

Remove the cover with antennas.

How to disassemble Nokia 8600 LUNA RM-164, Step 10/1 How to disassemble Nokia 8600 LUNA RM-164, Step 10/2

Step 10.

Using a screwdriver (hex T5), unscrew 2 long bolts.

How to disassemble Nokia 8600 LUNA RM-164, Step 11/1 How to disassemble Nokia 8600 LUNA RM-164, Step 11/2

Step 11.

Remove the cover protecting the chips.

How to disassemble Nokia 8600 LUNA RM-164, Step 12/1 How to disassemble Nokia 8600 LUNA RM-164, Step 12/2

Step 12.

Using a screwdriver (hex T5), unscrew 2 bolts securing the cover.

How to disassemble Nokia 8600 LUNA RM-164, Step 13/1 How to disassemble Nokia 8600 LUNA RM-164, Step 13/2

Step 13.

Remove the cover.

How to disassemble Nokia 8600 LUNA RM-164, Step 14/1 How to disassemble Nokia 8600 LUNA RM-164, Step 14/2

Step 14.

Using a screwdriver (hex T5), unscrew 2 bolts.

How to disassemble Nokia 8600 LUNA RM-164, Step 15/1 How to disassemble Nokia 8600 LUNA RM-164, Step 15/2

Step 15.

Remove the frame with speaker and vibration motor.

How to disassemble Nokia 8600 LUNA RM-164, Step 16/1 How to disassemble Nokia 8600 LUNA RM-164, Step 16/2

Step 16.

Pry up the display connector.

How to disassemble Nokia 8600 LUNA RM-164, Step 17/1 How to disassemble Nokia 8600 LUNA RM-164, Step 17/2

Step 17.

Remove the PCB.

How to disassemble Nokia 8600 LUNA RM-164, Step 18/1 How to disassemble Nokia 8600 LUNA RM-164, Step 18/2

Step 18.

Using a screwdriver (hex T5), unscrew 2 bolts.

How to disassemble Nokia 8600 LUNA RM-164, Step 19/1 How to disassemble Nokia 8600 LUNA RM-164, Step 19/2 How to disassemble Nokia 8600 LUNA RM-164, Step 19/3

Step 19.

Remove the protective glass.

How to disassemble Nokia 8600 LUNA RM-164, Step 20/1 How to disassemble Nokia 8600 LUNA RM-164, Step 20/2

Step 20.

Remove the keyboard.

How to disassemble Nokia 8600 LUNA RM-164, Step 21/1 How to disassemble Nokia 8600 LUNA RM-164, Step 21/2

Step 21.

Remove the bracket holding a power button.

How to disassemble Nokia 8600 LUNA RM-164, Step 22/1 How to disassemble Nokia 8600 LUNA RM-164, Step 22/2

Step 22.

Remove the display.

How to disassemble Nokia 8600 LUNA RM-164, Step 23/1

Step 23.

The frame with inter-board cables.
