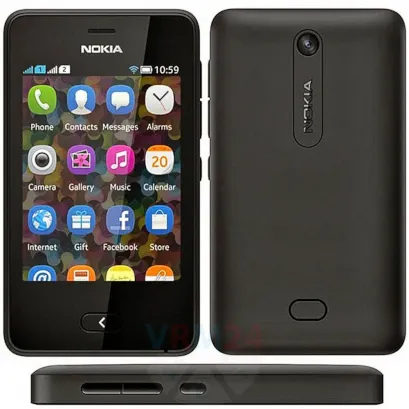

Nokia Asha 502 RM-921

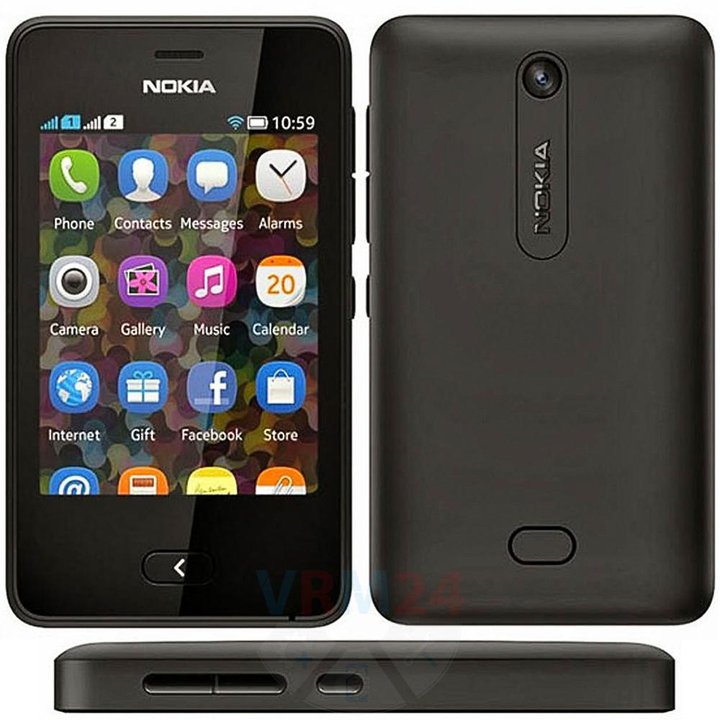

Nokia Asha 502 RM-921
Teardown difficulty:
Easy
Duration:
3 min

Recommended tools

Screwdriver Torx T5 Screwdriver torx t5
Screwdriver Torx T6 Screwdriver torx t6
Opening tool / Spudger Opening tool / spudger
Tweezers Tweezers

Disassembly/Repair of the mobile device Nokia Asha 502 RM-921 with each step description and the required set of tools.

Vadim Popoff

Specialist in content creation, distribution and content management.

How to disassemble Nokia Asha 502 RM-921, Step 1/1 How to disassemble Nokia Asha 502 RM-921, Step 1/2

Step 1.

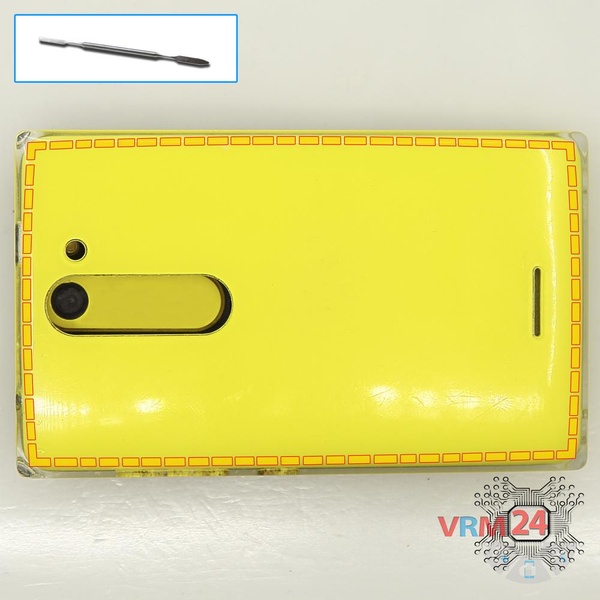

Open the back cover.

How to disassemble Nokia Asha 502 RM-921, Step 2/1 How to disassemble Nokia Asha 502 RM-921, Step 2/2

Step 2.

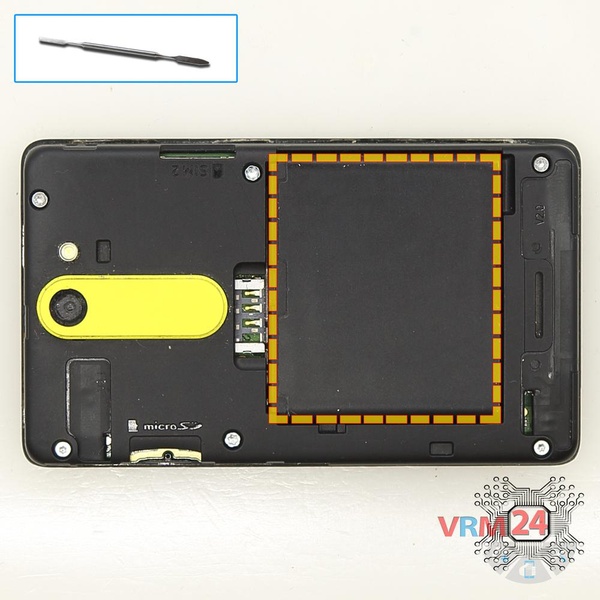

Lift and remove the battery.

How to disassemble Nokia Asha 502 RM-921, Step 3/1 How to disassemble Nokia Asha 502 RM-921, Step 3/2

Step 3.

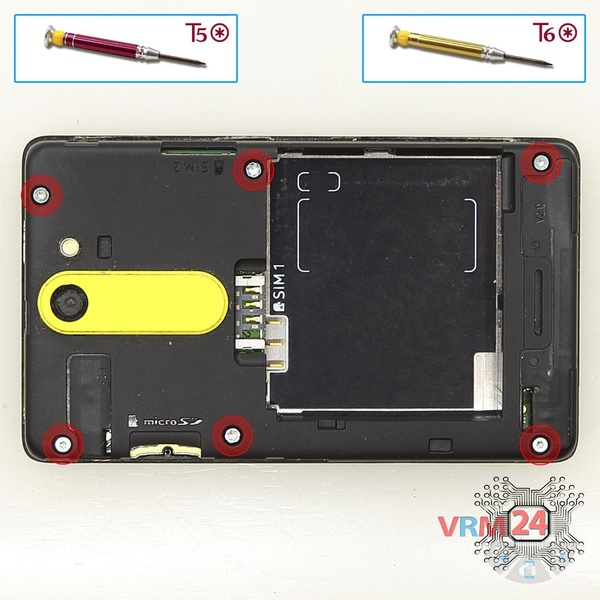

Using a screwdriver (hex T5), unscrew 4 bolts and a screwdriver (hex T6), unscrew 2 bolts in the frame of the phone.

How to disassemble Nokia Asha 502 RM-921, Step 4/1 How to disassemble Nokia Asha 502 RM-921, Step 4/2

Step 4.

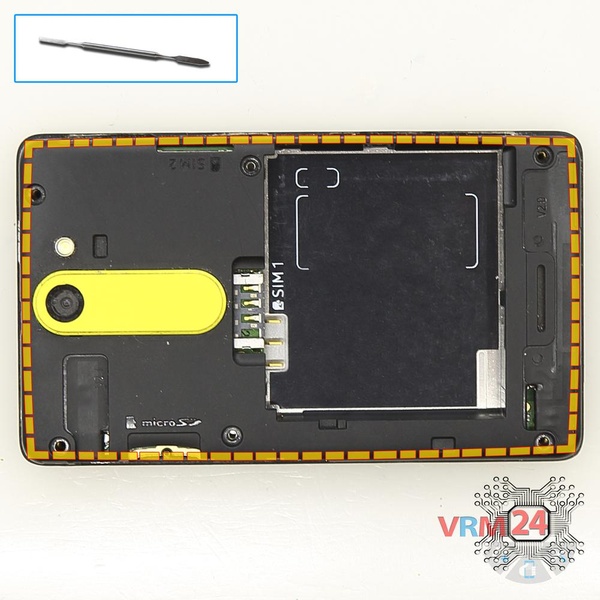

Pry and remove the middle frame.

How to disassemble Nokia Asha 502 RM-921, Step 5/1

Step 5.

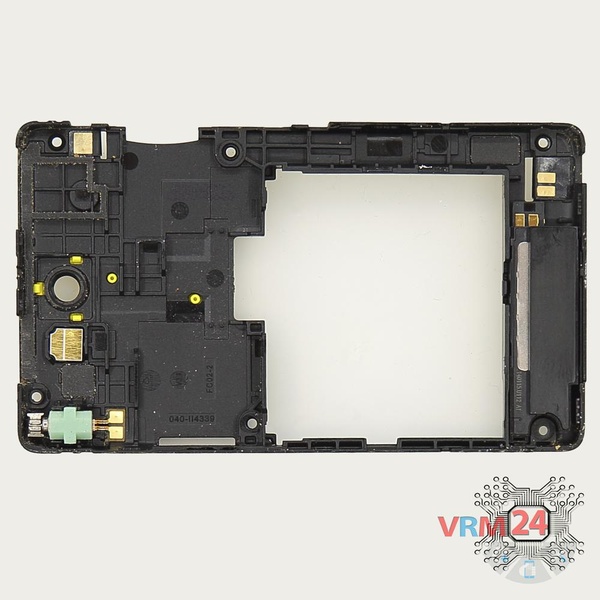

The middle frame with vibration motor.

How to disassemble Nokia Asha 502 RM-921, Step 6/1 How to disassemble Nokia Asha 502 RM-921, Step 6/2 How to disassemble Nokia Asha 502 RM-921, Step 6/3

Step 6.

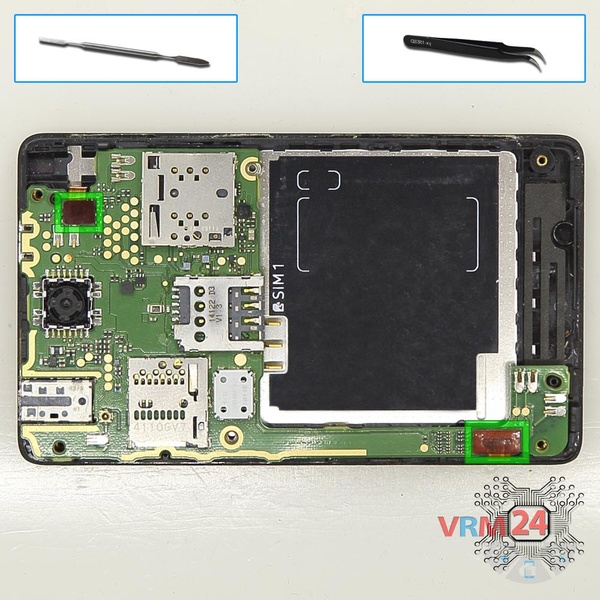

Disconnect connectors on the PCB.

How to disassemble Nokia Asha 502 RM-921, Step 7/1 How to disassemble Nokia Asha 502 RM-921, Step 7/2

Step 7.

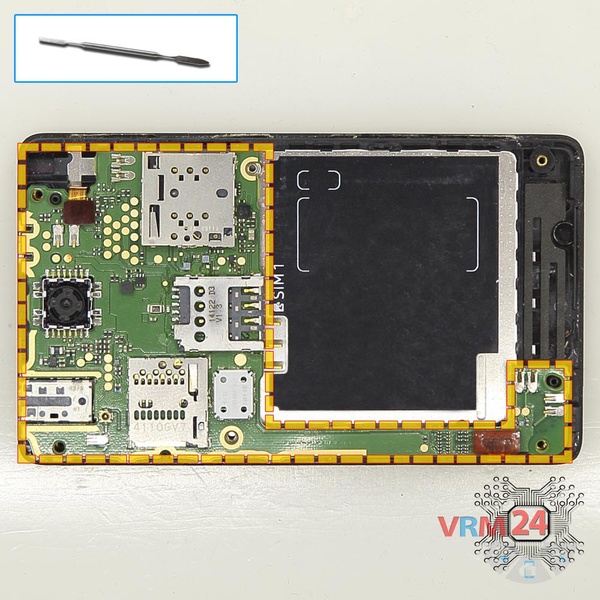

Remove the PCB.

How to disassemble Nokia Asha 502 RM-921, Step 8/1 How to disassemble Nokia Asha 502 RM-921, Step 8/2 How to disassemble Nokia Asha 502 RM-921, Step 8/3

Step 8.

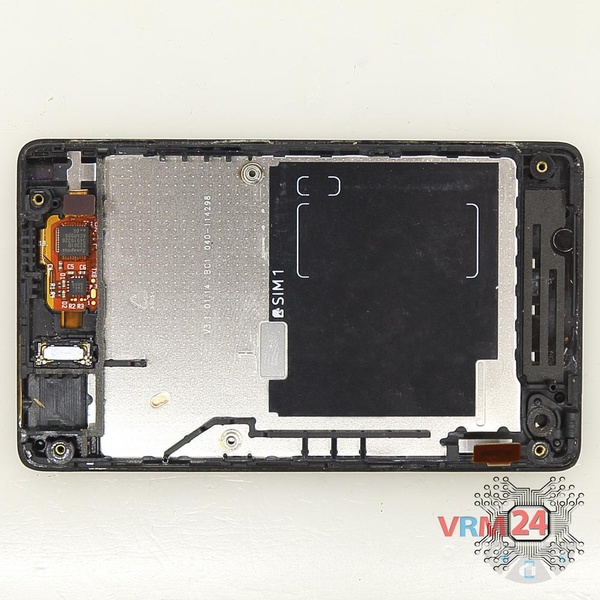

Parts are in the frame of the display module.

Detailed disassembly instructions of Nokia Asha 502 RM-921 in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

#instructions #Nokia #Nokia Asha 502 RM-921
Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer

Disassembling\Repair has easy complexity and takes about 3 minutes in time.
Our manual is suitable for all models Nokia Asha 502 RM-921 released for markets in different countries.
