Nokia C6 RM-612
Nokia C6 RM-612
Teardown difficulty:
Moderate
Duration:
8 min

Recommended tools

Screwdriver Torx T5 Screwdriver torx t5
Screwdriver Torx T6 Screwdriver torx t6
Opening tool / Spudger Opening tool / spudger
Tweezers Tweezers

Disassembly/Repair of the mobile device Nokia C6 RM-612 (Nokia C6-00 RM-612) with each step description and the required set of tools.

Vadim Popoff

Author, currently - Quality Assurance Specialist

How to disassemble Nokia C6 RM-612, Step 1/1 How to disassemble Nokia C6 RM-612, Step 1/2

Step 1.

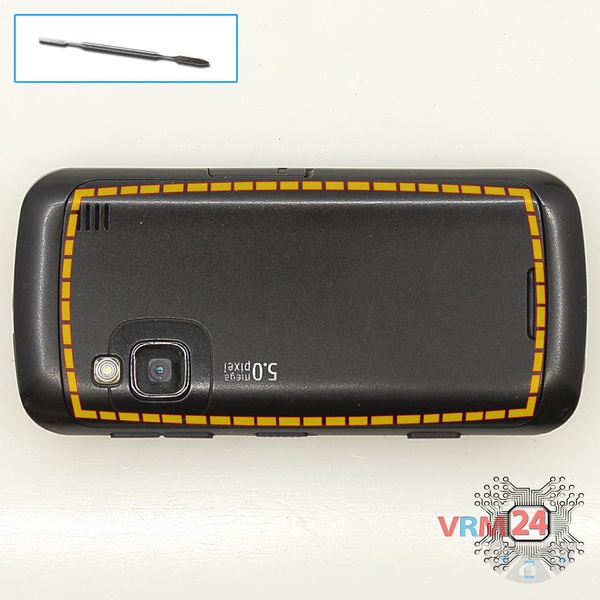

Open the back cover.

How to disassemble Nokia C6 RM-612, Step 2/1 How to disassemble Nokia C6 RM-612, Step 2/2

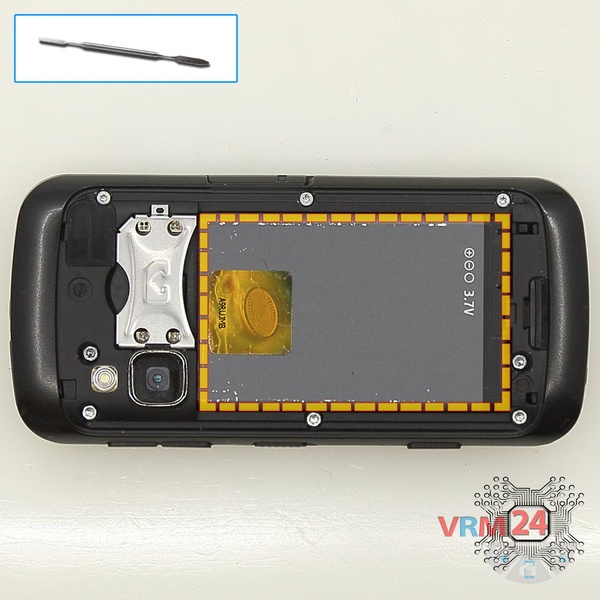

Step 2.

Lift and remove the battery.

How to disassemble Nokia C6 RM-612, Step 3/1 How to disassemble Nokia C6 RM-612, Step 3/2

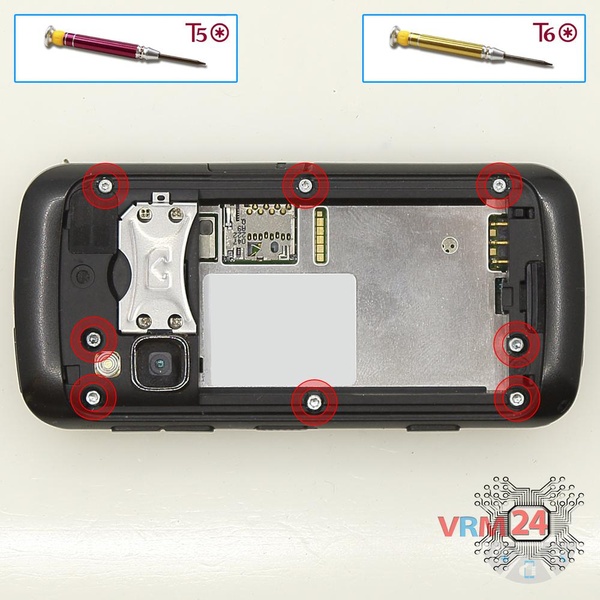

Step 3.

Using a screwdriver (hex T6), unscrew 5 bolts and screwdriver (hex T5) 3 bolts.

How to disassemble Nokia C6 RM-612, Step 4/1 How to disassemble Nokia C6 RM-612, Step 4/2

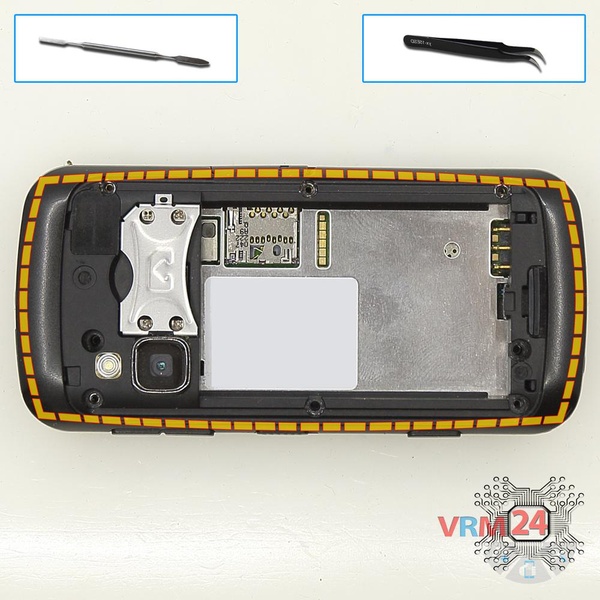

Step 4.

Pry and remove the middle frame and caps.

How to disassemble Nokia C6 RM-612, Step 5/1

Step 5.

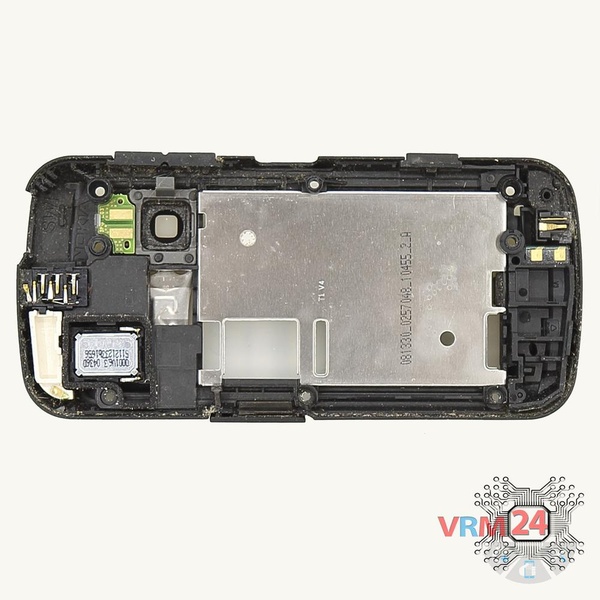

The middle frame with a headphone jack/socket, charging port and a speaker.

How to disassemble Nokia C6 RM-612, Step 6/1 How to disassemble Nokia C6 RM-612, Step 6/2

Step 6.

Disconnect the connector on the PCB.

How to disassemble Nokia C6 RM-612, Step 7/1 How to disassemble Nokia C6 RM-612, Step 7/2

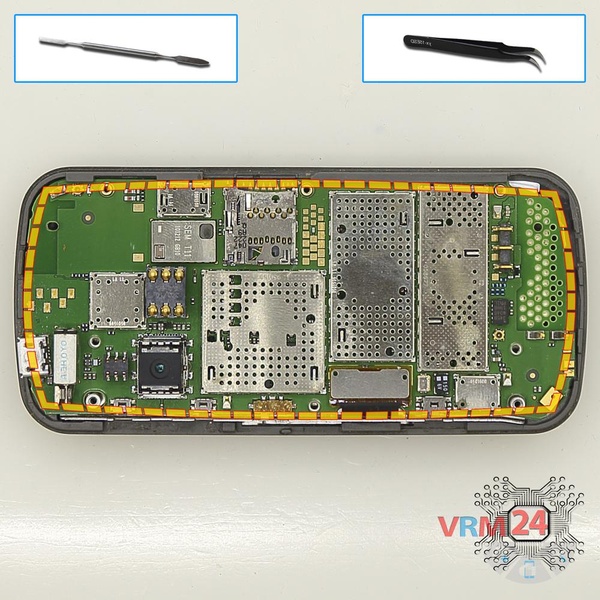

Step 7.

Remove the PCB.

How to disassemble Nokia C6 RM-612, Step 8/1 How to disassemble Nokia C6 RM-612, Step 8/2

Step 8.

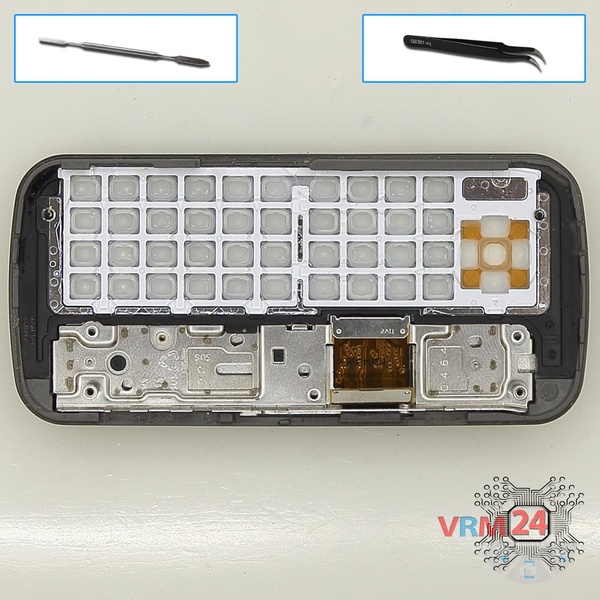

Remove the frame and keyboard.

How to disassemble Nokia C6 RM-612, Step 9/1 How to disassemble Nokia C6 RM-612, Step 9/2

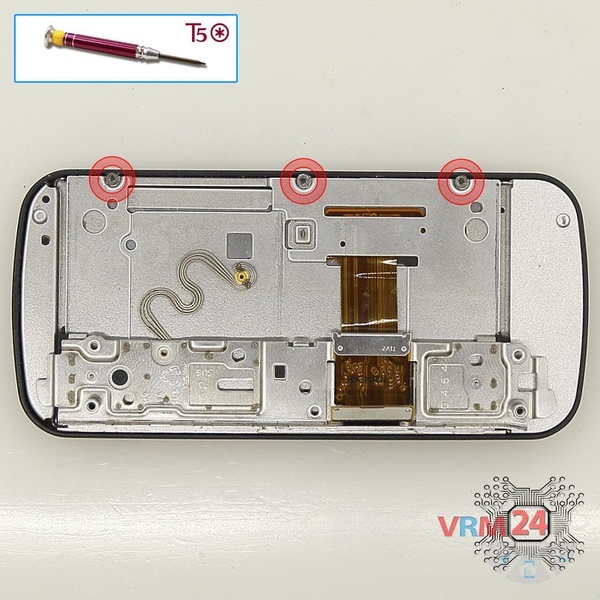

Step 9.

Using a screwdriver (hex T5), unscrew 3 bolts securing the front frame.

How to disassemble Nokia C6 RM-612, Step 10/1 How to disassemble Nokia C6 RM-612, Step 10/2 How to disassemble Nokia C6 RM-612, Step 10/3 How to disassemble Nokia C6 RM-612, Step 10/4

Step 10.

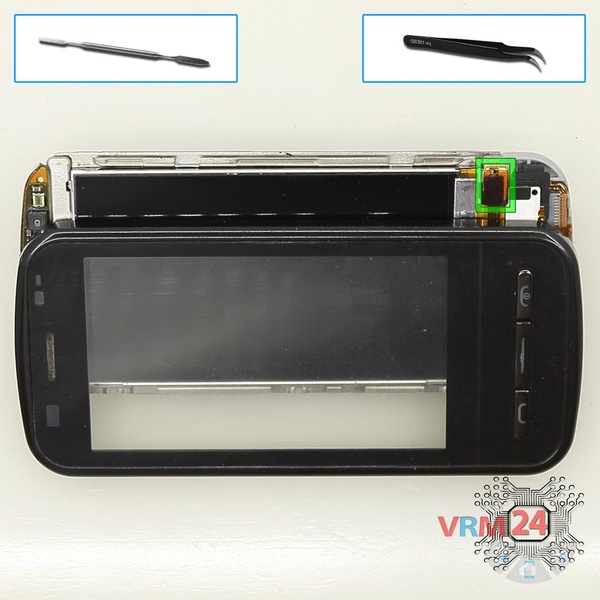

Lift up the front frame and disconnect connector and remove the frame.

How to disassemble Nokia C6 RM-612, Step 11/1 How to disassemble Nokia C6 RM-612, Step 11/2 How to disassemble Nokia C6 RM-612, Step 11/3 How to disassemble Nokia C6 RM-612, Step 11/4

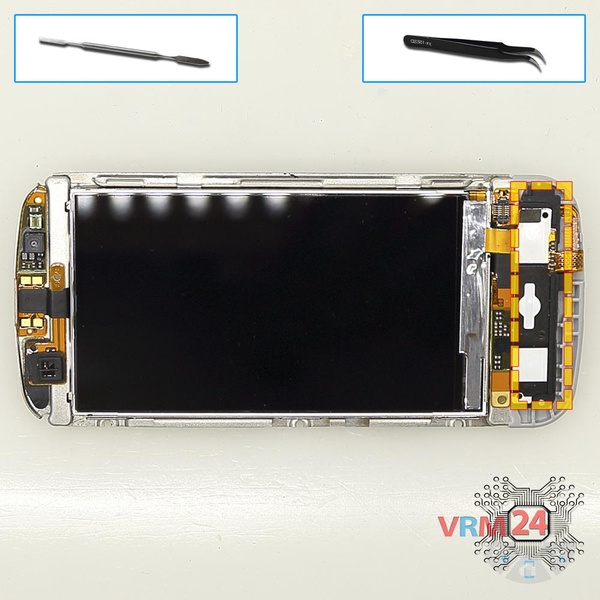

Step 11.

Lift up the buttons, disconnect the display connector and remove the display.

How to disassemble Nokia C6 RM-612, Step 12/1 How to disassemble Nokia C6 RM-612, Step 12/2 How to disassemble Nokia C6 RM-612, Step 12/3 How to disassemble Nokia C6 RM-612, Step 12/4

Step 12.

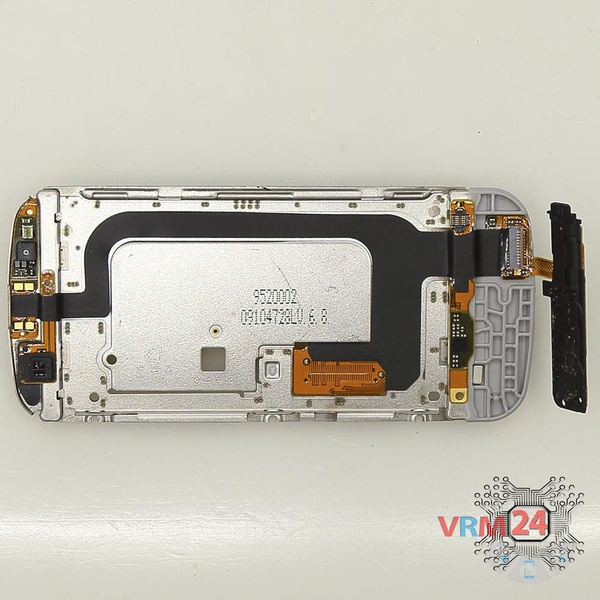

The middle frame.

Detailed disassembly instructions of Nokia C6 RM-612 in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

#instructions #Nokia #Nokia C6 RM-612
Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer

Disassembling\Repair has medium complexity and takes about 8 minutes in time.
Our manual is suitable for all models Nokia C6 RM-612 — Nokia C6-00 RM-612 released for markets in different countries.
