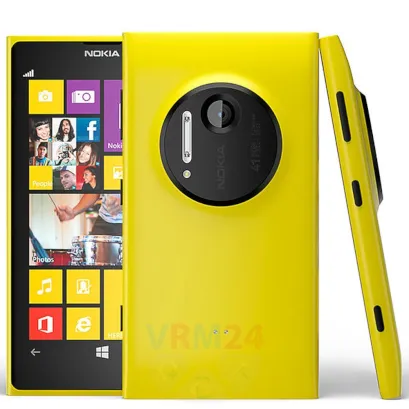

Disassembly/Repair of the mobile device Nokia Lumia 1020 RM-875 (Nokia EOS, Nokia 909, Nokia RM-877, Nokia RM-876) with each step description and the required set of tools.

Vadim Popoff

Specialist in content creation, distribution and content management.

How to disassemble Nokia Lumia 1020 RM-875, Step 1/1

Step 1.

Using the key tool, open the SIM card tray and remove it.

⚠️ Warning!

Do not push too hard this may cause damage.

How to disassemble Nokia Lumia 1020 RM-875, Step 2/1 How to disassemble Nokia Lumia 1020 RM-875, Step 2/2

Step 2.

Separate the display module, gently lift it up and disconnect the display and touchscreen connectors on the PCB and separate the case and display module.

How to disassemble Nokia Lumia 1020 RM-875, Step 3/1 How to disassemble Nokia Lumia 1020 RM-875, Step 3/2

Step 3.

Remove the long frame.

How to disassemble Nokia Lumia 1020 RM-875, Step 4/1 How to disassemble Nokia Lumia 1020 RM-875, Step 4/2

Step 4.

Using screwdrivers (hex T5), unscrew 1 bolts and (hex T3), unscrew 2 bolts and remove the metal frame.

How to disassemble Nokia Lumia 1020 RM-875, Step 5/1 How to disassemble Nokia Lumia 1020 RM-875, Step 5/2

Step 5.

Using a screwdriver (hex T3), unscrew 1 bolt in the PCB.

How to disassemble Nokia Lumia 1020 RM-875, Step 6/1 How to disassemble Nokia Lumia 1020 RM-875, Step 6/2 How to disassemble Nokia Lumia 1020 RM-875, Step 6/3

Step 6.

Disconnect the connector on PCB and remove the assembly - included of headphone jack/socket and power button.

How to disassemble Nokia Lumia 1020 RM-875, Step 7/1 How to disassemble Nokia Lumia 1020 RM-875, Step 7/2

Step 7.

Disconnect the connector on PCB, and remove the main camera.

How to disassemble Nokia Lumia 1020 RM-875, Step 8/1 How to disassemble Nokia Lumia 1020 RM-875, Step 8/2

Step 8.

Disconnect the connector on PCB and remove the battery.

How to disassemble Nokia Lumia 1020 RM-875, Step 9/1 How to disassemble Nokia Lumia 1020 RM-875, Step 9/2

Step 9.

Using a screwdriver (hex T3), unscrew 3 bolts on the PCB.

⚠️ Warning!

One of the bolts locates under the cable. In order to unscrew it, you need to disconnect the connector and carefully unbend the cable.

How to disassemble Nokia Lumia 1020 RM-875, Step 10/1 How to disassemble Nokia Lumia 1020 RM-875, Step 10/2

Step 10.

Remove the PCB.

How to disassemble Nokia Lumia 1020 RM-875, Step 11/1 How to disassemble Nokia Lumia 1020 RM-875, Step 11/2

Step 11.

Using a screwdriver (hex T3), unscrew 4 bolts in the cover.

How to disassemble Nokia Lumia 1020 RM-875, Step 12/1 How to disassemble Nokia Lumia 1020 RM-875, Step 12/2

Step 12.

Remove the cover with flash.

How to disassemble Nokia Lumia 1020 RM-875, Step 13/1 How to disassemble Nokia Lumia 1020 RM-875, Step 13/2 How to disassemble Nokia Lumia 1020 RM-875, Step 13/3

Step 13.

Parts are in the housing\case.

Detailed disassembly instructions of Nokia Lumia 1020 RM-875 in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

#instructions #Nokia #Nokia Lumia 1020 RM-875
Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer

Disassembling\Repair has medium complexity and takes about 6 minutes in time.
Our manual is suitable for all models Nokia Lumia 1020 RM-875 — Nokia EOS, Nokia 909, Nokia RM-877, Nokia RM-876 released for markets in different countries.
