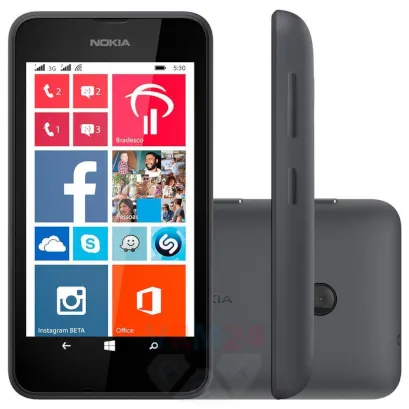

Disassembly/Repair of the mobile device Nokia Lumia 530 RM 1017 (Nokia Lumia 530 RM 1019) with each step description and the required set of tools.


Specialist in content creation, distribution and content management.


How to disassemble Nokia Lumia 530 RM 1017, Step 1/1 How to disassemble Nokia Lumia 530 RM 1017, Step 1/2

Step 1.

Open the back cover.


How to disassemble Nokia Lumia 530 RM 1017, Step 2/1 How to disassemble Nokia Lumia 530 RM 1017, Step 2/2

Step 2.

Lift and remove the battery.


How to disassemble Nokia Lumia 530 RM 1017, Step 3/1 How to disassemble Nokia Lumia 530 RM 1017, Step 3/2

Step 3.

Using screwdrivers (hex T3 & hex T6), unscrew 9 bolts in the frame of the phone.


How to disassemble Nokia Lumia 530 RM 1017, Step 4/1 How to disassemble Nokia Lumia 530 RM 1017, Step 4/2

Step 4.

Pry and remove the middle frame.


How to disassemble Nokia Lumia 530 RM 1017, Step 5/1 How to disassemble Nokia Lumia 530 RM 1017, Step 5/2 How to disassemble Nokia Lumia 530 RM 1017, Step 5/3

Step 5.

Disconnect connector on the PCB and remove the PCB.


How to disassemble Nokia Lumia 530 RM 1017, Step 6/1 How to disassemble Nokia Lumia 530 RM 1017, Step 6/2 How to disassemble Nokia Lumia 530 RM 1017, Step 6/3

Step 6.

Parts are in the frame of the display module.

Detailed disassembly instructions of Nokia Lumia 530 RM 1017 in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.


Disassembling\Repair has easy complexity and takes about 3 minutes in time.
Our manual is suitable for all models Nokia Lumia 530 RM 1017 — Nokia Lumia 530 RM 1019 released for markets in different countries.
