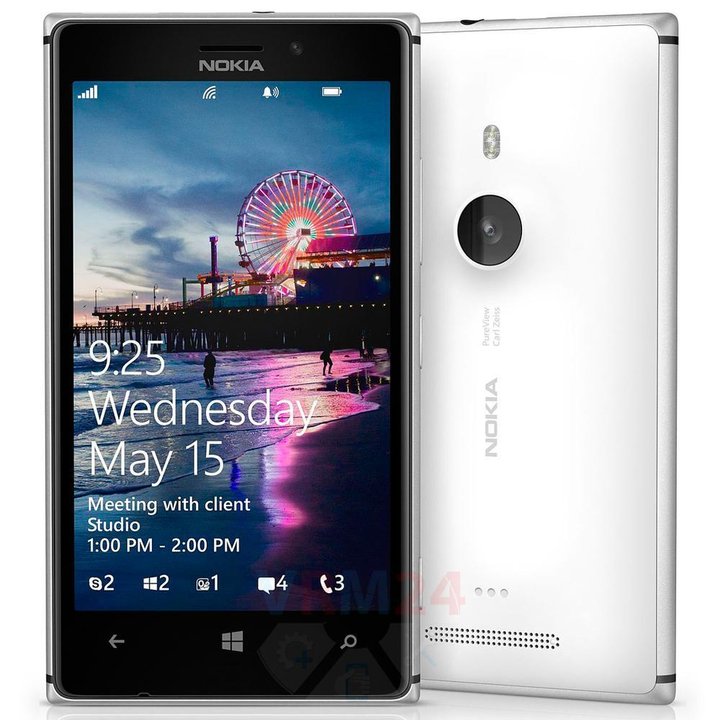

Nokia Lumia 925 RM-892
Nokia Lumia 925 RM-892
Teardown difficulty:
Easy
Duration:
4 min

Recommended tools

Screwdriver Torx T3 Screwdriver torx t3
Screwdriver Torx T5 Screwdriver torx t5
Opening tool / Spudger Opening tool / spudger
Tweezers Tweezers

Disassembly/Repair of the mobile device Nokia Lumia 925 RM-892 with each step description and the required set of tools.

Vadim Popoff

Author, currently - Quality Assurance Specialist

How to disassemble Nokia Lumia 925 RM-892, Step 1/1 How to disassemble Nokia Lumia 925 RM-892, Step 1/2

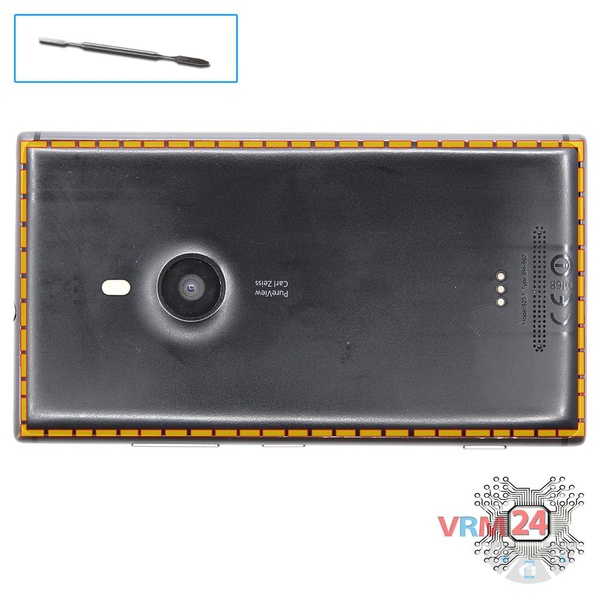

Step 1.

Open the back cover.

How to disassemble Nokia Lumia 925 RM-892, Step 2/1 How to disassemble Nokia Lumia 925 RM-892, Step 2/2

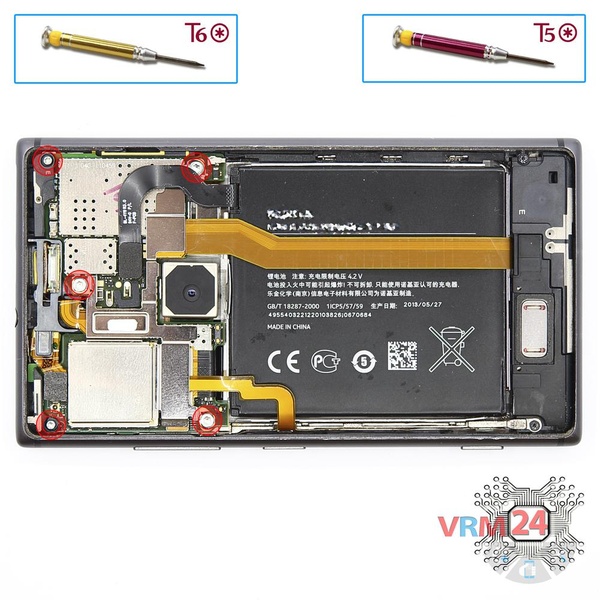

Step 2.

Using a screwdriver (hex T6), unscrew 3 bolts and remove the bracket holding connectors. Also, using a screwdriver (hex T5), unscrew 2 bolts in PCB.

How to disassemble Nokia Lumia 925 RM-892, Step 3/1 How to disassemble Nokia Lumia 925 RM-892, Step 3/2 How to disassemble Nokia Lumia 925 RM-892, Step 3/3

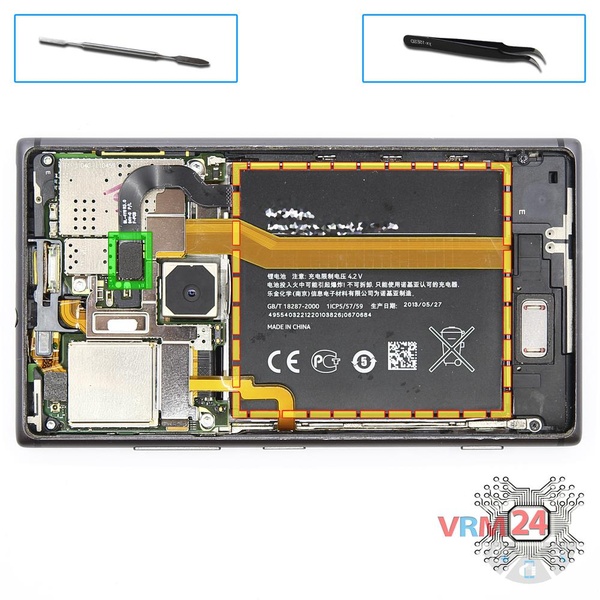

Step 3.

Disconnect connector on the PCB and remove the battery.

How to disassemble Nokia Lumia 925 RM-892, Step 4/1 How to disassemble Nokia Lumia 925 RM-892, Step 4/2

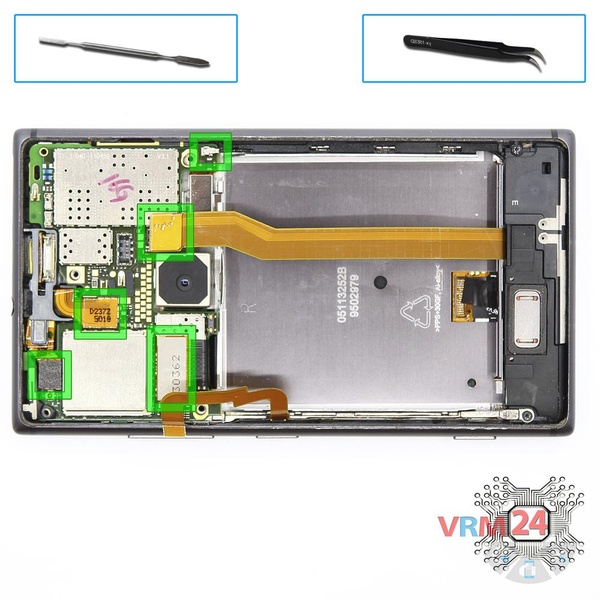

Step 4.

Disconnect connectors on the PCB.

How to disassemble Nokia Lumia 925 RM-892, Step 5/1 How to disassemble Nokia Lumia 925 RM-892, Step 5/2

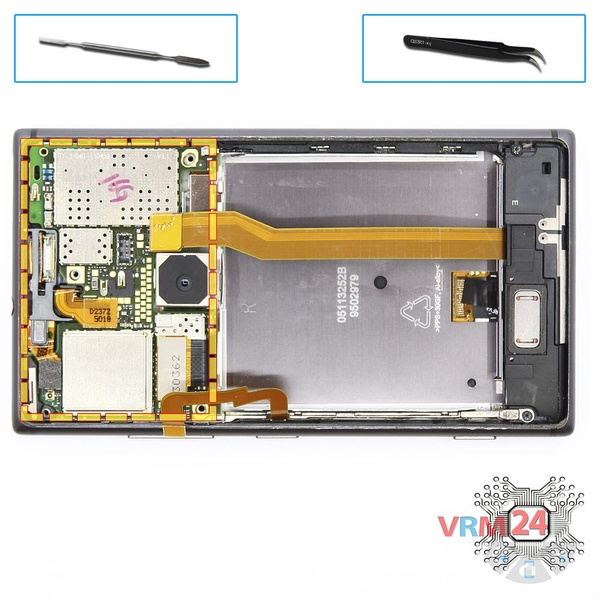

Step 5.

Remove the PCB.

How to disassemble Nokia Lumia 925 RM-892, Step 6/1 How to disassemble Nokia Lumia 925 RM-892, Step 6/2

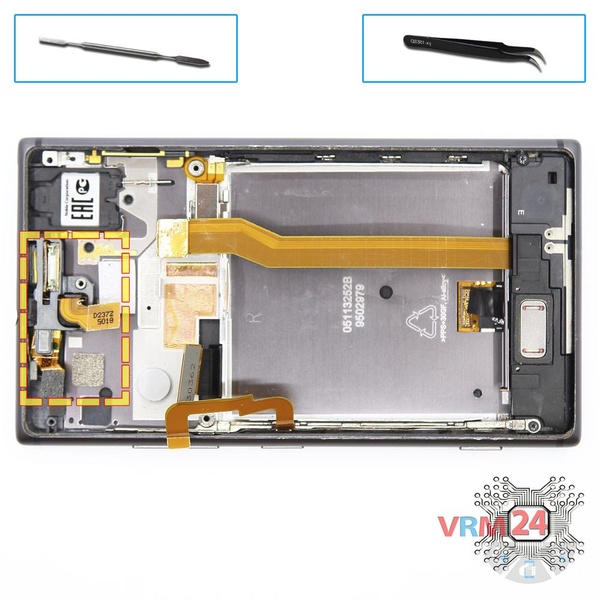

Step 6.

Pry and remove hte front (selfie) camera and a metal frame.

How to disassemble Nokia Lumia 925 RM-892, Step 7/1 How to disassemble Nokia Lumia 925 RM-892, Step 7/2

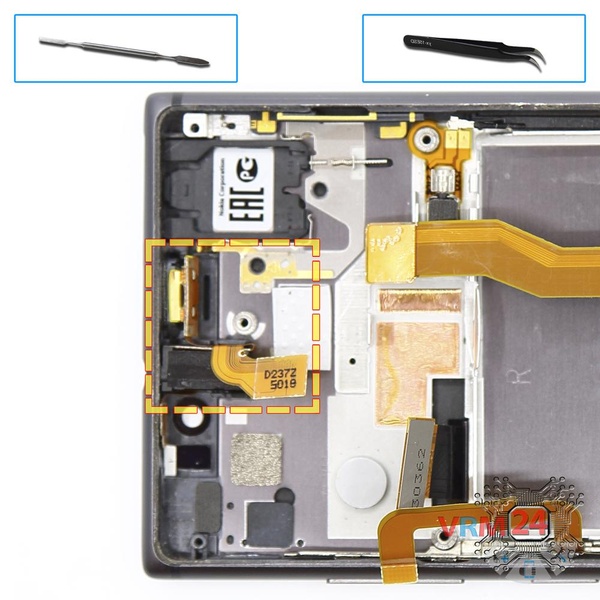

Step 7.

Remove the cable with headphone jack/socket and power button.

How to disassemble Nokia Lumia 925 RM-892, Step 8/1 How to disassemble Nokia Lumia 925 RM-892, Step 8/2

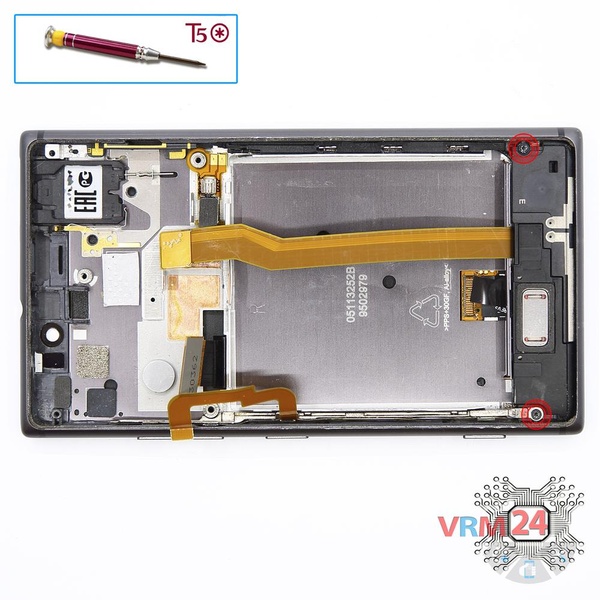

Step 8.

Using a screwdriver (hex T5), unscrew the 2 bolts.

How to disassemble Nokia Lumia 925 RM-892, Step 9/1 How to disassemble Nokia Lumia 925 RM-892, Step 9/2

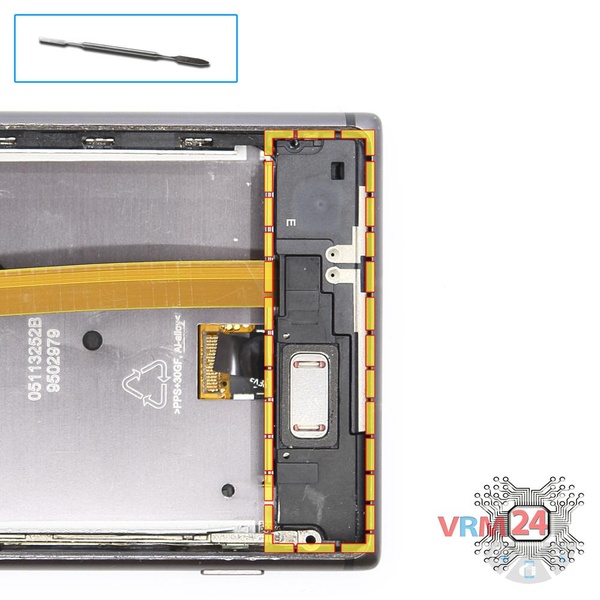

Step 9.

Pry and remove the buzzer (speaker) assembly.

How to disassemble Nokia Lumia 925 RM-892, Step 10/1 How to disassemble Nokia Lumia 925 RM-892, Step 10/2

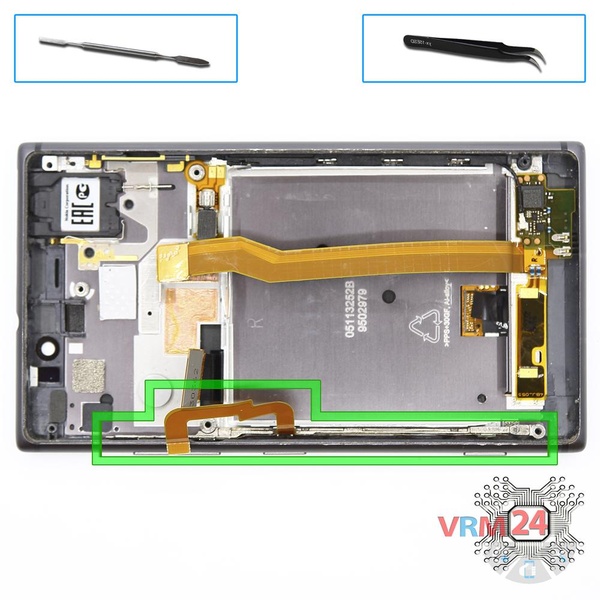

Step 10.

Remove the cable with on\of, volume -\+, and camera buttons.

How to disassemble Nokia Lumia 925 RM-892, Step 11/1 How to disassemble Nokia Lumia 925 RM-892, Step 11/2

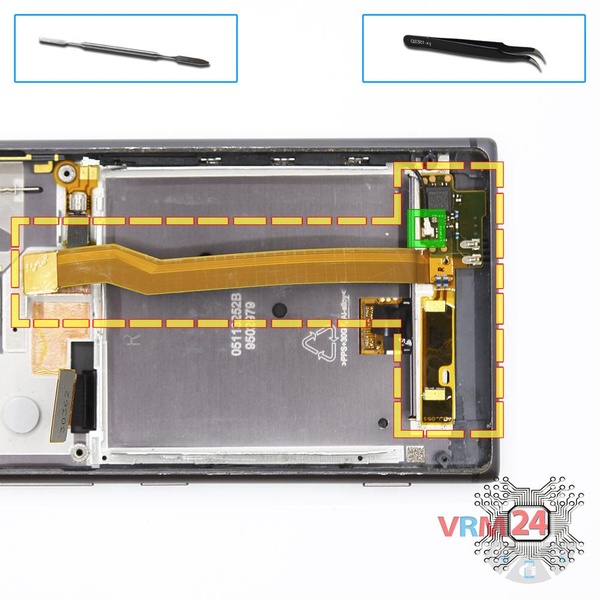

Step 11.

Disconnect the coaxial cable connector and remove the board with inter-board cable.

How to disassemble Nokia Lumia 925 RM-892, Step 12/1 How to disassemble Nokia Lumia 925 RM-892, Step 12/2 How to disassemble Nokia Lumia 925 RM-892, Step 12/3

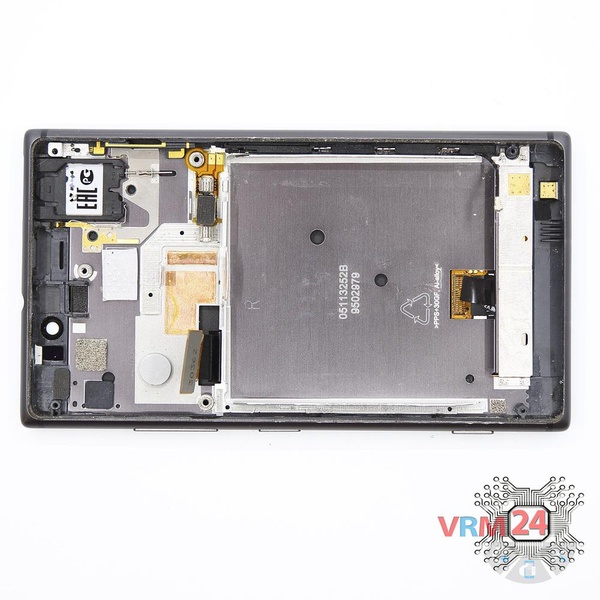

Step 12.

Parts are in the frame of the display module.

Detailed disassembly instructions of Nokia Lumia 925 RM-892 in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

#instructions #Nokia #Nokia Lumia 925 RM-892
Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer

Disassembling\Repair has easy complexity and takes about 4 minutes in time.
Our manual is suitable for all models Nokia Lumia 925 RM-892 released for markets in different countries.
