Nokia Lumia 930 RM-1045
Nokia Lumia 930 RM-1045
Teardown difficulty:
Easy
Duration:
6 min

Recommended tools

Screwdriver Torx T4 Screwdriver torx t4
Opening tool / Spudger Opening tool / spudger
Tweezers Tweezers

Disassembly/Repair of the mobile device Nokia Lumia 930 RM-1045 with each step description and the required set of tools.

Vadim Popoff

Specialist in content creation, distribution and content management.

How to disassemble Nokia Lumia 930 RM-1045, Step 1/1 How to disassemble Nokia Lumia 930 RM-1045, Step 1/2

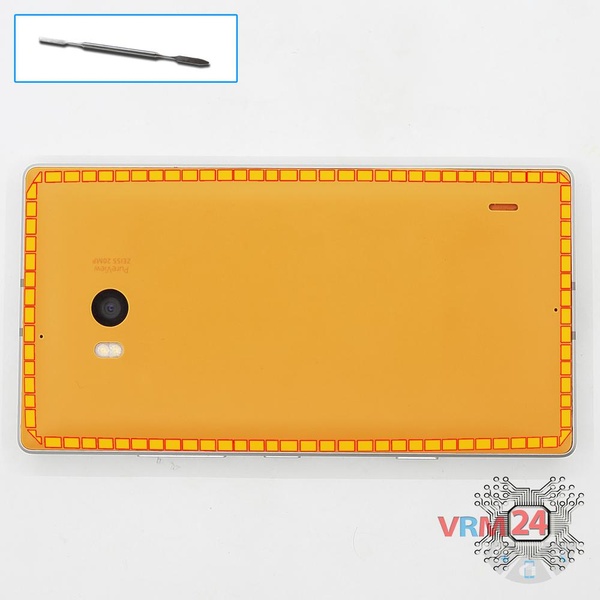

Step 1.

Open the back cover.

How to disassemble Nokia Lumia 930 RM-1045, Step 2/1 How to disassemble Nokia Lumia 930 RM-1045, Step 2/2

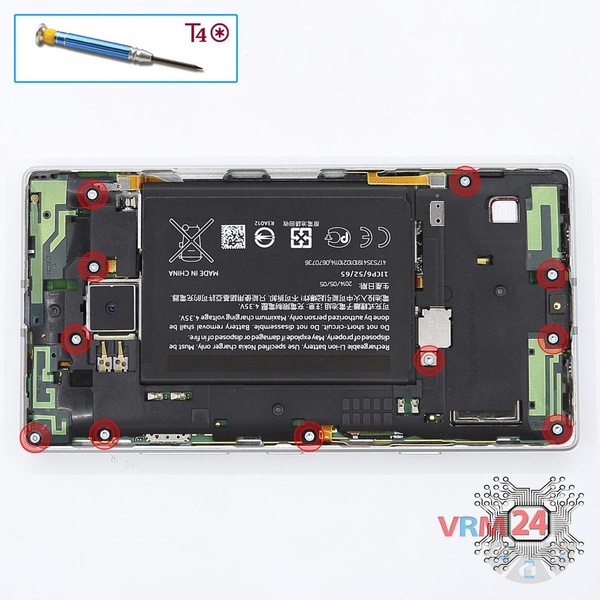

Step 2.

Using a screwdriver (hex T4), unscrew 11 bolts in the frame of the phone. Remove the the bracket holding the battery connector.

How to disassemble Nokia Lumia 930 RM-1045, Step 3/1 How to disassemble Nokia Lumia 930 RM-1045, Step 3/2

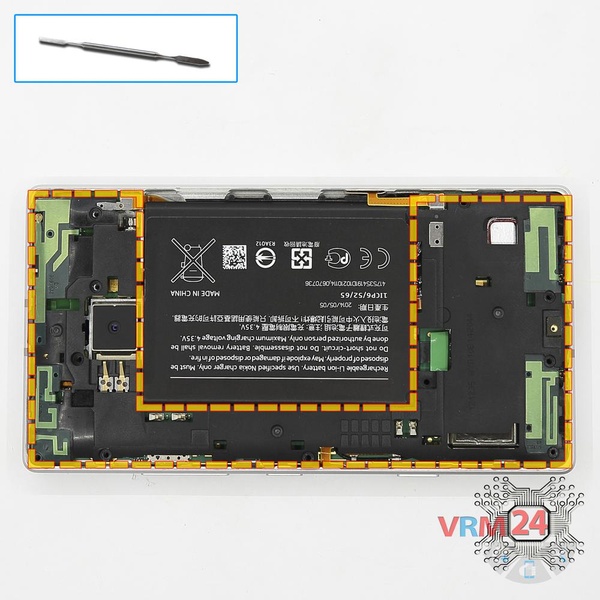

Step 3.

Pry and remove the middle frame.

How to disassemble Nokia Lumia 930 RM-1045, Step 4/1 How to disassemble Nokia Lumia 930 RM-1045, Step 4/2

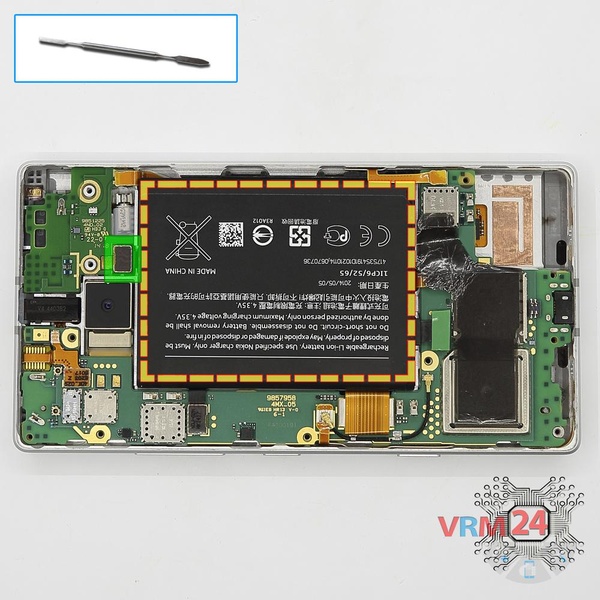

Step 4.

Disconnect connector on the PCB and remove the battery.

⚠️ Warning!

For careful separation, we recommend using a heat gun. At the same time, it is necessary to heat carefully in order, not to damage the surface of the device.

How to disassemble Nokia Lumia 930 RM-1045, Step 5/1 How to disassemble Nokia Lumia 930 RM-1045, Step 5/2 How to disassemble Nokia Lumia 930 RM-1045, Step 5/3

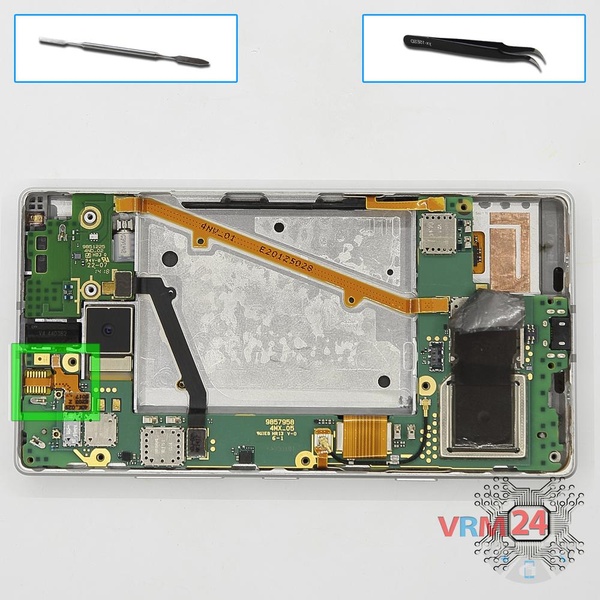

Step 5.

Disconnect connector on the PCB and remove the front (selfie) camera.

How to disassemble Nokia Lumia 930 RM-1045, Step 6/1 How to disassemble Nokia Lumia 930 RM-1045, Step 6/2 How to disassemble Nokia Lumia 930 RM-1045, Step 6/3

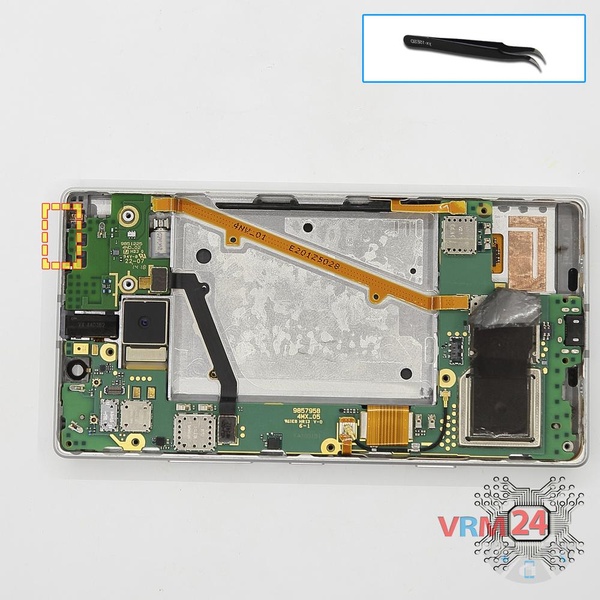

Step 6.

Using the tweezers, open the SIM card tray and remove it.

⚠️ Warning!

Do not push too hard this may cause damage.

How to disassemble Nokia Lumia 930 RM-1045, Step 7/1 How to disassemble Nokia Lumia 930 RM-1045, Step 7/2 How to disassemble Nokia Lumia 930 RM-1045, Step 7/3

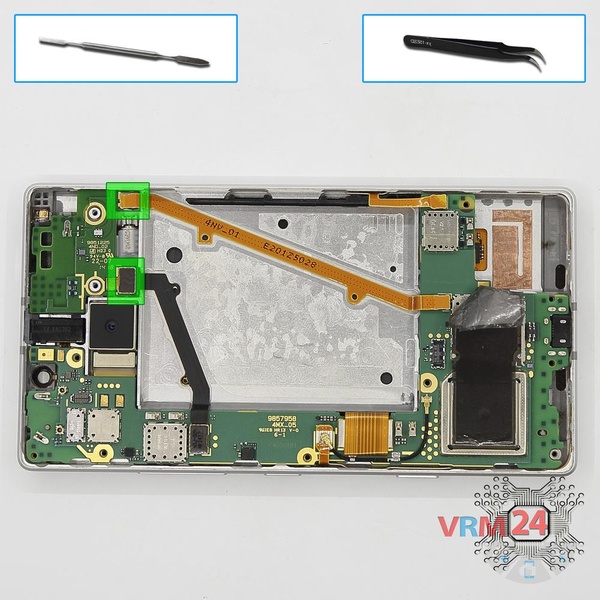

Step 7.

Disconnect connectors on the small PCB with Sim holder.

How to disassemble Nokia Lumia 930 RM-1045, Step 8/1 How to disassemble Nokia Lumia 930 RM-1045, Step 8/2 How to disassemble Nokia Lumia 930 RM-1045, Step 8/3 How to disassemble Nokia Lumia 930 RM-1045, Step 8/4

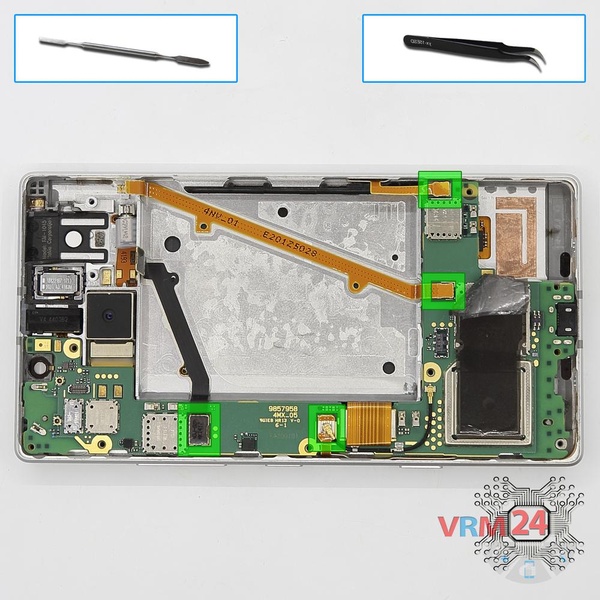

Step 8.

Disconnect connectors on the PCB and remove it.

How to disassemble Nokia Lumia 930 RM-1045, Step 9/1 How to disassemble Nokia Lumia 930 RM-1045, Step 9/2 How to disassemble Nokia Lumia 930 RM-1045, Step 9/3

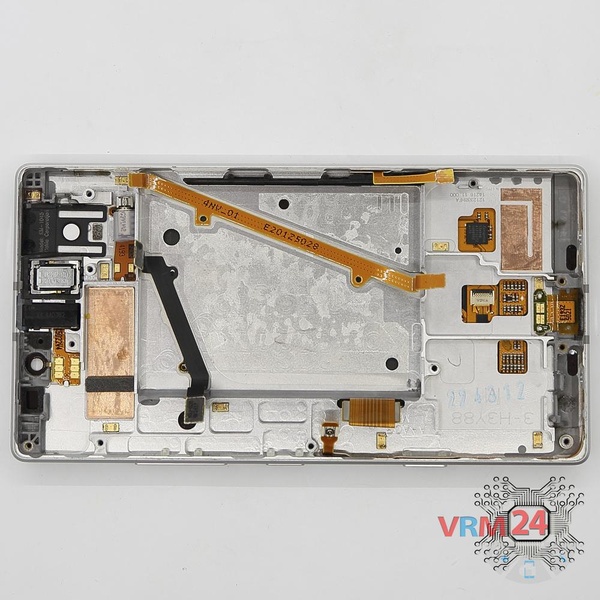

Step 9.

Parts are in the frame of the display module.

Detailed disassembly instructions of Nokia Lumia 930 RM-1045 in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

#instructions #Nokia #Nokia Lumia 930 RM-1045
Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer

Disassembling\Repair has easy complexity and takes about 6 minutes in time.
Our manual is suitable for all models Nokia Lumia 930 RM-1045 released for markets in different countries.
