Nokia N8 RM-596
Nokia N8 RM-596
Teardown difficulty:
Easy
Duration:
4 min

Recommended tools

Screwdriver Torx T4 Screwdriver torx t4
Screwdriver Torx T5 Screwdriver torx t5
Screwdriver Torx T6 Screwdriver torx t6
Opening tool / Spudger Opening tool / spudger
Tweezers Tweezers

Disassembly/Repair of the mobile device Nokia N8 RM-596 (Nokia N8-00 RM-596) with each step description and the required set of tools.

Vadim Popoff

Specialist in content creation, distribution and content management.

How to disassemble Nokia N8 RM-596, Step 1/1 How to disassemble Nokia N8 RM-596, Step 1/2

Step 1.

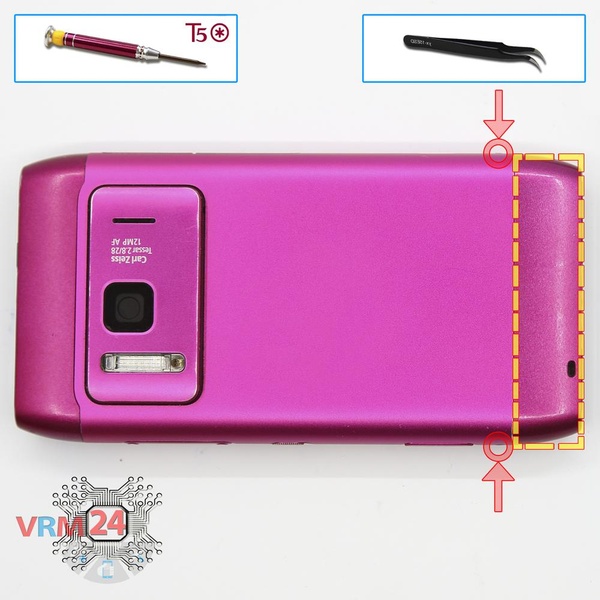

Using a screwdriver (hex T5), unscrew 2 bolts on the sides of the phone. Remove the bottom cover and pull the battery out.

How to disassemble Nokia N8 RM-596, Step 2/1 How to disassemble Nokia N8 RM-596, Step 2/2

Step 2.

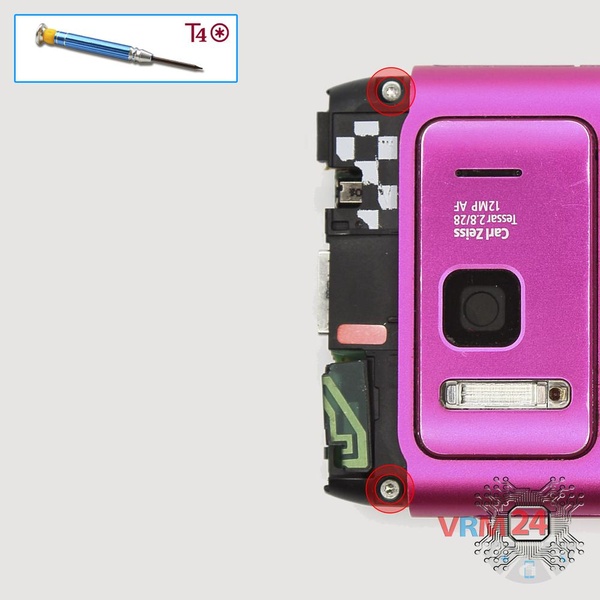

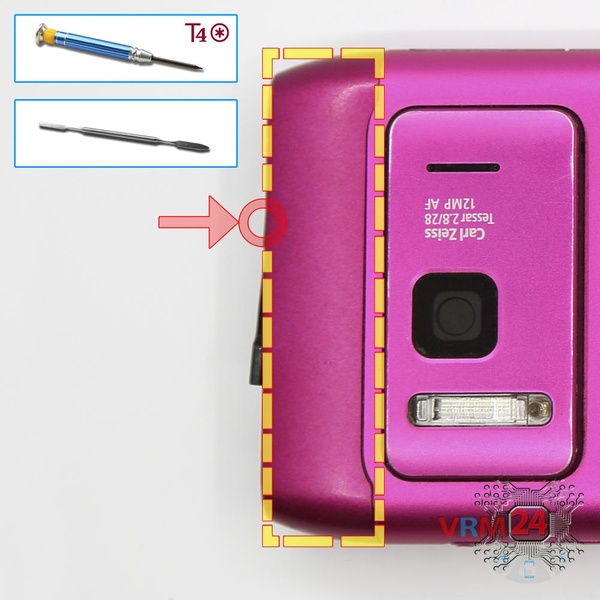

Using a screwdriver (hex T4), unscrew 1 bolt and remove the upper cover.

How to disassemble Nokia N8 RM-596, Step 3/1 How to disassemble Nokia N8 RM-596, Step 3/2 How to disassemble Nokia N8 RM-596, Step 3/3

Step 3.

Using a screwdriver (hex T4), unscrew 4 bolts securing the display module.

How to disassemble Nokia N8 RM-596, Step 4/1 How to disassemble Nokia N8 RM-596, Step 4/2

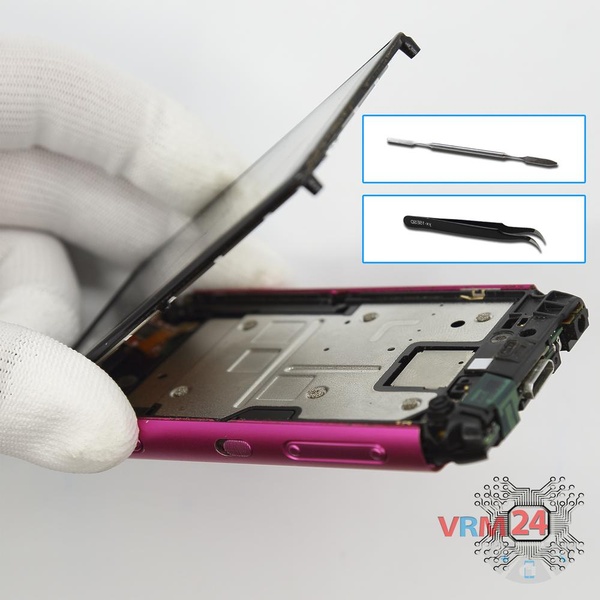

Step 4.

Lidt the display up. Disconnect connectors and remove the display module.

How to disassemble Nokia N8 RM-596, Step 5/1 How to disassemble Nokia N8 RM-596, Step 5/2

Step 5.

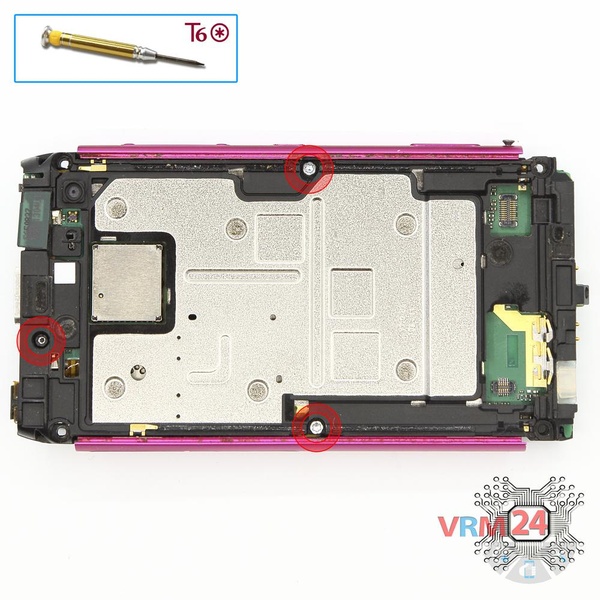

Using a screwdriver (hex T6), unscrew 3 bolts.

How to disassemble Nokia N8 RM-596, Step 6/1 How to disassemble Nokia N8 RM-596, Step 6/2

Step 6.

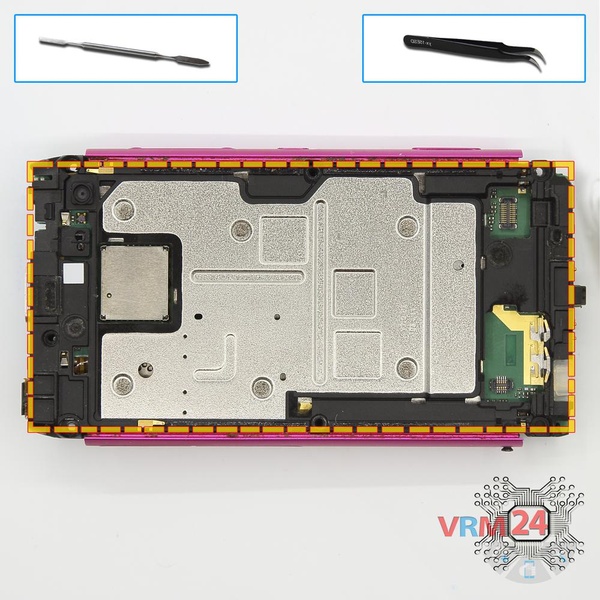

Pry and remove the middle frame.

How to disassemble Nokia N8 RM-596, Step 7/1

Step 7.

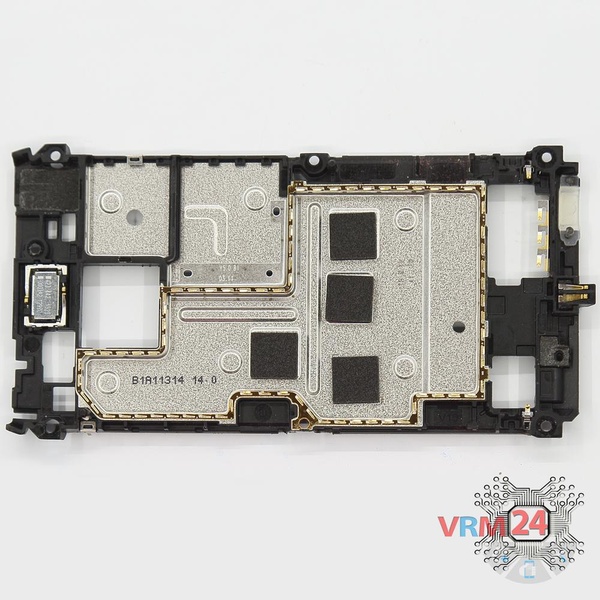

The middle frame.

How to disassemble Nokia N8 RM-596, Step 8/1 How to disassemble Nokia N8 RM-596, Step 8/2

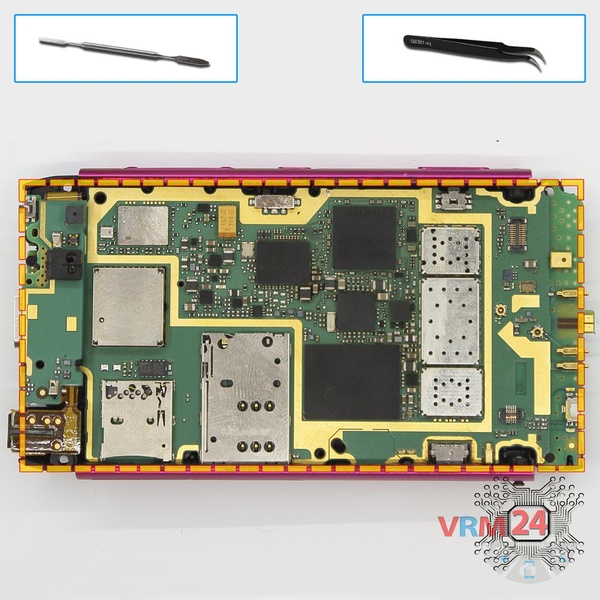

Step 8.

Remove the PCB.

How to disassemble Nokia N8 RM-596, Step 9/1

Step 9.

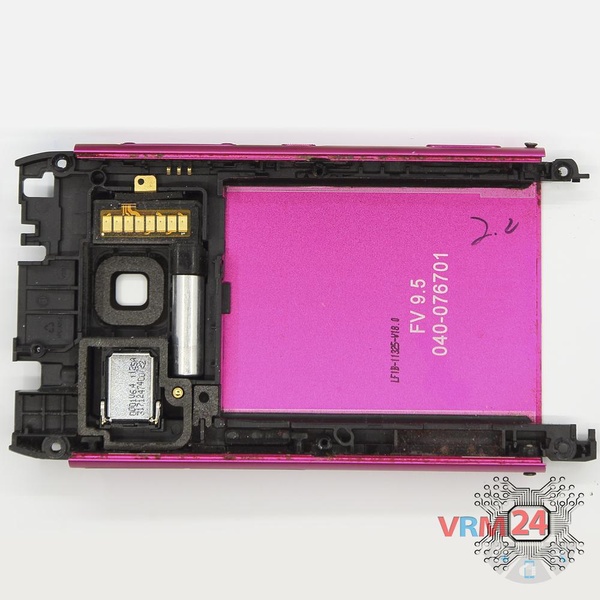

The cover with speaker and flash.

Detailed disassembly instructions of Nokia N8 RM-596 in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

#instructions #Nokia #Nokia N8 RM-596
Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer

Disassembling\Repair has easy complexity and takes about 4 minutes in time.
Our manual is suitable for all models Nokia N8 RM-596 — Nokia N8-00 RM-596 released for markets in different countries.
