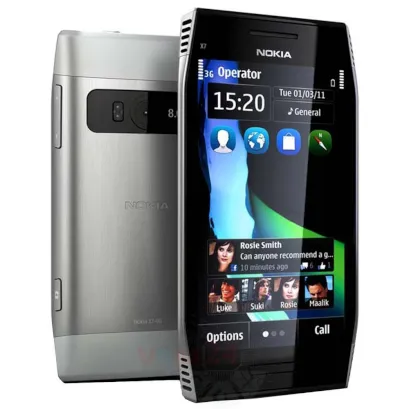

Nokia X7 (X7-00) RM-707

Teardown difficulty:
Hard

Duration:
8 min

Recommended tools

Screwdriver torx t5

Screwdriver phillips #000

Opening tool / spudger

Tweezers

Disassembly/Repair of the mobile device Nokia X7 (X7-00) RM-707 with each step description and the required set of tools.

Vadim Popoff

Author, content manager

Specialist in content creation, distribution and content management.

How to disassemble Nokia X7 RM-707, Step 1/1

How to disassemble Nokia X7 RM-707, Step 1/2

Step 1.

Using the tweezers, open the SIM and MMC cards tray and remove them.

How to disassemble Nokia X7 RM-707, Step 2/1

How to disassemble Nokia X7 RM-707, Step 2/2

Step 2.

Remove (unstick) the top covers.

How to disassemble Nokia X7 RM-707, Step 3/1

How to disassemble Nokia X7 RM-707, Step 3/2

Step 3.

Remove (unstick) the bottom cover.

How to disassemble Nokia X7 RM-707, Step 4/1

How to disassemble Nokia X7 RM-707, Step 4/2

Step 4.

Using a screwdriver (hex T5), unscrew 2 bolts on the top of the phone.

How to disassemble Nokia X7 RM-707, Step 5/1

How to disassemble Nokia X7 RM-707, Step 5/2

Step 5.

Using a screwdriver (hex T5), unscrew 2 bolts on the end of the phone.

How to disassemble Nokia X7 RM-707, Step 6/1

How to disassemble Nokia X7 RM-707, Step 6/2

Step 6.

Pry & remove the upper cover.

How to disassemble Nokia X7 RM-707, Step 7/1

How to disassemble Nokia X7 RM-707, Step 7/2

Step 7.

Using a screwdriver (hex T5), unscrew 2 bolts.

How to disassemble Nokia X7 RM-707, Step 8/1

How to disassemble Nokia X7 RM-707, Step 8/2

Step 8.

Remove the two stainless steel stick.

How to disassemble Nokia X7 RM-707, Step 9/1

How to disassemble Nokia X7 RM-707, Step 9/2

Step 9.

Pry ou the touchscreen connector.

How to disassemble Nokia X7 RM-707, Step 10/1

How to disassemble Nokia X7 RM-707, Step 10/2

Step 10.

Remove the frame with touchscreen.

⚠️ Warning!

For careful separation, we recommend using a heat gun. At the same time, it is necessary to heat carefully in order, not to damage the surface of the device.

How to disassemble Nokia X7 RM-707, Step 11/1

How to disassemble Nokia X7 RM-707, Step 11/2

Step 11.

Separate the display module from the cover.

⚠️ Warning!

For careful separation, we recommend using a heat gun. At the same time, it is necessary to heat carefully in order, not to damage the surface of the device.

Display connector located on the inside.

How to disassemble Nokia X7 RM-707, Step 12/1

How to disassemble Nokia X7 RM-707, Step 12/2

Step 12.

Using a screwdrivers (Phillips 1.5 mm PH000), unscrew 3 bolts and (hex T5), unscrew 3 bolts.

How to disassemble Nokia X7 RM-707, Step 13/1

How to disassemble Nokia X7 RM-707, Step 13/2

Step 13.

Remove the lower cover.

How to disassemble Nokia X7 RM-707, Step 14/1

How to disassemble Nokia X7 RM-707, Step 14/2

Step 14.

Remove the back cover with headphone jack/socket.

How to disassemble Nokia X7 RM-707, Step 15/1

How to disassemble Nokia X7 RM-707, Step 15/2

Step 15.

Remove the battery.

How to disassemble Nokia X7 RM-707, Step 16/1

How to disassemble Nokia X7 RM-707, Step 16/2

Step 16.

Remove the cover hiding the chips.

How to disassemble Nokia X7 RM-707, Step 17/1

How to disassemble Nokia X7 RM-707, Step 17/2

Step 17.

Remove the PCB.

How to disassemble Nokia X7 RM-707, Step 18/1

How to disassemble Nokia X7 RM-707, Step 18/2

How to disassemble Nokia X7 RM-707, Step 18/3

Step 18.

The frame with speakers and contacts.

Detailed disassembly instructions of Nokia X7 (X7-00) RM-707 in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

#instructions #Nokia #Nokia X7 (X7-00) RM-707

Evgenii Kuzmin

Senior maintenance service and repair engineer

Disassembling\Repair has hard complexity and takes about 8 minutes in time.
