Teardown difficulty:
Moderate
Duration:
22 min

Recommended tools

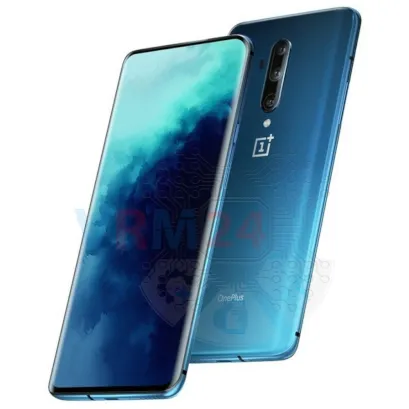

Disassembly/Repair of the mobile device OnePlus 7 Pro with each step description and the required set of tools.


Specialist in content creation, distribution and content management.


How to disassemble OnePlus 7 Pro, Step 1/1 How to disassemble OnePlus 7 Pro, Step 1/2

Step 1. Before disassembling!

⚠ī¸ Before disassembling, do not forget to turn your phone off.


How to disassemble OnePlus 7 Pro, Step 2/1 How to disassemble OnePlus 7 Pro, Step 2/2 How to disassemble OnePlus 7 Pro, Step 2/3 How to disassemble OnePlus 7 Pro, Step 2/4

Step 2. Remove the tray

Use the ejection tool (aka Needle) or Paperclip. Push the tip all the way into the hole until the tray ejects, and then pull the tray of SIM cards out.

⚠ī¸ Pay attention! The tool must be inserted into a hole on the edge of the phone's housing. Do not press too hard. It may break the tray eject mechanism.


How to disassemble OnePlus 7 Pro, Step 3/1 How to disassemble OnePlus 7 Pro, Step 3/2 How to disassemble OnePlus 7 Pro, Step 3/3 How to disassemble OnePlus 7 Pro, Step 3/4

Step 3. Open the back cover

We recommend using a special heating device such as a separator machine, heat gun, or heating mat. It will simplify the process. You can use a home hairdryer, but you will have to make a nozzle by hand or have a suitable one in the kit to gently heat and concentrate the heat flow in the right place.

ℹī¸ī¸ The surface of the back cover must be heated to soften the adhesive underneath. The approximate heating temperature is 50° C / 125° F.

Use a thin plastic film or pick for separation. To facilitate the process, you can use isopropyl alcohol. It is often most difficult to pass the tool between the parts to be divided. Choose the far edge from the FFC cables or buttons.

Do not use a lever or any force for separation that could damage the elements inside.


How to disassemble OnePlus 7 Pro, Step 4/1 How to disassemble OnePlus 7 Pro, Step 4/2 How to disassemble OnePlus 7 Pro, Step 4/3 How to disassemble OnePlus 7 Pro, Step 4/4

Step 4. Disconnect the connector

Pry up the Lidar connector and remove the back cover.


How to disassemble OnePlus 7 Pro, Step 5/1 How to disassemble OnePlus 7 Pro, Step 5/2 How to disassemble OnePlus 7 Pro, Step 5/3

Step 5. Unscrew the screws

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 14 screws.


How to disassemble OnePlus 7 Pro, Step 6/1 How to disassemble OnePlus 7 Pro, Step 6/2 How to disassemble OnePlus 7 Pro, Step 6/3

Step 6. Open the cover

Remove the cover with an NFC tag and antennas that protect the printed circuit board (PCB). Try to lift the covers by the edges and not push anything between them to not accidentally touch or short-circuit anything on the PCB.


How to disassemble OnePlus 7 Pro, Step 7/1 How to disassemble OnePlus 7 Pro, Step 7/2

Step 7. Disconnect the battery connector

Disconnect the battery connector as soon as possible.

ℹī¸ī¸ The OnePlus 7 Pro model has a battery BLP699 with 4000 mAh capacity (aka rechargeable battery).

⚠ī¸ It is highly recommended to disconnect the connector to avoid possible short circuits during disassembly.

Also, try not to use a metal tool to disconnect the rechargeable battery connector or do it carefully.


How to disassemble OnePlus 7 Pro, Step 8/1 How to disassemble OnePlus 7 Pro, Step 8/2 How to disassemble OnePlus 7 Pro, Step 8/3 How to disassemble OnePlus 7 Pro, Step 8/4

Step 8. Remove the bracket

Remove the brackets securing the front camera connector.


How to disassemble OnePlus 7 Pro, Step 9/1 How to disassemble OnePlus 7 Pro, Step 9/2 How to disassemble OnePlus 7 Pro, Step 9/3

Step 9. Unscrew the screws

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 8 screws.


How to disassemble OnePlus 7 Pro, Step 10/1 How to disassemble OnePlus 7 Pro, Step 10/2 How to disassemble OnePlus 7 Pro, Step 10/3 How to disassemble OnePlus 7 Pro, Step 10/4

Step 10. Remove the loudspeaker

Remove the loudspeaker assembly with antennas.


How to disassemble OnePlus 7 Pro, Step 11/1 How to disassemble OnePlus 7 Pro, Step 11/2 How to disassemble OnePlus 7 Pro, Step 11/3

Step 11. Unscrew one screw

Using a screwdriver (Philips 1.5 mm PH000), unscrew one screw.

ℹī¸ī¸ Be sure to note the location of the screws before disassembling. When assembling the device, screwing the screw in the wrong place may damage the device or its part. To avoid damage, the removed screws and individual pieces (as gaskets or brackets) must be laid out in the appropriate order, or the screws and their holes in the phone must be marked with colored markers.


How to disassemble OnePlus 7 Pro, Step 12/1 How to disassemble OnePlus 7 Pro, Step 12/2 How to disassemble OnePlus 7 Pro, Step 12/3 How to disassemble OnePlus 7 Pro, Step 12/4 How to disassemble OnePlus 7 Pro, Step 12/5

Step 12. Disconnect the connectors

Disconnect two coaxial cable connectors, cables to the mainboard, inter-board sub-screen, display module on the daughterboard.

⚠ī¸ Do not pull on the cable or pry it with a sharp tool, the connectors are pretty weak and break easily, or the cable falls out of the end (lug).


How to disassemble OnePlus 7 Pro, Step 13/1 How to disassemble OnePlus 7 Pro, Step 13/2 How to disassemble OnePlus 7 Pro, Step 13/3

Step 13. Remove the daughterboard

Remove the sub-board. It is glued to the frame with metalized tape, so to facilitate the process, the board can be heated a bit.

ℹī¸ī¸ The board contains card holders, microphones, spring contacts for the speaker, and an antenna unit.

⚠ī¸ It is not necessary to insert the tool under the board when removing the sub-board. Internal components could be damaged.


How to disassemble OnePlus 7 Pro, Step 14/1 How to disassemble OnePlus 7 Pro, Step 14/2 How to disassemble OnePlus 7 Pro, Step 14/3 How to disassemble OnePlus 7 Pro, Step 14/4

Step 14. Unscrew the screws

Using a screwdriver (Philips 1.5 mm PH000), unscrew two screws.


How to disassemble OnePlus 7 Pro, Step 15/1 How to disassemble OnePlus 7 Pro, Step 15/2 How to disassemble OnePlus 7 Pro, Step 15/3 How to disassemble OnePlus 7 Pro, Step 15/4 How to disassemble OnePlus 7 Pro, Step 15/5 How to disassemble OnePlus 7 Pro, Step 15/6

Step 15. Disconnect the connectors

Pry up the connectors of the charging port cable, inter-board cables, and coaxial cables, rear cameras assembly, front camera.

⚠ī¸ Be careful when removing the cables from the connectors, the cables are pretty thin, and it is easy enough to break them or damage the contact tracks inside.


How to disassemble OnePlus 7 Pro, Step 16/1 How to disassemble OnePlus 7 Pro, Step 16/2 How to disassemble OnePlus 7 Pro, Step 16/3 How to disassemble OnePlus 7 Pro, Step 16/4

Step 16. Remove the motherboard

Carefully remove the printed circuit board. There is no need to use a lever or try to reach the board by force. Make sure that nothing is getting in the way or holding the board.

⚠ī¸ Do not bend the circuit board when removing it or push tools under it. Unbeknownst to yourself, you can damage components or cables from the inside.


How to disassemble OnePlus 7 Pro, Step 17/1 How to disassemble OnePlus 7 Pro, Step 17/2 How to disassemble OnePlus 7 Pro, Step 17/3

Step 17. Remove the cameras

Carefully remove the assembly of three rear cameras. Be careful cameras glued from the inside.


How to disassemble OnePlus 7 Pro, Step 18/1 How to disassemble OnePlus 7 Pro, Step 18/2 How to disassemble OnePlus 7 Pro, Step 18/3

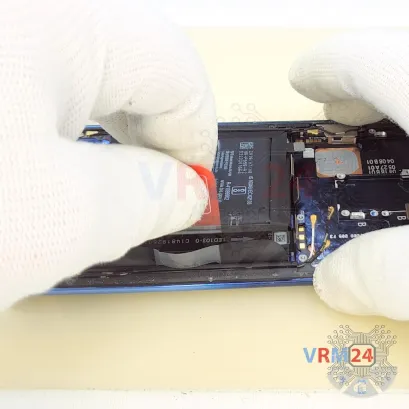

Step 18. Remove the battery

Carefully remove the battery. The battery is glued from the inside.

Want more details - watch our video (after steps). We hope it will help to avoid any mistakes.


How to disassemble OnePlus 7 Pro, Step 19/1 How to disassemble OnePlus 7 Pro, Step 19/2 How to disassemble OnePlus 7 Pro, Step 19/3

Step 19. Remove the charging port

Using a screwdriver (Philips 1.5 mm PH000), unscrew two screws securing the charging port.


How to disassemble OnePlus 7 Pro, Step 20/1 How to disassemble OnePlus 7 Pro, Step 20/2 How to disassemble OnePlus 7 Pro, Step 20/3 How to disassemble OnePlus 7 Pro, Step 20/4 How to disassemble OnePlus 7 Pro, Step 20/5 How to disassemble OnePlus 7 Pro, Step 20/6 How to disassemble OnePlus 7 Pro, Step 20/7

Step 20. Remove the charging port

Peel back the battery film. The film is sticky and helps to hold the battery at the same moment protect flat cables beneath. After, carefully remove the flat cable with a charging port.


How to disassemble OnePlus 7 Pro, Step 21/1 How to disassemble OnePlus 7 Pro, Step 21/2 How to disassemble OnePlus 7 Pro, Step 21/3

Step 21. In the display frame remained

ℹī¸ī¸ In the display frame remained: the earpiece speaker, fingerprint sensor, pop-up front camera mechanism.

Detailed disassembly instructions of OnePlus 7 Pro in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.


Disassembling\Repair has medium complexity and takes about 22 minutes in time. Our manual is suitable for all models OnePlus 7 Pro is released for markets in different countries.
