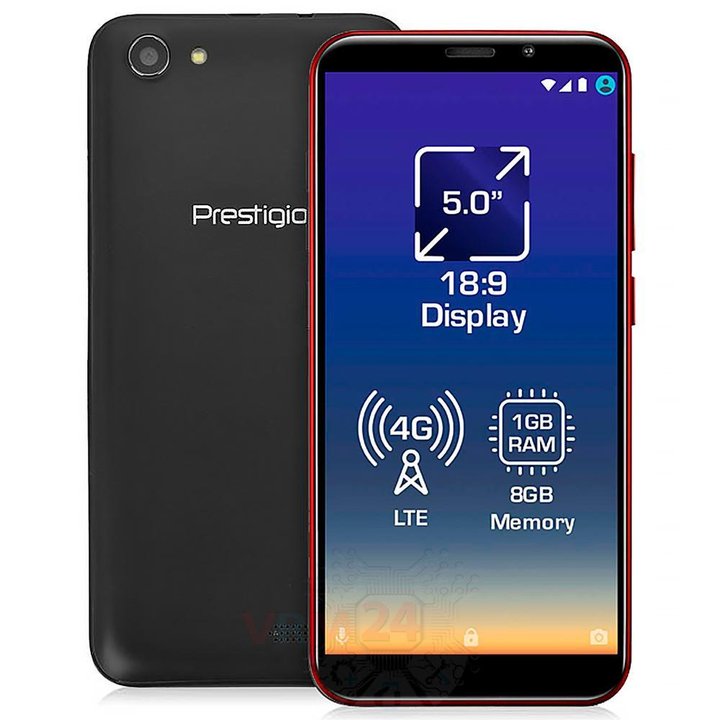

Prestigio Muze V3 LTE
Prestigio Muze V3 LTE
Teardown difficulty:
Easy
Duration:
10 min

Recommended tools

Screwdriver Phillips #000 Screwdriver phillips #000
Opening tool / Spudger Opening tool / spudger
Tweezers Tweezers

Disassembly/Repair of the mobile device Prestigio Muze V3 LTE with each step description and the required set of tools.

Vadim Popoff

Content specialist with over 10 years of experience in the technology industry.

How to disassemble Prestigio Muze V3 LTE, Step 1/1 How to disassemble Prestigio Muze V3 LTE, Step 1/2

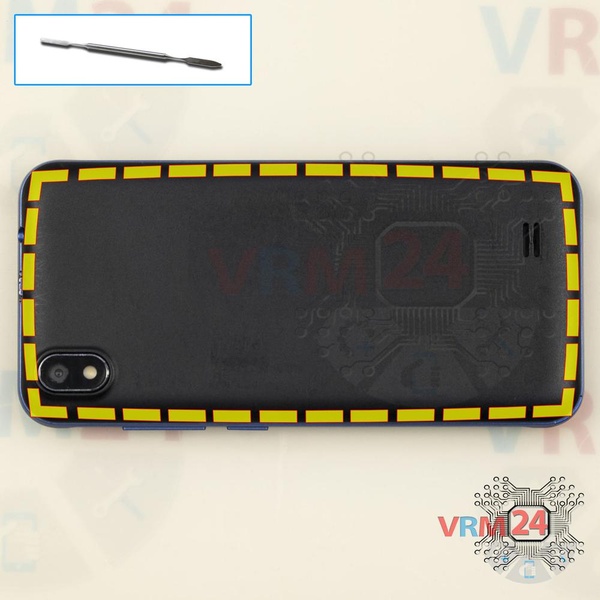

Step 1.

Open the back cover.
How to disassemble Prestigio Muze V3 LTE, Step 2/1 How to disassemble Prestigio Muze V3 LTE, Step 2/2

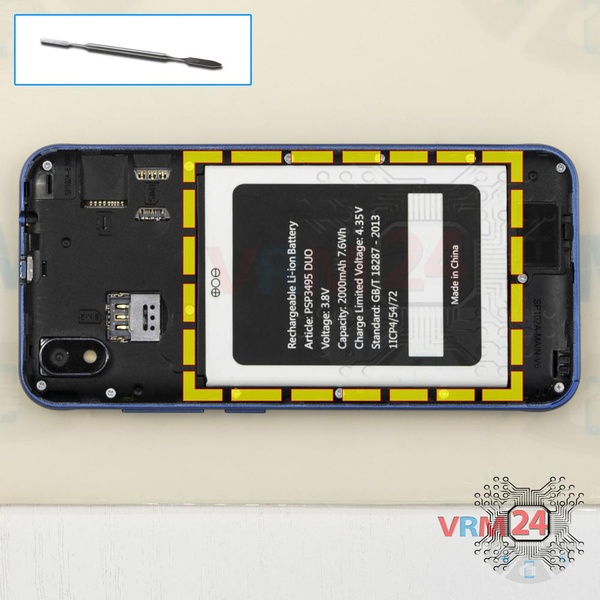

Step 2.

Remove the battery. The battery model of Prestigio Muze V3 LTE is PSP3495 DUO.

How to disassemble Prestigio Muze V3 LTE, Step 3/1 How to disassemble Prestigio Muze V3 LTE, Step 3/2

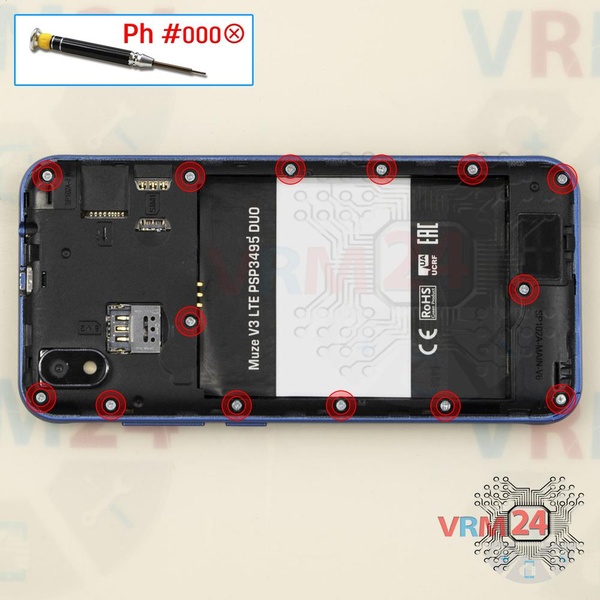

Step 3.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 14 screws.
How to disassemble Prestigio Muze V3 LTE, Step 4/1 How to disassemble Prestigio Muze V3 LTE, Step 4/2

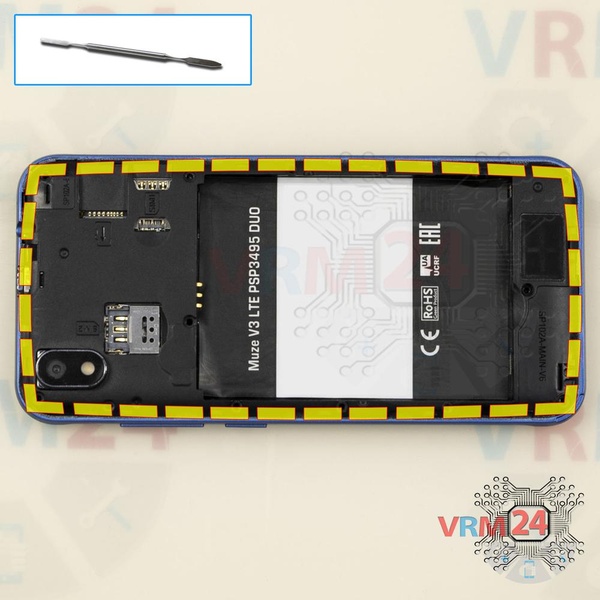

Step 4.

Pry and remove the middle frame.
How to disassemble Prestigio Muze V3 LTE, Step 5/1 How to disassemble Prestigio Muze V3 LTE, Step 5/2

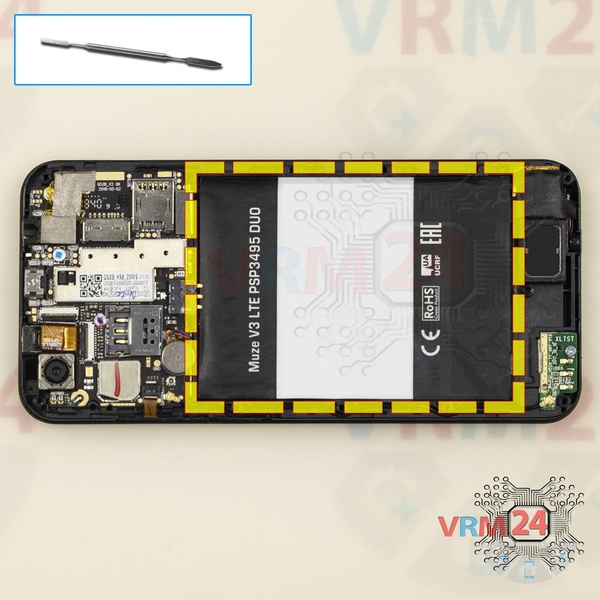

Step 5.

Peel back the label.
How to disassemble Prestigio Muze V3 LTE, Step 6/1 How to disassemble Prestigio Muze V3 LTE, Step 6/2

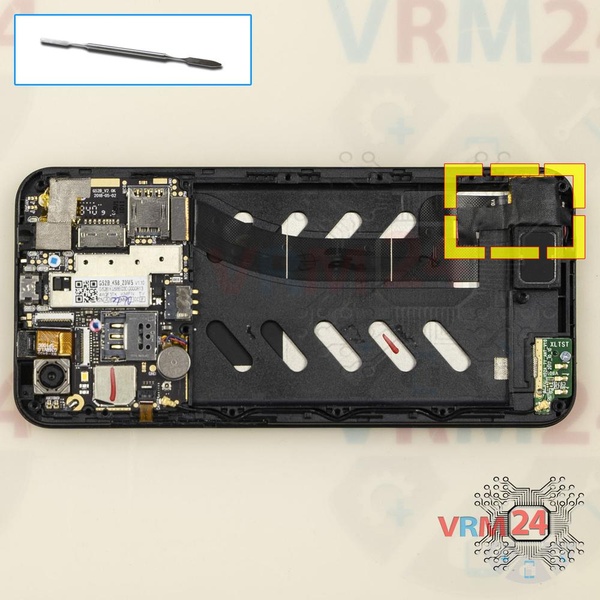

Step 6.

Peel back the touchscreen protective layer.
How to disassemble Prestigio Muze V3 LTE, Step 7/1 How to disassemble Prestigio Muze V3 LTE, Step 7/2

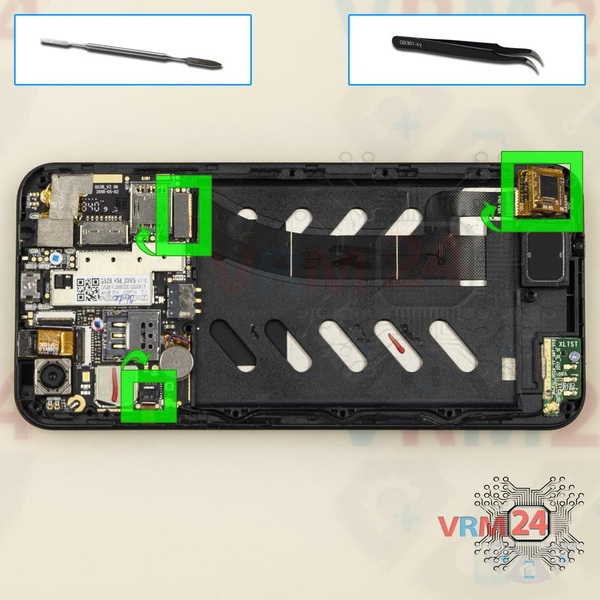

Step 7.

Disconnect connectors on the PCB.
How to disassemble Prestigio Muze V3 LTE, Step 8/1 How to disassemble Prestigio Muze V3 LTE, Step 8/2

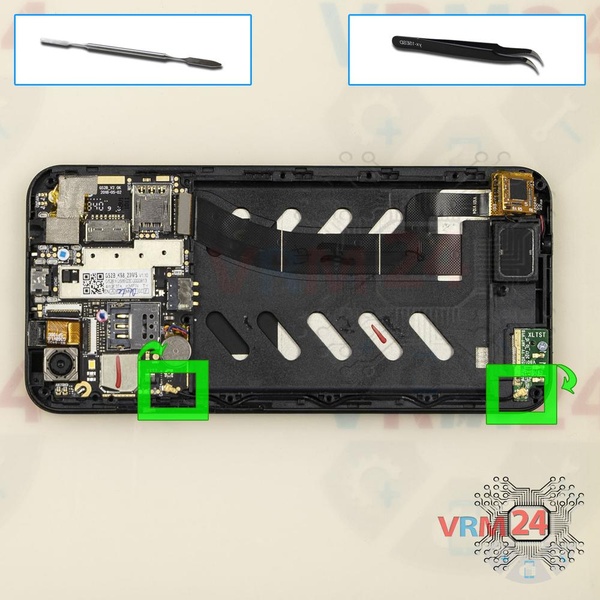

Step 8.

Disconnect connectors and remove the coaxial cable.
How to disassemble Prestigio Muze V3 LTE, Step 9/1 How to disassemble Prestigio Muze V3 LTE, Step 9/2

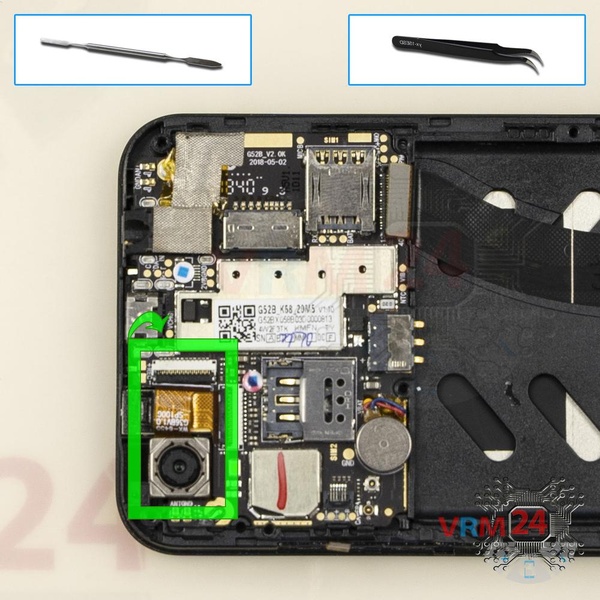

Step 9.

Disconnect the connector on PCB, and remove the main camera.
How to disassemble Prestigio Muze V3 LTE, Step 10/1 How to disassemble Prestigio Muze V3 LTE, Step 10/2

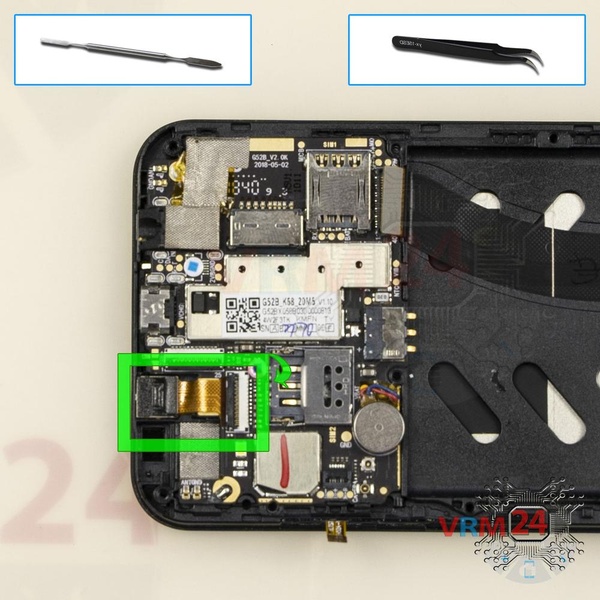

Step 10.

Disconnect the connector on PCB, and remove the front (selfie) camera.
How to disassemble Prestigio Muze V3 LTE, Step 11/1 How to disassemble Prestigio Muze V3 LTE, Step 11/2

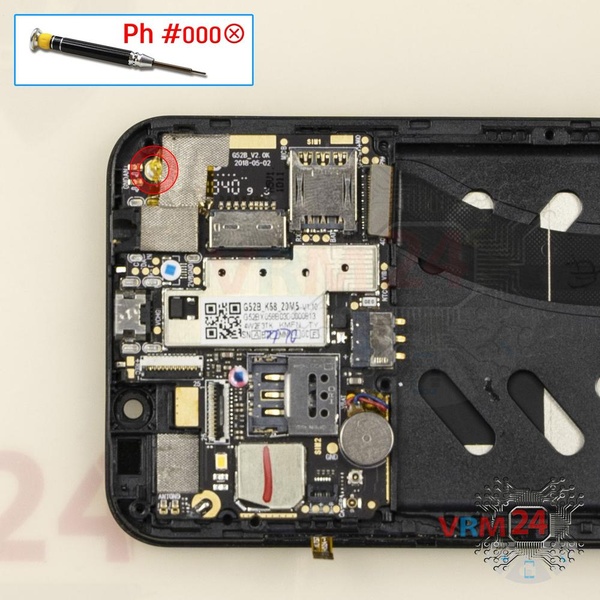

Step 11.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 1 screw in the PCB.
How to disassemble Prestigio Muze V3 LTE, Step 12/1 How to disassemble Prestigio Muze V3 LTE, Step 12/2

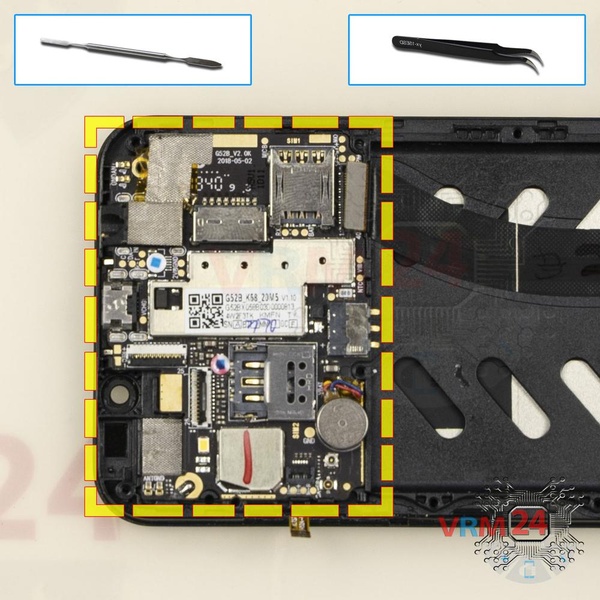

Step 12.

Remove the PCB.

How to disassemble Prestigio Muze V3 LTE, Step 13/1 How to disassemble Prestigio Muze V3 LTE, Step 13/2 How to disassemble Prestigio Muze V3 LTE, Step 13/3

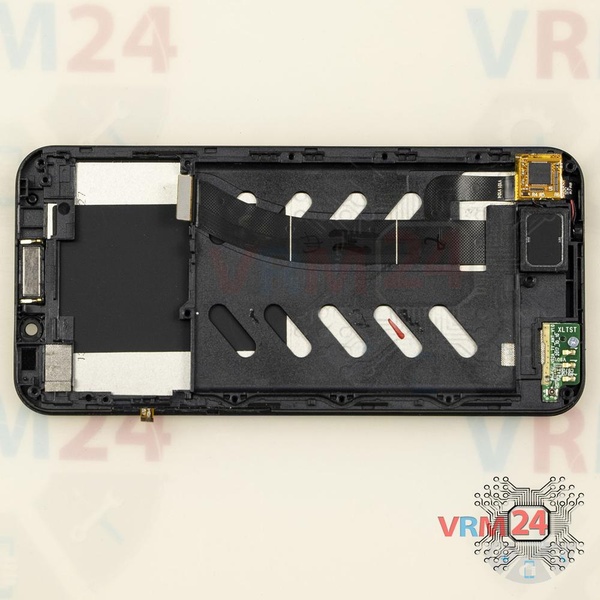

Step 13.

Parts are in the frame of the display module.

Detailed disassembly instructions of Prestigio Muze V3 LTE in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

#instructions #Prestigio #Prestigio Muze V3 LTE
Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer

Disassembling\Repair has easy complexity and takes about 10 minutes in time.
Our manual is suitable for all models Prestigio Muze V3 LTE released for markets in different countries.
