Disassembly/Repair of the mobile device Realme 8 (Realme 8 RMX3085) with each step description and the required set of tools.

⚠ Before disassembling, do not forget to turn your phone off.

Use the ejection tool (aka Needle) or Paperclip. Push the tip all the way into the hole until the tray ejects, and then pull the tray of SIM and Memory card (Micro SD) out.

⚠ Pay attention! The tool must be inserted into a hole on the edge of the phone's housing. Do not press too hard. It may break the tray eject mechanism.

We recommend using a special heating device such as a separator machine, heat gun, or heating mat. It will simplify the process. You can use a home hairdryer, but you will have to make a nozzle by hand or have a suitable one in the kit to gently heat and concentrate the heat flow in the right place.

ℹ️ The surface of the back cover must be heated to soften the adhesive underneath. The approximate heating temperature is 50° C / 125° F.

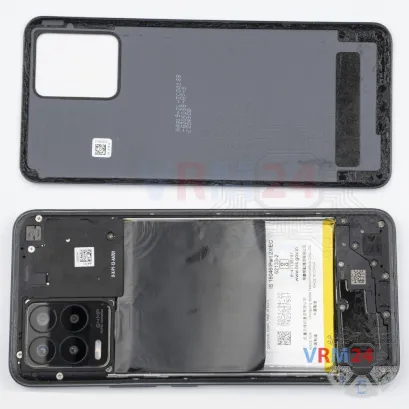

Use a thin plastic film or pick for separation. To facilitate the process, you can use isopropyl alcohol. It is often most difficult to pass the tool between the parts to be divided. Choose the far edge from the FFC cables or buttons.

Do not use a lever or any force for separation that could damage the elements inside.

Open the cover protecting the cameras.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 17 screws.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew two silver screws.

ℹ️ Be sure to note the location of the screws before disassembling. When assembling the device, screwing the screw in the wrong place may damage the device or its part. To avoid damage, the removed screws and individual pieces (as gaskets or brackets) must be laid out in the appropriate order, or the screws and their holes in the phone must be marked with colored markers.

Remove the middle cover with antennas.

Disconnect the battery connector as soon as possible.

ℹ️ The Realme 8 model has a battery BLP841 with 5000 mAh capacity (aka rechargeable battery).

⚠ It is highly recommended to disconnect the connector to avoid possible short circuits during disassembly.

Also, try not to use a metal tool to disconnect the rechargeable battery connector or do it carefully.

Remove the assembly of the loudspeaker, vibration motor with antennas.

Disconnect the coaxial cable connector, cables to the mainboard, fingerprint sensor, and inter-board sub-screen cable on the daughterboard.

⚠ Do not pull on the cable or pry it with a sharp tool, the connectors are pretty weak and break easily, or the cable falls out of the end (lug).

Remove the sub-board. It is glued to the frame with metalized tape, so to facilitate the process, the sub-board can be heated a bit.

ℹ️ The sub-board contains a charging port (Micro USB), microphone, headphone jack socket, spring contacts for the speaker, and an antenna unit.

⚠ It is not necessary to insert the tool underneath when removing the sub-board. Internal components could be damaged.

Pry up the connectors and remove four rear cameras and one front (selfie) camera.

Using a screwdriver (Philips 1.5 mm PH000), unscrew one screw securing the motherboard.

Pry up the connectors of the display module cable, inter-board cable, and coaxial cable.

Carefully remove the printed circuit board. There is no need to use a lever or try to reach the board by force. Make sure that nothing is getting in the way or holding the board.

⚠ Do not bend the circuit board when removing it or push tools under it. Unbeknownst to yourself, you can damage components or cables from the inside.

Carefully remove the battery.

ℹ️ In the display frame remained: the earpiece speaker, coaxial cable.
