How to disassemble Samsung Galaxy A24 SM-A245, Step 1/1

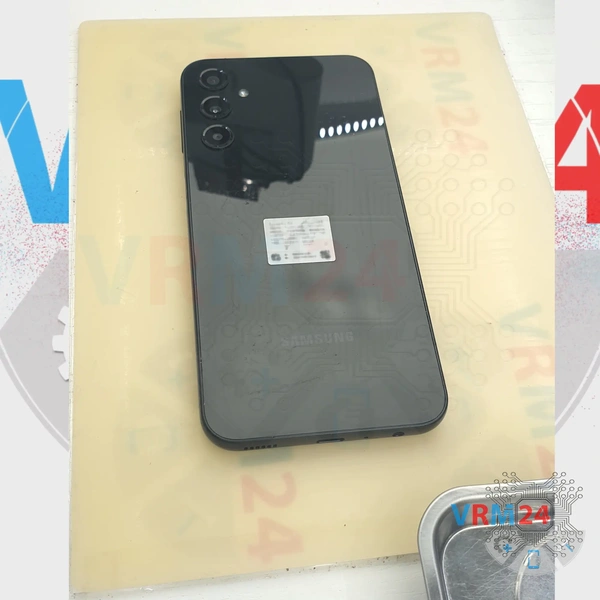

Step 1. Before disassembling!

⚠️️ Before disassembling, do not forget to turn your phone off.


How to disassemble Samsung Galaxy A24 SM-A245, Step 2/1 How to disassemble Samsung Galaxy A24 SM-A245, Step 2/2 How to disassemble Samsung Galaxy A24 SM-A245, Step 2/3 How to disassemble Samsung Galaxy A24 SM-A245, Step 2/4

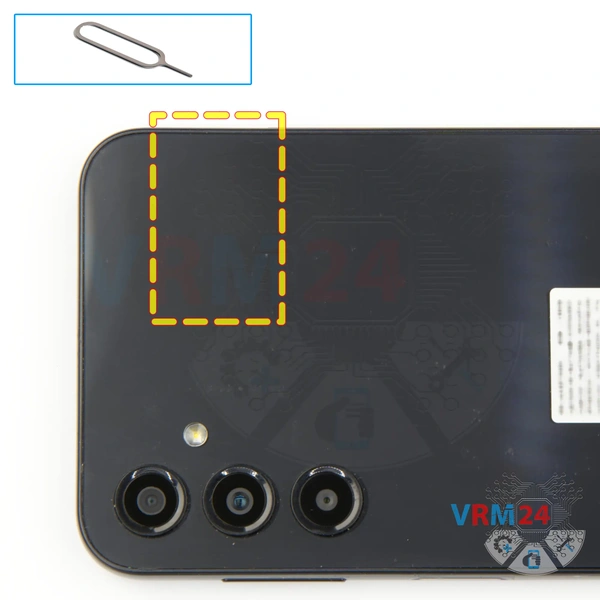

Step 2. Remove the tray

Use the ejection tool (aka Needle) or Paperclip. Push the tip all the way into the hole until the tray ejects, and then pull the tray of SIM and Memory card (Micro SD) out.

If the tray is not pushed out well, we can additionally use tweezers to remove the tray.


How to disassemble Samsung Galaxy A24 SM-A245, Step 3/1 How to disassemble Samsung Galaxy A24 SM-A245, Step 3/2 How to disassemble Samsung Galaxy A24 SM-A245, Step 3/3 How to disassemble Samsung Galaxy A24 SM-A245, Step 3/4 How to disassemble Samsung Galaxy A24 SM-A245, Step 3/5 How to disassemble Samsung Galaxy A24 SM-A245, Step 3/6

Step 3. Open the back cover

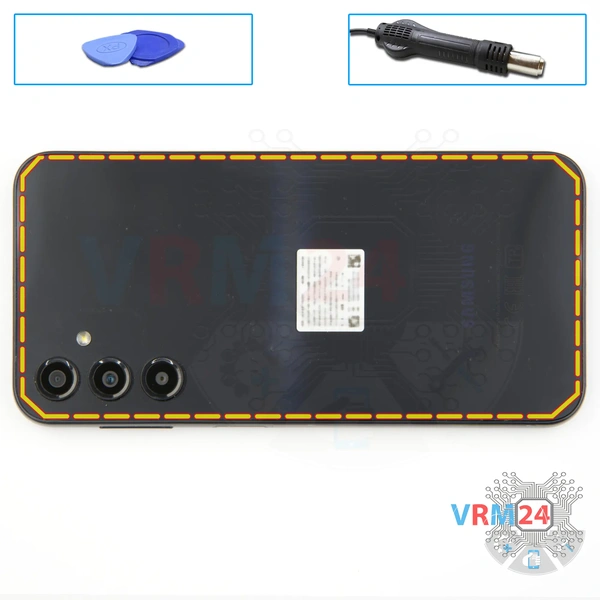

After that we need to heat the surface of the back cover to a temperature of about 65-70 ° C or 160 ° F. For this we use a heating mat you can use a hair dryer.

And after 5-7 minutes we can proceed to disassembly. To detach the back cover, we need to slightly lift the edge, because the cover is recessed a little. To do this, we use a thin metal tool. Carefully pry up the edge and slip a plastic film into this place. We run the film along the cover to detach it.

We should always be careful around the side buttons and the fingerprint sensor, because in this area may be located cables and they can be damaged.

We also need to be careful around the cameras. As the back cover is detached separately from the cover of the cameras, the back cover will be glued around the cover of the cameras.

And the camera cover is attached to the middle cover by clips.


How to disassemble Samsung Galaxy A24 SM-A245, Step 4/1 How to disassemble Samsung Galaxy A24 SM-A245, Step 4/2 How to disassemble Samsung Galaxy A24 SM-A245, Step 4/3 How to disassemble Samsung Galaxy A24 SM-A245, Step 4/4 How to disassemble Samsung Galaxy A24 SM-A245, Step 4/5

Step 4. Unscrew the screws

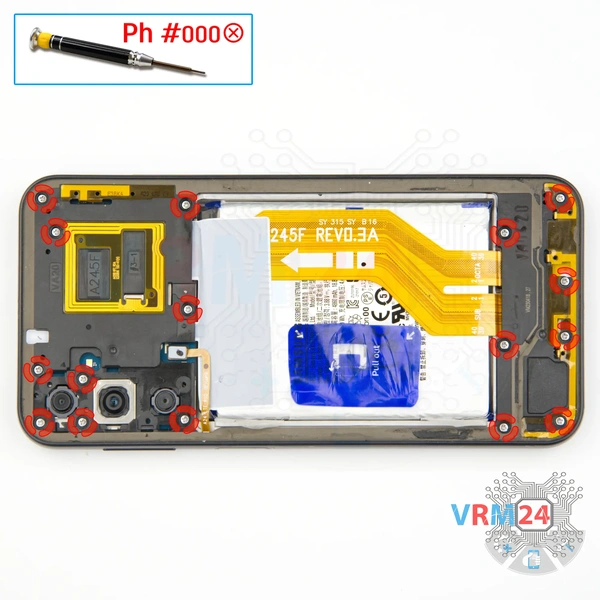

And we move on to unscrewing the sixteen screws at the top and bottom, we use a Phillips 1.5mm screwdriver or #000 we can also use a 2.0mm screwdriver or #00.


How to disassemble Samsung Galaxy A24 SM-A245, Step 5/1 How to disassemble Samsung Galaxy A24 SM-A245, Step 5/2

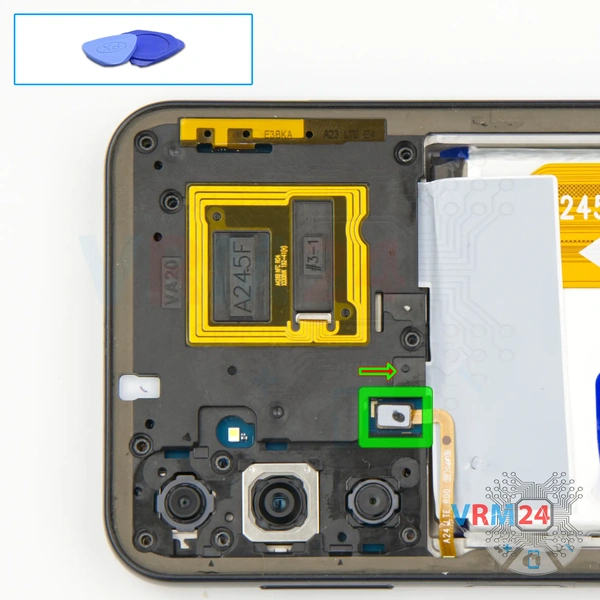

Step 5. Disconnect the connector

Disconnect the fingerprint sensor cable connector.


How to disassemble Samsung Galaxy A24 SM-A245, Step 6/1 How to disassemble Samsung Galaxy A24 SM-A245, Step 6/2 How to disassemble Samsung Galaxy A24 SM-A245, Step 6/3

Step 6. Open the middle cover

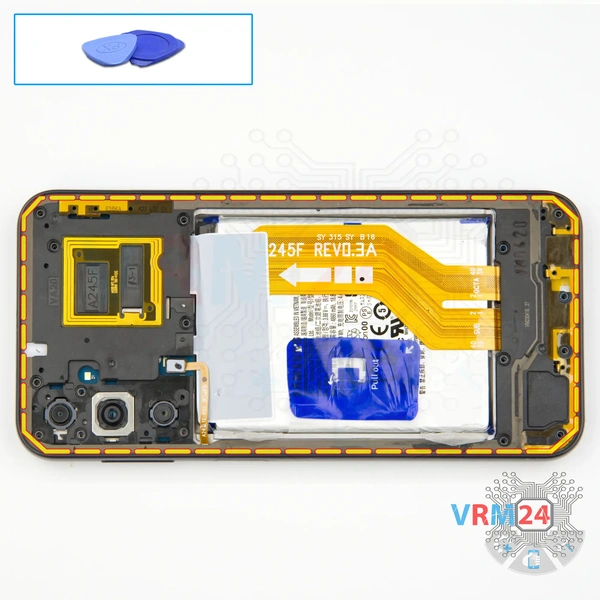

We can move on to detach the middle cover. We use plastic film, run the film into the gap near the cards tray hole and gently run it along so that we can use a thicker tool. This is not the way to detach the clips with this film on this model. As always, we need to be careful around the side buttons and a fingerprint sensor, on the corners and around the cameras.

On the cover we have contact pads and antenna transmission lines. Also the speaker is located in the middle cover.


How to disassemble Samsung Galaxy A24 SM-A245, Step 7/1 How to disassemble Samsung Galaxy A24 SM-A245, Step 7/2

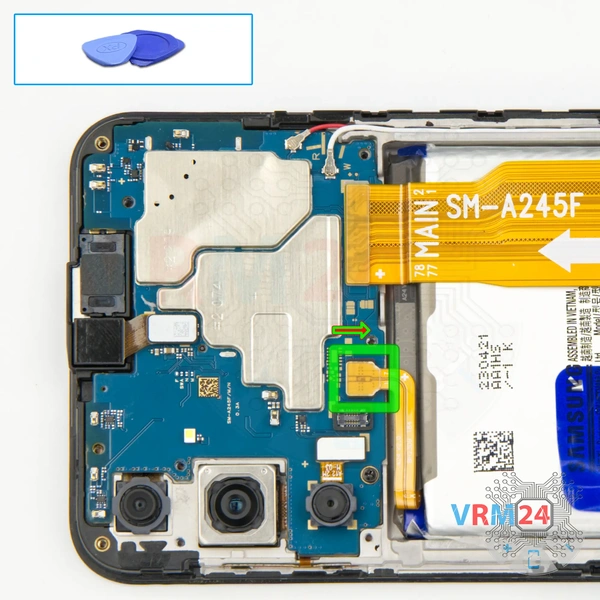

Step 7. Disconnect the battery connector

Disconnect the battery connector as soon as you can. Use a non-metallic or plastic tool to avoid any damage.

ℹ️️ The Samsung Galaxy A24 SM-A245 model has a battery EB-BA245ABY with a capacity of 5000 mAh (also known as a rechargeable battery).


How to disassemble Samsung Galaxy A24 SM-A245, Step 8/1 How to disassemble Samsung Galaxy A24 SM-A245, Step 8/2 How to disassemble Samsung Galaxy A24 SM-A245, Step 8/3 How to disassemble Samsung Galaxy A24 SM-A245, Step 8/4

Step 8. Remove the inter-board cable

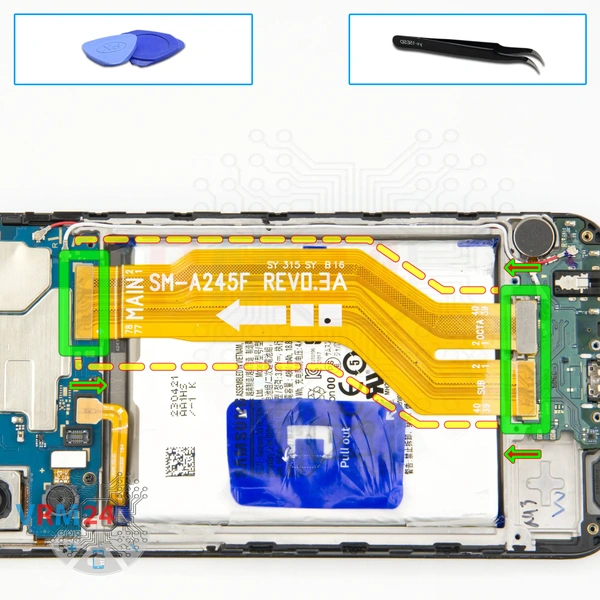

Carefully, preferably from the edge, disconnect the connectors and remove the inter-board cable connecting the mainboard to the daughterboard (also known as the sub-board).

⚠️️ Be careful when removing the cables from the connectors, the cables are pretty thin, and it is easy enough to break them or damage the contact tracks inside.

ℹ️️ An arrow on the FFC cable (flexible flat cable) indicates its correct position.


How to disassemble Samsung Galaxy A24 SM-A245, Step 9/1 How to disassemble Samsung Galaxy A24 SM-A245, Step 9/2 How to disassemble Samsung Galaxy A24 SM-A245, Step 9/3

Step 9. Disconnect the connectors

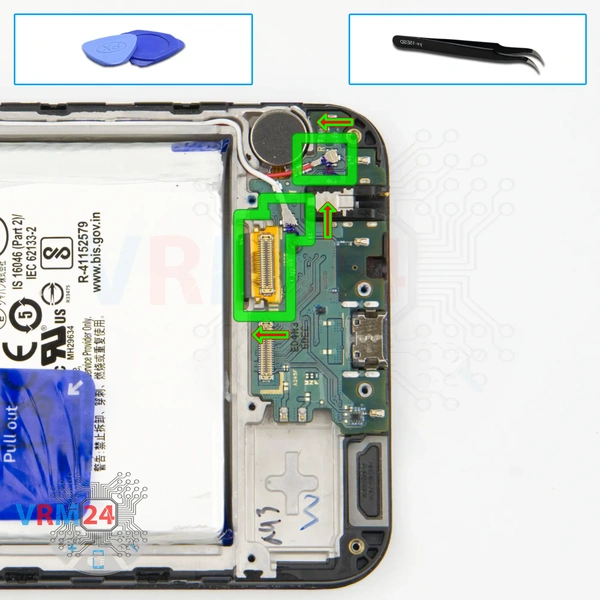

Disconnect the connectors of the two coaxial cables and release the cables themselves from the clips fixing them on the sub-board. Also we unstick the display cable connector.


How to disassemble Samsung Galaxy A24 SM-A245, Step 10/1 How to disassemble Samsung Galaxy A24 SM-A245, Step 10/2 How to disassemble Samsung Galaxy A24 SM-A245, Step 10/3

Step 10. Unscrew one screw

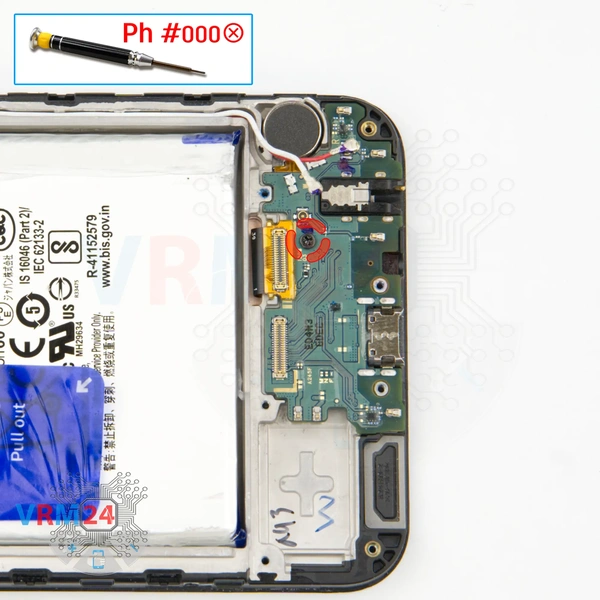

We need to unscrew one screw securing the sub-board. The screwdriver is the same Phillips 1.5 mm #000.


How to disassemble Samsung Galaxy A24 SM-A245, Step 11/1 How to disassemble Samsung Galaxy A24 SM-A245, Step 11/2

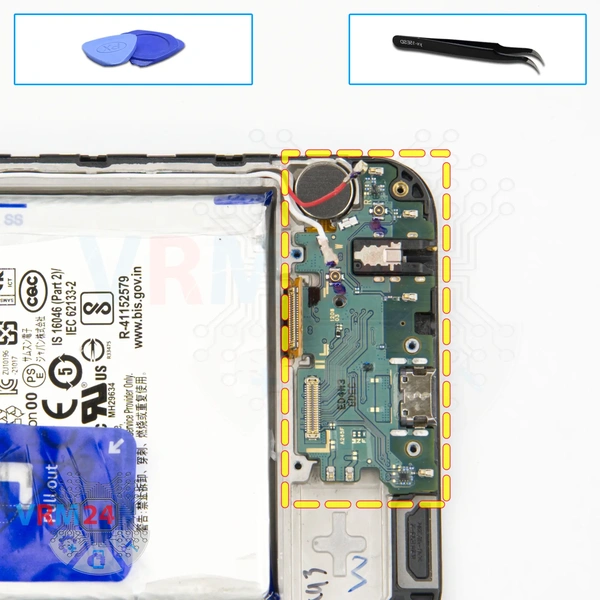

Step 11. Remove the daughterboard

Remove the sub-board. It may be glued to the frame or attached with attachments like latches or hooks, so be careful.

ℹ️️ The sub-board contains a charging port (Micro-USB), microphone, headphone jack port, spring contacts for the speaker, vibration motor, and an antenna unit.

⚠️️ It is not necessary to insert the tool underneath when removing the sub-board. Internal components could be damaged.


How to disassemble Samsung Galaxy A24 SM-A245, Step 12/1 How to disassemble Samsung Galaxy A24 SM-A245, Step 12/2 How to disassemble Samsung Galaxy A24 SM-A245, Step 12/3 How to disassemble Samsung Galaxy A24 SM-A245, Step 12/4

Step 12. Remove the cameras

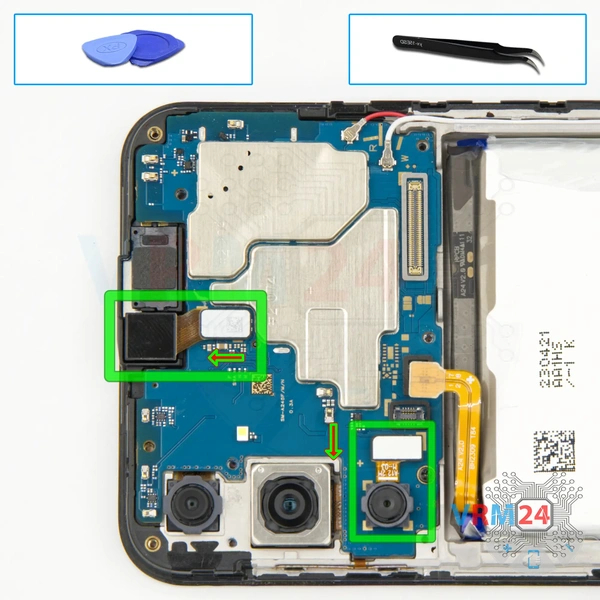

Carefully detach the front camera. It is better to hold it by the edge so that it doesn't fly out. And detach one rear camera in the same way.


How to disassemble Samsung Galaxy A24 SM-A245, Step 13/1 How to disassemble Samsung Galaxy A24 SM-A245, Step 13/2

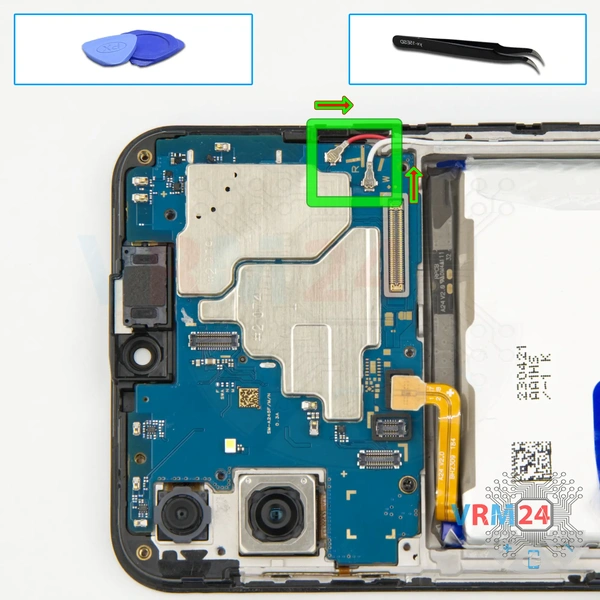

Step 13. Disconnect the connectors

Disconnect the connectors of the two coaxial cables.

On the motherboard, as well as on the subboard, there are R and W markings indicating which cable to attach where.


How to disassemble Samsung Galaxy A24 SM-A245, Step 14/1 How to disassemble Samsung Galaxy A24 SM-A245, Step 14/2 How to disassemble Samsung Galaxy A24 SM-A245, Step 14/3

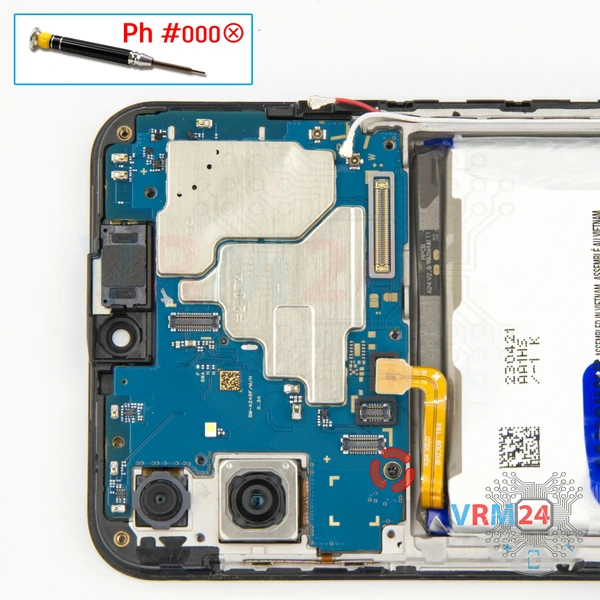

Step 14. Unscrew one screw

We need to unscrew one screw securing the motherboard. We can use a 1.5 mm (#000) or 2.0 mm (#00) Phillips screwdriver.


How to disassemble Samsung Galaxy A24 SM-A245, Step 15/1 How to disassemble Samsung Galaxy A24 SM-A245, Step 15/2 How to disassemble Samsung Galaxy A24 SM-A245, Step 15/3

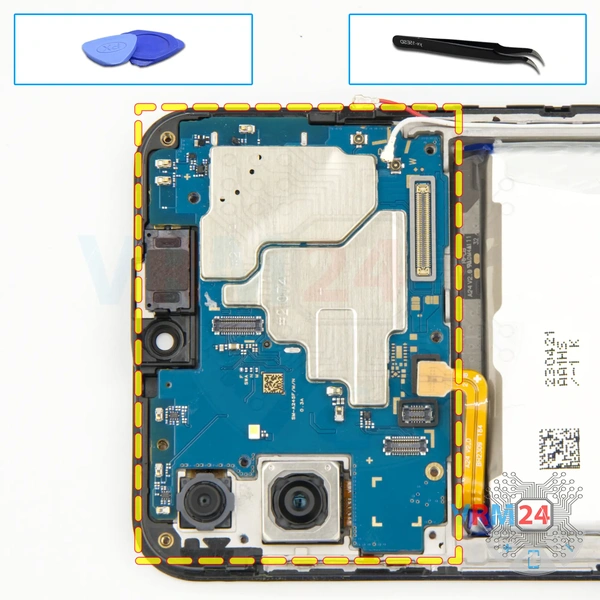

Step 15. Remove the motherboard

Carefully remove the printed circuit board. There is no need to use a lever or try to reach the circuit board by force. Make sure that nothing is getting in the way or holding the circuit board.

The motherboard, also, may be attached with attachments like latches or hooks, be careful.

⚠️️ Do not bend the circuit board when removing it or push tools under it. Unbeknownst to yourself, you can damage components or cables from the inside.


How to disassemble Samsung Galaxy A24 SM-A245, Step 16/1 How to disassemble Samsung Galaxy A24 SM-A245, Step 16/2 How to disassemble Samsung Galaxy A24 SM-A245, Step 16/3

Step 16. Remove the cameras

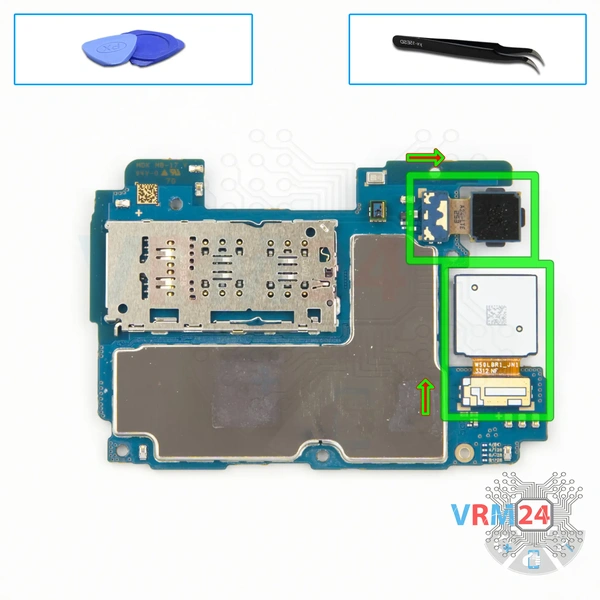

Turn the motherboard over and detach the two rear cameras. It is also better to hold the cameras by the body to prevent them from flying out and damaging the lenses.


How to disassemble Samsung Galaxy A24 SM-A245, Step 17/1 How to disassemble Samsung Galaxy A24 SM-A245, Step 17/2 How to disassemble Samsung Galaxy A24 SM-A245, Step 17/3 How to disassemble Samsung Galaxy A24 SM-A245, Step 17/4 How to disassemble Samsung Galaxy A24 SM-A245, Step 17/5 How to disassemble Samsung Galaxy A24 SM-A245, Step 17/6

Step 17. Remove the battery

Finally, we move on to removing the battery.

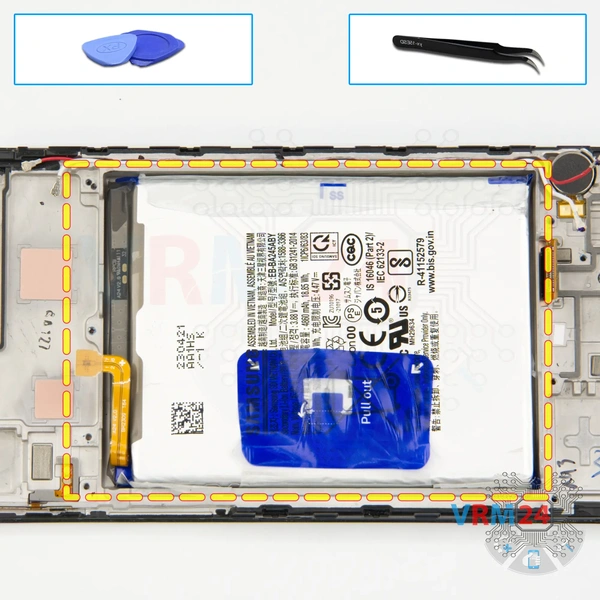

We need to unwrap the transparent coating on the sides and the blue tab in the middle. With one hand we hold the display frame and with the other we pull the blue tab upwards.

If ... nothing happens.

The thing is that the transparent coating on the sides is fused to the battery. We need to use a metal tool to carefully peel off the battery in these places without damaging the display frame or the battery.


How to disassemble Samsung Galaxy A24 SM-A245, Step 18/1 How to disassemble Samsung Galaxy A24 SM-A245, Step 18/2 How to disassemble Samsung Galaxy A24 SM-A245, Step 18/3 How to disassemble Samsung Galaxy A24 SM-A245, Step 18/4

Step 18. In the display frame remained

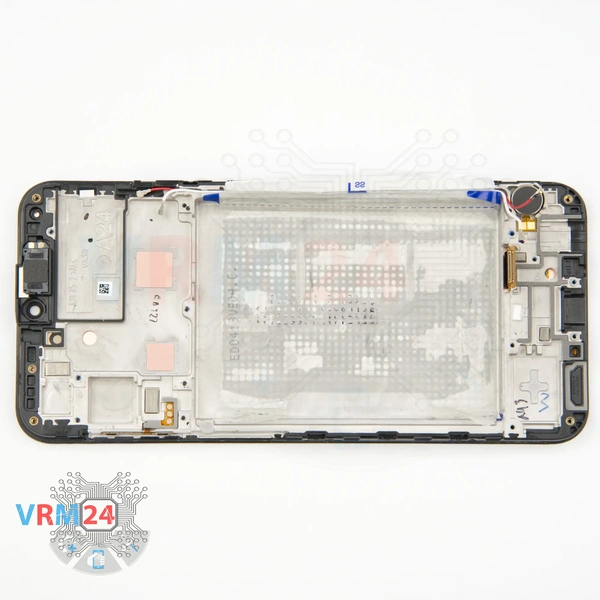

ℹ️️ In the display frame remained: the earpiece speaker, vibration motor, and two coaxial cables.

Detailed disassembly instructions of Samsung Galaxy A24 SM-A245 in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.


Disassembling\Repair has medium complexity and takes about minutes in time. Our manual is suitable for all models Samsung Galaxy A24 SM-A245 released for markets in different countries.
