Disassembly of the mobile device Samsung Galaxy A3 (2017) SM-A320 (Samsung A320FL (Europe); A320F (UAE, TUR); A320F/DS (Global Dual-SIM); A320Y/DS (LATAM, IDN, THA); A320Y (NZL, MEX)) with each step description and the required set of tools.


Specialist in content creation, distribution and content management.


How to disassemble Samsung Galaxy A3 (2017) SM-A320, Step 1/1 How to disassemble Samsung Galaxy A3 (2017) SM-A320, Step 1/2
Step 1

Open the back cover.

Warning!

For careful separation, we recommend using a heat gun. At the same time, it is necessary to heat carefully in order, not to damage the surface of the device.

How to disassemble Samsung Galaxy A3 (2017) SM-A320, Step 2/1 How to disassemble Samsung Galaxy A3 (2017) SM-A320, Step 2/2
Step 2

Using the key tool, open the SIM and Micro SD cards tray and remove it.

Warning!

Do not push too hard this may cause damage.

How to disassemble Samsung Galaxy A3 (2017) SM-A320, Step 3/1 How to disassemble Samsung Galaxy A3 (2017) SM-A320, Step 3/2
Step 3

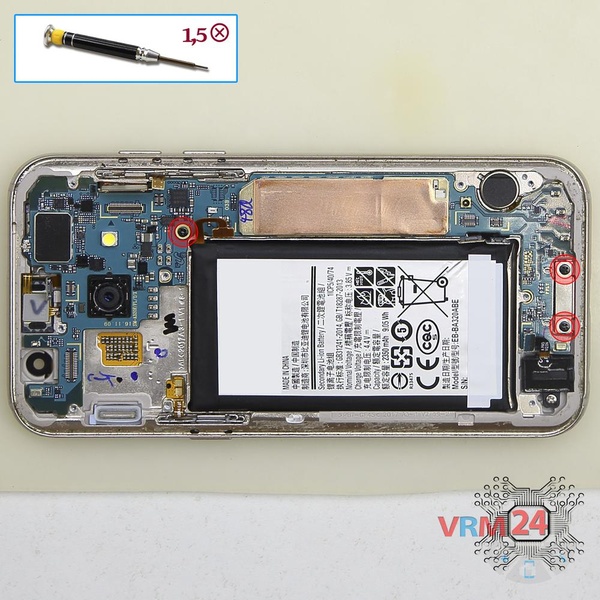

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 9 bolts in the frame of the phone.

How to disassemble Samsung Galaxy A3 (2017) SM-A320, Step 4/1 How to disassemble Samsung Galaxy A3 (2017) SM-A320, Step 4/2
Step 4

Remove the cover with NFC tag.

How to disassemble Samsung Galaxy A3 (2017) SM-A320, Step 5/1 How to disassemble Samsung Galaxy A3 (2017) SM-A320, Step 5/2 How to disassemble Samsung Galaxy A3 (2017) SM-A320, Step 5/3
Step 5

Disconnect the battery connector.

Warning!

We strongly recommend disconnecting the connector to avoid a possible short circuit during disassembly.

How to disassemble Samsung Galaxy A3 (2017) SM-A320, Step 6/1 How to disassemble Samsung Galaxy A3 (2017) SM-A320, Step 6/2
Step 6

Pry & remove the upper cover.

How to disassemble Samsung Galaxy A3 (2017) SM-A320, Step 7/1 How to disassemble Samsung Galaxy A3 (2017) SM-A320, Step 7/2
Step 7

Pry and remove the lower cover.

How to disassemble Samsung Galaxy A3 (2017) SM-A320, Step 8/1 How to disassemble Samsung Galaxy A3 (2017) SM-A320, Step 8/2
Step 8

Disconnect the connector on PCB, and remove the front (selfie) camera.

How to disassemble Samsung Galaxy A3 (2017) SM-A320, Step 9/1 How to disassemble Samsung Galaxy A3 (2017) SM-A320, Step 9/2 How to disassemble Samsung Galaxy A3 (2017) SM-A320, Step 9/3 How to disassemble Samsung Galaxy A3 (2017) SM-A320, Step 9/4 How to disassemble Samsung Galaxy A3 (2017) SM-A320, Step 9/5
Step 9

Disconnect connectors on the PCB.

How to disassemble Samsung Galaxy A3 (2017) SM-A320, Step 10/1 How to disassemble Samsung Galaxy A3 (2017) SM-A320, Step 10/2
Step 10

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 3 bolts in the PCB.

How to disassemble Samsung Galaxy A3 (2017) SM-A320, Step 11/1 How to disassemble Samsung Galaxy A3 (2017) SM-A320, Step 11/2
Step 11

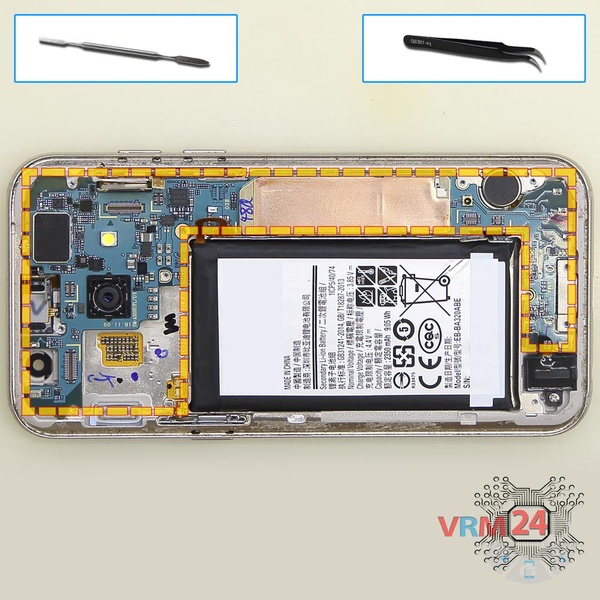

Remove the PCB.

How to disassemble Samsung Galaxy A3 (2017) SM-A320, Step 12/1 How to disassemble Samsung Galaxy A3 (2017) SM-A320, Step 12/2
Step 12

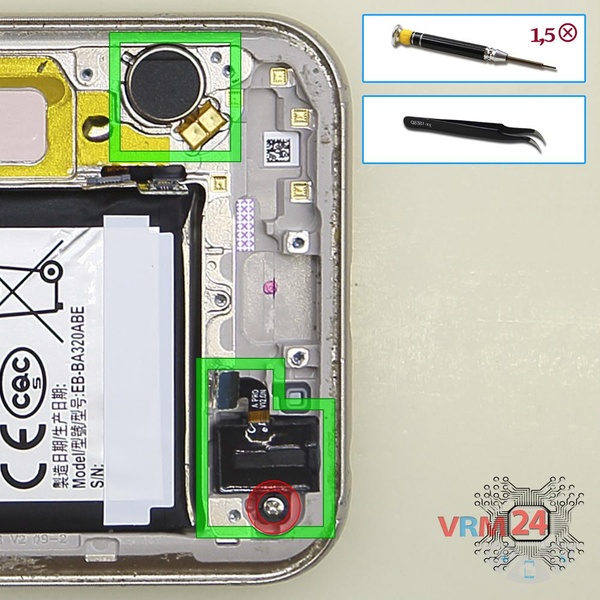

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 1 bolt and remove the headphone jack/socket and vibration motor.

How to disassemble Samsung Galaxy A3 (2017) SM-A320, Step 13/1 How to disassemble Samsung Galaxy A3 (2017) SM-A320, Step 13/2
Step 13

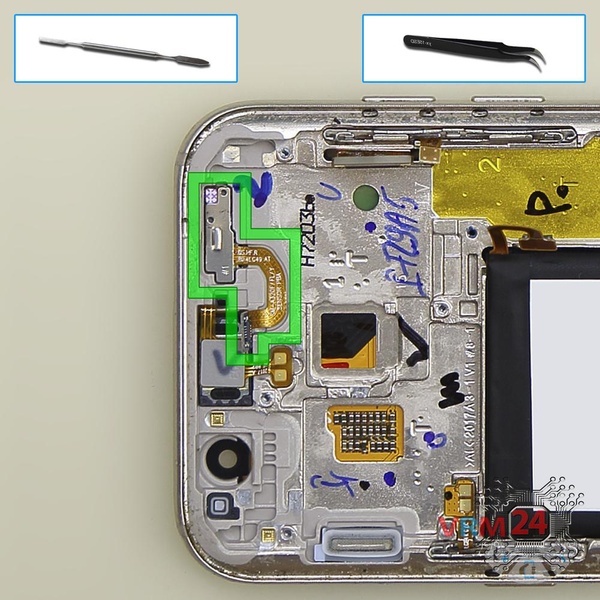

Pry and remove the cable with a proximity sensor.

How to disassemble Samsung Galaxy A3 (2017) SM-A320, Step 14/1 How to disassemble Samsung Galaxy A3 (2017) SM-A320, Step 14/2 How to disassemble Samsung Galaxy A3 (2017) SM-A320, Step 14/3
Step 14

Parts are in the frame of the display module.

Detailed disassembly instructions of Samsung Galaxy A3 (2017) SM-A320 in the video, made by our mobile repair & service center:


Disassembling\Repair has hard complexity and takes about 6 minutes in time.
Our manual is suitable for all models Samsung Galaxy A3 (2017) SM-A320 — Samsung A320FL (Europe); A320F (UAE, TUR); A320F/DS (Global Dual-SIM); A320Y/DS (LATAM, IDN, THA); A320Y (NZL, MEX) released for markets in different countries.
