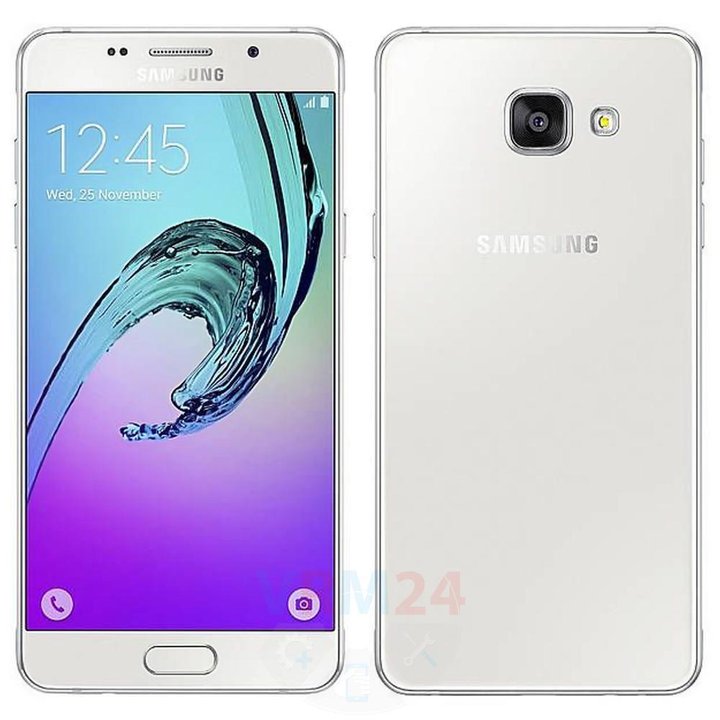

Samsung Galaxy A5 (2016) SM-A510

Teardown difficulty:
Hard

Duration:
9 min

Recommended tools

Heat gun

Screwdriver phillips #000

Opening tool / spudger

Tweezers

Eject tool

Disassembly/Repair of the mobile device Samsung Galaxy A5 (2016) SM-A510 (Samsung A510F (EMEA); A510F/DS (KAZ, RUS); A510M (LATAM); A510M/DS (BRA, CHL); A510FD (SEA, IND); A510Y/DS (AUS, TWN, NZL, PHL); A5100 (HKG, CHN)) with each step description and the required set of tools.

Vadim Popoff

Quality assurance specialist

Author, currently - Quality Assurance Specialist

Step 1.

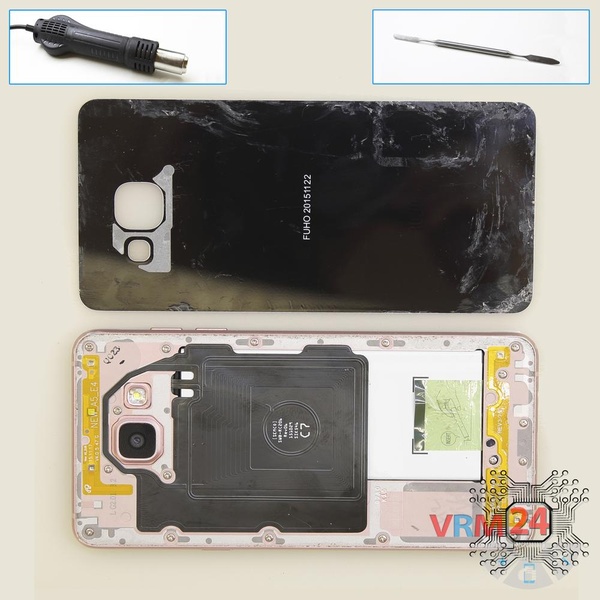

Open the back cover.

⚠️ Warning!

For careful separation, we recommend using a heat gun. At the same time, it is necessary to heat carefully in order, not to damage the surface of the device.

How to disassemble Samsung Galaxy A5 (2016) SM-A510, Step 2/1

How to disassemble Samsung Galaxy A5 (2016) SM-A510, Step 2/2

Step 2.

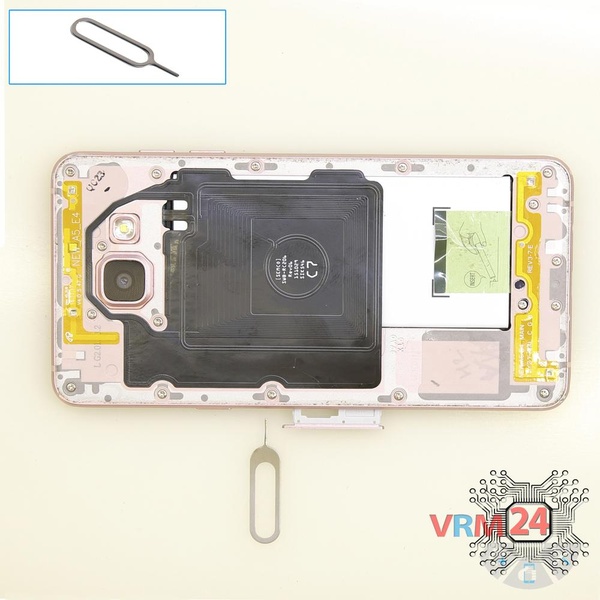

Using the key tool, open the SIM and Micro SD cards tray and remove it.

⚠️ Warning!

Do not push too hard this may cause damage.

How to disassemble Samsung Galaxy A5 (2016) SM-A510, Step 3/1

How to disassemble Samsung Galaxy A5 (2016) SM-A510, Step 3/2

Step 3.

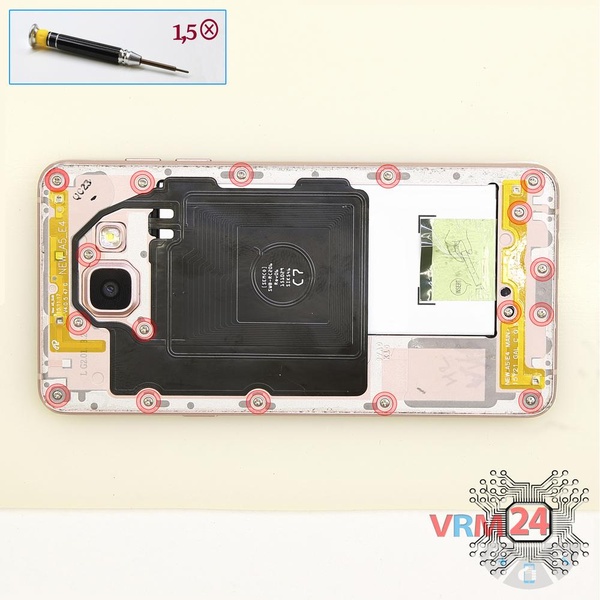

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 17 bolts in the frame of the phone.

How to disassemble Samsung Galaxy A5 (2016) SM-A510, Step 4/1

How to disassemble Samsung Galaxy A5 (2016) SM-A510, Step 4/2

How to disassemble Samsung Galaxy A5 (2016) SM-A510, Step 4/3

Step 4.

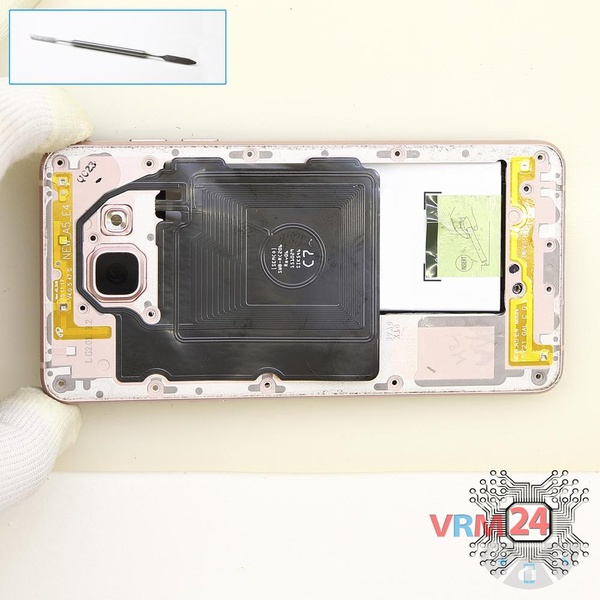

Lift up the NFC tag and remove the frame.

How to disassemble Samsung Galaxy A5 (2016) SM-A510, Step 5/1

How to disassemble Samsung Galaxy A5 (2016) SM-A510, Step 5/2

How to disassemble Samsung Galaxy A5 (2016) SM-A510, Step 5/3

How to disassemble Samsung Galaxy A5 (2016) SM-A510, Step 5/4

Step 5.

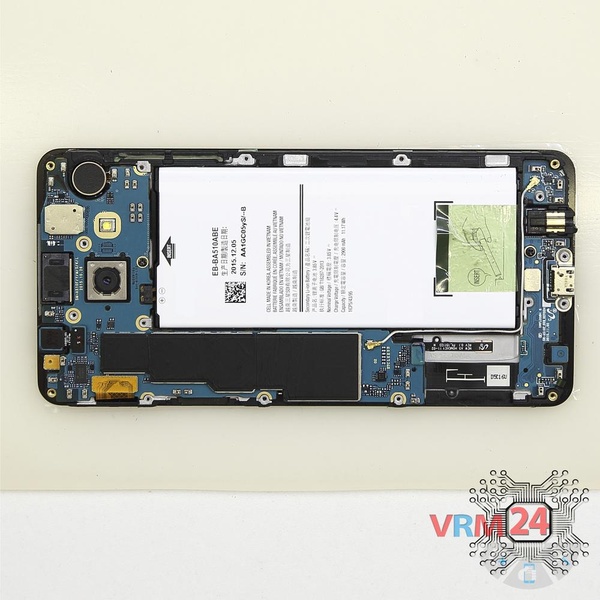

Peel back the label. Pull the label up and remove the battery.

How to disassemble Samsung Galaxy A5 (2016) SM-A510, Step 6/1

How to disassemble Samsung Galaxy A5 (2016) SM-A510, Step 6/2

How to disassemble Samsung Galaxy A5 (2016) SM-A510, Step 6/3

How to disassemble Samsung Galaxy A5 (2016) SM-A510, Step 6/4

Step 6.

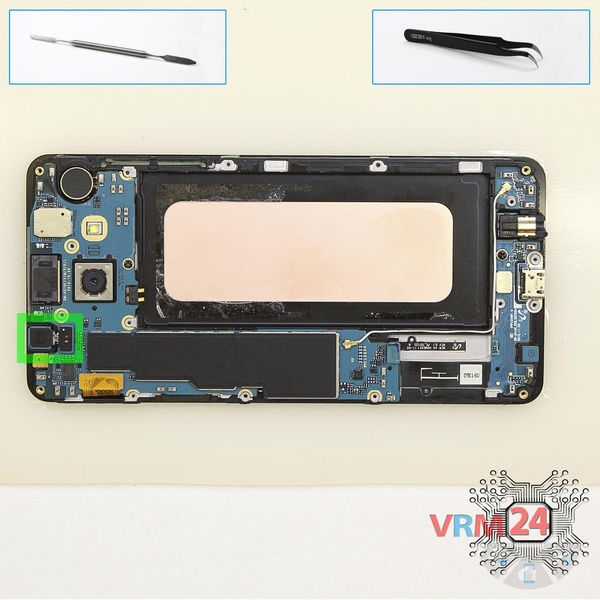

Disconnect the connector on PCB, and remove the front (selfie) camera.

How to disassemble Samsung Galaxy A5 (2016) SM-A510, Step 7/1

How to disassemble Samsung Galaxy A5 (2016) SM-A510, Step 7/2

How to disassemble Samsung Galaxy A5 (2016) SM-A510, Step 7/3

Step 7.

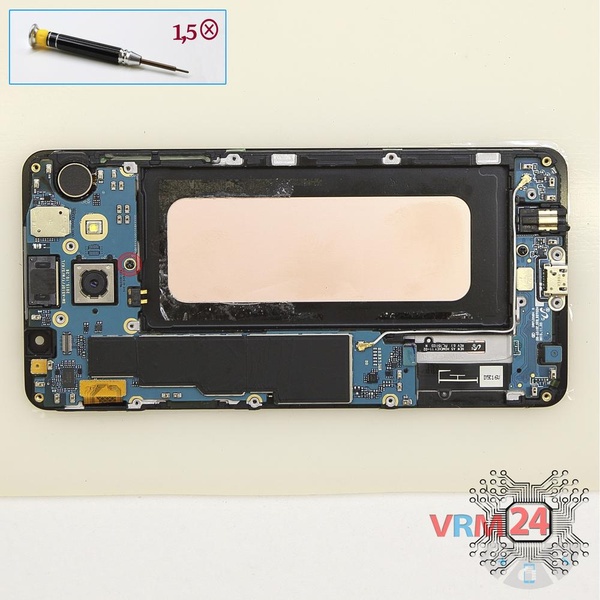

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 1 bolt in the PCB.

How to disassemble Samsung Galaxy A5 (2016) SM-A510, Step 8/1

How to disassemble Samsung Galaxy A5 (2016) SM-A510, Step 8/2

How to disassemble Samsung Galaxy A5 (2016) SM-A510, Step 8/3

How to disassemble Samsung Galaxy A5 (2016) SM-A510, Step 8/4

Step 8.

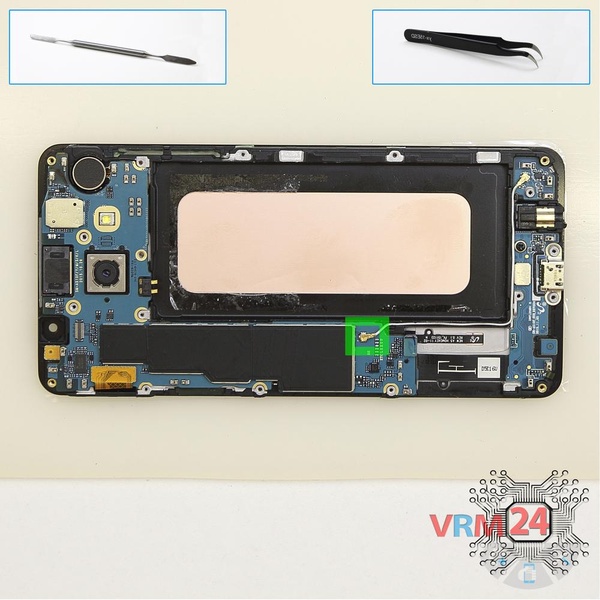

Remove the main PCB.

How to disassemble Samsung Galaxy A5 (2016) SM-A510, Step 9/1

How to disassemble Samsung Galaxy A5 (2016) SM-A510, Step 9/2

How to disassemble Samsung Galaxy A5 (2016) SM-A510, Step 9/3

How to disassemble Samsung Galaxy A5 (2016) SM-A510, Step 9/4

Step 9.

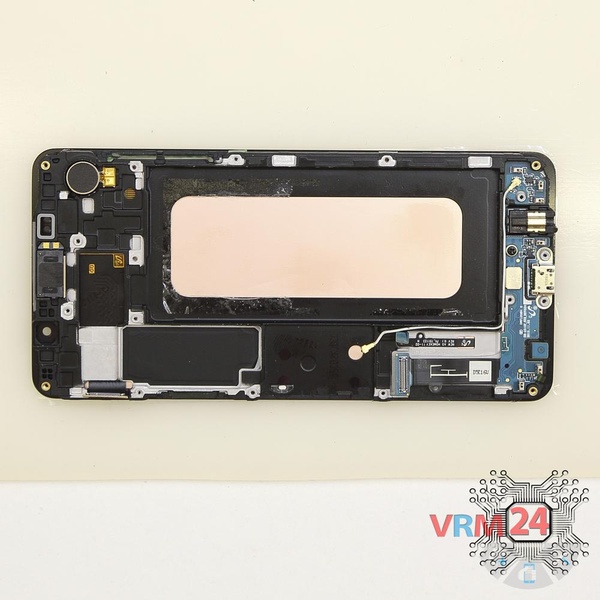

The middle frame with parts.

Detailed disassembly instructions of Samsung Galaxy A5 (2016) SM-A510 in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

#instructions #Samsung #Samsung Galaxy A5 (2016) SM-A510

Evgenii Kuzmin

Senior maintenance service and repair engineer

Disassembling\Repair has hard complexity and takes about 9 minutes in time.
Our manual is suitable for all models Samsung Galaxy A5 (2016) SM-A510 — Samsung A510F (EMEA); A510F/DS (KAZ, RUS); A510M (LATAM); A510M/DS (BRA, CHL); A510FD (SEA, IND); A510Y/DS (AUS, TWN, NZL, PHL); A5100 (HKG, CHN) released for markets in different countries.
