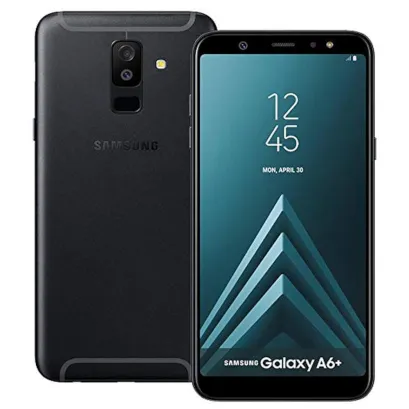

Samsung Galaxy A6 Plus (2018) SM-A605
Samsung Galaxy A6 Plus (2018) SM-A605
Teardown difficulty:
Hard
Duration:
14 min

Recommended tools

Heat gun Heat gun
Screwdriver Phillips #000 Screwdriver phillips #000
Opening tool / Spudger Opening tool / spudger
Tweezers Tweezers

Disassembly/Repair of the mobile device Samsung Galaxy A6 Plus (2018) SM-A605 with each step description and the required set of tools.

Vadim Popoff

Specialist in content creation, distribution and content management.

How to disassemble Samsung Galaxy A6 Plus (2018) SM-A605, Step 1/1 How to disassemble Samsung Galaxy A6 Plus (2018) SM-A605, Step 1/2

Step 1.

Separate the LCD from the case/housing.

⚠️ Warning!

For careful separation, we recommend using a heat gun. At the same time, it is necessary to heat carefully in order, not to damage the surface of the device.

How to disassemble Samsung Galaxy A6 Plus (2018) SM-A605, Step 2/1 How to disassemble Samsung Galaxy A6 Plus (2018) SM-A605, Step 2/2

Step 2.

Lift the LCD and remove the bracket holds the connector.

How to disassemble Samsung Galaxy A6 Plus (2018) SM-A605, Step 3/1 How to disassemble Samsung Galaxy A6 Plus (2018) SM-A605, Step 3/2 How to disassemble Samsung Galaxy A6 Plus (2018) SM-A605, Step 3/3

Step 3.

Disconnect the connector and remove the LCD.

How to disassemble Samsung Galaxy A6 Plus (2018) SM-A605, Step 4/1 How to disassemble Samsung Galaxy A6 Plus (2018) SM-A605, Step 4/2

Step 4.

Using the key tool, open the SIM card & memory card slots and remove them.

⚠️ Warning!

Do not push too hard this may cause damage.

How to disassemble Samsung Galaxy A6 Plus (2018) SM-A605, Step 5/1 How to disassemble Samsung Galaxy A6 Plus (2018) SM-A605, Step 5/2

Step 5.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 17 bolts in the frame of the phone.

How to disassemble Samsung Galaxy A6 Plus (2018) SM-A605, Step 6/1 How to disassemble Samsung Galaxy A6 Plus (2018) SM-A605, Step 6/2

Step 6.

Separate the middle frame and the back cover.

How to disassemble Samsung Galaxy A6 Plus (2018) SM-A605, Step 7/1 How to disassemble Samsung Galaxy A6 Plus (2018) SM-A605, Step 7/2

Step 7.

Disconnect connectors on the PCB.

How to disassemble Samsung Galaxy A6 Plus (2018) SM-A605, Step 8/1 How to disassemble Samsung Galaxy A6 Plus (2018) SM-A605, Step 8/2

Step 8.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 2 bolts in the PCB.

How to disassemble Samsung Galaxy A6 Plus (2018) SM-A605, Step 9/1 How to disassemble Samsung Galaxy A6 Plus (2018) SM-A605, Step 9/2

Step 9.

Disconnect connector on the PCB and remove the front (selfie) camera.

How to disassemble Samsung Galaxy A6 Plus (2018) SM-A605, Step 10/1 How to disassemble Samsung Galaxy A6 Plus (2018) SM-A605, Step 10/2

Step 10.

Remove the PCB.

How to disassemble Samsung Galaxy A6 Plus (2018) SM-A605, Step 11/1 How to disassemble Samsung Galaxy A6 Plus (2018) SM-A605, Step 11/2 How to disassemble Samsung Galaxy A6 Plus (2018) SM-A605, Step 11/3

Step 11.

Parts in the frame of the display module.

Detailed disassembly instructions of Samsung Galaxy A6 Plus (2018) SM-A605 in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

#instructions #Samsung #Samsung Galaxy A6 Plus (2018) SM-A605
Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer

Disassembling\Repair has hard complexity and takes about 14 minutes in time.
Our manual is suitable for all models Samsung Galaxy A6 Plus (2018) SM-A605 released for markets in different countries.
