Teardown difficulty:
Hard

Recommended tools

Disassembly of the mobile device Samsung Galaxy A7 (2016) SM-A710 (Samsung A710F (Europe, South Africa); A710F/DS (Kazakhstan, Russia); A710M (LATAM); A710M/DS (Brazil); A710FD (Southeast Asia); A710Y/DS (Philippines, Taiwan); A7100 (Hong Kong, China)) with each step description and the required set of tools.


Specialist in content creation, distribution and content management.


How to disassemble Samsung Galaxy A7 (2016) SM-A710, Step 1/1 How to disassemble Samsung Galaxy A7 (2016) SM-A710, Step 1/2
Step 1

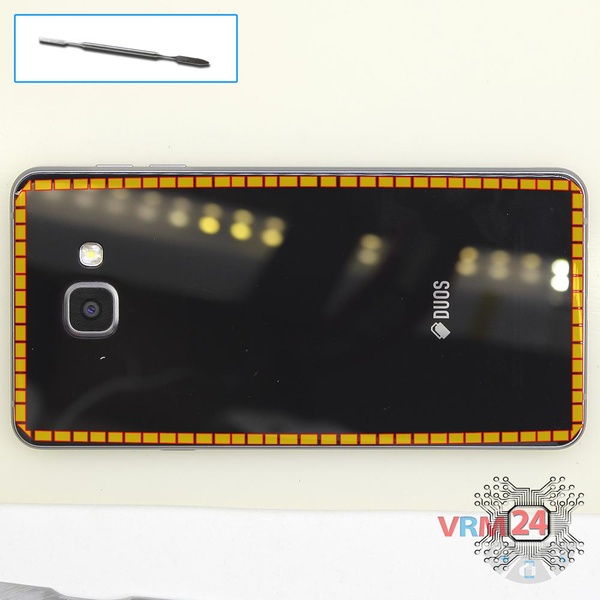

Open the back cover.

Warning!

For careful separation, we recommend using a heat gun. At the same time, it is necessary to heat carefully in order, not to damage the surface of the device.

How to disassemble Samsung Galaxy A7 (2016) SM-A710, Step 2/1 How to disassemble Samsung Galaxy A7 (2016) SM-A710, Step 2/2
Step 2

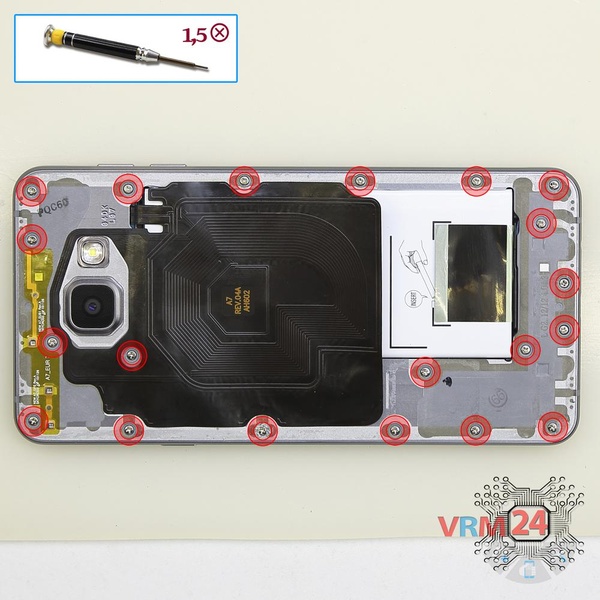

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 20 bolts in the frame of the phone.

How to disassemble Samsung Galaxy A7 (2016) SM-A710, Step 3/1 How to disassemble Samsung Galaxy A7 (2016) SM-A710, Step 3/2

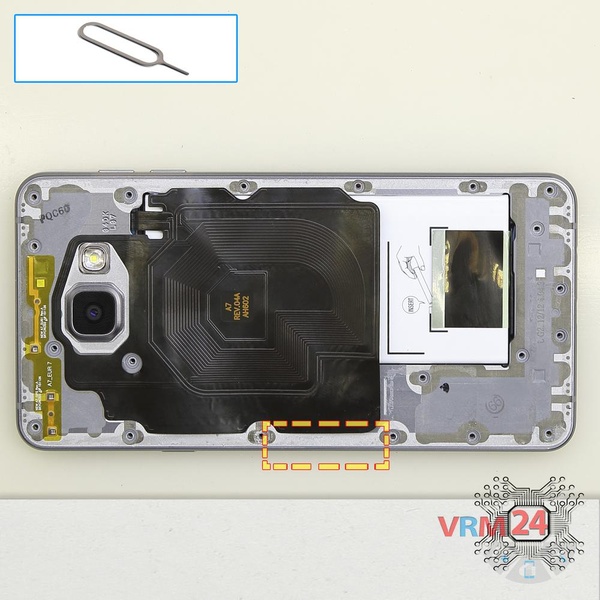

Step 3

Using the key tool, open the SIM and Micro SD cards tray and remove it.

Warning!

Do not push too hard this may cause damage.

How to disassemble Samsung Galaxy A7 (2016) SM-A710, Step 4/1 How to disassemble Samsung Galaxy A7 (2016) SM-A710, Step 4/2
Step 4

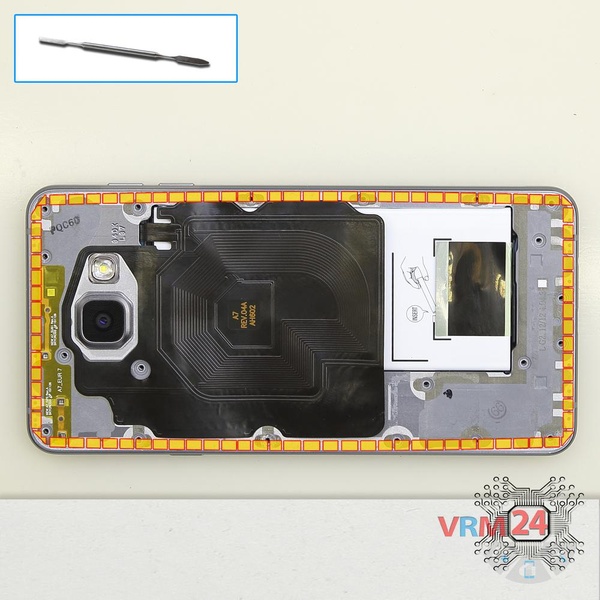

Pry and remove the middle frame.

Warning!

The frame is glued firmly. For careful separation, we recommend using a heat gun. At the same time, it is necessary to heat carefully in order, not to damage the surface of the device.

How to disassemble Samsung Galaxy A7 (2016) SM-A710, Step 5/1 How to disassemble Samsung Galaxy A7 (2016) SM-A710, Step 5/2 How to disassemble Samsung Galaxy A7 (2016) SM-A710, Step 5/3

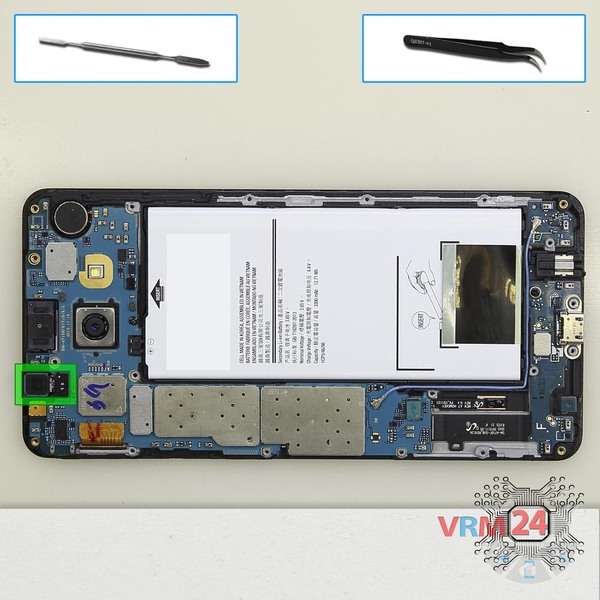

Step 5

Disconnect the connector on PCB, and remove the front (selfie) camera.

How to disassemble Samsung Galaxy A7 (2016) SM-A710, Step 6/1 How to disassemble Samsung Galaxy A7 (2016) SM-A710, Step 6/2 How to disassemble Samsung Galaxy A7 (2016) SM-A710, Step 6/3 How to disassemble Samsung Galaxy A7 (2016) SM-A710, Step 6/4 How to disassemble Samsung Galaxy A7 (2016) SM-A710, Step 6/5
Step 6

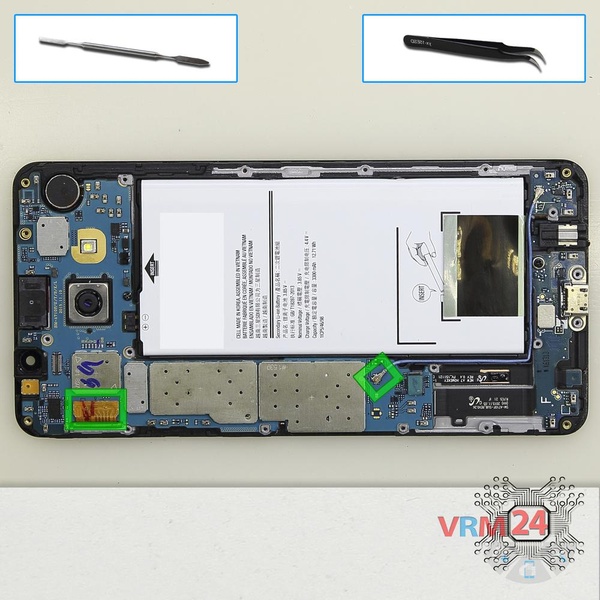

Disconnect connectors on the main PCB.

How to disassemble Samsung Galaxy A7 (2016) SM-A710, Step 7/1 How to disassemble Samsung Galaxy A7 (2016) SM-A710, Step 7/2
Step 7

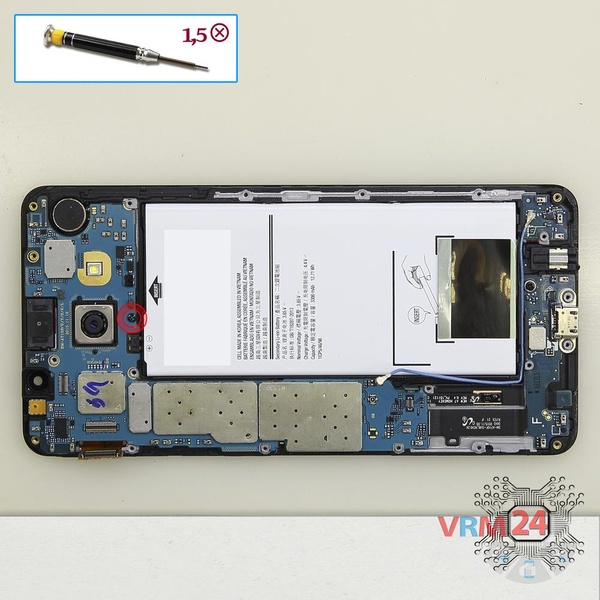

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 1 bolt in the PCB.

How to disassemble Samsung Galaxy A7 (2016) SM-A710, Step 8/1 How to disassemble Samsung Galaxy A7 (2016) SM-A710, Step 8/2 How to disassemble Samsung Galaxy A7 (2016) SM-A710, Step 8/3
Step 8

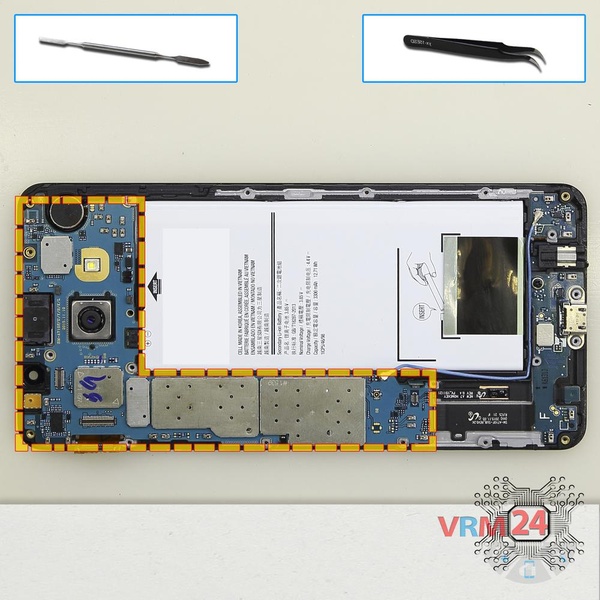

Remove the PCB.

Warning!

The main board connects to the lower PCB with a connector on the inside.

How to disassemble Samsung Galaxy A7 (2016) SM-A710, Step 9/1 How to disassemble Samsung Galaxy A7 (2016) SM-A710, Step 9/2 How to disassemble Samsung Galaxy A7 (2016) SM-A710, Step 9/3
Step 9

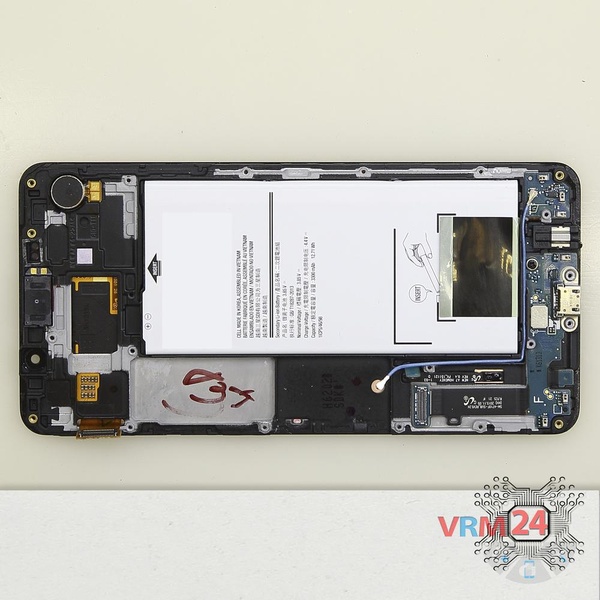

Parts are in the frame of the display module.

Detailed disassembly instructions of Samsung Galaxy A7 (2016) SM-A710 in the video, made by our mobile repair & service center:


Disassembling\Repair has hard complexity and takes about 5 minutes in time.
Our manual is suitable for all models Samsung Galaxy A7 (2016) SM-A710 — Samsung A710F (Europe, South Africa); A710F/DS (Kazakhstan, Russia); A710M (LATAM); A710M/DS (Brazil); A710FD (Southeast Asia); A710Y/DS (Philippines, Taiwan); A7100 (Hong Kong, China) released for markets in different countries.
