Disassembly of the mobile device Samsung Galaxy A8 (2018) SM-A530 (Samsung A530F (Europe, Global Single-SIM); A530F/DS (Global Dual-SIM), Samsung Galaxy A8 (2018) Duos) with each step description and the required set of tools.


Specialist in content creation, distribution and content management.


How to disassemble Samsung Galaxy A8 (2018) SM-A530, Step 1/1 How to disassemble Samsung Galaxy A8 (2018) SM-A530, Step 1/2
Step 1

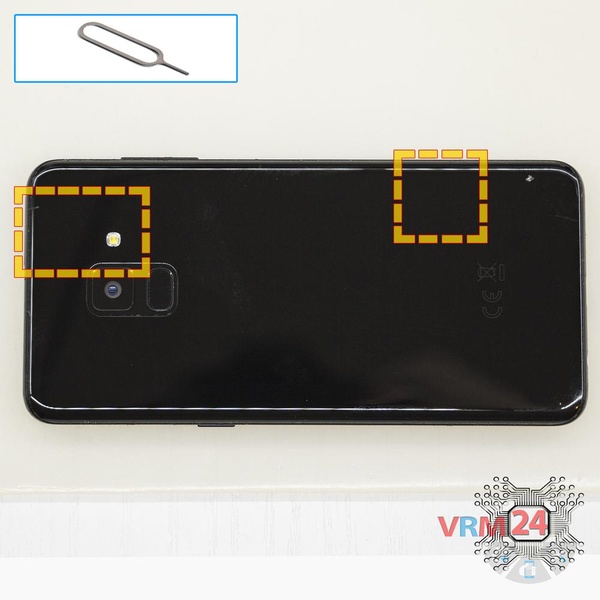

Using the key tool, open the SIM card and MMC card trays and remove it.

Warning!

Do not push too hard this may cause damage.

How to disassemble Samsung Galaxy A8 (2018) SM-A530, Step 2/1 How to disassemble Samsung Galaxy A8 (2018) SM-A530, Step 2/2
Step 2

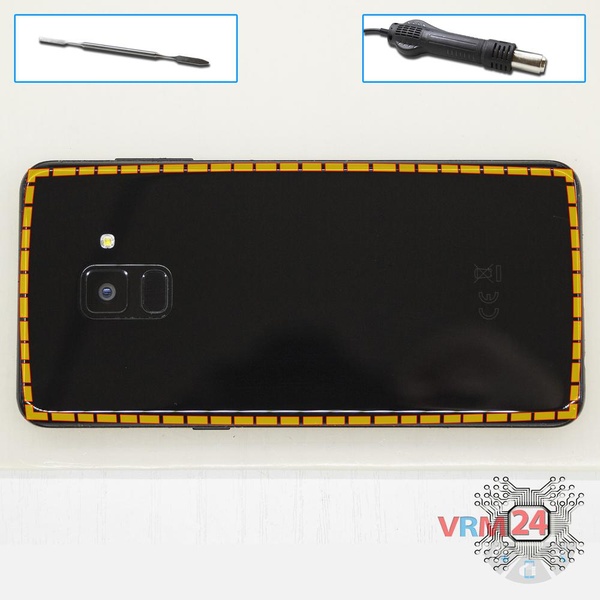

Open the back cover.

Warning!

For careful separation, we recommend using a heat gun. At the same time, it is necessary to heat carefully in order, not to damage the surface of the device.

How to disassemble Samsung Galaxy A8 (2018) SM-A530, Step 3/1 How to disassemble Samsung Galaxy A8 (2018) SM-A530, Step 3/2
Step 3

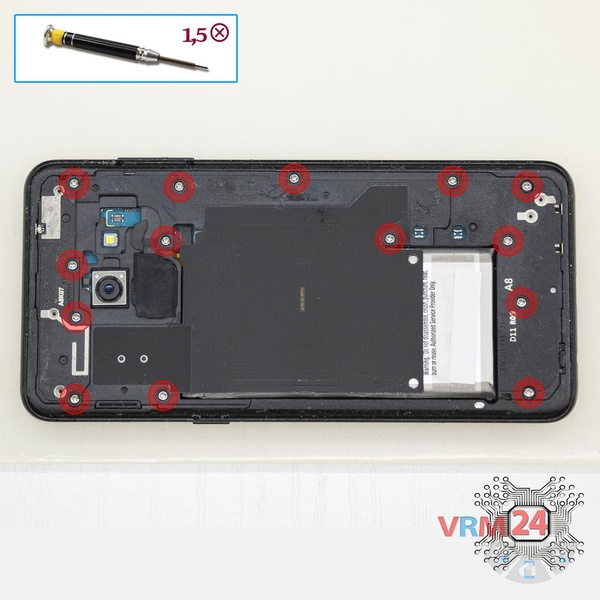

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 14 bolts in the frame of the phone.

How to disassemble Samsung Galaxy A8 (2018) SM-A530, Step 4/1 How to disassemble Samsung Galaxy A8 (2018) SM-A530, Step 4/2
Step 4

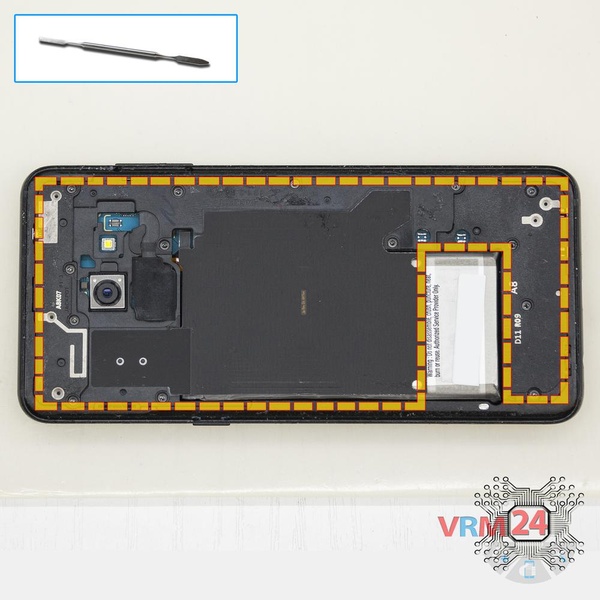

Pry and remove the covers with antennas and NFC.

How to disassemble Samsung Galaxy A8 (2018) SM-A530, Step 5/1 How to disassemble Samsung Galaxy A8 (2018) SM-A530, Step 5/2 How to disassemble Samsung Galaxy A8 (2018) SM-A530, Step 5/3
Step 5

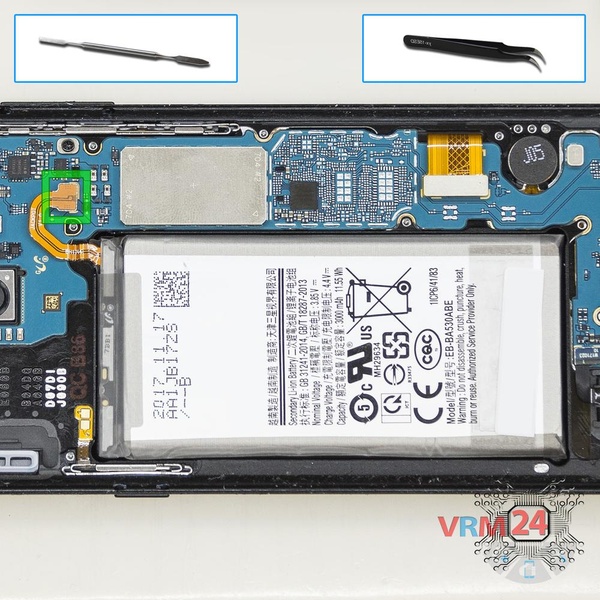

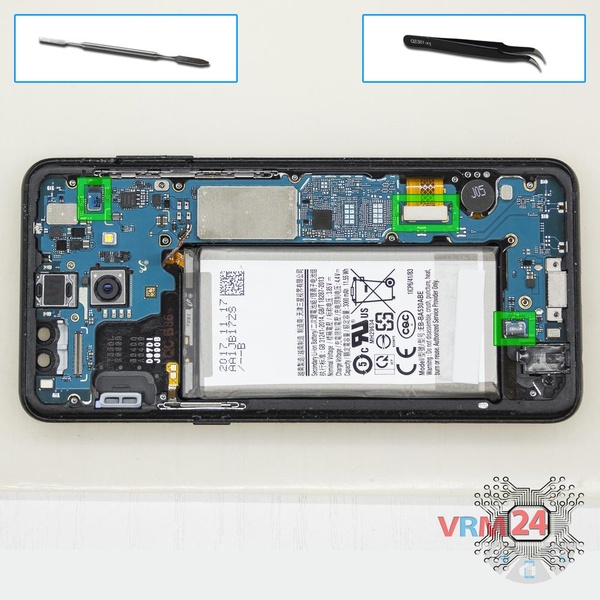

Disconnect the battery connector.

Warning!

We strongly recommend disconnecting the connector to avoid a possible short circuit during disassembly.

How to disassemble Samsung Galaxy A8 (2018) SM-A530, Step 6/1 How to disassemble Samsung Galaxy A8 (2018) SM-A530, Step 6/2
Step 6

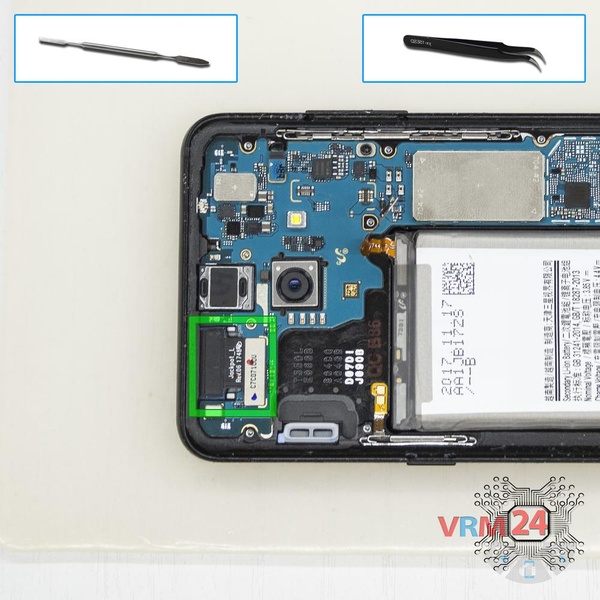

Disconnect connector on the PCB and remove two front (selfie) cameras.

How to disassemble Samsung Galaxy A8 (2018) SM-A530, Step 7/1 How to disassemble Samsung Galaxy A8 (2018) SM-A530, Step 7/2
Step 7

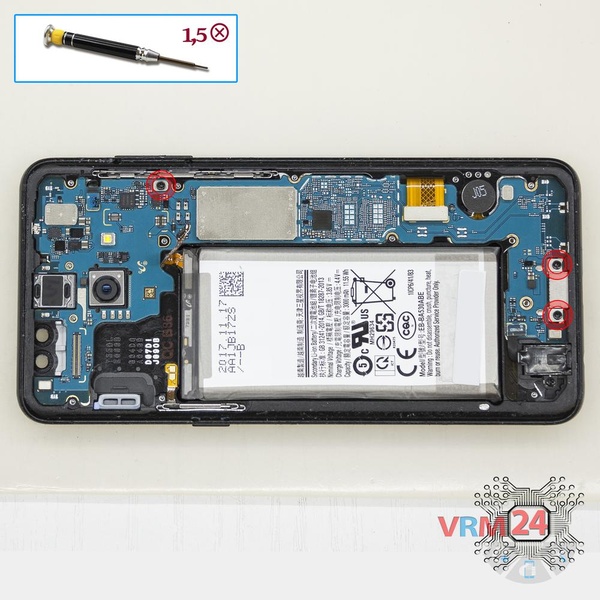

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 3 bolts in the PCB.

How to disassemble Samsung Galaxy A8 (2018) SM-A530, Step 8/1 How to disassemble Samsung Galaxy A8 (2018) SM-A530, Step 8/2
Step 8

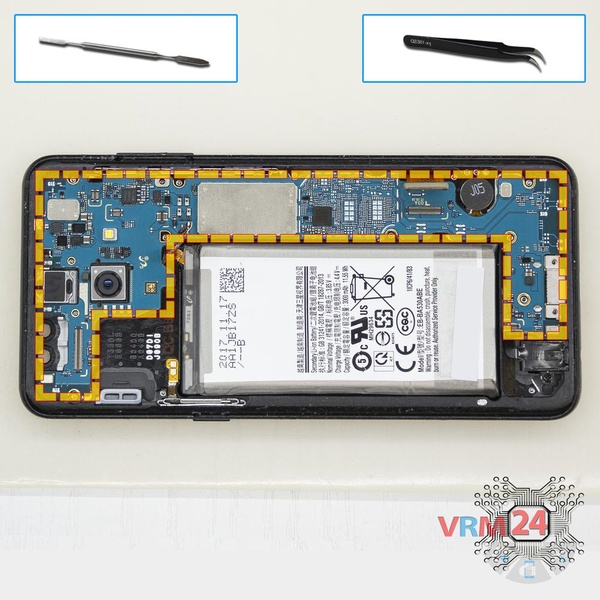

Disconnect connectors on the PCB.

How to disassemble Samsung Galaxy A8 (2018) SM-A530, Step 9/1 How to disassemble Samsung Galaxy A8 (2018) SM-A530, Step 9/2
Step 9

Remove the PCB.

How to disassemble Samsung Galaxy A8 (2018) SM-A530, Step 10/1 How to disassemble Samsung Galaxy A8 (2018) SM-A530, Step 10/2
Step 10

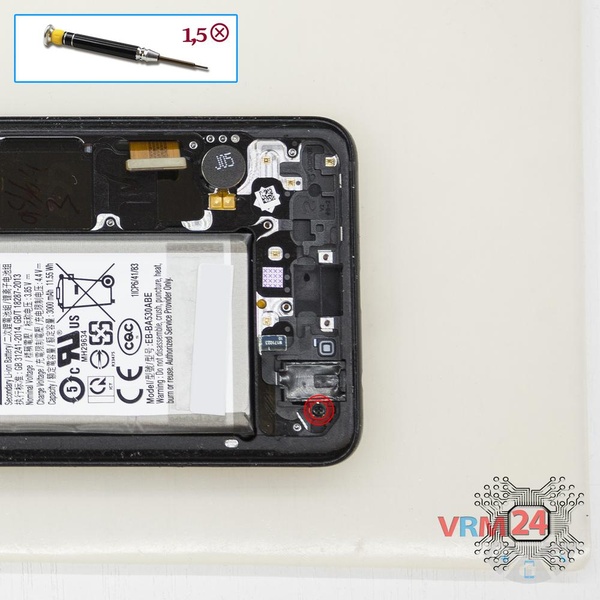

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 1 bolt securing the headphone jack/socket.

How to disassemble Samsung Galaxy A8 (2018) SM-A530, Step 11/1 How to disassemble Samsung Galaxy A8 (2018) SM-A530, Step 11/2
Step 11

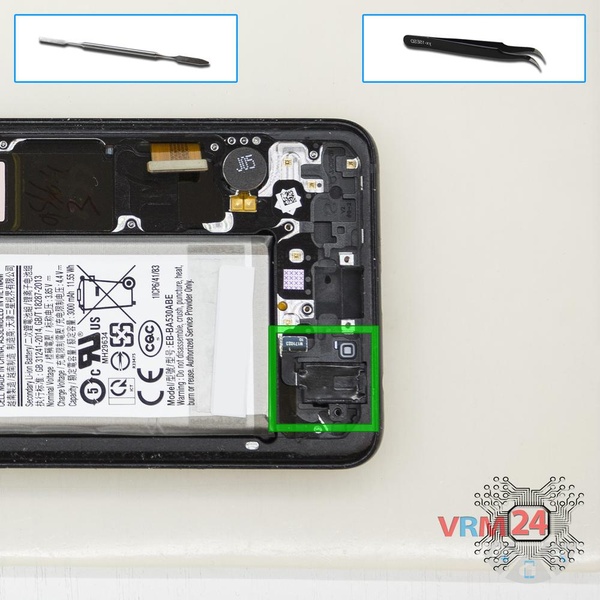

Pry & remove the headphone jack/socket.

How to disassemble Samsung Galaxy A8 (2018) SM-A530, Step 12/1 How to disassemble Samsung Galaxy A8 (2018) SM-A530, Step 12/2 How to disassemble Samsung Galaxy A8 (2018) SM-A530, Step 12/3
Step 12

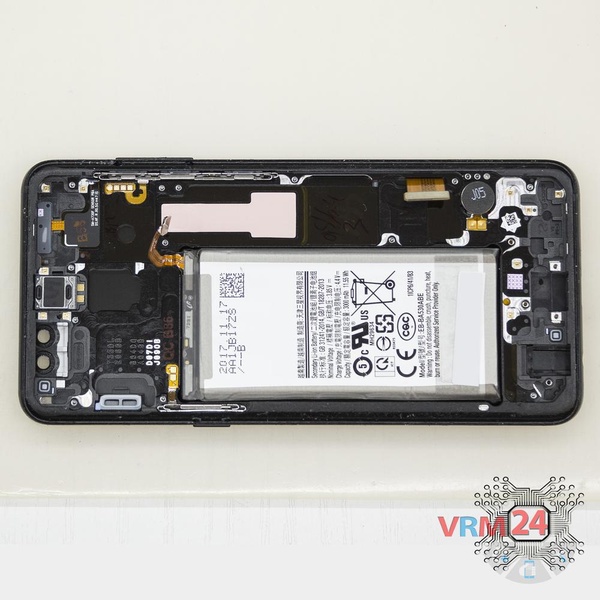

Parts in the frame of the display module.

Detailed disassembly instructions of Samsung Galaxy A8 (2018) SM-A530 in the video, made by our mobile repair & service center:


Disassembling\Repair has medium complexity and takes about 8 minutes in time.
