Teardown difficulty:
Moderate
Duration:
17 min

Recommended tools

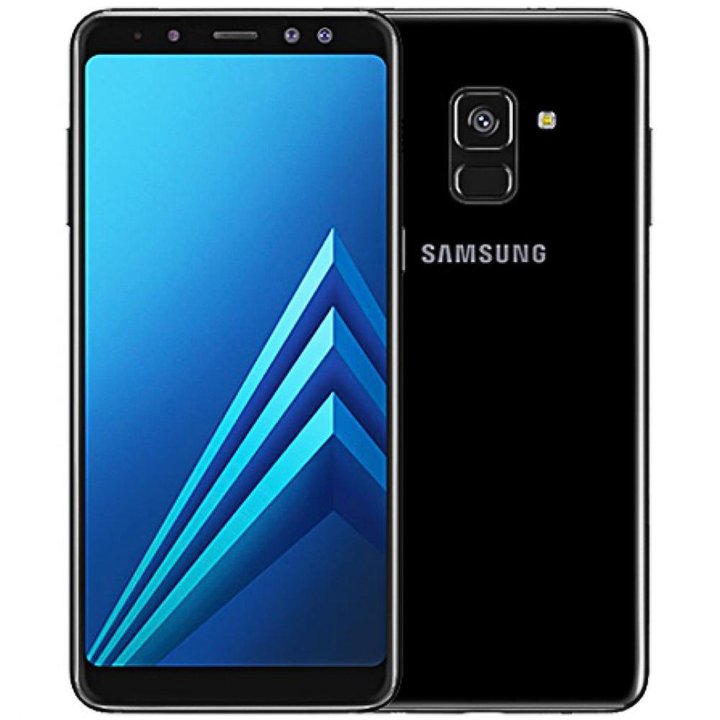

Disassembly of the mobile device Samsung Galaxy A8 Plus (2018) SM-A730 (Samsung A730F (Global Single-SIM); A730F/DS (Global Dual-SIM). Also known as Samsung Galaxy A8+ (2018) Duos with dual-SIM) with each step description and the required set of tools.


Specialist in content creation, distribution and content management.


How to disassemble Samsung Galaxy A8 Plus (2018) SM-A730, Step 1/1 How to disassemble Samsung Galaxy A8 Plus (2018) SM-A730, Step 1/2

Step 1

Using the key tool, open the SIM card and micro sd card slots and remove them.

⚠️ Warning!

Do not push too hard this may cause damage.

How to disassemble Samsung Galaxy A8 Plus (2018) SM-A730, Step 2/1 How to disassemble Samsung Galaxy A8 Plus (2018) SM-A730, Step 2/2

Step 2

Open the back cover.

⚠️ Warning!

For careful separation, we recommend using a heat gun. At the same time, it is necessary to heat carefully in order, not to damage the surface of the device.

How to disassemble Samsung Galaxy A8 Plus (2018) SM-A730, Step 3/1 How to disassemble Samsung Galaxy A8 Plus (2018) SM-A730, Step 3/2

Step 3

Using a screwdriver (Phillips 1.5 mm cross-head), unscrew 16 bolts in the panels of the phone.

How to disassemble Samsung Galaxy A8 Plus (2018) SM-A730, Step 4/1 How to disassemble Samsung Galaxy A8 Plus (2018) SM-A730, Step 4/2

Step 4

Pry and remove the pannels.

How to disassemble Samsung Galaxy A8 Plus (2018) SM-A730, Step 5/1 How to disassemble Samsung Galaxy A8 Plus (2018) SM-A730, Step 5/2 How to disassemble Samsung Galaxy A8 Plus (2018) SM-A730, Step 5/3

Step 5

Disconnect the battery connector.

⚠️ Warning!

We strongly recommend disconnecting the connector to avoid a possible short circuit during disassembly.

How to disassemble Samsung Galaxy A8 Plus (2018) SM-A730, Step 6/1 How to disassemble Samsung Galaxy A8 Plus (2018) SM-A730, Step 6/2

Step 6

Disconnect the connector on PCB and remove the main paired camera.

How to disassemble Samsung Galaxy A8 Plus (2018) SM-A730, Step 7/1 How to disassemble Samsung Galaxy A8 Plus (2018) SM-A730, Step 7/2 How to disassemble Samsung Galaxy A8 Plus (2018) SM-A730, Step 7/3

Step 7

Disconnect the connector on the PCB and remove the jack socket.

How to disassemble Samsung Galaxy A8 Plus (2018) SM-A730, Step 8/1 How to disassemble Samsung Galaxy A8 Plus (2018) SM-A730, Step 8/2

Step 8

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 3 bolts in the PCB.

How to disassemble Samsung Galaxy A8 Plus (2018) SM-A730, Step 9/1 How to disassemble Samsung Galaxy A8 Plus (2018) SM-A730, Step 9/2

Step 9

Disconnect the connector on the PCB.

How to disassemble Samsung Galaxy A8 Plus (2018) SM-A730, Step 10/1 How to disassemble Samsung Galaxy A8 Plus (2018) SM-A730, Step 10/2

Step 10

Remove the PCB.

How to disassemble Samsung Galaxy A8 Plus (2018) SM-A730, Step 11/1 How to disassemble Samsung Galaxy A8 Plus (2018) SM-A730, Step 11/2

Step 11

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 2 bolts securing the part with speaker.

How to disassemble Samsung Galaxy A8 Plus (2018) SM-A730, Step 12/1 How to disassemble Samsung Galaxy A8 Plus (2018) SM-A730, Step 12/2

Step 12

Pry and remove the part with speaker.

How to disassemble Samsung Galaxy A8 Plus (2018) SM-A730, Step 13/1

Step 13

Parts in the frame of the display module and PCB.

Detailed disassembly instructions of Samsung Galaxy A8 Plus (2018) SM-A730 in the video, made by our mobile repair & service center:


Disassembling\Repair has medium complexity and takes about 17 minutes in time.
Our manual is suitable for all models Samsung Galaxy A8 Plus (2018) SM-A730 — Samsung A730F (Global Single-SIM); A730F/DS (Global Dual-SIM). Also known as Samsung Galaxy A8+ (2018) Duos with dual-SIM released for markets in different countries.
