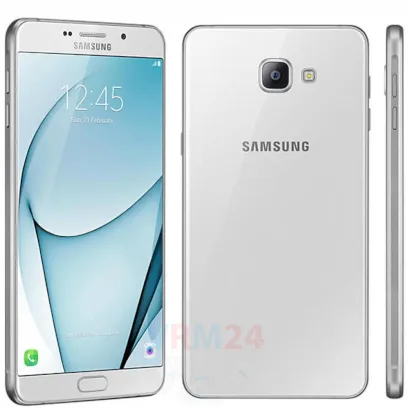

Disassembly of the mobile device Samsung Galaxy A9 Pro (2016) SM-A910 (Samsung SM-A9100, SM-A910F) with each step description and the required set of tools.


Specialist in content creation, distribution and content management.


How to disassemble Samsung Galaxy A9 Pro (2016) SM-A910, Step 1/1 How to disassemble Samsung Galaxy A9 Pro (2016) SM-A910, Step 1/2
Step 1

Open the back cover.

Warning!

For careful separation, we recommend using a heat gun. At the same time, it is necessary to heat carefully in order, not to damage the surface of the device.

How to disassemble Samsung Galaxy A9 Pro (2016) SM-A910, Step 2/1 How to disassemble Samsung Galaxy A9 Pro (2016) SM-A910, Step 2/2
Step 2

Using the key tool, open the SIM and Micro SD card trays and remove it.

Warning!

Do not push too hard this may cause damage.

How to disassemble Samsung Galaxy A9 Pro (2016) SM-A910, Step 3/1 How to disassemble Samsung Galaxy A9 Pro (2016) SM-A910, Step 3/2
Step 3

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 19 bolts in the frame of the phone.

How to disassemble Samsung Galaxy A9 Pro (2016) SM-A910, Step 4/1 How to disassemble Samsung Galaxy A9 Pro (2016) SM-A910, Step 4/2
Step 4

Pry and remove the middle frame.

How to disassemble Samsung Galaxy A9 Pro (2016) SM-A910, Step 5/1
Step 5

The middle frame.

How to disassemble Samsung Galaxy A9 Pro (2016) SM-A910, Step 6/1 How to disassemble Samsung Galaxy A9 Pro (2016) SM-A910, Step 6/2 How to disassemble Samsung Galaxy A9 Pro (2016) SM-A910, Step 6/3
Step 6

Disconnect the battery connector.

Warning!

We strongly recommend disconnecting the connector to avoid a possible short circuit during disassembly.

How to disassemble Samsung Galaxy A9 Pro (2016) SM-A910, Step 7/1 How to disassemble Samsung Galaxy A9 Pro (2016) SM-A910, Step 7/2
Step 7

Disconnect the connector on PCB, and remove the front (selfie) camera.

How to disassemble Samsung Galaxy A9 Pro (2016) SM-A910, Step 8/1 How to disassemble Samsung Galaxy A9 Pro (2016) SM-A910, Step 8/2 How to disassemble Samsung Galaxy A9 Pro (2016) SM-A910, Step 8/3 How to disassemble Samsung Galaxy A9 Pro (2016) SM-A910, Step 8/4 How to disassemble Samsung Galaxy A9 Pro (2016) SM-A910, Step 8/5
Step 8

Disconnect connectors on the main PCB.

How to disassemble Samsung Galaxy A9 Pro (2016) SM-A910, Step 9/1 How to disassemble Samsung Galaxy A9 Pro (2016) SM-A910, Step 9/2 How to disassemble Samsung Galaxy A9 Pro (2016) SM-A910, Step 9/3
Step 9

Lift up the board, disconnect the connector from the inside and remove it.

How to disassemble Samsung Galaxy A9 Pro (2016) SM-A910, Step 10/1 How to disassemble Samsung Galaxy A9 Pro (2016) SM-A910, Step 10/2
Step 10

Pry and remove the earpiece (speaker) and vibration motor.

How to disassemble Samsung Galaxy A9 Pro (2016) SM-A910, Step 11/1 How to disassemble Samsung Galaxy A9 Pro (2016) SM-A910, Step 11/2 How to disassemble Samsung Galaxy A9 Pro (2016) SM-A910, Step 11/3
Step 11

Parts are in the frame of the display module.

Detailed disassembly instructions of Samsung Galaxy A9 Pro (2016) SM-A910 in the video, made by our mobile repair & service center:


Disassembling\Repair has hard complexity and takes about 10 minutes in time.
Our manual is suitable for all models Samsung Galaxy A9 Pro (2016) SM-A910 — Samsung SM-A9100, SM-A910F released for markets in different countries.
