Teardown difficulty:
Hard

Recommended tools

Disassembly/Repair of the mobile device Samsung Galaxy Ace 4 Lite SM-G313 with each step description and the required set of tools.


Specialist in content creation, distribution and content management.


How to disassemble Samsung Galaxy Ace 4 Lite SM-G313, Step 1/1

Step 1. Before disassembling!

⚠️ Before disassembling, do not forget to turn your phone off.


How to disassemble Samsung Galaxy Ace 4 Lite SM-G313, Step 2/1 How to disassemble Samsung Galaxy Ace 4 Lite SM-G313, Step 2/2

Step 2. Open the back cover

Open the back cover using a gap on the lower right side (usually) of the smartphone.


How to disassemble Samsung Galaxy Ace 4 Lite SM-G313, Step 3/1 How to disassemble Samsung Galaxy Ace 4 Lite SM-G313, Step 3/2

Step 3. Remove the battery

Remove the battery.


How to disassemble Samsung Galaxy Ace 4 Lite SM-G313, Step 4/1 How to disassemble Samsung Galaxy Ace 4 Lite SM-G313, Step 4/2

Step 4. Open the cover

Open the cover hiding the display connector and earpiece speaker.


How to disassemble Samsung Galaxy Ace 4 Lite SM-G313, Step 5/1 How to disassemble Samsung Galaxy Ace 4 Lite SM-G313, Step 5/2

Step 5. Disconnect the connector

Pry up the display connector.


How to disassemble Samsung Galaxy Ace 4 Lite SM-G313, Step 6/1 How to disassemble Samsung Galaxy Ace 4 Lite SM-G313, Step 6/2

Step 6. Open the display module

We recommend using a special heating device such as a separator machine, heat gun, or heating mat. It will simplify the process. You can use a home hairdryer, but you will have to make a nozzle by hand or have a suitable one in the kit to gently heat and concentrate the heat flow in the right place.

ℹ️️ The surface of the display module must be heated to soften the adhesive underneath. The approximate heating temperature is 50° C / 125° F.

Use a thin plastic film or pick for separation. To facilitate the process, you can use isopropyl alcohol. It is often most difficult to pass the tool between the parts to be divided. Choose the far edge from the FFC cables or buttons.

Do not use a lever or any force for separation that could damage the elements inside.


How to disassemble Samsung Galaxy Ace 4 Lite SM-G313, Step 7/1 How to disassemble Samsung Galaxy Ace 4 Lite SM-G313, Step 7/2

Step 7. Unscrew the screws

Using a screwdriver (Phillips 1.5 mm PH000), unscrew four screws and remove the Home button key.


How to disassemble Samsung Galaxy Ace 4 Lite SM-G313, Step 8/1 How to disassemble Samsung Galaxy Ace 4 Lite SM-G313, Step 8/2

Step 8. Remove the motherboard

Pry at the edges, detach hooks, and remove the motherboard from the middle cover.


How to disassemble Samsung Galaxy Ace 4 Lite SM-G313, Step 9/1 How to disassemble Samsung Galaxy Ace 4 Lite SM-G313, Step 9/2 How to disassemble Samsung Galaxy Ace 4 Lite SM-G313, Step 9/3

Step 9. In the middle cover

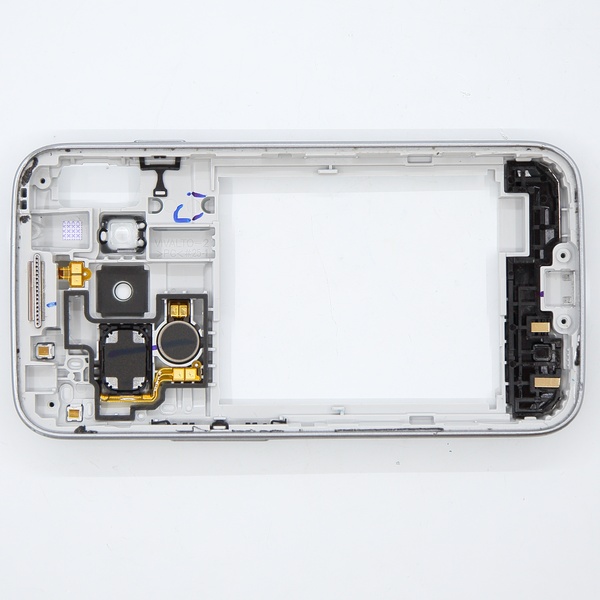

ℹ️️ In the middle cover remained: the earpiece speaker, loudspeaker, and vibration motor.

Detailed disassembly instructions of Samsung Galaxy Ace 4 Lite SM-G313 in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.


Disassembling\Repair has hard complexity and takes about 4 minutes in time. Our manual is suitable for all models Samsung Galaxy Ace 4 Lite SM-G313 released for markets in different countries.
