Samsung Galaxy Ace Style LTE SM-G357FZ
Samsung Galaxy Ace Style LTE SM-G357FZ
Teardown difficulty:
Easy
Duration:
3 min

Recommended tools

Screwdriver Phillips #000 Screwdriver phillips #000
Opening tool / Spudger Opening tool / spudger
Tweezers Tweezers

Disassembly/Repair of the mobile device Samsung Galaxy Ace Style LTE SM-G357FZ with each step description and the required set of tools.

Vadim Popoff

Specialist in content creation, distribution and content management.

How to disassemble Samsung Galaxy Ace Style LTE SM-G357FZ, Step 1/1

Step 1.

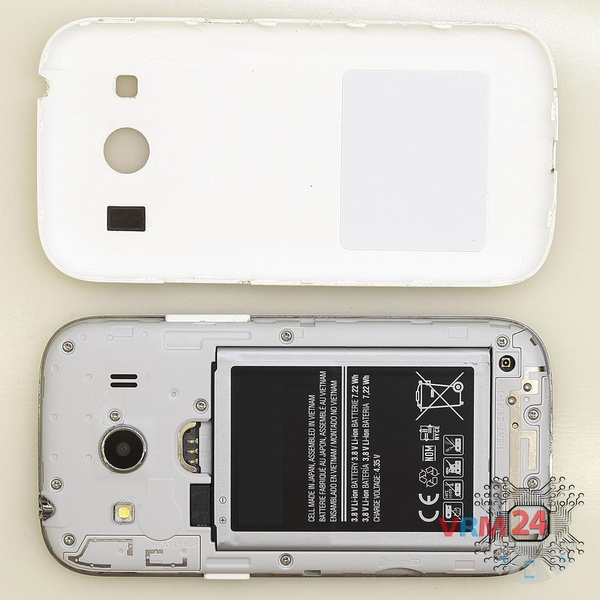

Open the back cover.

How to disassemble Samsung Galaxy Ace Style LTE SM-G357FZ, Step 2/1 How to disassemble Samsung Galaxy Ace Style LTE SM-G357FZ, Step 2/2

Step 2.

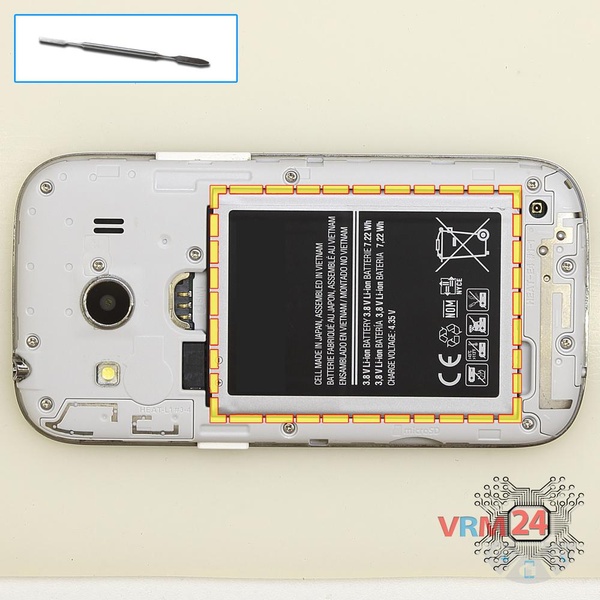

Lift and remove the battery.

How to disassemble Samsung Galaxy Ace Style LTE SM-G357FZ, Step 3/1 How to disassemble Samsung Galaxy Ace Style LTE SM-G357FZ, Step 3/2

Step 3.

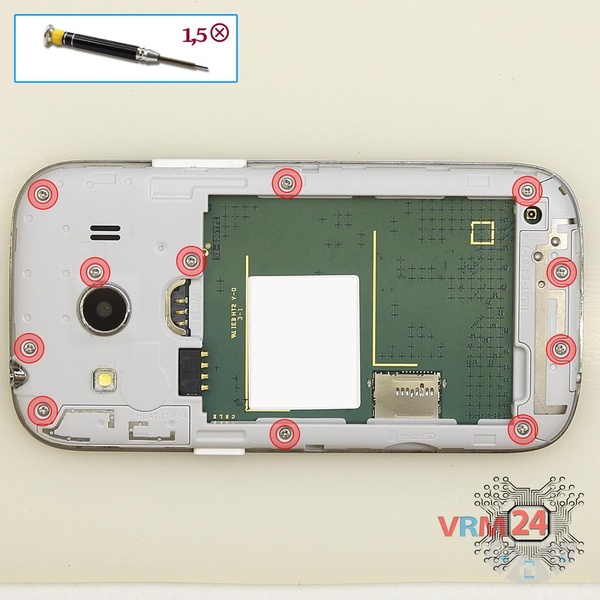

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 11 bolts in the frame of the phone.

How to disassemble Samsung Galaxy Ace Style LTE SM-G357FZ, Step 4/1 How to disassemble Samsung Galaxy Ace Style LTE SM-G357FZ, Step 4/2

Step 4.

Pry and remove the middle frame.

How to disassemble Samsung Galaxy Ace Style LTE SM-G357FZ, Step 5/1 How to disassemble Samsung Galaxy Ace Style LTE SM-G357FZ, Step 5/2 How to disassemble Samsung Galaxy Ace Style LTE SM-G357FZ, Step 5/3

Step 5.

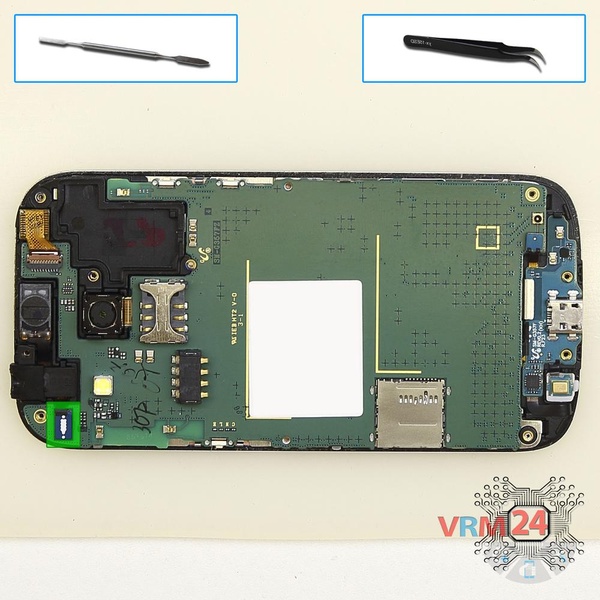

Disconnect the connector on PCB and remove cable with a headphone jack/socket and earpiece (speaker).

How to disassemble Samsung Galaxy Ace Style LTE SM-G357FZ, Step 6/1 How to disassemble Samsung Galaxy Ace Style LTE SM-G357FZ, Step 6/2

Step 6.

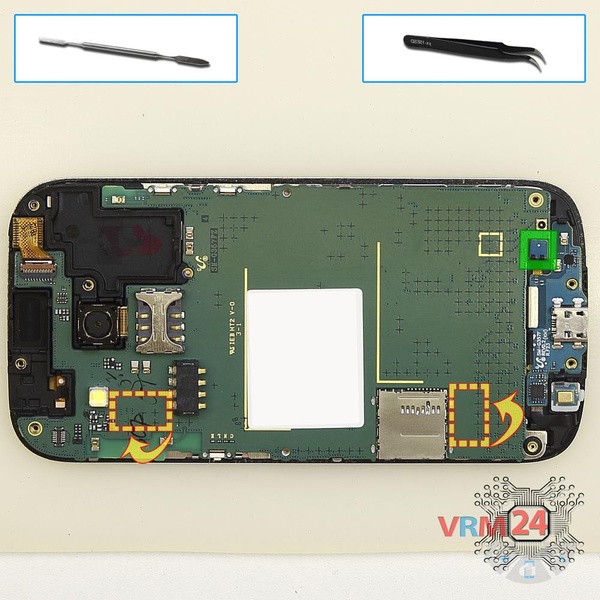

Pry up the connector of the lower board on the main PCB. Lift up the main PCB. Disconnect the connectors from the inside, and remove the board.

How to disassemble Samsung Galaxy Ace Style LTE SM-G357FZ, Step 7/1 How to disassemble Samsung Galaxy Ace Style LTE SM-G357FZ, Step 7/2 How to disassemble Samsung Galaxy Ace Style LTE SM-G357FZ, Step 7/3

Step 7.

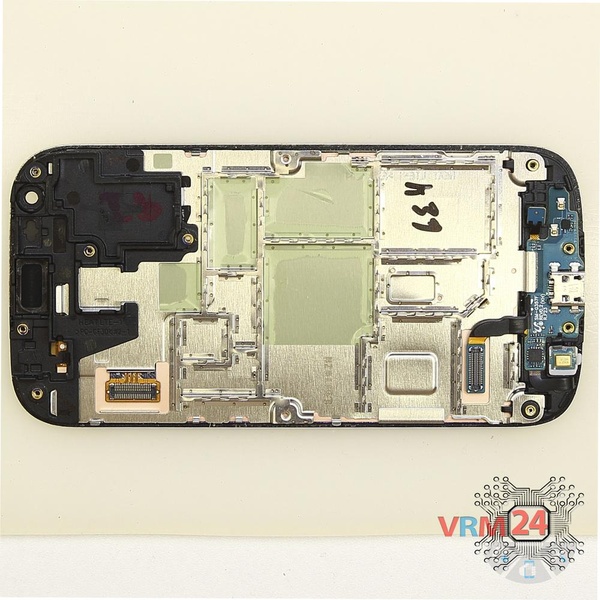

Parts are in the frame of the display module.

Detailed disassembly instructions of Samsung Galaxy Ace Style LTE SM-G357FZ in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

#instructions #Samsung #Samsung Galaxy Ace Style LTE SM-G357FZ
Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer

Disassembling\Repair has easy complexity and takes about 3 minutes in time.
