Samsung Galaxy Alpha SM-G850

Teardown difficulty:
Hard

Duration:
10 min

Recommended tools

Heat gun

Screwdriver phillips #000

Opening tool / spudger

Tweezers

Disassembly/Repair of the mobile device Samsung Galaxy Alpha SM-G850 (Samsung G850F (Europe); G850T (T-Mobile), G850M (Vodafone); G850FQ; G850Y or Samsung Galaxy Alfa) with each step description and the required set of tools.

Vadim Popoff

Author, content manager

Specialist in content creation, distribution and content management.

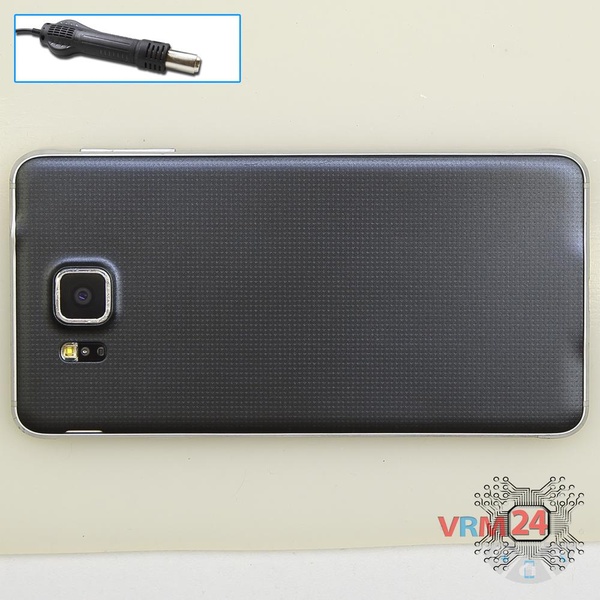

Step 1.

Separate the display module from the cover (in detail - l ink).

How to disassemble Samsung Galaxy Alpha SM-G850, Step 2/1

How to disassemble Samsung Galaxy Alpha SM-G850, Step 2/2

Step 2.

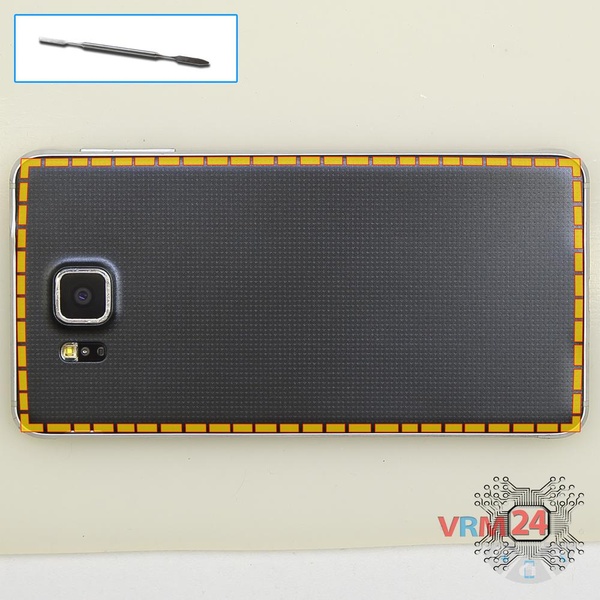

Open the back cover.

How to disassemble Samsung Galaxy Alpha SM-G850, Step 3/1

How to disassemble Samsung Galaxy Alpha SM-G850, Step 3/2

Step 3.

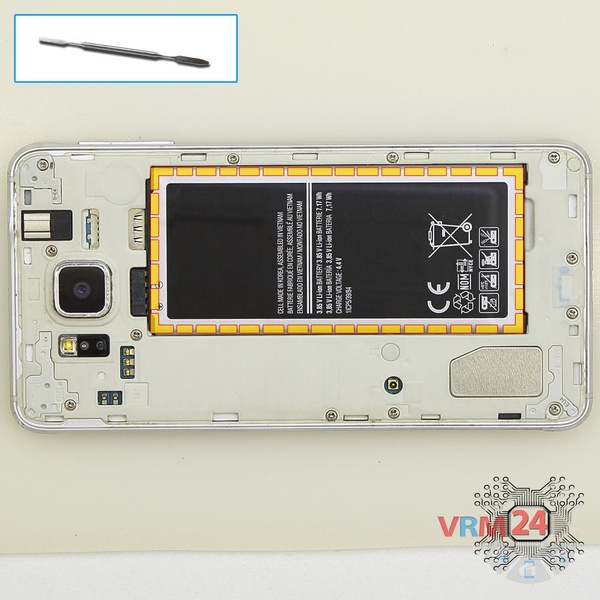

Lift and remove the battery.

How to disassemble Samsung Galaxy Alpha SM-G850, Step 4/1

How to disassemble Samsung Galaxy Alpha SM-G850, Step 4/2

Step 4.

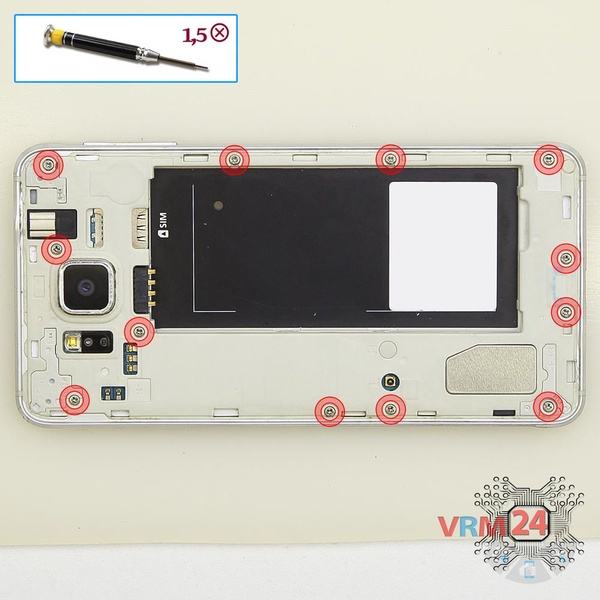

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 12 bolts in the frame of the phone.

How to disassemble Samsung Galaxy Alpha SM-G850, Step 5/1

How to disassemble Samsung Galaxy Alpha SM-G850, Step 5/2

Step 5.

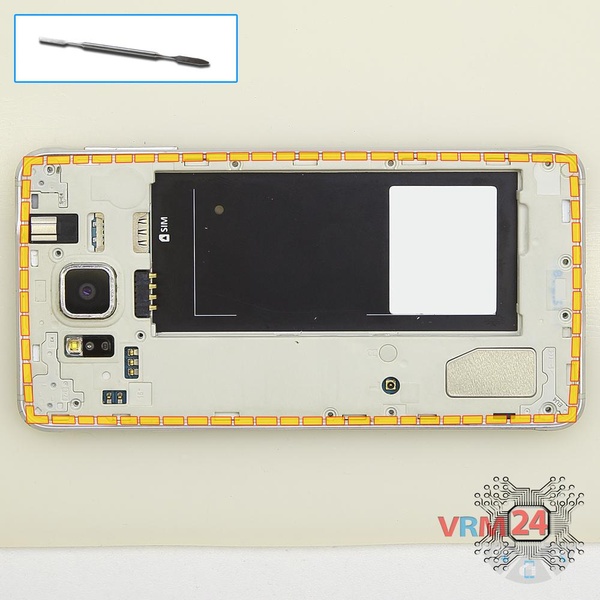

Pry and remove the middle frame.

How to disassemble Samsung Galaxy Alpha SM-G850, Step 6/1

How to disassemble Samsung Galaxy Alpha SM-G850, Step 6/2

Step 6.

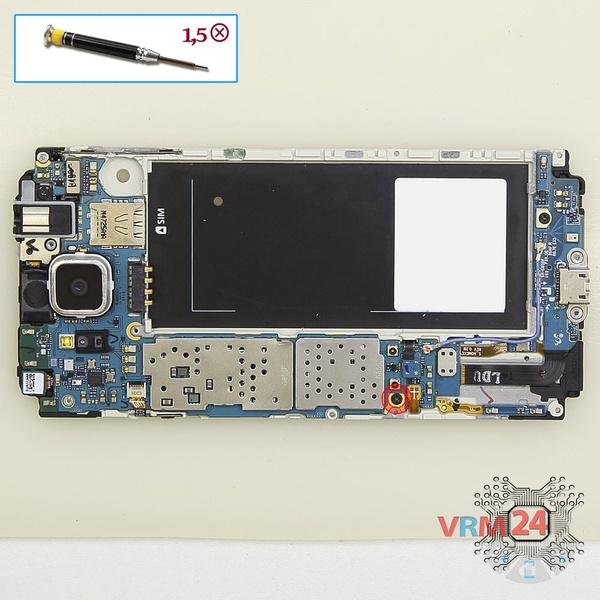

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 1 bolt in the PCB.

How to disassemble Samsung Galaxy Alpha SM-G850, Step 7/1

How to disassemble Samsung Galaxy Alpha SM-G850, Step 7/2

How to disassemble Samsung Galaxy Alpha SM-G850, Step 7/3

Step 7.

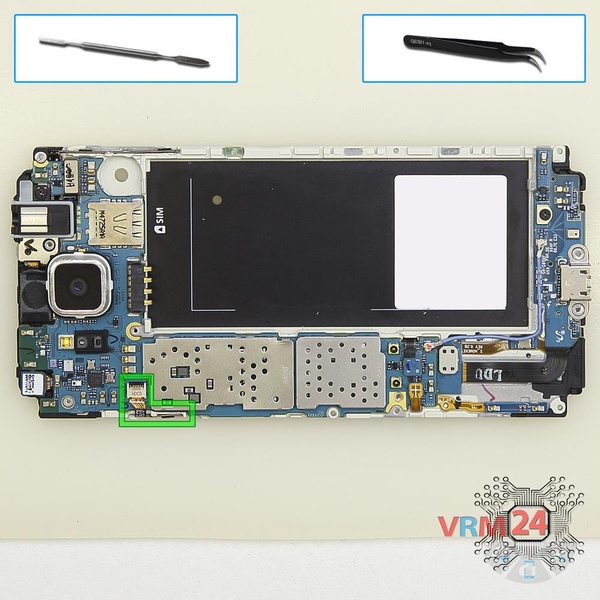

Pry up the connector on PCB and remove the Power button.

How to disassemble Samsung Galaxy Alpha SM-G850, Step 8/1

How to disassemble Samsung Galaxy Alpha SM-G850, Step 8/2

How to disassemble Samsung Galaxy Alpha SM-G850, Step 8/3

How to disassemble Samsung Galaxy Alpha SM-G850, Step 8/4

How to disassemble Samsung Galaxy Alpha SM-G850, Step 8/5

Step 8.

Disconnect connectors on the PCB.

⚠️ Warning!

The inter-board cable connector locates on the inside. It is necessary to perform it accurately.

How to disassemble Samsung Galaxy Alpha SM-G850, Step 9/1

How to disassemble Samsung Galaxy Alpha SM-G850, Step 9/2

How to disassemble Samsung Galaxy Alpha SM-G850, Step 9/3

Step 9.

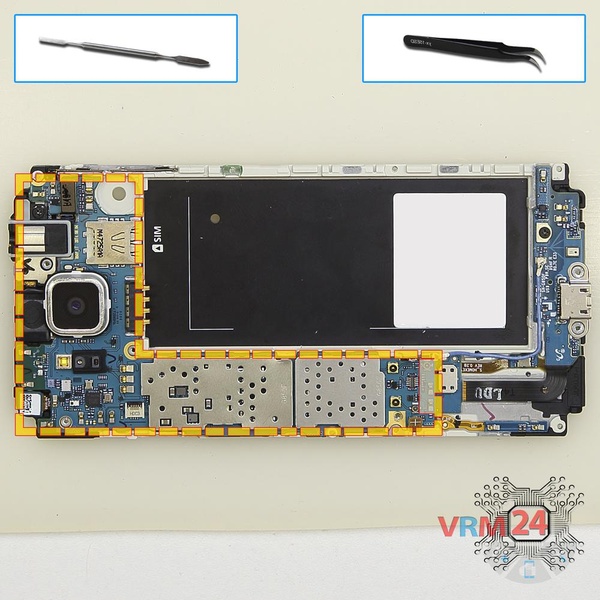

Remove the main PCB.

How to disassemble Samsung Galaxy Alpha SM-G850, Step 10/1

How to disassemble Samsung Galaxy Alpha SM-G850, Step 10/2

Step 10.

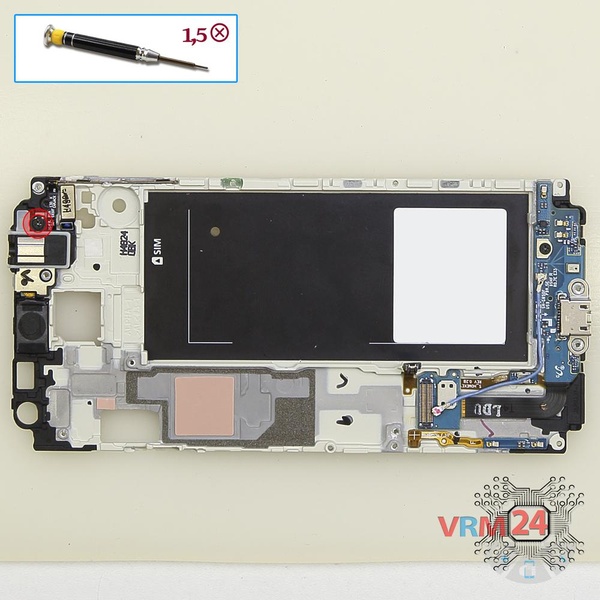

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 1 bolt securing the headphone jack/socket.

How to disassemble Samsung Galaxy Alpha SM-G850, Step 11/1

How to disassemble Samsung Galaxy Alpha SM-G850, Step 11/2

Step 11.

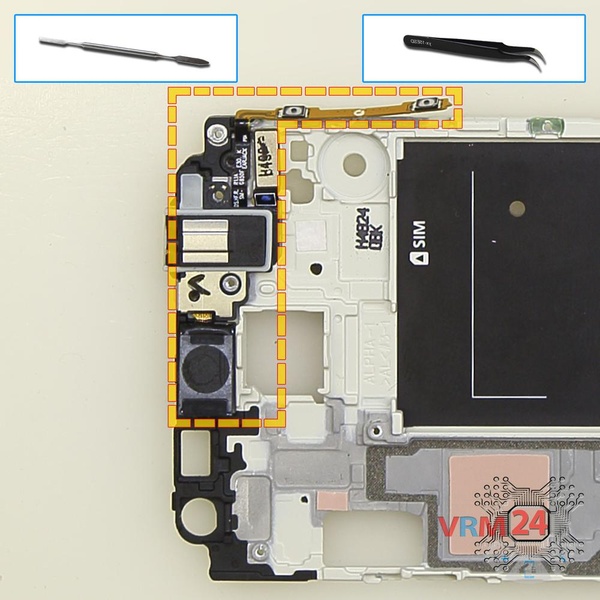

Remove the cable with a headphone jack/socket, ear piece speaker, and volume buttons.

How to disassemble Samsung Galaxy Alpha SM-G850, Step 12/1

How to disassemble Samsung Galaxy Alpha SM-G850, Step 12/2

Step 12.

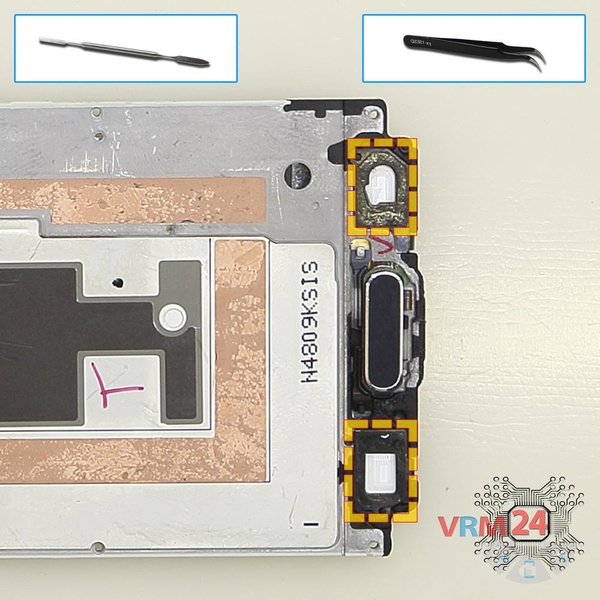

Pry up the clips.

How to disassemble Samsung Galaxy Alpha SM-G850, Step 13/1

How to disassemble Samsung Galaxy Alpha SM-G850, Step 13/2

Step 13.

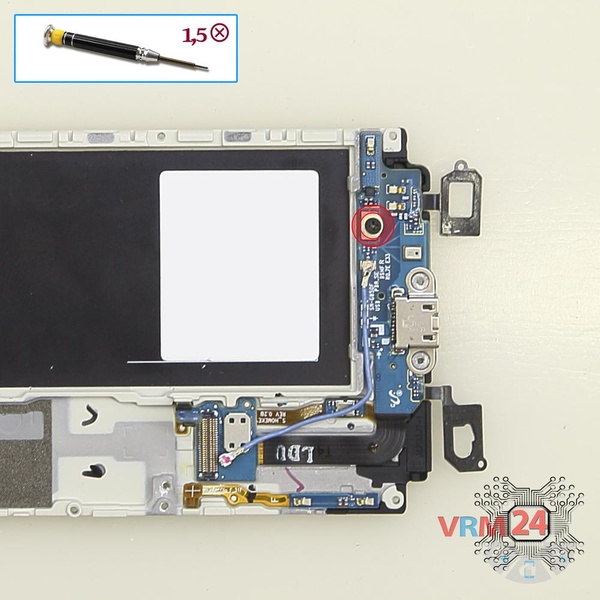

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 1 bolt in the lower PCB.

How to disassemble Samsung Galaxy Alpha SM-G850, Step 14/1

How to disassemble Samsung Galaxy Alpha SM-G850, Step 14/2

Step 14.

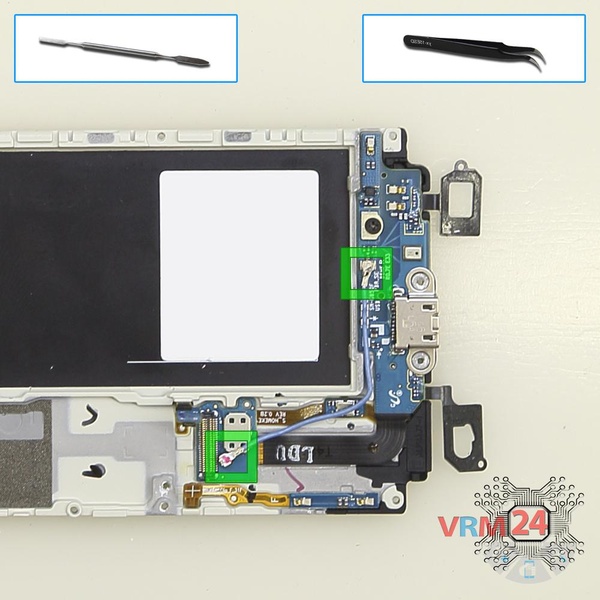

Disconnect connectors and remove the coaxial cable.

How to disassemble Samsung Galaxy Alpha SM-G850, Step 15/1

How to disassemble Samsung Galaxy Alpha SM-G850, Step 15/2

Step 15.

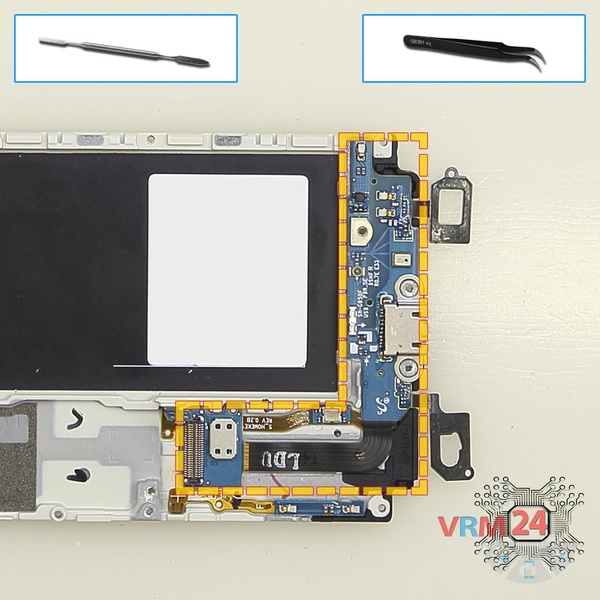

Remove the lower PCB.

How to disassemble Samsung Galaxy Alpha SM-G850, Step 16/1

How to disassemble Samsung Galaxy Alpha SM-G850, Step 16/2

Step 16.

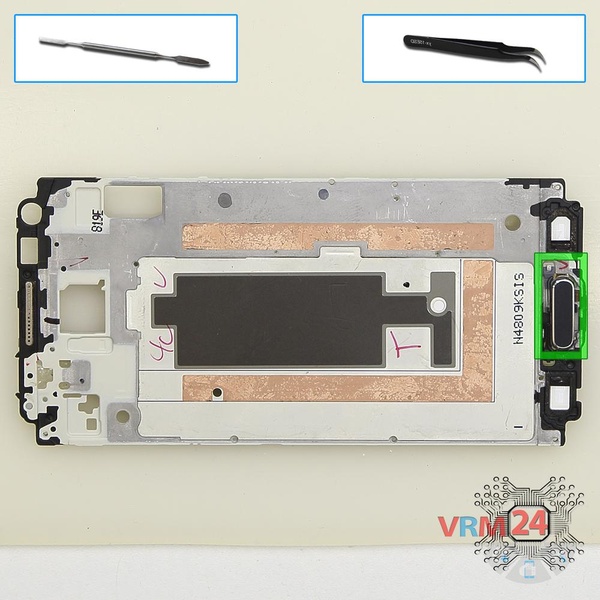

Remove the cable with Home button.

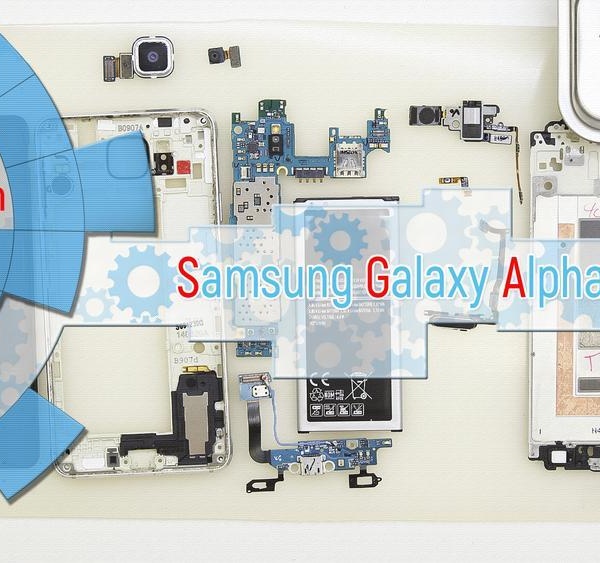

Detailed disassembly instructions of Samsung Galaxy Alpha SM-G850 in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

#instructions #Samsung #Samsung Galaxy Alpha SM-G850

Evgenii Kuzmin

Senior maintenance service and repair engineer

Disassembling\Repair has hard complexity and takes about 10 minutes in time.
Our manual is suitable for all models Samsung Galaxy Alpha SM-G850 — Samsung G850F (Europe); G850T (T-Mobile), G850M (Vodafone); G850FQ; G850Y or Samsung Galaxy Alfa released for markets in different countries.
