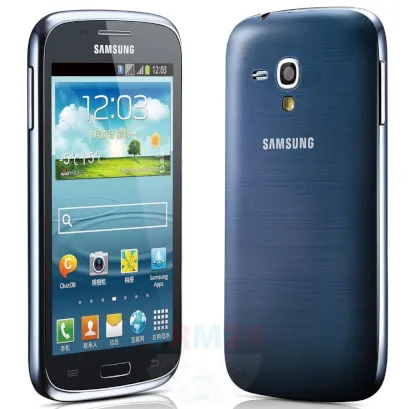

Disassembly/Repair of the mobile device Samsung Galaxy Core GT-i8262 (Samsung Galaxy Core I8260) with each step description and the required set of tools.


Specialist in content creation, distribution and content management.


How to disassemble Samsung Galaxy Core GT-i8262, Step 1/1 How to disassemble Samsung Galaxy Core GT-i8262, Step 1/2

Step 1.

Open the back cover.


How to disassemble Samsung Galaxy Core GT-i8262, Step 2/1 How to disassemble Samsung Galaxy Core GT-i8262, Step 2/2

Step 2.

Lift and remove the battery.


How to disassemble Samsung Galaxy Core GT-i8262, Step 3/1 How to disassemble Samsung Galaxy Core GT-i8262, Step 3/2

Step 3.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 9 bolts in the frame of the phone.


How to disassemble Samsung Galaxy Core GT-i8262, Step 4/1 How to disassemble Samsung Galaxy Core GT-i8262, Step 4/2

Step 4.

Pry and remove the middle frame.


How to disassemble Samsung Galaxy Core GT-i8262, Step 5/1

Step 5.

The middle frame with a vibration motor.


How to disassemble Samsung Galaxy Core GT-i8262, Step 6/1 How to disassemble Samsung Galaxy Core GT-i8262, Step 6/2 How to disassemble Samsung Galaxy Core GT-i8262, Step 6/3 How to disassemble Samsung Galaxy Core GT-i8262, Step 6/4

Step 6.

Disconnect coaxial and inter-board cable connectors on the main PCB and remove the lower board.


How to disassemble Samsung Galaxy Core GT-i8262, Step 7/1 How to disassemble Samsung Galaxy Core GT-i8262, Step 7/2 How to disassemble Samsung Galaxy Core GT-i8262, Step 7/3

Step 7.

Disconnect connectors on the PCB.


How to disassemble Samsung Galaxy Core GT-i8262, Step 8/1 How to disassemble Samsung Galaxy Core GT-i8262, Step 8/2

Step 8.

Remove the PCB.


How to disassemble Samsung Galaxy Core GT-i8262, Step 9/1 How to disassemble Samsung Galaxy Core GT-i8262, Step 9/2

Step 9.

Remove the buzzer and ear piece speakers assembly.


How to disassemble Samsung Galaxy Core GT-i8262, Step 10/1 How to disassemble Samsung Galaxy Core GT-i8262, Step 10/2 How to disassemble Samsung Galaxy Core GT-i8262, Step 10/3

Step 10.

Parts are in the frame of the display module.

Detailed disassembly instructions of Samsung Galaxy Core GT-i8262 in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.


Disassembling\Repair has easy complexity and takes about 3 minutes in time.
Our manual is suitable for all models Samsung Galaxy Core GT-i8262 — Samsung Galaxy Core I8260 released for markets in different countries.
