Samsung Galaxy Fame GT-S6810

Teardown difficulty:
Easy

Duration:
4 min

Recommended tools

Screwdriver phillips #000

Opening tool / spudger

Tweezers

Disassembly/Repair of the mobile device Samsung Galaxy Fame GT-S6810 (Samsung Galaxy Fame S6810P with NFC; Samsung Galaxy Fame Duos S6812) with each step description and the required set of tools.

Vadim Popoff

Quality assurance specialist

Author, currently - Quality Assurance Specialist

Step 1.

Open the back cover.

How to disassemble Samsung Galaxy Fame GT-S6810, Step 2/1

How to disassemble Samsung Galaxy Fame GT-S6810, Step 2/2

Step 2.

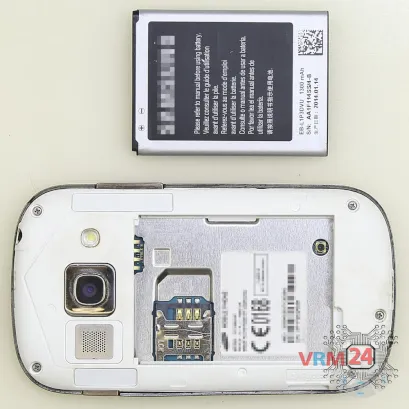

Lift and remove the battery.

How to disassemble Samsung Galaxy Fame GT-S6810, Step 3/1

How to disassemble Samsung Galaxy Fame GT-S6810, Step 3/2

Step 3.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 5 bolts in the frame of the phone.

How to disassemble Samsung Galaxy Fame GT-S6810, Step 4/1

How to disassemble Samsung Galaxy Fame GT-S6810, Step 4/2

Step 4.

Pry and remove the middle frame.

How to disassemble Samsung Galaxy Fame GT-S6810, Step 5/1

How to disassemble Samsung Galaxy Fame GT-S6810, Step 5/2

Step 5.

Pry & remove the frames with contacts.

How to disassemble Samsung Galaxy Fame GT-S6810, Step 6/1

How to disassemble Samsung Galaxy Fame GT-S6810, Step 6/2

How to disassemble Samsung Galaxy Fame GT-S6810, Step 6/3

How to disassemble Samsung Galaxy Fame GT-S6810, Step 6/4

How to disassemble Samsung Galaxy Fame GT-S6810, Step 6/5

Step 6.

Disconnect the connector and pry up the microphone.

How to disassemble Samsung Galaxy Fame GT-S6810, Step 7/1

How to disassemble Samsung Galaxy Fame GT-S6810, Step 7/2

Step 7.

Remove the PCB.

How to disassemble Samsung Galaxy Fame GT-S6810, Step 8/1

How to disassemble Samsung Galaxy Fame GT-S6810, Step 8/2

Step 8.

Remove the Home button key.

How to disassemble Samsung Galaxy Fame GT-S6810, Step 9/1

How to disassemble Samsung Galaxy Fame GT-S6810, Step 9/2

Step 9.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 3 bolts in the PCB.

Step 10.

Remove the protective cover.

Detailed disassembly instructions of Samsung Galaxy Fame GT-S6810 in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

#instructions #Samsung #Samsung Galaxy Fame GT-S6810

Evgenii Kuzmin

Senior maintenance service and repair engineer

Disassembling\Repair has easy complexity and takes about 4 minutes in time.
Our manual is suitable for all models Samsung Galaxy Fame GT-S6810 — Samsung Galaxy Fame S6810P with NFC; Samsung Galaxy Fame Duos S6812 released for markets in different countries.
