Samsung Galaxy J1 SM-J100
Samsung Galaxy J1 SM-J100
Teardown difficulty:
Easy
Duration:
4 min

Recommended tools

Screwdriver Phillips #000 Screwdriver phillips #000
Opening tool / Spudger Opening tool / spudger
Tweezers Tweezers

Disassembly/Repair of the mobile device Samsung Galaxy J1 SM-J100 (Samsung J100F, J100FN, J100H, J100H/DD, J100H/DS, J100M, J100MU or Samsung Galaxy J1 Duos) with each step description and the required set of tools.

Vadim Popoff

Author, currently - Quality Assurance Specialist

How to disassemble Samsung Galaxy J1 SM-J100, Step 1/1 How to disassemble Samsung Galaxy J1 SM-J100, Step 1/2

Step 1.

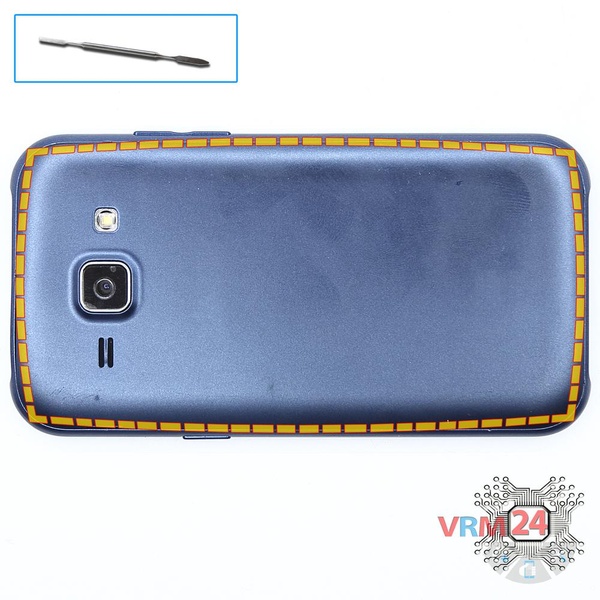

Open the back cover.

How to disassemble Samsung Galaxy J1 SM-J100, Step 2/1 How to disassemble Samsung Galaxy J1 SM-J100, Step 2/2

Step 2.

Lift and remove the battery.

How to disassemble Samsung Galaxy J1 SM-J100, Step 3/1 How to disassemble Samsung Galaxy J1 SM-J100, Step 3/2

Step 3.

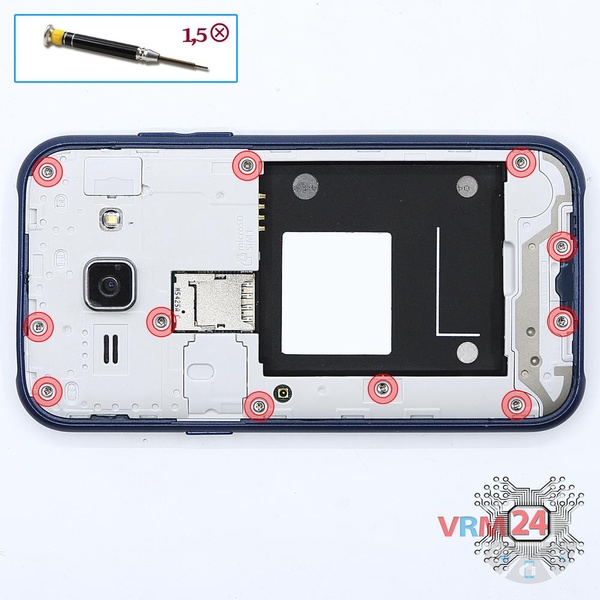

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 11 bolts in the frame of the phone.

How to disassemble Samsung Galaxy J1 SM-J100, Step 4/1 How to disassemble Samsung Galaxy J1 SM-J100, Step 4/2

Step 4.

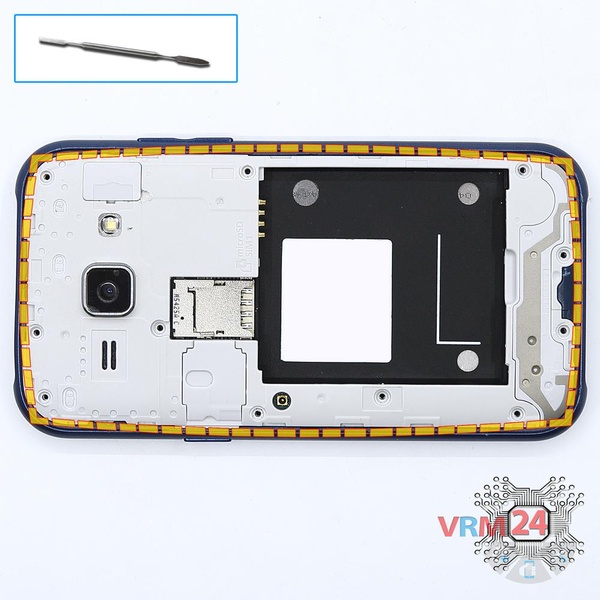

Pry and remove the middle frame.

How to disassemble Samsung Galaxy J1 SM-J100, Step 5/1

Step 5.

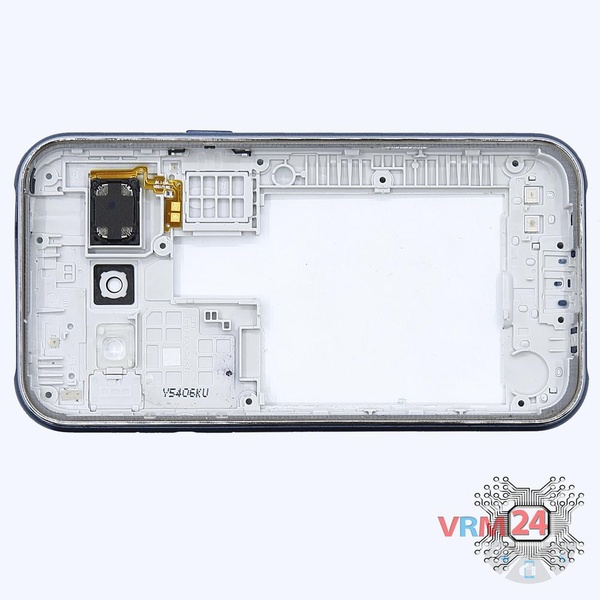

The middle frame with a buzzer (speaker).

How to disassemble Samsung Galaxy J1 SM-J100, Step 6/1 How to disassemble Samsung Galaxy J1 SM-J100, Step 6/2

Step 6.

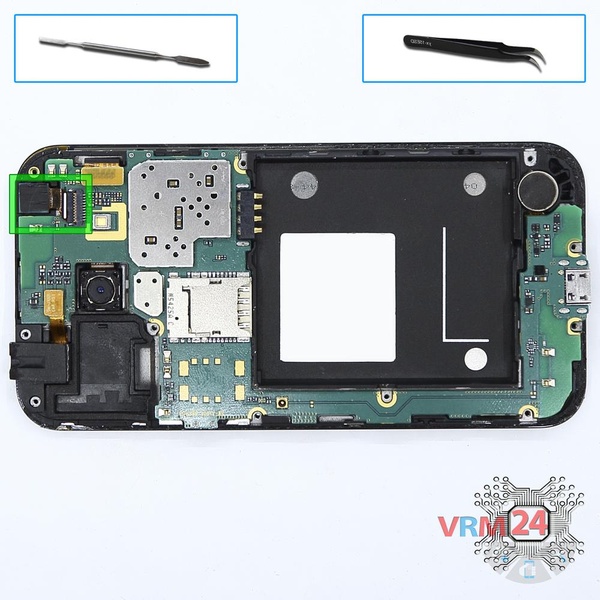

Disconnect the connector on PCB, and remove the front (selfie) camera.

How to disassemble Samsung Galaxy J1 SM-J100, Step 7/1 How to disassemble Samsung Galaxy J1 SM-J100, Step 7/2 How to disassemble Samsung Galaxy J1 SM-J100, Step 7/3

Step 7.

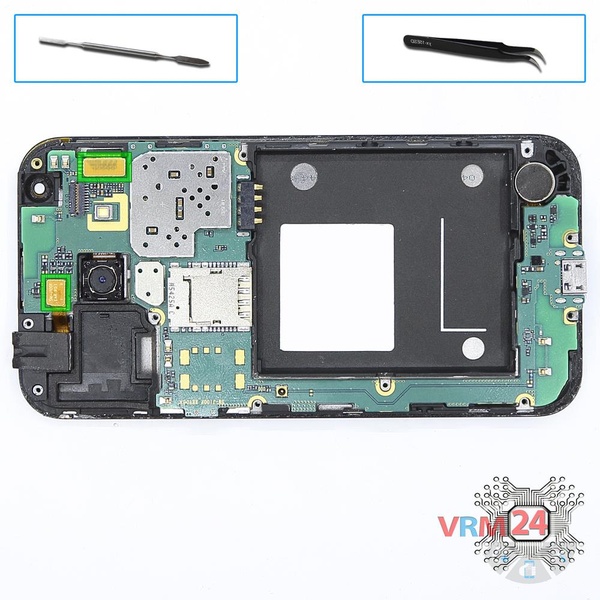

Disconnect connectors on the PCB.

How to disassemble Samsung Galaxy J1 SM-J100, Step 8/1 How to disassemble Samsung Galaxy J1 SM-J100, Step 8/2

Step 8.

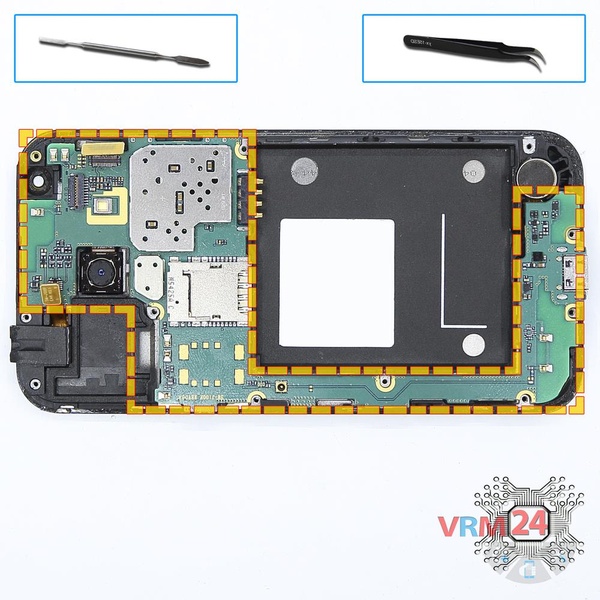

Remove the PCB.

How to disassemble Samsung Galaxy J1 SM-J100, Step 9/1 How to disassemble Samsung Galaxy J1 SM-J100, Step 9/2

Step 9.

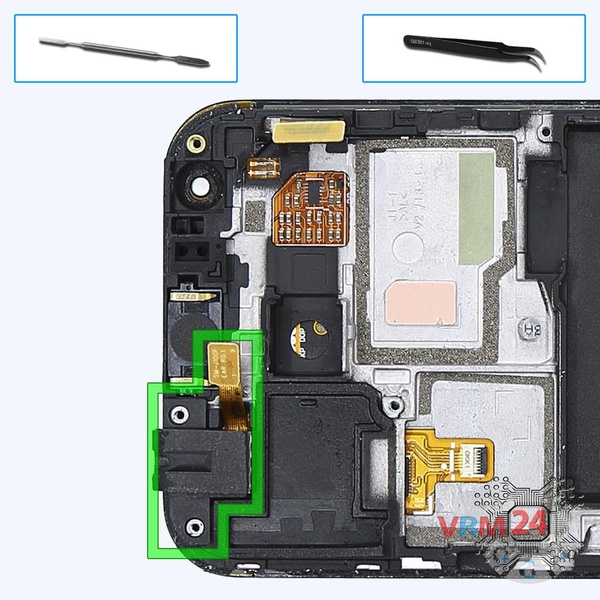

Pry and remove the headphone jack/socket.

How to disassemble Samsung Galaxy J1 SM-J100, Step 10/1 How to disassemble Samsung Galaxy J1 SM-J100, Step 10/2 How to disassemble Samsung Galaxy J1 SM-J100, Step 10/3

Step 10.

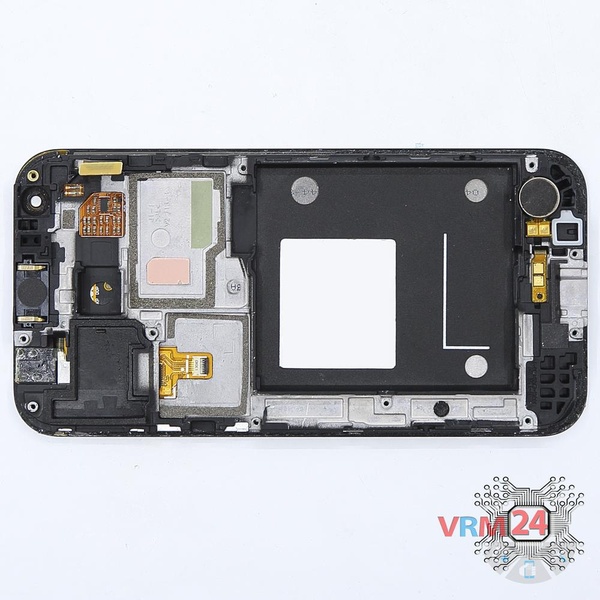

Parts are in the frame of the display module.

Detailed disassembly instructions of Samsung Galaxy J1 SM-J100 in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

#instructions #Samsung #Samsung Galaxy J1 SM-J100
Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer

Disassembling\Repair has easy complexity and takes about 4 minutes in time.
Our manual is suitable for all models Samsung Galaxy J1 SM-J100 — Samsung J100F, J100FN, J100H, J100H/DD, J100H/DS, J100M, J100MU or Samsung Galaxy J1 Duos released for markets in different countries.
