Teardown difficulty:
Hard
Duration:
6 min

Recommended tools

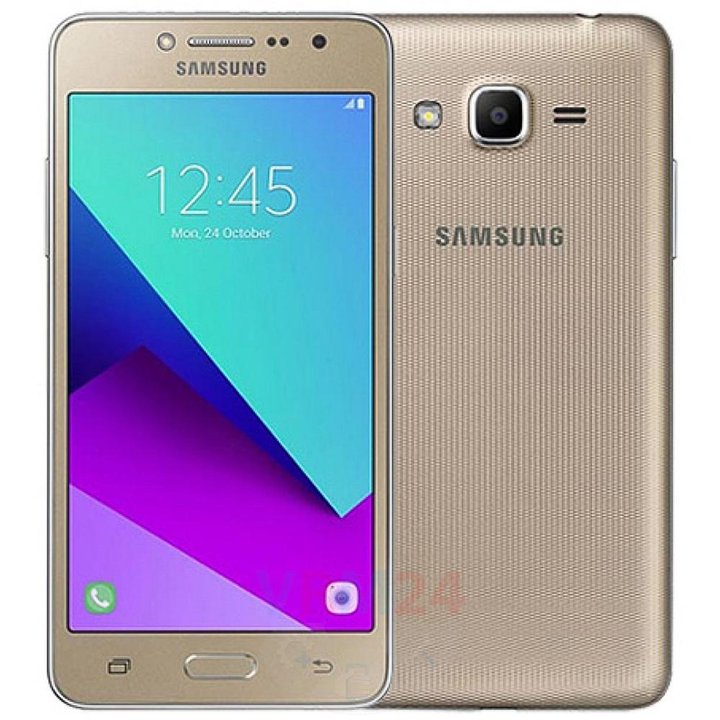

Disassembly/Repair of the mobile device Samsung Galaxy J2 Prime SM-G532 (Samsung G532F (Europe); G532M (Global Single SIM); G532M/DS (Asia, LATAM); Galaxy J2 Ace G532G (India, Taiwan, Philippines)) with each step description and the required set of tools.


Specialist in content creation, distribution and content management.


How to disassemble Samsung Galaxy J2 Prime SM-G532, Step 1/1 How to disassemble Samsung Galaxy J2 Prime SM-G532, Step 1/2

Step 1. Open the back cover

Using a spudger or a plastic pick, carefully, around the edge, detach the back cover clips, and remove it.

Do not insert the tool deeply or bend it. Otherwise, the housing may be tampered with or damaged.


How to disassemble Samsung Galaxy J2 Prime SM-G532, Step 2/1 How to disassemble Samsung Galaxy J2 Prime SM-G532, Step 2/2

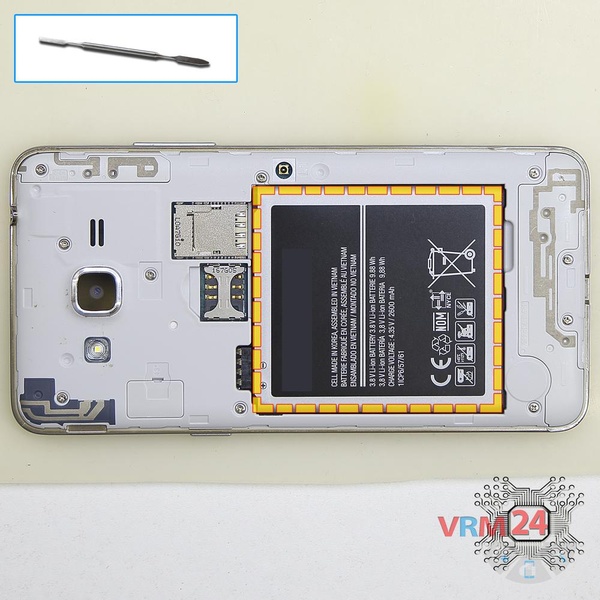

Step 2. Remove the battery

There is an indentation at the end of the battery on the middle cover. Hook the battery at this point, lift it up and remove the battery.


How to disassemble Samsung Galaxy J2 Prime SM-G532, Step 3/1 How to disassemble Samsung Galaxy J2 Prime SM-G532, Step 3/2

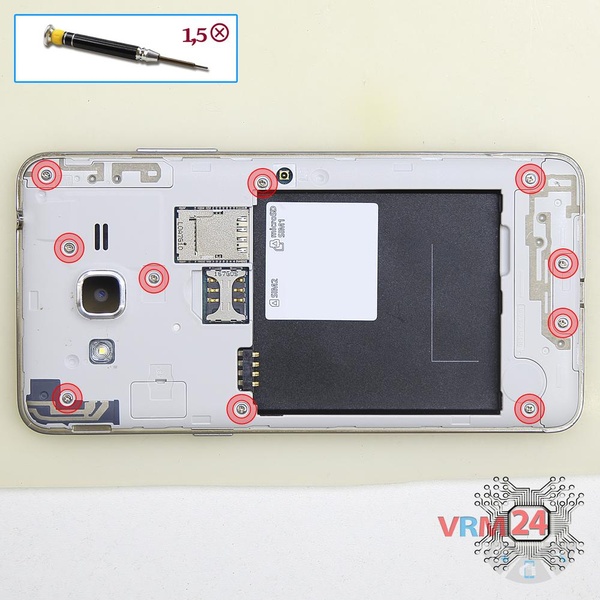

Step 3. Unscrew the screws

Using a screwdriver (Phillips 1.5 mm PH000), unscrew the ten screws.


How to disassemble Samsung Galaxy J2 Prime SM-G532, Step 4/1 How to disassemble Samsung Galaxy J2 Prime SM-G532, Step 4/2

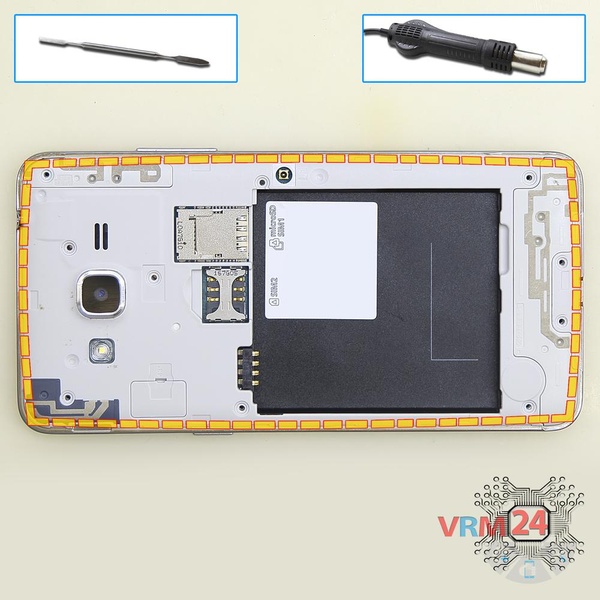

Step 4. Open the middle cover

Pry over the edges. Move an opening tool along the edge detach the clips and remove the middle cover with a loudspeaker and antenna pads and tracks. The middle cover protects the printed circuit board (PCB).

Try to lift the cover by the edges and don't push anything too far inside, so as not to accidentally break or short-circuit anything on the circuit board.


How to disassemble Samsung Galaxy J2 Prime SM-G532, Step 5/1 How to disassemble Samsung Galaxy J2 Prime SM-G532, Step 5/2

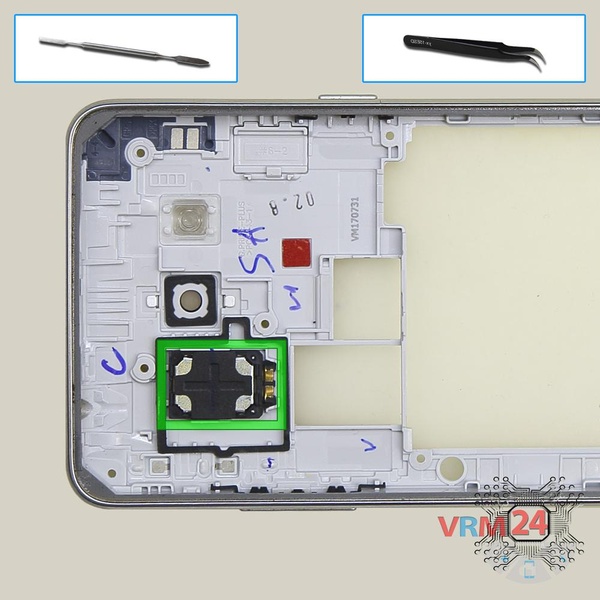

Step 5. Remove the loudspeaker

Pry at the bottom and remove the loudspeaker.

⚠ī¸ī¸ Be careful! The loudspeaker is glued a bit with adhesive.

⚠ī¸ī¸ If we pry the speaker in the middle we may break the loudspeaker in half.


How to disassemble Samsung Galaxy J2 Prime SM-G532, Step 6/1 How to disassemble Samsung Galaxy J2 Prime SM-G532, Step 6/2

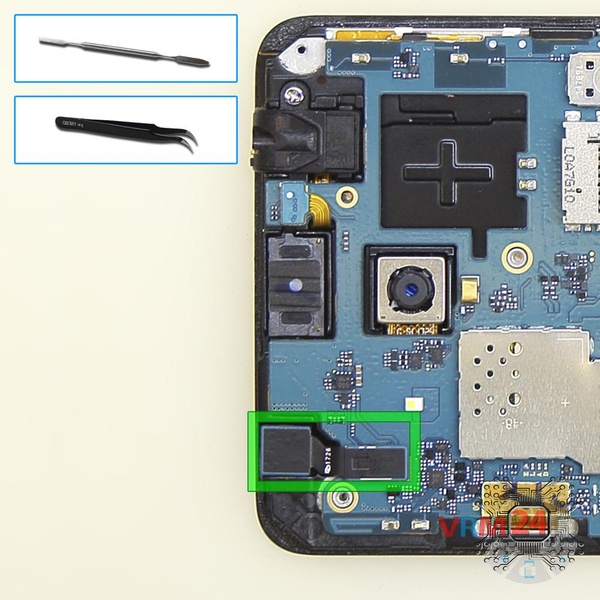

Step 6. Remove the front camera

Disconnect the connector on the motherboard, and remove the front (selfie) camera.


How to disassemble Samsung Galaxy J2 Prime SM-G532, Step 7/1 How to disassemble Samsung Galaxy J2 Prime SM-G532, Step 7/2 How to disassemble Samsung Galaxy J2 Prime SM-G532, Step 7/3

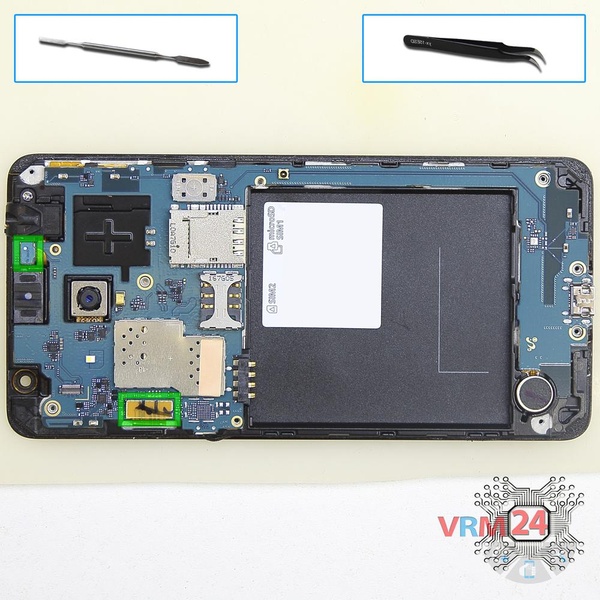

Step 7. Disconnect the connectors

Pry up the connector of the display module cable, headphone jack.

⚠ī¸ī¸ Be careful when removing the cables from the connectors, the cables are pretty thin, and it is easy enough to break them or damage the contact tracks inside.


How to disassemble Samsung Galaxy J2 Prime SM-G532, Step 8/1 How to disassemble Samsung Galaxy J2 Prime SM-G532, Step 8/2

Step 8. Remove the motherboard

Carefully remove the printed circuit board. There is no need to use a lever or try to reach the circuit board by force. Make sure that nothing is getting in the way or holding the circuit board.

The motherboard, also, may be attached with attachments like latches or hooks, be careful.

⚠ī¸ī¸ Do not bend the circuit board when removing it or push tools under it. Unbeknownst to yourself, you can damage components or cables from the inside.


How to disassemble Samsung Galaxy J2 Prime SM-G532, Step 9/1 How to disassemble Samsung Galaxy J2 Prime SM-G532, Step 9/2

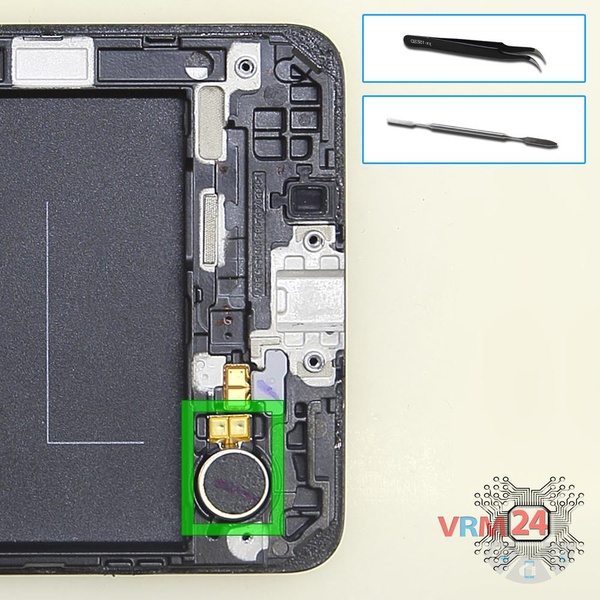

Step 9. Remove the vibration motor

Pry at the bottom and remove the vibration motor.

⚠ī¸ī¸ Be careful! The vibration motor is glued a bit with adhesive.


How to disassemble Samsung Galaxy J2 Prime SM-G532, Step 10/1 How to disassemble Samsung Galaxy J2 Prime SM-G532, Step 10/2

Step 10. Unscrew one screw

Using a screwdriver (Phillips 1.5 mm PH000), unscrew one screw and remove the headphone jack socket and earpiece (speaker).

⚠ī¸ī¸ Be careful! The earpiece speaker is glued a bit with adhesive.

⚠ī¸ī¸ If we pry the speaker in the middle we may break the earpiece speaker in half.


How to disassemble Samsung Galaxy J2 Prime SM-G532, Step 11/1 How to disassemble Samsung Galaxy J2 Prime SM-G532, Step 11/2 How to disassemble Samsung Galaxy J2 Prime SM-G532, Step 11/3

Step 11. In the display frame remained

ℹī¸ī¸ In the display frame remained:

Detailed disassembly instructions of Samsung Galaxy J2 Prime SM-G532 in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.


Disassembling\Repair has hard complexity and takes about 6 minutes in time. Our manual is suitable for all models Samsung Galaxy J2 Prime SM-G532 — Samsung G532F (Europe); G532M (Global Single SIM); G532M/DS (Asia, LATAM); Galaxy J2 Ace G532G (India, Taiwan, Philippines) released for markets in different countries.
