Samsung Galaxy J2 SM-J200

Teardown difficulty:
Moderate

Duration:
8 min

Recommended tools

Heat gun

Screwdriver phillips #000

Opening tool / spudger

Tweezers

Disassembly/Repair of the mobile device Samsung Galaxy J2 SM-J200 (Samsung J200F (UAE, Turkey); J200Y (New Zealand, Taiwan); J200G (India, Indonesia); J200H with no LTE (South Africa, Kazakhstan); J200GU (Philippines, Malaysia, Thailand)) with each step description and the required set of tools.

Vadim Popoff

Author, content manager

Specialist in content creation, distribution and content management.

Step 1.

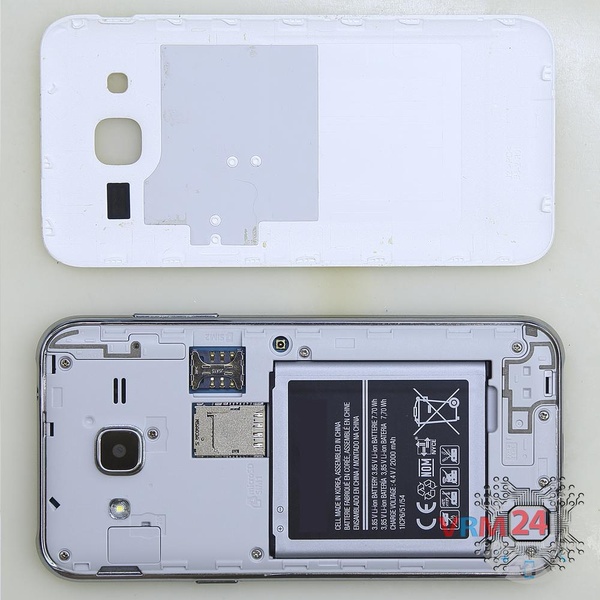

Open the back cover.

How to disassemble Samsung Galaxy J2 SM-J200, Step 2/1

How to disassemble Samsung Galaxy J2 SM-J200, Step 2/2

Step 2.

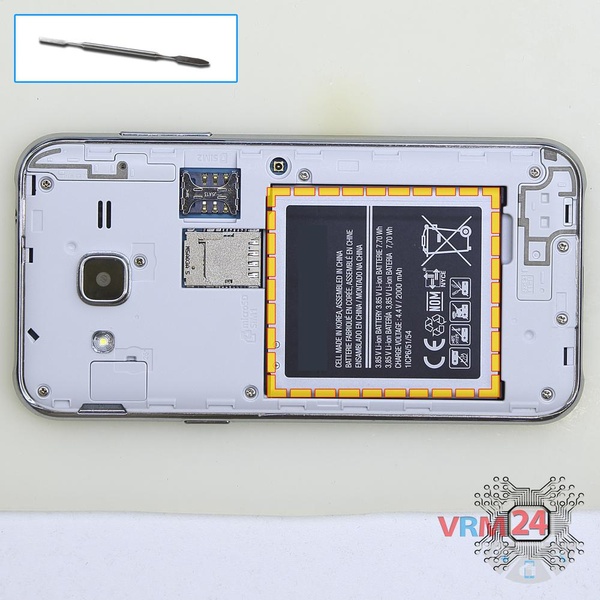

Lift and remove the battery.

How to disassemble Samsung Galaxy J2 SM-J200, Step 3/1

How to disassemble Samsung Galaxy J2 SM-J200, Step 3/2

Step 3.

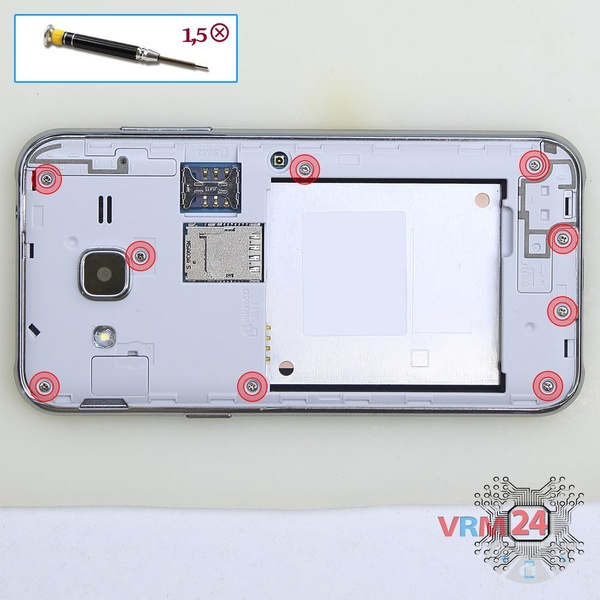

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 9 bolts in the frame of the phone.

How to disassemble Samsung Galaxy J2 SM-J200, Step 4/1

How to disassemble Samsung Galaxy J2 SM-J200, Step 4/2

How to disassemble Samsung Galaxy J2 SM-J200, Step 4/3

Step 4.

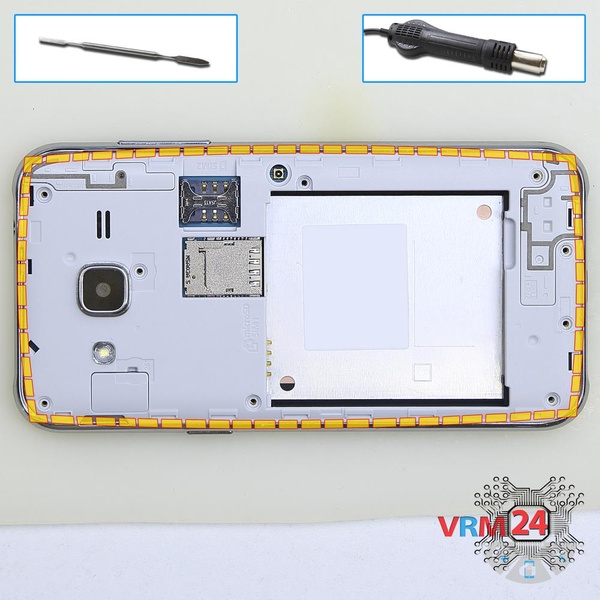

Pry and remove the middle frame.

⚠️ Warning!

For careful separation, we recommend using a heat gun. At the same time, it is necessary to heat carefully in order, not to damage the surface of the device.

How to disassemble Samsung Galaxy J2 SM-J200, Step 5/1

How to disassemble Samsung Galaxy J2 SM-J200, Step 5/2

Step 5.

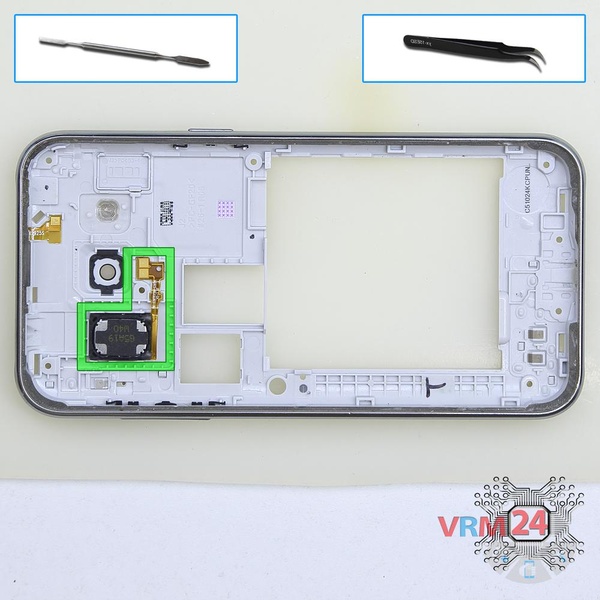

Pry and remove the buzzer (speaker).

How to disassemble Samsung Galaxy J2 SM-J200, Step 6/1

How to disassemble Samsung Galaxy J2 SM-J200, Step 6/2

Step 6.

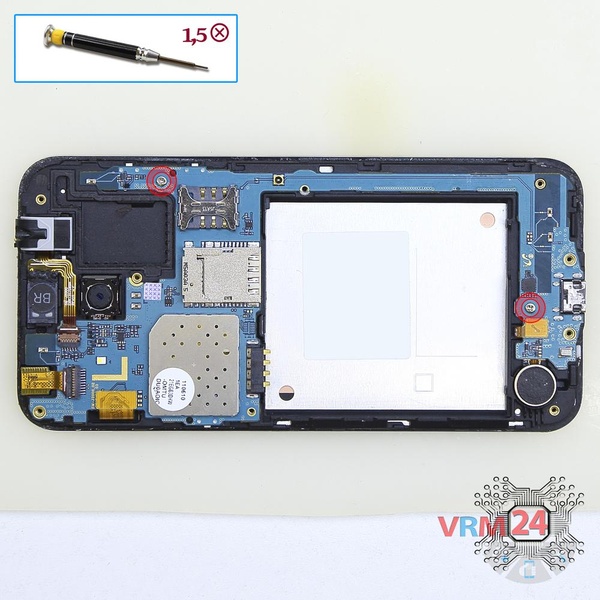

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 2 bolts in the PCB.

How to disassemble Samsung Galaxy J2 SM-J200, Step 7/1

How to disassemble Samsung Galaxy J2 SM-J200, Step 7/2

Step 7.

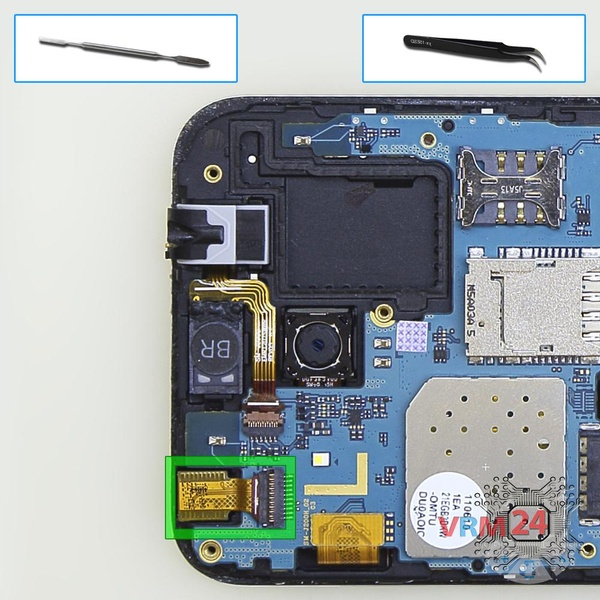

Disconnect the connector on PCB, and remove the front (selfie) camera.

How to disassemble Samsung Galaxy J2 SM-J200, Step 8/1

How to disassemble Samsung Galaxy J2 SM-J200, Step 8/2

How to disassemble Samsung Galaxy J2 SM-J200, Step 8/3

How to disassemble Samsung Galaxy J2 SM-J200, Step 8/4

How to disassemble Samsung Galaxy J2 SM-J200, Step 8/5

Step 8.

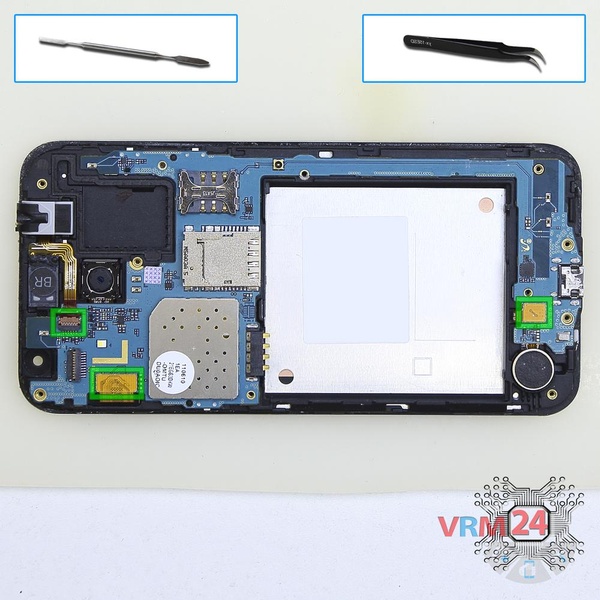

Disconnect connectors on the PCB.

How to disassemble Samsung Galaxy J2 SM-J200, Step 9/1

How to disassemble Samsung Galaxy J2 SM-J200, Step 9/2

Step 9.

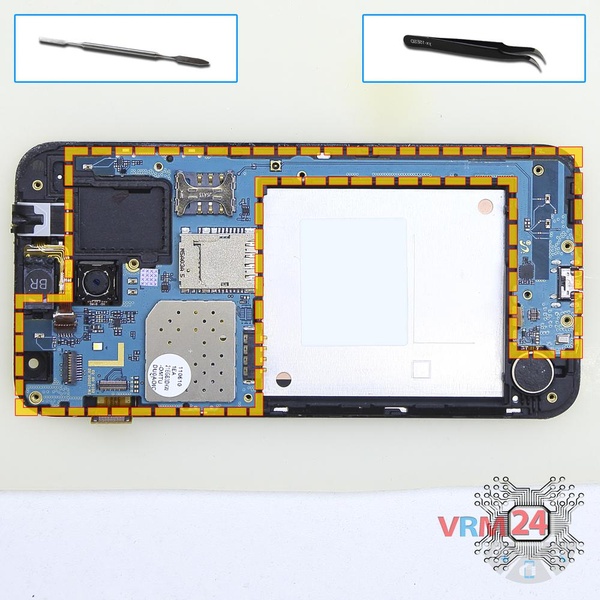

Remove the PCB.

How to disassemble Samsung Galaxy J2 SM-J200, Step 10/1

How to disassemble Samsung Galaxy J2 SM-J200, Step 10/2

Step 10.

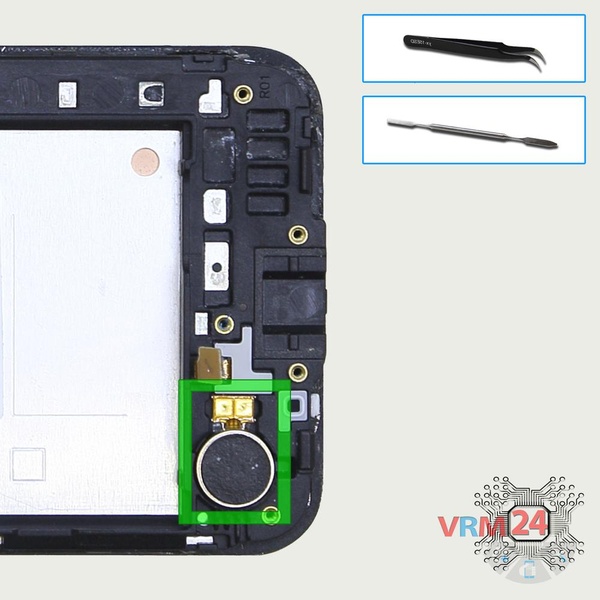

Pry & remove the vibration motor.

How to disassemble Samsung Galaxy J2 SM-J200, Step 11/1

How to disassemble Samsung Galaxy J2 SM-J200, Step 11/2

Step 11.

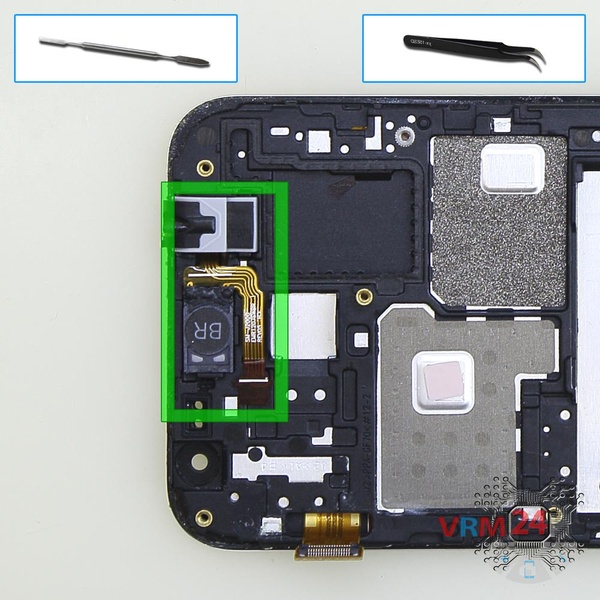

Pry and remove the cable with a earpiece (speaker) and headphone jack/socket.

How to disassemble Samsung Galaxy J2 SM-J200, Step 12/1

How to disassemble Samsung Galaxy J2 SM-J200, Step 12/2

How to disassemble Samsung Galaxy J2 SM-J200, Step 12/3

Step 12.

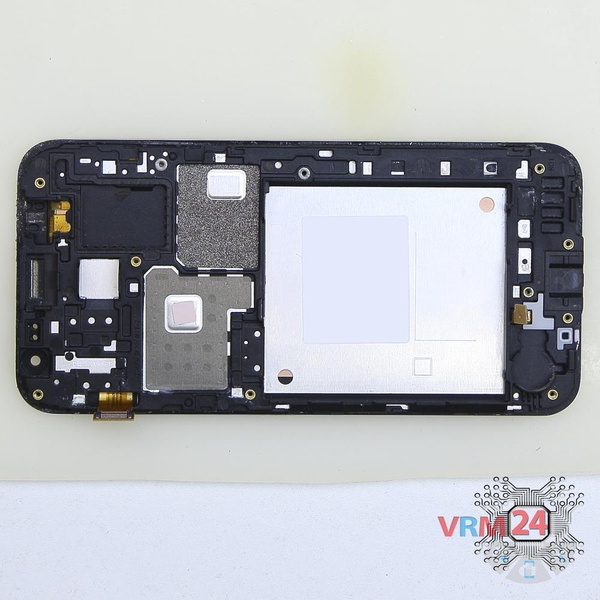

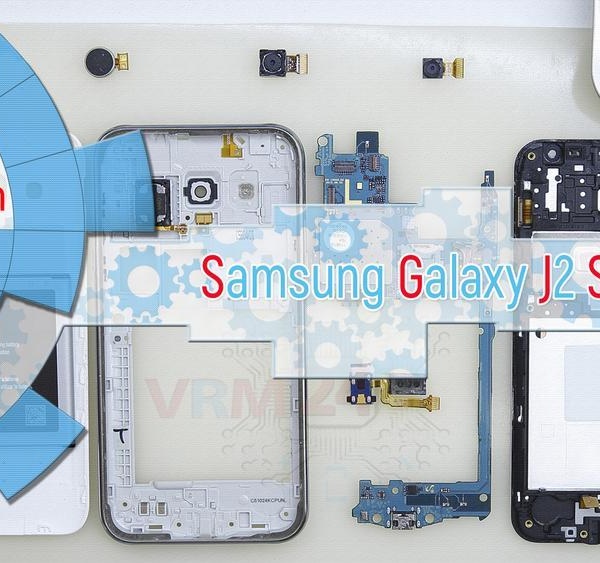

Parts are in the frame of the display module.

Detailed disassembly instructions of Samsung Galaxy J2 SM-J200 in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

#instructions #Samsung #Samsung Galaxy J2 SM-J200

Evgenii Kuzmin

Senior maintenance service and repair engineer

Disassembling\Repair has medium complexity and takes about 8 minutes in time.
