Disassembly of the mobile device Samsung Galaxy J3 (2017) SM-J330 (Samsung J330F/DS (Global Dual-SIM); J330G/DS (Malaysia), Samsung Galaxy J3 Pro (2017)) with each step description and the required set of tools.


Specialist in content creation, distribution and content management.


How to disassemble Samsung Galaxy J3 (2017) SM-J330, Step 1/1 How to disassemble Samsung Galaxy J3 (2017) SM-J330, Step 1/2
Step 1

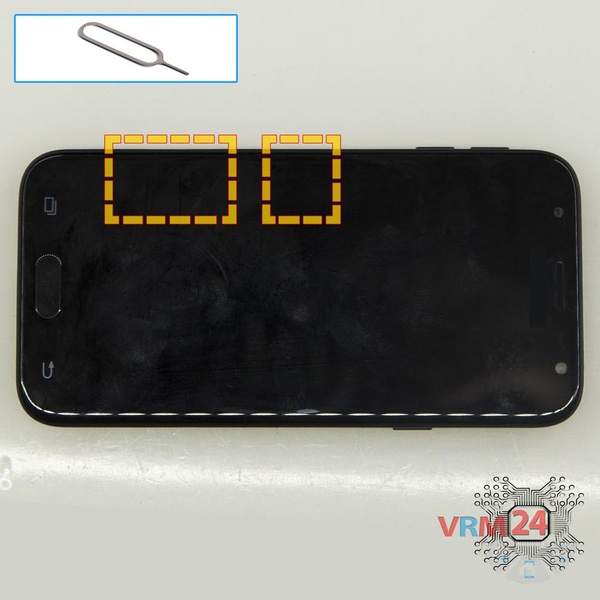

Using the key tool, open the SIM card and MMC card trays and remove them.

Warning!

Do not push too hard this may cause damage.

How to disassemble Samsung Galaxy J3 (2017) SM-J330, Step 2/1 How to disassemble Samsung Galaxy J3 (2017) SM-J330, Step 2/2
Step 2

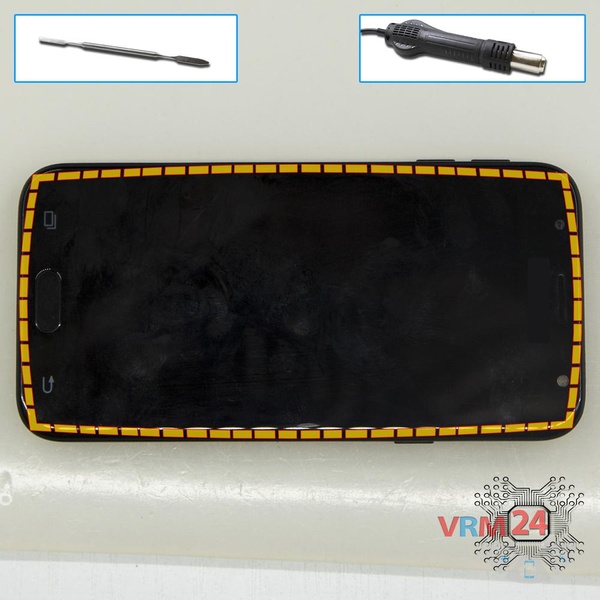

Separate the display module from the cover.

Warning!

We strongly do not recommend performing it on your own. Those manipulations require high experience, skills, and specialty tools.

How to disassemble Samsung Galaxy J3 (2017) SM-J330, Step 3/1 How to disassemble Samsung Galaxy J3 (2017) SM-J330, Step 3/2
Step 3

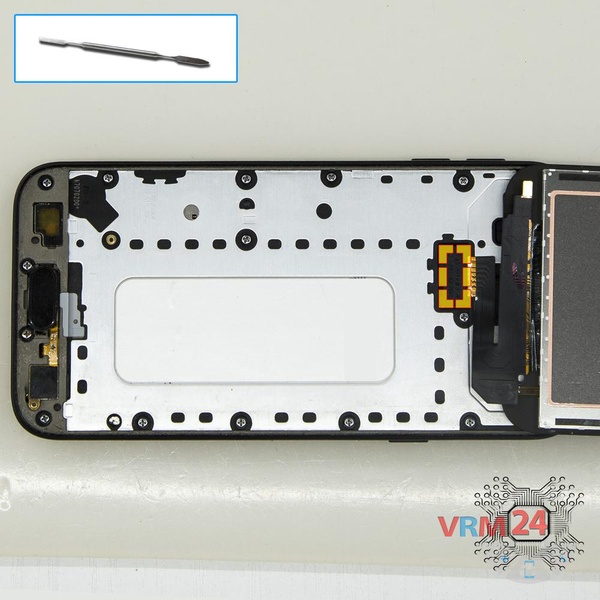

Remove the bracket holding the display connector.

How to disassemble Samsung Galaxy J3 (2017) SM-J330, Step 4/1 How to disassemble Samsung Galaxy J3 (2017) SM-J330, Step 4/2
Step 4

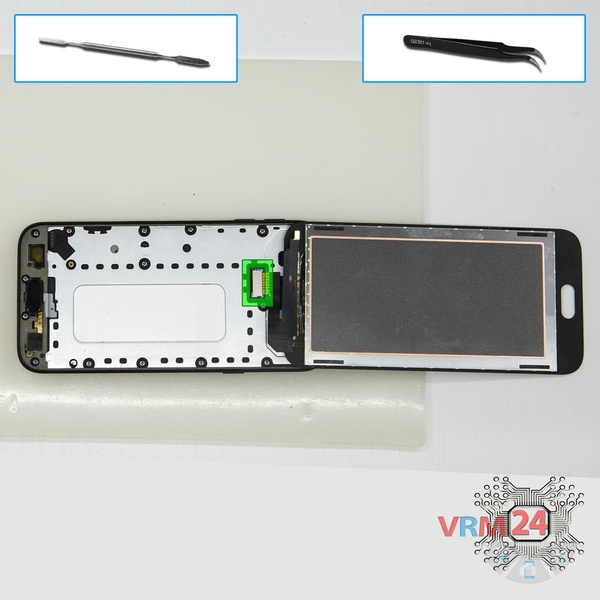

Pry up the connector and remove the display module.

How to disassemble Samsung Galaxy J3 (2017) SM-J330, Step 5/1 How to disassemble Samsung Galaxy J3 (2017) SM-J330, Step 5/2
Step 5

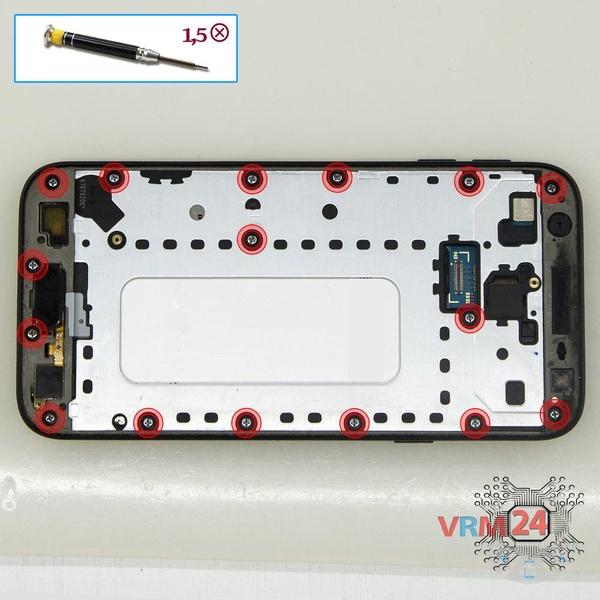

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 16 bolts in the frame of the phone.

How to disassemble Samsung Galaxy J3 (2017) SM-J330, Step 6/1 How to disassemble Samsung Galaxy J3 (2017) SM-J330, Step 6/2
Step 6

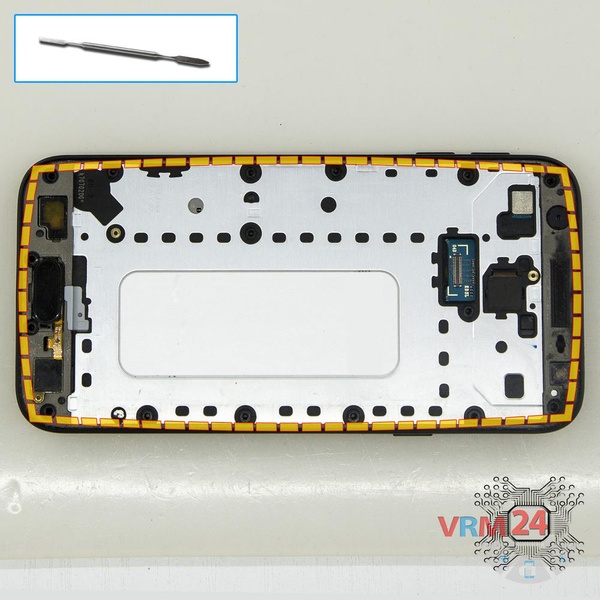

Pry and remove the middle cover.

How to disassemble Samsung Galaxy J3 (2017) SM-J330, Step 7/1 How to disassemble Samsung Galaxy J3 (2017) SM-J330, Step 7/2 How to disassemble Samsung Galaxy J3 (2017) SM-J330, Step 7/3 How to disassemble Samsung Galaxy J3 (2017) SM-J330, Step 7/4 How to disassemble Samsung Galaxy J3 (2017) SM-J330, Step 7/5
Step 7

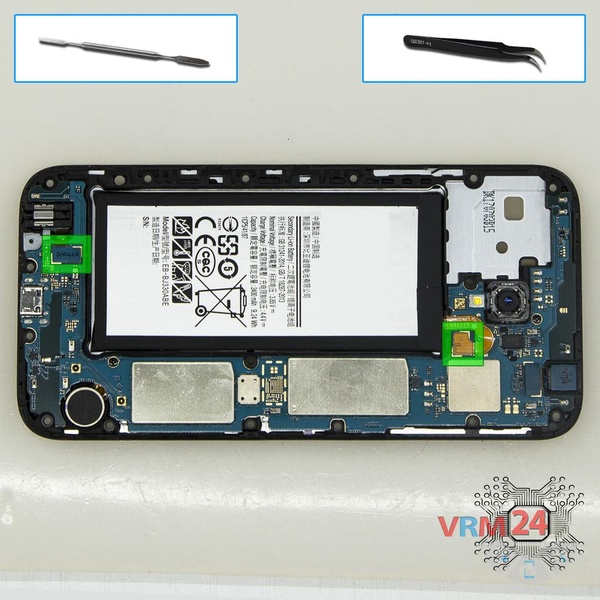

Disconnect connectors on the PCB.

How to disassemble Samsung Galaxy J3 (2017) SM-J330, Step 8/1 How to disassemble Samsung Galaxy J3 (2017) SM-J330, Step 8/2
Step 8

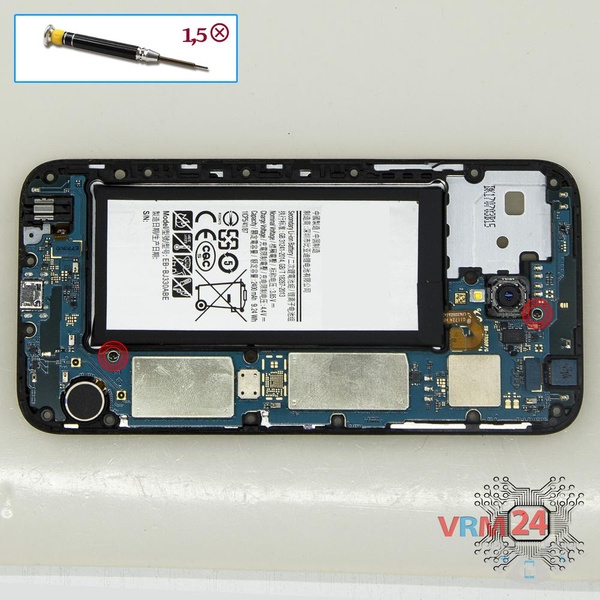

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 2 bolts in the PCB.

How to disassemble Samsung Galaxy J3 (2017) SM-J330, Step 9/1 How to disassemble Samsung Galaxy J3 (2017) SM-J330, Step 9/2
Step 9

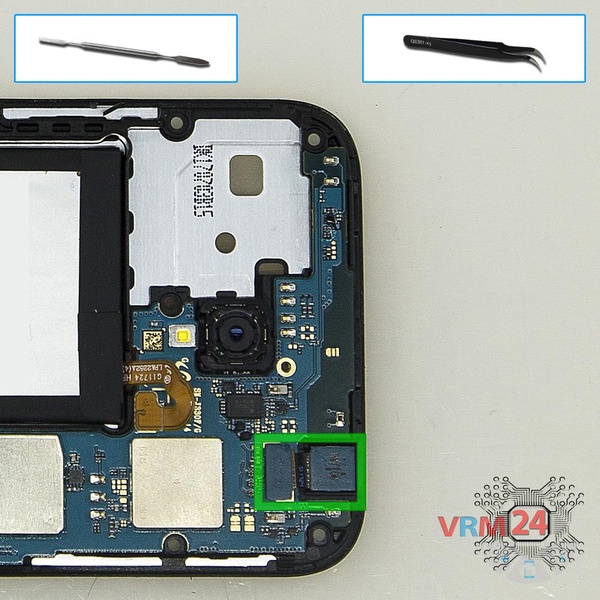

Disconnect the connector on PCB, and remove the front (selfie) camera.

How to disassemble Samsung Galaxy J3 (2017) SM-J330, Step 10/1 How to disassemble Samsung Galaxy J3 (2017) SM-J330, Step 10/2
Step 10

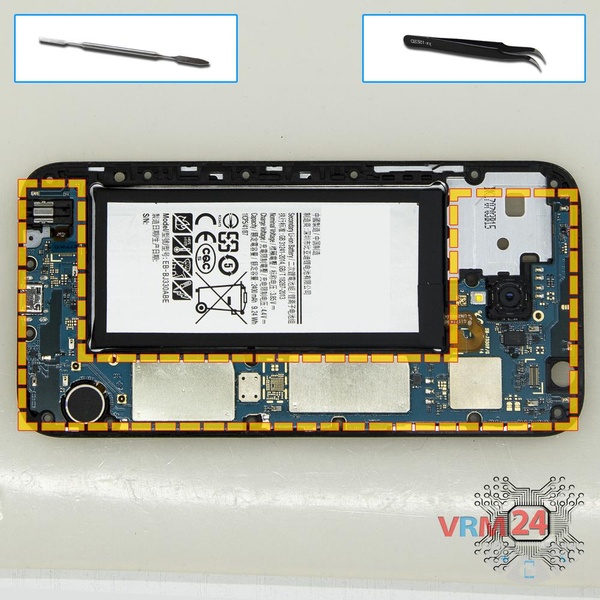

Remove the PCB.

How to disassemble Samsung Galaxy J3 (2017) SM-J330, Step 11/1 How to disassemble Samsung Galaxy J3 (2017) SM-J330, Step 11/2 How to disassemble Samsung Galaxy J3 (2017) SM-J330, Step 11/3
Step 11

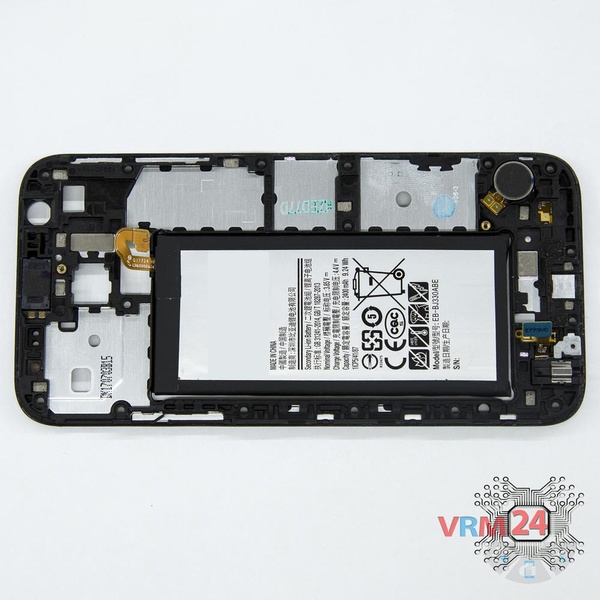

The frame with parts.

How to disassemble Samsung Galaxy J3 (2017) SM-J330, Step 12/1 How to disassemble Samsung Galaxy J3 (2017) SM-J330, Step 12/2 How to disassemble Samsung Galaxy J3 (2017) SM-J330, Step 12/3
Step 12

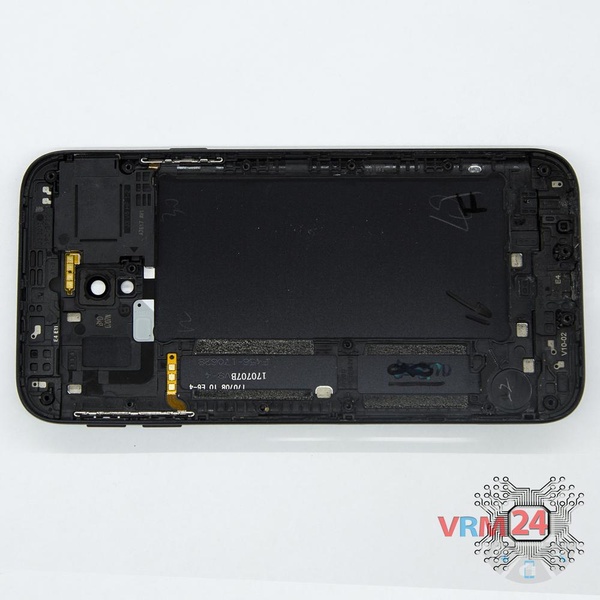

The housing\case.

Detailed disassembly instructions of Samsung Galaxy J3 (2017) SM-J330 in the video, made by our mobile repair & service center:


Disassembling\Repair has hard complexity and takes about 6 minutes in time.
Our manual is suitable for all models Samsung Galaxy J3 (2017) SM-J330 — Samsung J330F/DS (Global Dual-SIM); J330G/DS (Malaysia), Samsung Galaxy J3 Pro (2017) released for markets in different countries.
