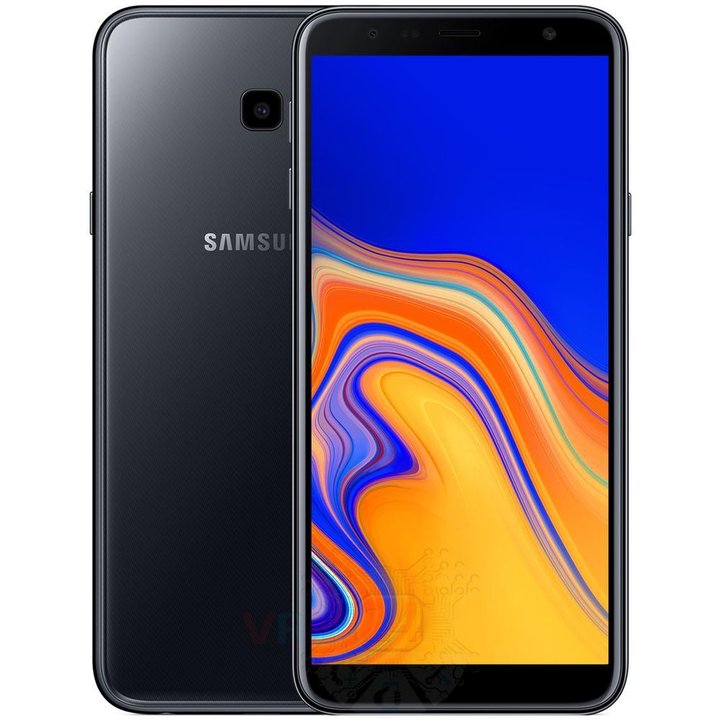

Disassembly/Repair of the mobile device Samsung Galaxy J4 Plus (2018) SM-J415 (Samsung SM-J415F/DS (Global); Samsung SM-J415FN/DS (Europe); Samsung SM-J415G/DS (LATAM)) with each step description and the required set of tools.

⚠️️ Pay attention! Disassembly has a maximum 3rd difficulty because the process begins with the disassembly of the display module. If you have no experience or are not sure of your skills, we strongly recommend that you contact a specialized service center.

It will simplify the process. You can use a home hairdryer, but you will have to make a nozzle by hand or have a suitable one in the kit to gently heat and concentrate the heat flow in the right place.

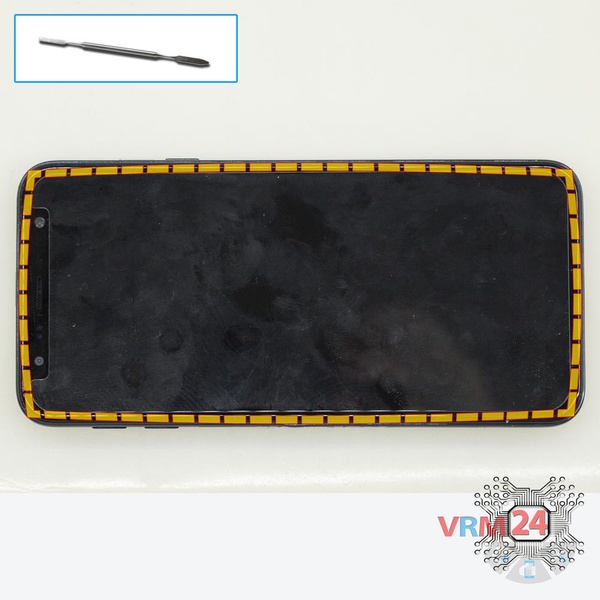

ℹ️️ The surface of the display module must be heated to soften the adhesive underneath. The approximate heating temperature is 50° C / 125° F.

Use a thin plastic film or pick for separation. To facilitate the process, you can use isopropyl alcohol. It is often most difficult to pass the tool between the parts to be divided. Choose the far edge from the FFC cables or buttons.

Do not use a lever or any force for separation that could damage the elements inside.

The process can be seen in our video entirely, so as well as in detail, at the end of the instructions.

Use the ejection tool (aka Needle) or Paperclip. Push the tip all the way into the hole until the tray ejects, and then pull the tray of SIM and Memory card (Micro SD) out.

⚠️ Pay attention! The tool must be inserted into a hole on the edge of the phone's housing. Do not press too hard. It may break the tray eject mechanism.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 18 screws.

Pry around the edges. Move an opening tool along the edge detaching the clips and removing the middle cover with antenna pads and tracks. The middle cover protects the printed circuit board (PCB).

Try to lift the cover by the edges and don't push anything too far inside, so as not to accidentally break or short-circuit anything on the circuit board.

Disconnect the connector and remove the front (selfie) camera.

Using a screwdriver (Philips 1.5 mm PH000), unscrew two screws.

Carefully remove the printed circuit board. There is no need to use a lever or try to reach the circuit board by force. Make sure that nothing is getting in the way or holding the circuit board.

⚠️️ Do not bend the circuit board when removing it or push tools under it. Unbeknownst to yourself, you can damage components or cables from the inside.

ℹ️️ In the housing remained: the earpiece speaker, loudspeaker, battery, and vibration motor.
