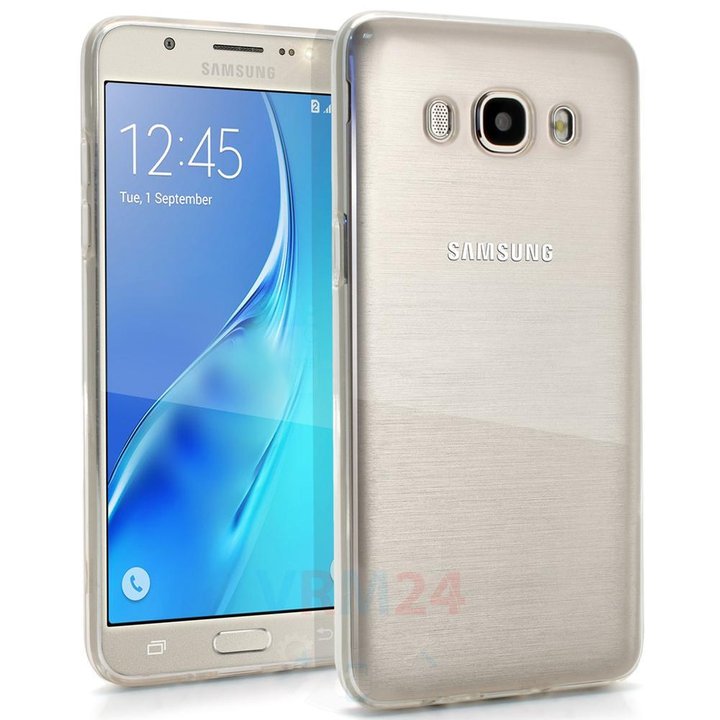

Disassembly/Repair of the mobile device Samsung Galaxy J5 (2016) SM-J510 (Samsung J510FN (Europe); J510F (HK, India, South Africa, Thailand); J510G (Malaysia, Indonesia); J510Y (New Zealand); J510M (LATAM)) with each step description and the required set of tools.

Vadim Popoff

Specialist in content creation, distribution and content management.

How to disassemble Samsung Galaxy J5 (2016) SM-J510, Step 1/1 How to disassemble Samsung Galaxy J5 (2016) SM-J510, Step 1/2

Step 1.

Open the back cover.

How to disassemble Samsung Galaxy J5 (2016) SM-J510, Step 2/1 How to disassemble Samsung Galaxy J5 (2016) SM-J510, Step 2/2

Step 2.

Lift and remove the battery.

How to disassemble Samsung Galaxy J5 (2016) SM-J510, Step 3/1 How to disassemble Samsung Galaxy J5 (2016) SM-J510, Step 3/2

Step 3.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 18 bolts in the frame of the phone.

How to disassemble Samsung Galaxy J5 (2016) SM-J510, Step 4/1 How to disassemble Samsung Galaxy J5 (2016) SM-J510, Step 4/2

Step 4.

Pry and remove the middle frame.

How to disassemble Samsung Galaxy J5 (2016) SM-J510, Step 5/1 How to disassemble Samsung Galaxy J5 (2016) SM-J510, Step 5/2 How to disassemble Samsung Galaxy J5 (2016) SM-J510, Step 5/3

Step 5.

Disconnect the connector on PCB, and remove the front (selfie) camera.

How to disassemble Samsung Galaxy J5 (2016) SM-J510, Step 6/1 How to disassemble Samsung Galaxy J5 (2016) SM-J510, Step 6/2

Step 6.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 1 bolt in the PCB.

How to disassemble Samsung Galaxy J5 (2016) SM-J510, Step 7/1 How to disassemble Samsung Galaxy J5 (2016) SM-J510, Step 7/2 How to disassemble Samsung Galaxy J5 (2016) SM-J510, Step 7/3 How to disassemble Samsung Galaxy J5 (2016) SM-J510, Step 7/4

Step 7.

Disconnect connectors on the PCB.

How to disassemble Samsung Galaxy J5 (2016) SM-J510, Step 8/1 How to disassemble Samsung Galaxy J5 (2016) SM-J510, Step 8/2

Step 8.

Remove the PCB.

How to disassemble Samsung Galaxy J5 (2016) SM-J510, Step 9/1 How to disassemble Samsung Galaxy J5 (2016) SM-J510, Step 9/2 How to disassemble Samsung Galaxy J5 (2016) SM-J510, Step 9/3 How to disassemble Samsung Galaxy J5 (2016) SM-J510, Step 9/4

Step 9.

Pry and remove the earpiece (speaker) and vibration motor.

How to disassemble Samsung Galaxy J5 (2016) SM-J510, Step 10/1 How to disassemble Samsung Galaxy J5 (2016) SM-J510, Step 10/2 How to disassemble Samsung Galaxy J5 (2016) SM-J510, Step 10/3

Step 10.

Parts are in the frame of the display module.

Detailed disassembly instructions of Samsung Galaxy J5 (2016) SM-J510 in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

#instructions #Samsung #Samsung Galaxy J5 (2016) SM-J510
Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer

Disassembling\Repair has easy complexity and takes about 3 minutes in time.
Our manual is suitable for all models Samsung Galaxy J5 (2016) SM-J510 — Samsung J510FN (Europe); J510F (HK, India, South Africa, Thailand); J510G (Malaysia, Indonesia); J510Y (New Zealand); J510M (LATAM) released for markets in different countries.
