Samsung Galaxy J7 (2016) SM-J710

Teardown difficulty:
Easy

Duration:
3 min

Recommended tools

Screwdriver phillips #000

Opening tool / spudger

Tweezers

Disassembly/Repair of the mobile device Samsung Galaxy J7 (2016) SM-J710 (Samsung J710F, J710FN (EMEA); J710M (LATAM); J710H (South Africa, Pakistan, Vietnam)) with each step description and the required set of tools.

Vadim Popoff

Author, content manager

Specialist in content creation, distribution and content management.

How to disassemble Samsung Galaxy J7 (2016) SM-J710, Step 1/1

How to disassemble Samsung Galaxy J7 (2016) SM-J710, Step 1/2

Step 1.

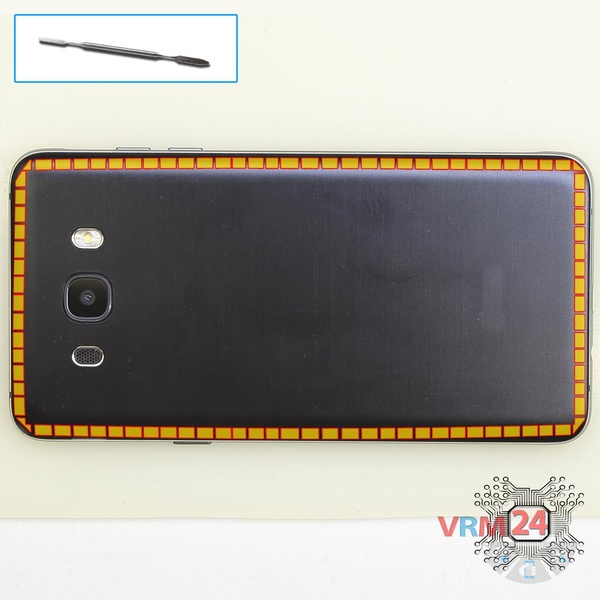

Open the back cover.

How to disassemble Samsung Galaxy J7 (2016) SM-J710, Step 2/1

How to disassemble Samsung Galaxy J7 (2016) SM-J710, Step 2/2

Step 2.

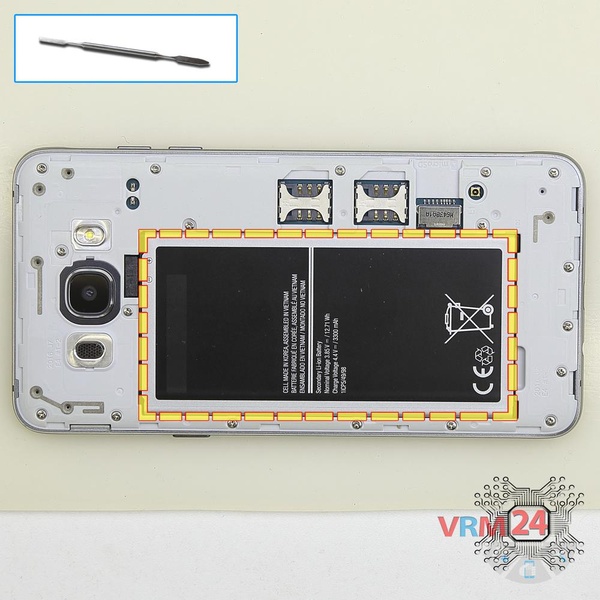

Lift and remove the battery.

How to disassemble Samsung Galaxy J7 (2016) SM-J710, Step 3/1

How to disassemble Samsung Galaxy J7 (2016) SM-J710, Step 3/2

Step 3.

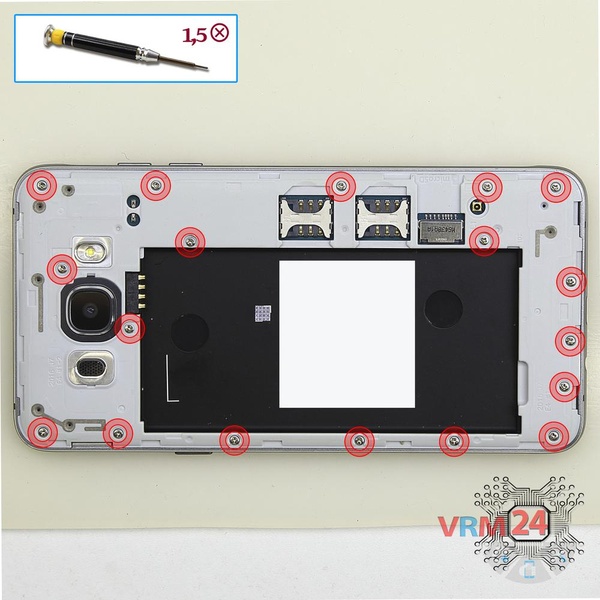

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 18 bolts in the frame of the phone.

How to disassemble Samsung Galaxy J7 (2016) SM-J710, Step 4/1

How to disassemble Samsung Galaxy J7 (2016) SM-J710, Step 4/2

Step 4.

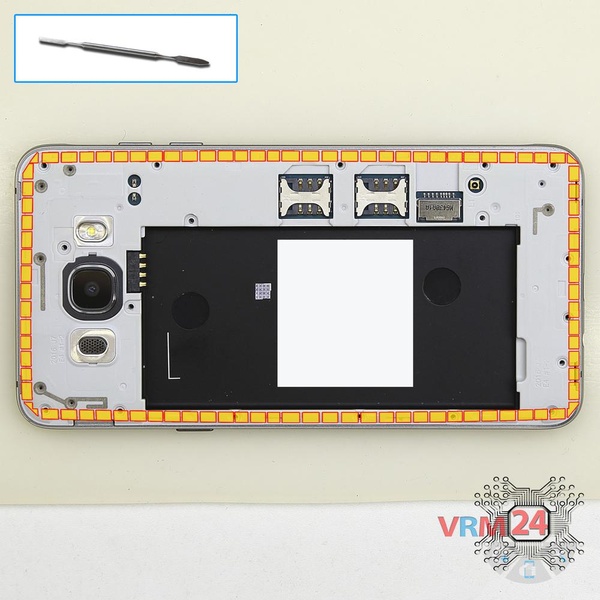

Pry and remove the middle frame.

How to disassemble Samsung Galaxy J7 (2016) SM-J710, Step 5/1

How to disassemble Samsung Galaxy J7 (2016) SM-J710, Step 5/2

Step 5.

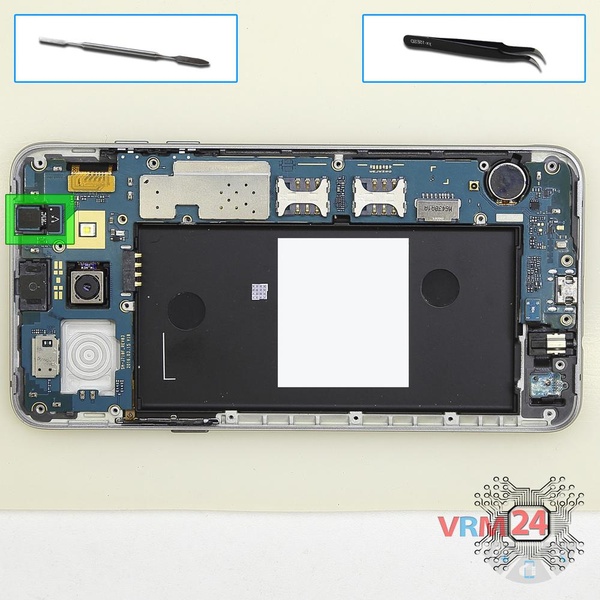

Disconnect the connector on PCB, and remove the front (selfie) camera.

How to disassemble Samsung Galaxy J7 (2016) SM-J710, Step 6/1

How to disassemble Samsung Galaxy J7 (2016) SM-J710, Step 6/2

How to disassemble Samsung Galaxy J7 (2016) SM-J710, Step 6/3

How to disassemble Samsung Galaxy J7 (2016) SM-J710, Step 6/4

How to disassemble Samsung Galaxy J7 (2016) SM-J710, Step 6/5

How to disassemble Samsung Galaxy J7 (2016) SM-J710, Step 6/6

Step 6.

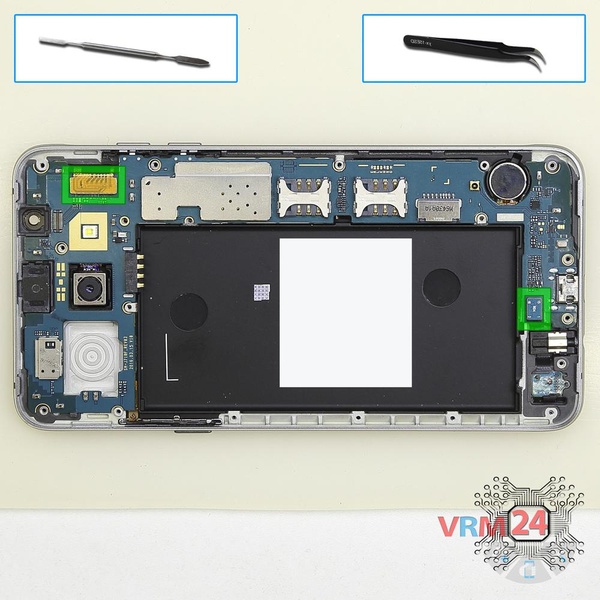

Disconnect connectors on the PCB.

How to disassemble Samsung Galaxy J7 (2016) SM-J710, Step 7/1

How to disassemble Samsung Galaxy J7 (2016) SM-J710, Step 7/2

Step 7.

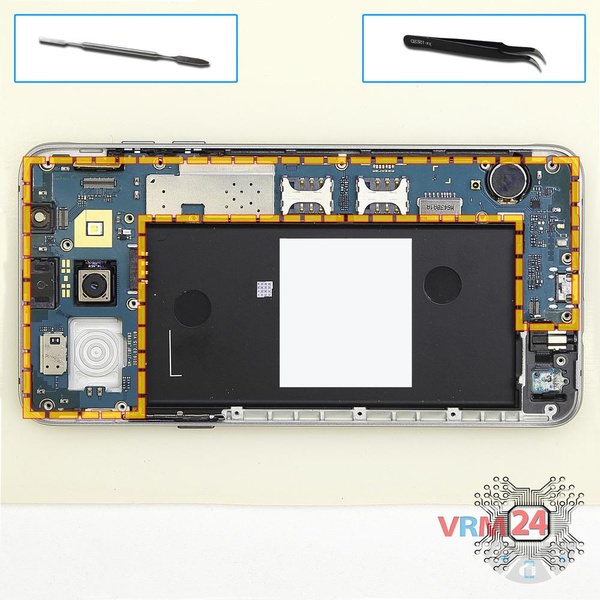

Remove the PCB.

How to disassemble Samsung Galaxy J7 (2016) SM-J710, Step 8/1

How to disassemble Samsung Galaxy J7 (2016) SM-J710, Step 8/2

How to disassemble Samsung Galaxy J7 (2016) SM-J710, Step 8/3

How to disassemble Samsung Galaxy J7 (2016) SM-J710, Step 8/4

Step 8.

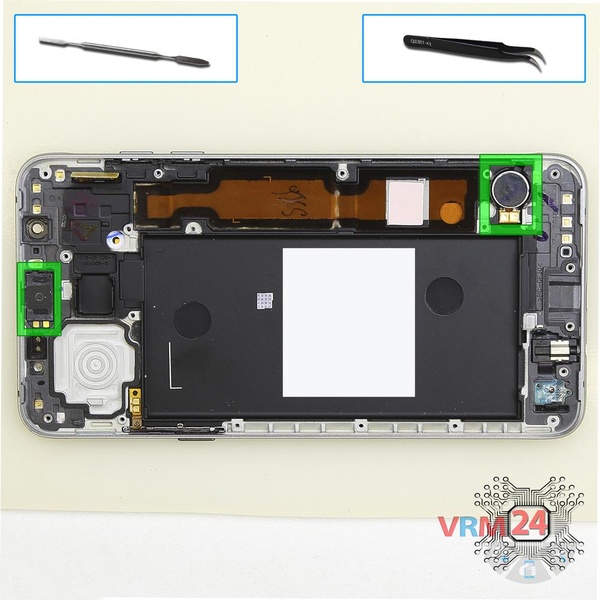

Pry and remove the earpiece (speaker) and vibration motor.

How to disassemble Samsung Galaxy J7 (2016) SM-J710, Step 9/1

How to disassemble Samsung Galaxy J7 (2016) SM-J710, Step 9/2

How to disassemble Samsung Galaxy J7 (2016) SM-J710, Step 9/3

Step 9.

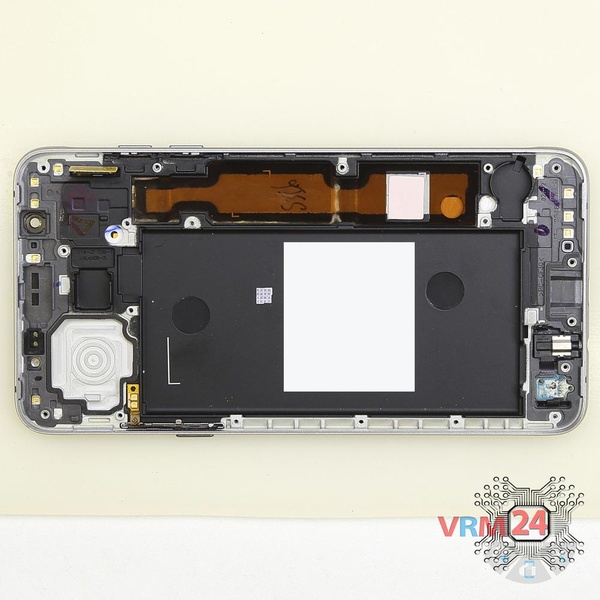

Parts are in the frame of the display module.

Detailed disassembly instructions of Samsung Galaxy J7 (2016) SM-J710 in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

#instructions #Samsung #Samsung Galaxy J7 (2016) SM-J710

Evgenii Kuzmin

Senior maintenance service and repair engineer

Disassembling\Repair has easy complexity and takes about 3 minutes in time.
Our manual is suitable for all models Samsung Galaxy J7 (2016) SM-J710 — Samsung J710F, J710FN (EMEA); J710M (LATAM); J710H (South Africa, Pakistan, Vietnam) released for markets in different countries.
