Disassembly of the mobile device Samsung Galaxy Mega 6.3'' GT-i9200 (Samsung SGH-i527 for AT&T) with each step description and the required set of tools.

Load more

Specialist in content creation, distribution and content management.


How to disassemble Samsung Galaxy Mega 6.3'' GT-i9200, Step 1/1

Step 1

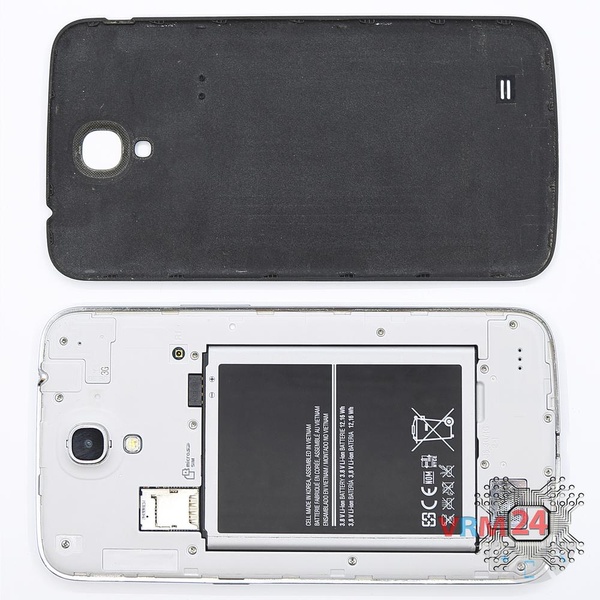

Open the back cover.


How to disassemble Samsung Galaxy Mega 6.3'' GT-i9200, Step 2/1

Step 2

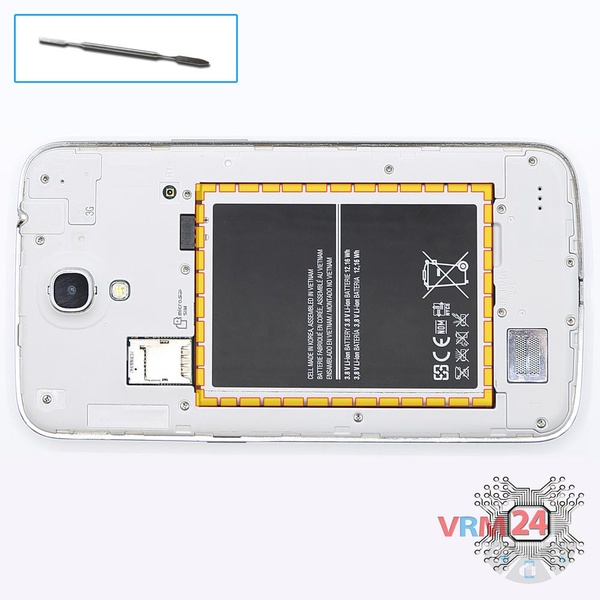

Lift and remove the battery.


How to disassemble Samsung Galaxy Mega 6.3'' GT-i9200, Step 3/1 How to disassemble Samsung Galaxy Mega 6.3'' GT-i9200, Step 3/2

Step 3

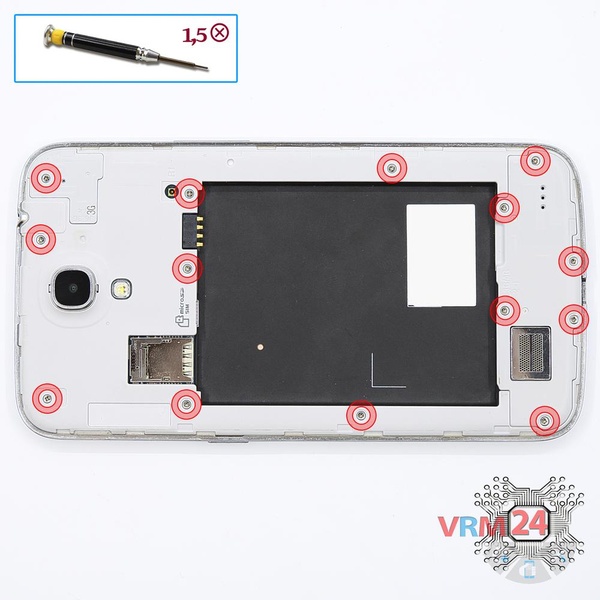

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 14 bolts in the frame of the phone.


How to disassemble Samsung Galaxy Mega 6.3'' GT-i9200, Step 4/1 How to disassemble Samsung Galaxy Mega 6.3'' GT-i9200, Step 4/2

Step 4

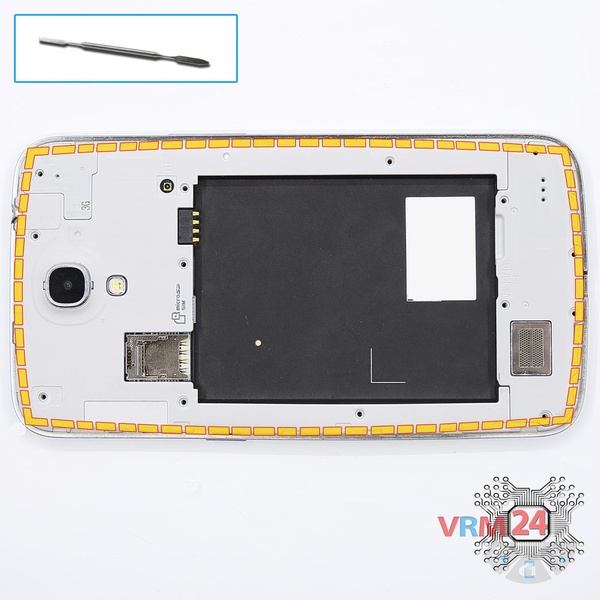

Pry and remove the middle frame.


How to disassemble Samsung Galaxy Mega 6.3'' GT-i9200, Step 5/1

Step 5

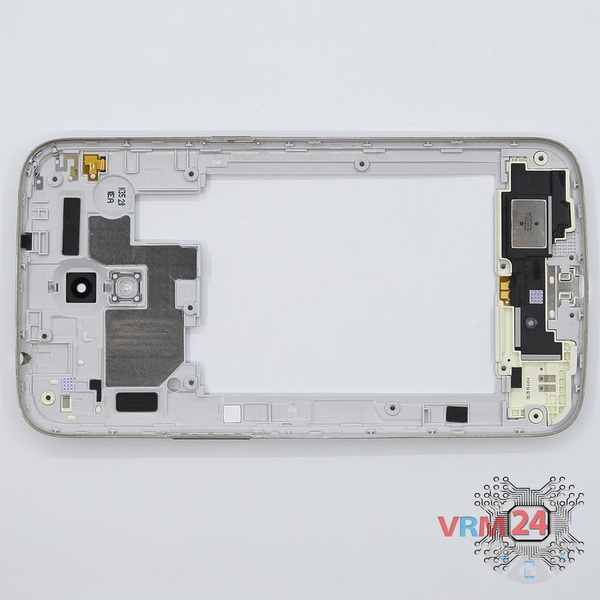

The middle frame with a buzzer (speaker).


How to disassemble Samsung Galaxy Mega 6.3'' GT-i9200, Step 6/1 How to disassemble Samsung Galaxy Mega 6.3'' GT-i9200, Step 6/2 How to disassemble Samsung Galaxy Mega 6.3'' GT-i9200, Step 6/3

Step 6

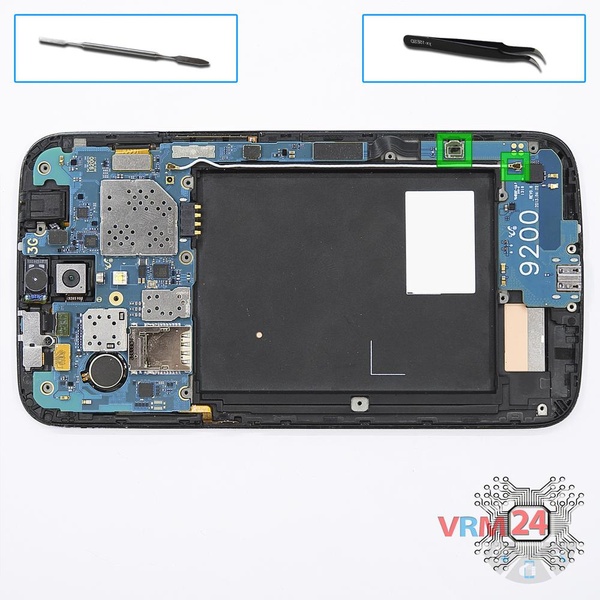

Pry up the inter-board cable and coaxial cable connectors and remove the lower PCB.


How to disassemble Samsung Galaxy Mega 6.3'' GT-i9200, Step 7/1 How to disassemble Samsung Galaxy Mega 6.3'' GT-i9200, Step 7/2

Step 7

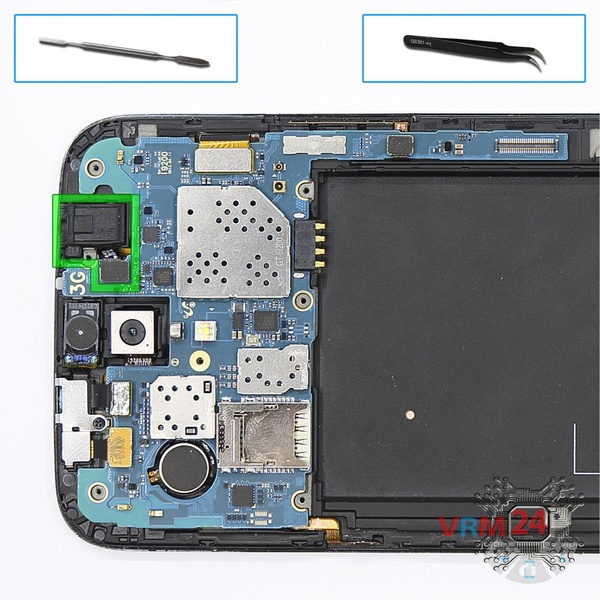

Pry up the connector on PCB and remove the headphone jack/socket.


How to disassemble Samsung Galaxy Mega 6.3'' GT-i9200, Step 8/1 How to disassemble Samsung Galaxy Mega 6.3'' GT-i9200, Step 8/2

Step 8

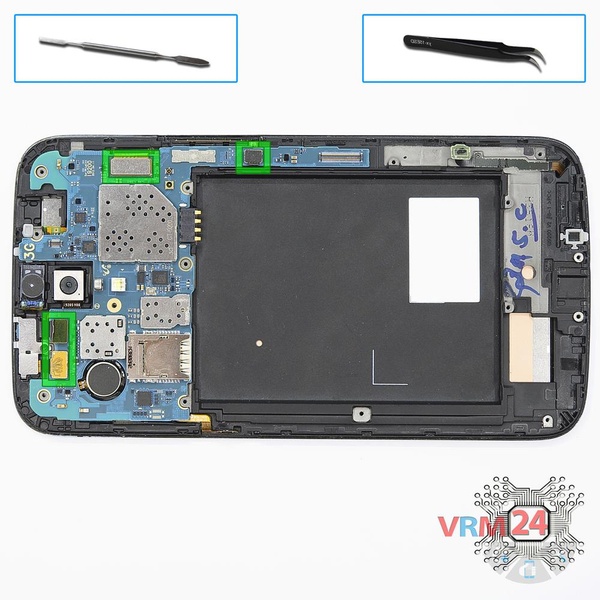

Disconnect connectors on the PCB.


How to disassemble Samsung Galaxy Mega 6.3'' GT-i9200, Step 9/1 How to disassemble Samsung Galaxy Mega 6.3'' GT-i9200, Step 9/2

Step 9

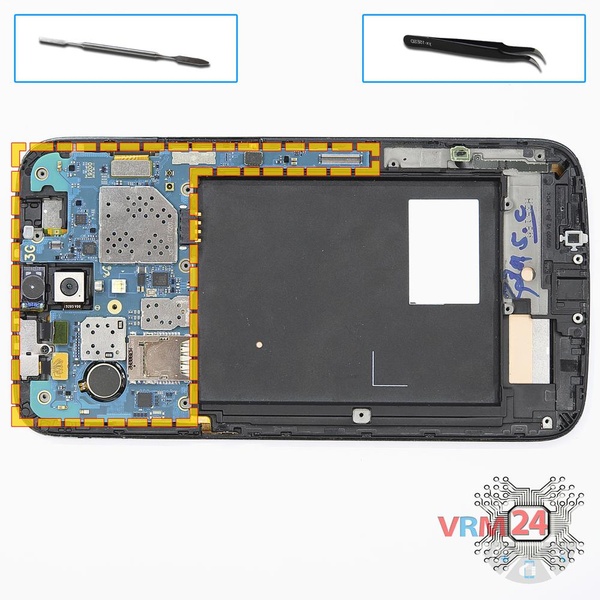

Remove the PCB.


How to disassemble Samsung Galaxy Mega 6.3'' GT-i9200, Step 10/1 How to disassemble Samsung Galaxy Mega 6.3'' GT-i9200, Step 10/2

Step 10

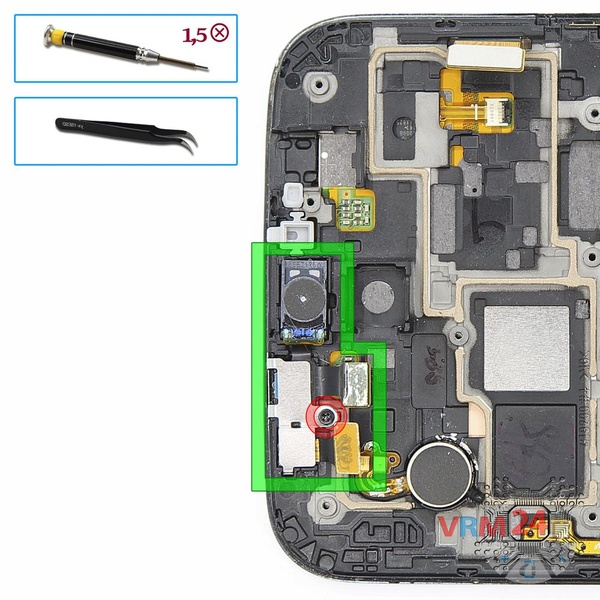

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 1 bolt and remove the bracket, front (selfie) camera and proximity sensor.


How to disassemble Samsung Galaxy Mega 6.3'' GT-i9200, Step 11/1 How to disassemble Samsung Galaxy Mega 6.3'' GT-i9200, Step 11/2 How to disassemble Samsung Galaxy Mega 6.3'' GT-i9200, Step 11/3

Step 11

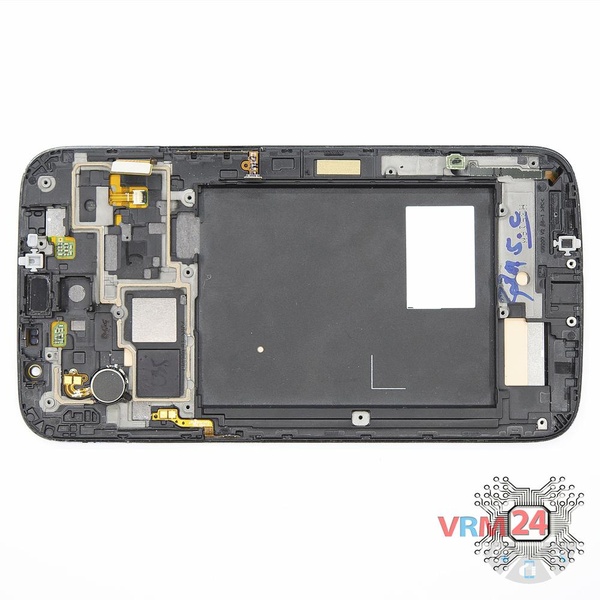

Parts are in the frame of the display module.

Detailed disassembly instructions of Samsung Galaxy Mega 6.3'' GT-i9200 in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

Load more

Disassembling\Repair has easy complexity and takes about 4 minutes in time.
Our manual is suitable for all models Samsung Galaxy Mega 6.3'' GT-i9200 — Samsung SGH-i527 for AT&T released for markets in different countries.
