Samsung Galaxy Note 8 SM-N950
Samsung Galaxy Note 8 SM-N950 620 0
Teardown difficulty:
Moderate
Duration:
14 min

Recommended tools

Heat gun Heat gun
Screwdriver Phillips #000 Screwdriver Phillips #000
Opening tool Opening tool
Tweezers Tweezers

Disassembly of the mobile device Samsung Galaxy Note 8 SM-N950 (Samsung N950F; Samsung N950FD; Samsung N950U/U1; Samsung N950W; Samsung N9500; Samsung N950N) with each step description and the required set of tools.

Vadim Popoff

Specialist in content creation, distribution and content management.

How to disassemble Samsung Galaxy Note 8 SM-N950, Step 1/1 How to disassemble Samsung Galaxy Note 8 SM-N950, Step 1/2

Step 1

Pull out a digital pen AKA Samsung Digital S-Pen.
How to disassemble Samsung Galaxy Note 8 SM-N950, Step 2/1 How to disassemble Samsung Galaxy Note 8 SM-N950, Step 2/2

Step 2

Using the key tool, open the SIM and Micro SD cards tray and remove it.

⚠️ Warning!

Do not push too hard this may cause damage.

How to disassemble Samsung Galaxy Note 8 SM-N950, Step 3/1 How to disassemble Samsung Galaxy Note 8 SM-N950, Step 3/2

Step 3

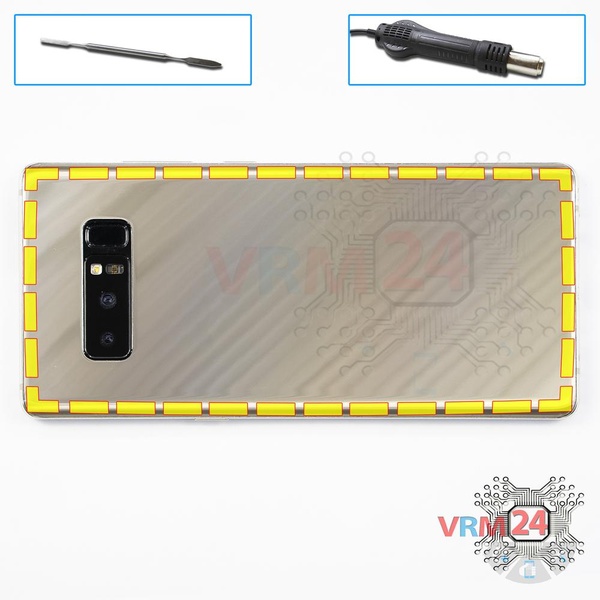

Open the back cover.

⚠️ Warning!

For careful separation, we recommend using a heat gun. At the same time, it is necessary to heat carefully in order, not to damage the surface of the device.

How to disassemble Samsung Galaxy Note 8 SM-N950, Step 4/1 How to disassemble Samsung Galaxy Note 8 SM-N950, Step 4/2

Step 4

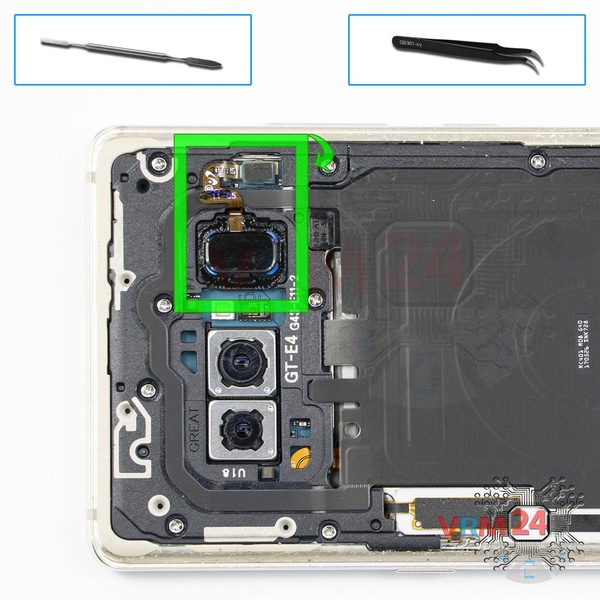

Pry up the connector and remove the fingerprint sensor.
How to disassemble Samsung Galaxy Note 8 SM-N950, Step 5/1 How to disassemble Samsung Galaxy Note 8 SM-N950, Step 5/2

Step 5

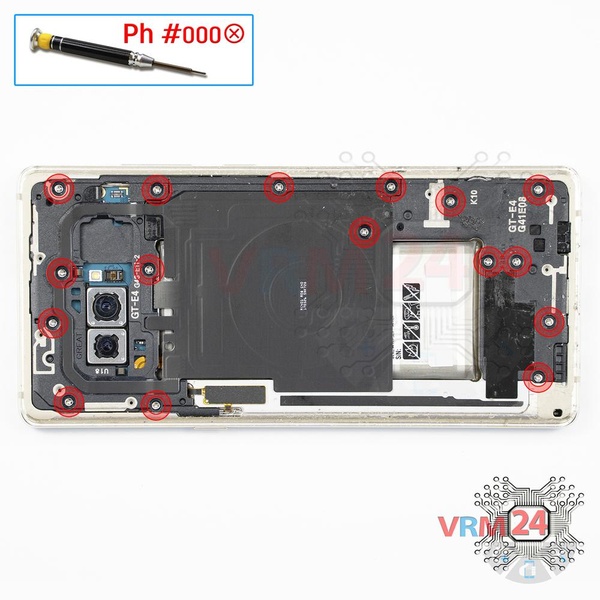

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 16 screws.
How to disassemble Samsung Galaxy Note 8 SM-N950, Step 6/1 How to disassemble Samsung Galaxy Note 8 SM-N950, Step 6/2

Step 6

Remove the covers with a loudspeaker and NFC tag.
How to disassemble Samsung Galaxy Note 8 SM-N950, Step 7/1 How to disassemble Samsung Galaxy Note 8 SM-N950, Step 7/2

Step 7

Disconnect the connector on PCB, and remove the two front (selfie) cameras.
How to disassemble Samsung Galaxy Note 8 SM-N950, Step 8/1 How to disassemble Samsung Galaxy Note 8 SM-N950, Step 8/2

Step 8

Disconnect connectors on the PCB.
How to disassemble Samsung Galaxy Note 8 SM-N950, Step 9/1 How to disassemble Samsung Galaxy Note 8 SM-N950, Step 9/2

Step 9

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 1 screw in the PCB.
How to disassemble Samsung Galaxy Note 8 SM-N950, Step 10/1 How to disassemble Samsung Galaxy Note 8 SM-N950, Step 10/2

Step 10

Remove the PCB.
How to disassemble Samsung Galaxy Note 8 SM-N950, Step 11/1 How to disassemble Samsung Galaxy Note 8 SM-N950, Step 11/2

Step 11

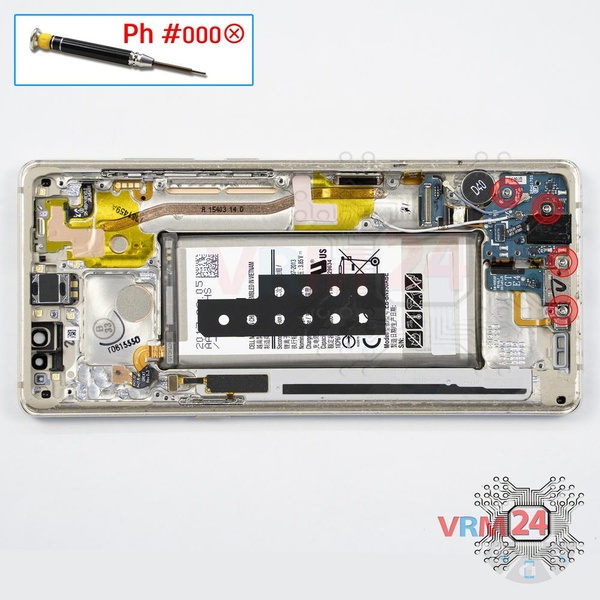

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 4 screws in the daughterboard.
How to disassemble Samsung Galaxy Note 8 SM-N950, Step 12/1 How to disassemble Samsung Galaxy Note 8 SM-N950, Step 12/2

Step 12

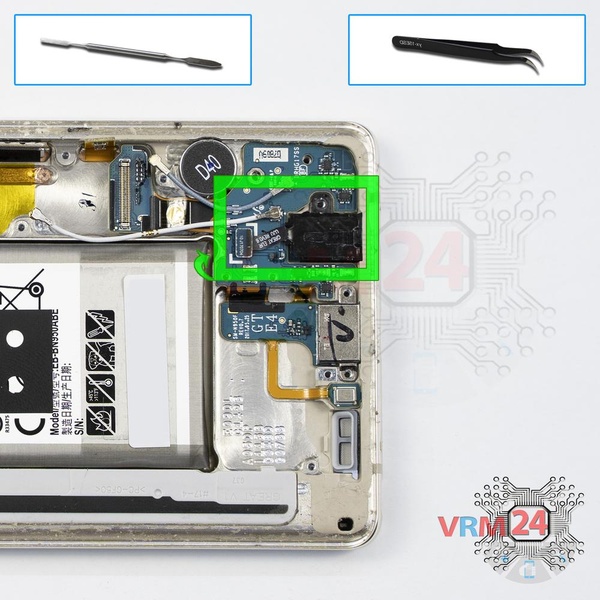

Pry up the connector on PCB and remove the headphone jack/socket.
How to disassemble Samsung Galaxy Note 8 SM-N950, Step 13/1 How to disassemble Samsung Galaxy Note 8 SM-N950, Step 13/2

Step 13

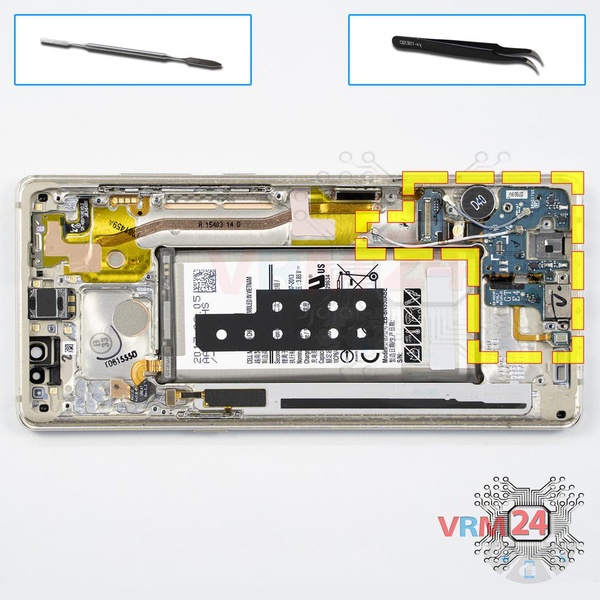

Remove the daughterboard, also known as sub-board.
How to disassemble Samsung Galaxy Note 8 SM-N950, Step 14/1 How to disassemble Samsung Galaxy Note 8 SM-N950, Step 14/2 How to disassemble Samsung Galaxy Note 8 SM-N950, Step 14/3

Step 14

Parts are in the frame of the display module.
How to disassemble Samsung Galaxy Note 8 SM-N950, Step 15/1 How to disassemble Samsung Galaxy Note 8 SM-N950, Step 15/2

Step 15

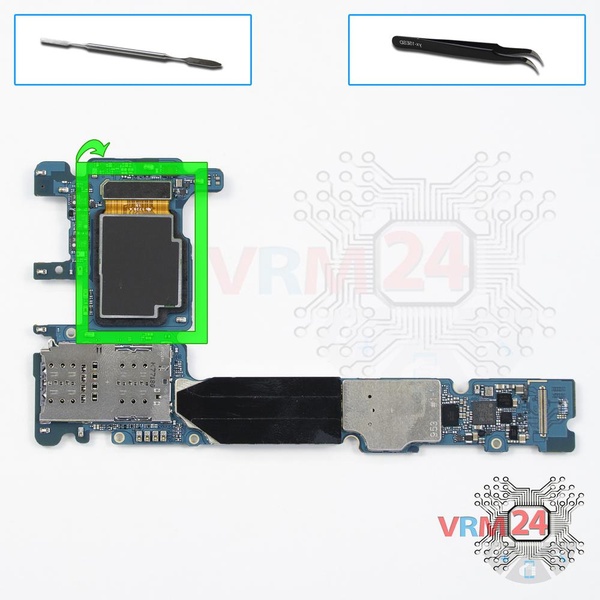

Disconnect the connector on PCB, and remove the two rear cameras assembly.
Ask a question

Detailed disassembly instructions of Samsung Galaxy Note 8 SM-N950 in the video, made by our mobile repair & service center:

#instructions #Samsung #Samsung Galaxy Note 8 SM-N950
Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer

Disassembling\Repair has medium complexity and takes about 14 minutes in time.
Our manual is suitable for all models Samsung Galaxy Note 8 SM-N950 — Samsung N950F; Samsung N950FD; Samsung N950U/U1; Samsung N950W; Samsung N9500; Samsung N950N released for markets in different countries.
