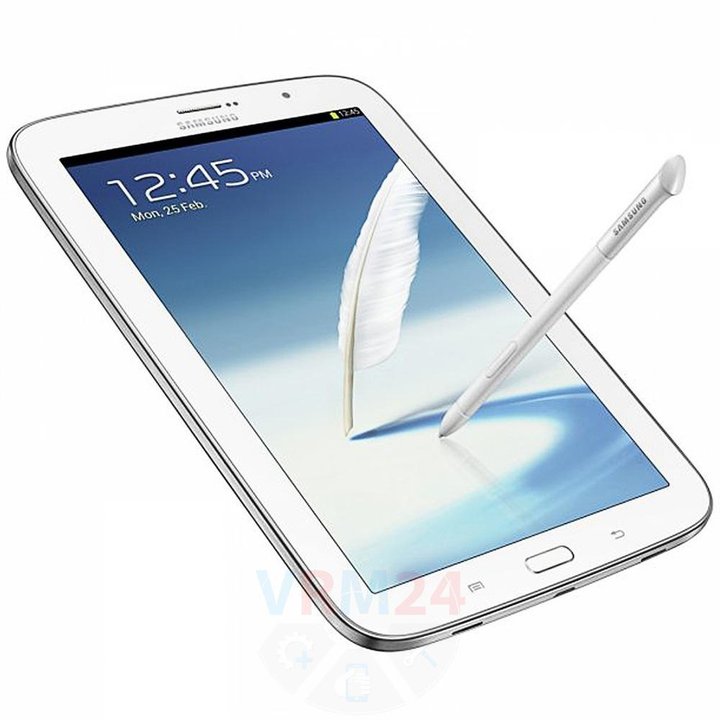

Samsung Galaxy Note 8.0'' GT-N5100
Samsung Galaxy Note 8.0'' GT-N5100
Teardown difficulty:
Easy
Duration:
14 min

Recommended tools

Screwdriver Phillips #000 Screwdriver phillips #000
Opening tool / Spudger Opening tool / spudger
Tweezers Tweezers

Disassembly/Repair of the mobile device Samsung Galaxy Note 8.0'' GT-N5100 (Samsung Galaxy Note 510) with each step description and the required set of tools.

Vadim Popoff

Author / Content specialist with 10+ years of experience

How to disassemble Samsung Galaxy Note 8.0'' GT-N5100, Step 1/1 How to disassemble Samsung Galaxy Note 8.0'' GT-N5100, Step 1/2

Step 1.

Pull out the stylus pen.

How to disassemble Samsung Galaxy Note 8.0'' GT-N5100, Step 2/1 How to disassemble Samsung Galaxy Note 8.0'' GT-N5100, Step 2/2

Step 2.

Open the back cover.

How to disassemble Samsung Galaxy Note 8.0'' GT-N5100, Step 3/1 How to disassemble Samsung Galaxy Note 8.0'' GT-N5100, Step 3/2 How to disassemble Samsung Galaxy Note 8.0'' GT-N5100, Step 3/3 How to disassemble Samsung Galaxy Note 8.0'' GT-N5100, Step 3/4 How to disassemble Samsung Galaxy Note 8.0'' GT-N5100, Step 3/5

Step 3.

Disconnect connectors on the PCB.

How to disassemble Samsung Galaxy Note 8.0'' GT-N5100, Step 4/1 How to disassemble Samsung Galaxy Note 8.0'' GT-N5100, Step 4/2

Step 4.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 8 bolts securing the battery.

How to disassemble Samsung Galaxy Note 8.0'' GT-N5100, Step 5/1 How to disassemble Samsung Galaxy Note 8.0'' GT-N5100, Step 5/2

Step 5.

Lift and remove the battery.

How to disassemble Samsung Galaxy Note 8.0'' GT-N5100, Step 6/1 How to disassemble Samsung Galaxy Note 8.0'' GT-N5100, Step 6/2

Step 6.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 4 bolts securing the buzzer (speaker) assemblies.

How to disassemble Samsung Galaxy Note 8.0'' GT-N5100, Step 7/1 How to disassemble Samsung Galaxy Note 8.0'' GT-N5100, Step 7/2

Step 7.

Remove the buzzer (speaker) assemblies.

How to disassemble Samsung Galaxy Note 8.0'' GT-N5100, Step 8/1 How to disassemble Samsung Galaxy Note 8.0'' GT-N5100, Step 8/2

Step 8.

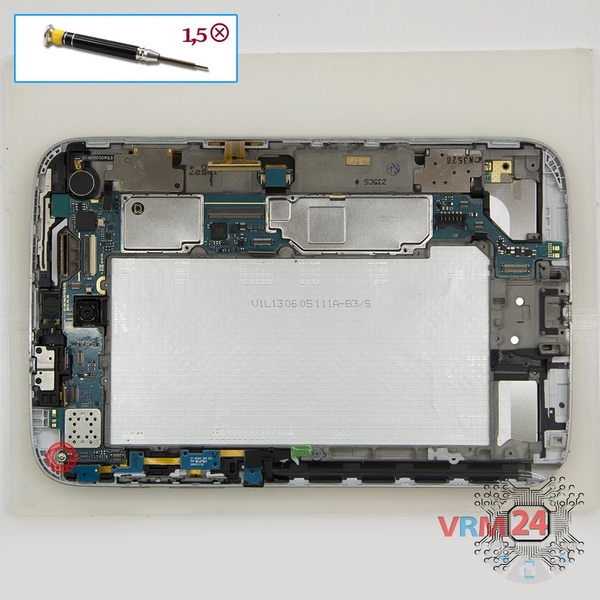

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 1 bolt and remove the bracket.

How to disassemble Samsung Galaxy Note 8.0'' GT-N5100, Step 9/1 How to disassemble Samsung Galaxy Note 8.0'' GT-N5100, Step 9/2

Step 9.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 2 bolts securing the charging port.

How to disassemble Samsung Galaxy Note 8.0'' GT-N5100, Step 10/1 How to disassemble Samsung Galaxy Note 8.0'' GT-N5100, Step 10/2 How to disassemble Samsung Galaxy Note 8.0'' GT-N5100, Step 10/3

Step 10.

Pry up the connect and remove the small board with a charging port.

How to disassemble Samsung Galaxy Note 8.0'' GT-N5100, Step 11/1 How to disassemble Samsung Galaxy Note 8.0'' GT-N5100, Step 11/2

Step 11.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 1 bolt in the PCB.

How to disassemble Samsung Galaxy Note 8.0'' GT-N5100, Step 12/1 How to disassemble Samsung Galaxy Note 8.0'' GT-N5100, Step 12/2

Step 12.

Remove the PCB.

How to disassemble Samsung Galaxy Note 8.0'' GT-N5100, Step 13/1 How to disassemble Samsung Galaxy Note 8.0'' GT-N5100, Step 13/2

Step 13.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 2 bolts securing the headphone jack/socket.

How to disassemble Samsung Galaxy Note 8.0'' GT-N5100, Step 14/1 How to disassemble Samsung Galaxy Note 8.0'' GT-N5100, Step 14/2

Step 14.

Remove the cable with a headphone jack/socket, earpiece (speaker) and proximity sensor.

How to disassemble Samsung Galaxy Note 8.0'' GT-N5100, Step 15/1 How to disassemble Samsung Galaxy Note 8.0'' GT-N5100, Step 15/2

Step 15.

Pry and remove the front (selfie) camera.

How to disassemble Samsung Galaxy Note 8.0'' GT-N5100, Step 16/1 How to disassemble Samsung Galaxy Note 8.0'' GT-N5100, Step 16/2

Step 16.

Pry and remove the cable with a microphone & power & volume buttons flex cable.

How to disassemble Samsung Galaxy Note 8.0'' GT-N5100, Step 17/1 How to disassemble Samsung Galaxy Note 8.0'' GT-N5100, Step 17/2 How to disassemble Samsung Galaxy Note 8.0'' GT-N5100, Step 17/3

Step 17.

Parts are in the frame of the display module.

Detailed disassembly instructions of Samsung Galaxy Note 8.0'' GT-N5100 in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

#instructions #Samsung #Samsung Galaxy Note 8.0'' GT-N5100
Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer

Disassembling\Repair has easy complexity and takes about 14 minutes in time.
Our manual is suitable for all models Samsung Galaxy Note 8.0'' GT-N5100 — Samsung Galaxy Note 510 released for markets in different countries.
