Samsung Galaxy Note Edge SM-N915
Samsung Galaxy Note Edge SM-N915
Teardown difficulty:
Moderate
Duration:
8 min

Recommended tools

Screwdriver Phillips #000 Screwdriver phillips #000
Opening tool / Spudger Opening tool / spudger
Tweezers Tweezers

Disassembly/Repair of the mobile device Samsung Galaxy Note Edge SM-N915 (Samsung N915FY (Europe), N915A (AT&T), N915T (T-Mobile), N915K/N915L/N915S (Korea), N915G (Singapore, Australia, Spain), N915D (Japan)) with each step description and the required set of tools.

Vadim Popoff

Specialist in content creation, distribution and content management.

How to disassemble Samsung Galaxy Note Edge SM-N915, Step 1/1 How to disassemble Samsung Galaxy Note Edge SM-N915, Step 1/2

Step 1.

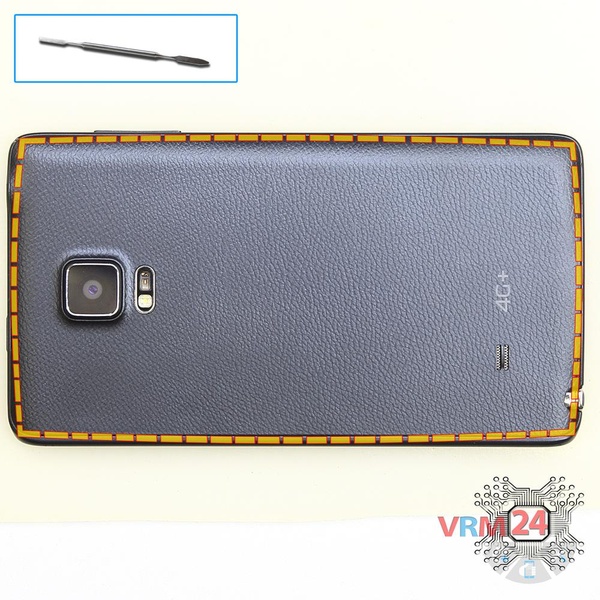

Open the back cover. Also, pull out the stylus pen

How to disassemble Samsung Galaxy Note Edge SM-N915, Step 2/1 How to disassemble Samsung Galaxy Note Edge SM-N915, Step 2/2

Step 2.

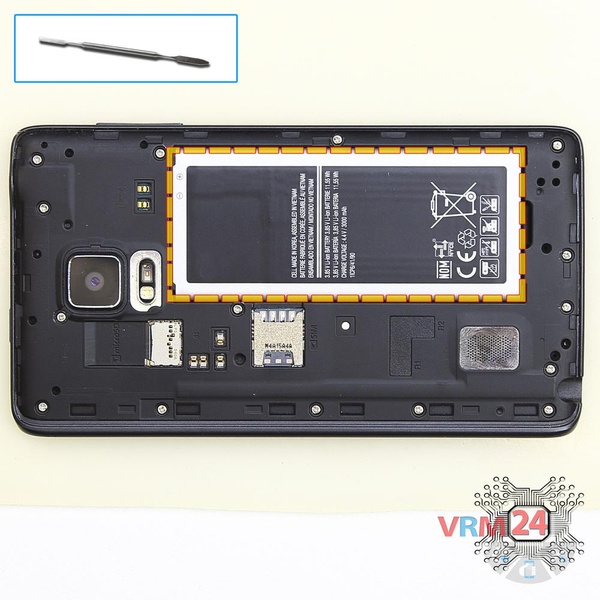

Lift and remove the battery.

How to disassemble Samsung Galaxy Note Edge SM-N915, Step 3/1 How to disassemble Samsung Galaxy Note Edge SM-N915, Step 3/2

Step 3.

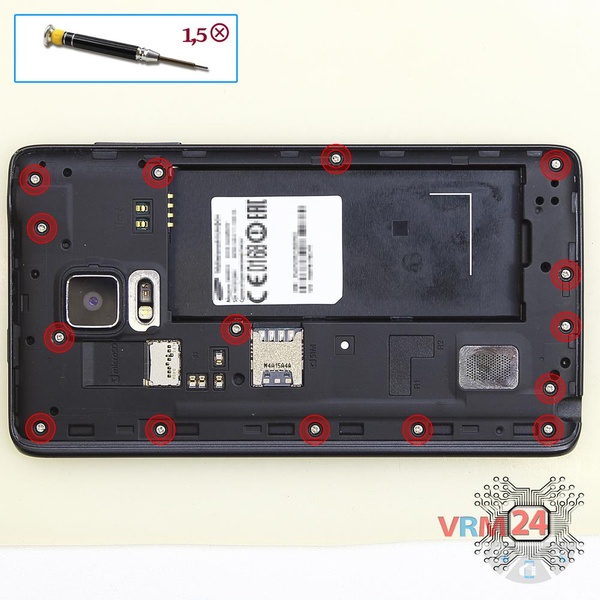

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 15 bolts in the frame of the phone.

How to disassemble Samsung Galaxy Note Edge SM-N915, Step 4/1 How to disassemble Samsung Galaxy Note Edge SM-N915, Step 4/2

Step 4.

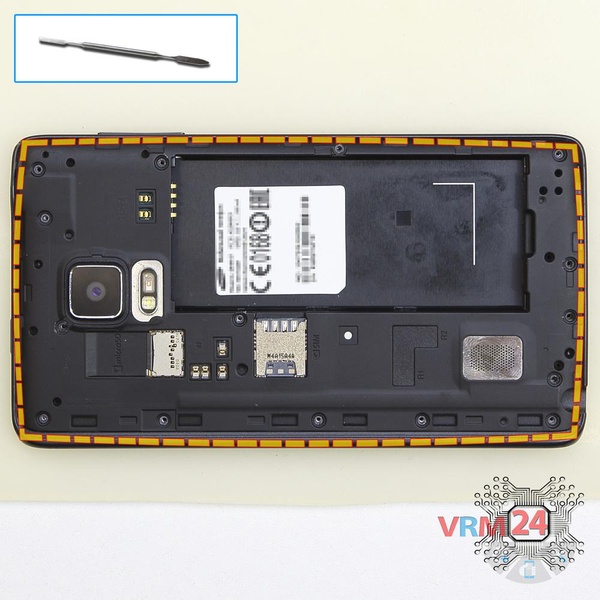

Pry and remove the middle frame.

How to disassemble Samsung Galaxy Note Edge SM-N915, Step 5/1 How to disassemble Samsung Galaxy Note Edge SM-N915, Step 5/2

Step 5.

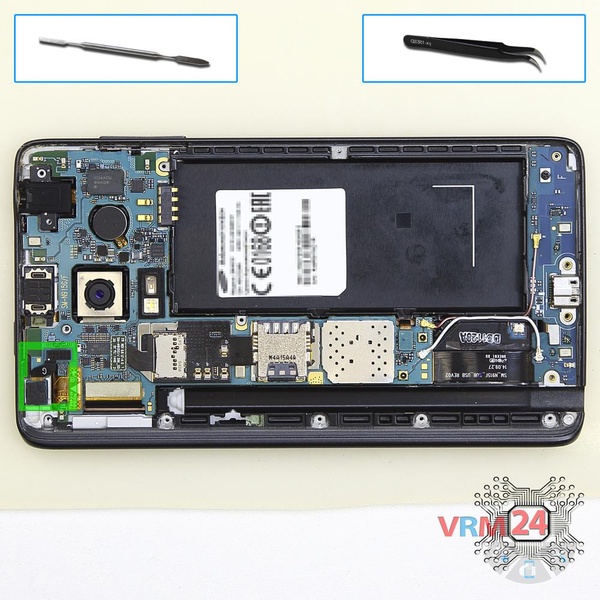

Disconnect the connector on PCB, and remove the front (selfie) camera.

How to disassemble Samsung Galaxy Note Edge SM-N915, Step 6/1 How to disassemble Samsung Galaxy Note Edge SM-N915, Step 6/2 How to disassemble Samsung Galaxy Note Edge SM-N915, Step 6/3 How to disassemble Samsung Galaxy Note Edge SM-N915, Step 6/4 How to disassemble Samsung Galaxy Note Edge SM-N915, Step 6/5

Step 6.

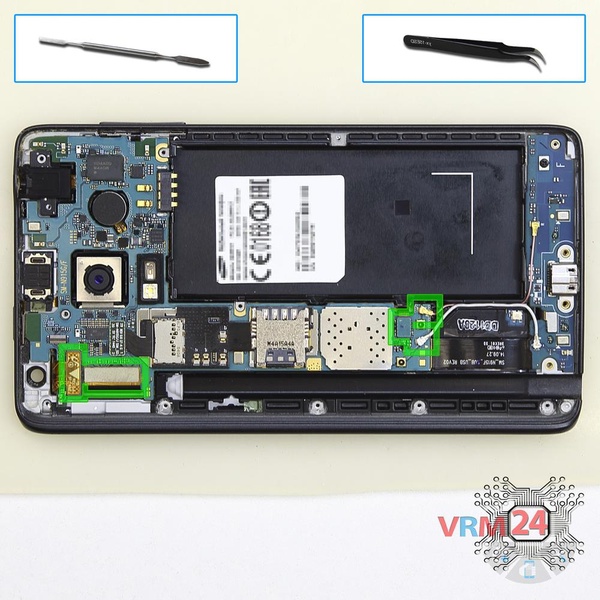

Disconnect connectors on the PCB.

How to disassemble Samsung Galaxy Note Edge SM-N915, Step 7/1 How to disassemble Samsung Galaxy Note Edge SM-N915, Step 7/2

Step 7.

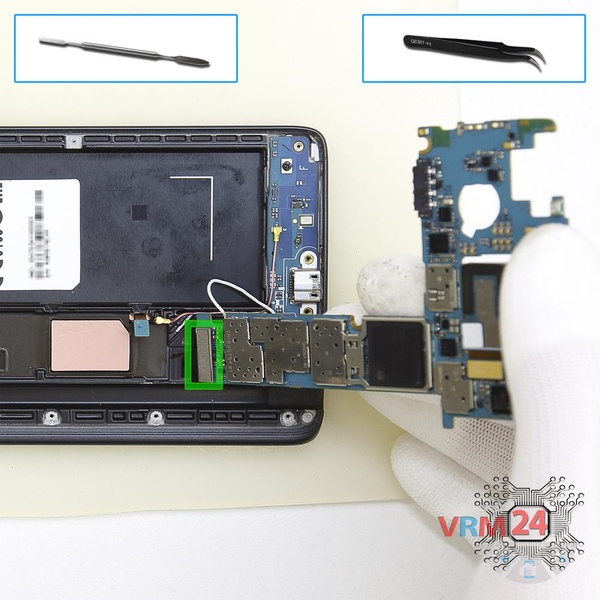

Lift up the main PCB, disconnect the inter-board connector from the inside and remove it.

How to disassemble Samsung Galaxy Note Edge SM-N915, Step 8/1 How to disassemble Samsung Galaxy Note Edge SM-N915, Step 8/2

Step 8.

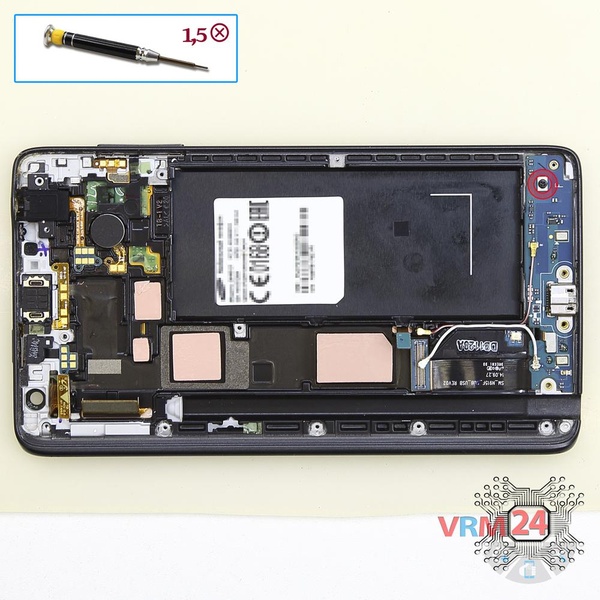

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 1 bolt in the lower PCB.

How to disassemble Samsung Galaxy Note Edge SM-N915, Step 9/1 How to disassemble Samsung Galaxy Note Edge SM-N915, Step 9/2

Step 9.

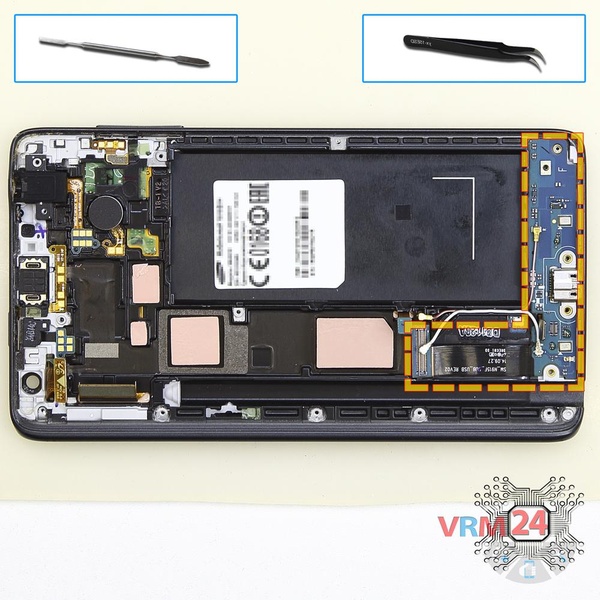

Remove the lower PCB.

How to disassemble Samsung Galaxy Note Edge SM-N915, Step 10/1 How to disassemble Samsung Galaxy Note Edge SM-N915, Step 10/2

Step 10.

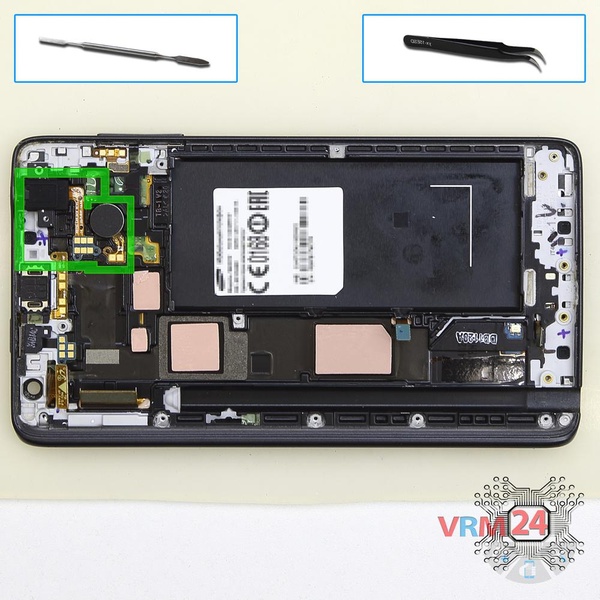

Pry up the connector on PCB and remove the headphone jack/socket and vibration motor.

How to disassemble Samsung Galaxy Note Edge SM-N915, Step 11/1 How to disassemble Samsung Galaxy Note Edge SM-N915, Step 11/2

Step 11.

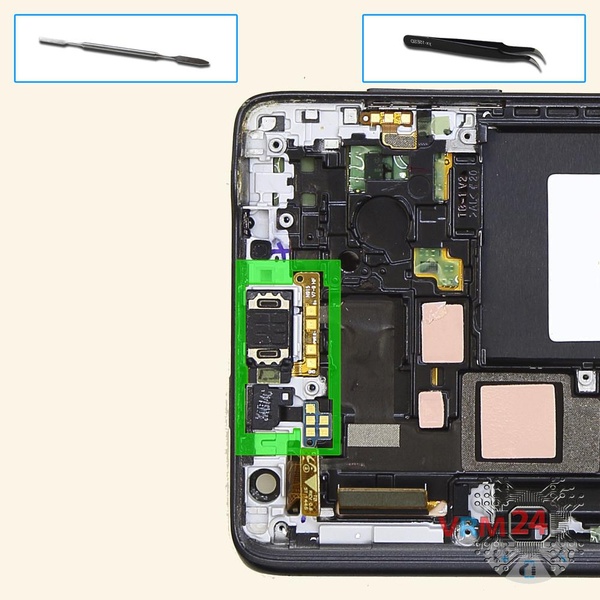

Pry and remove the earpiece (speaker) and proximity sensor.

How to disassemble Samsung Galaxy Note Edge SM-N915, Step 12/1 How to disassemble Samsung Galaxy Note Edge SM-N915, Step 12/2 How to disassemble Samsung Galaxy Note Edge SM-N915, Step 12/3

Step 12.

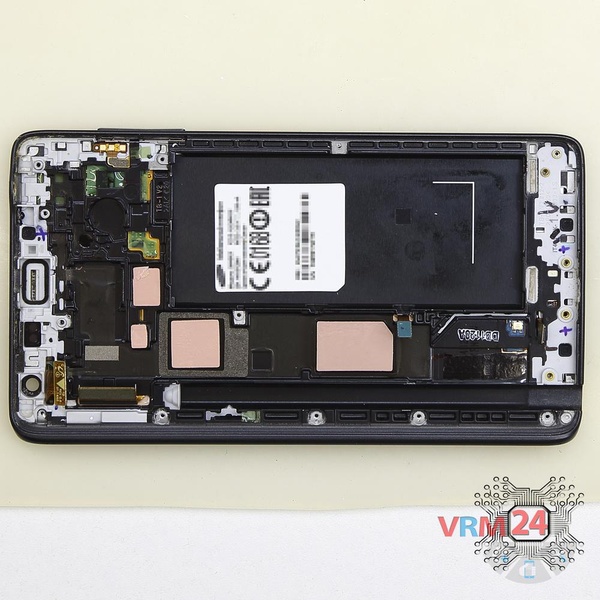

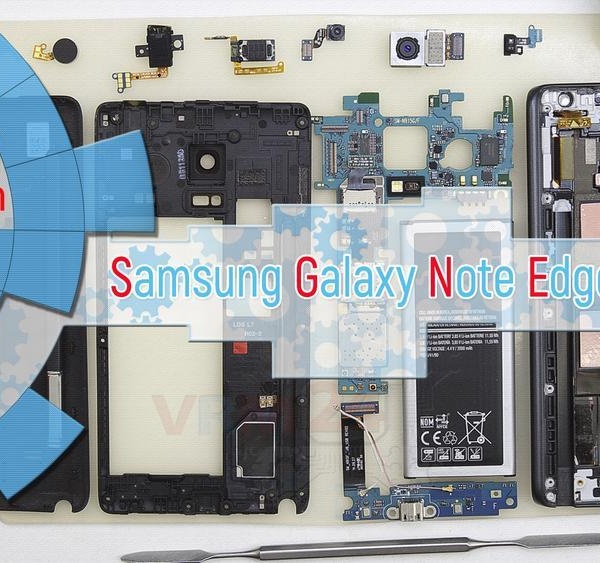

Parts are in the frame of the display module.

Detailed disassembly instructions of Samsung Galaxy Note Edge SM-N915 in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

#instructions #Samsung #Samsung Galaxy Note Edge SM-N915
Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer

Disassembling\Repair has medium complexity and takes about 8 minutes in time.
Our manual is suitable for all models Samsung Galaxy Note Edge SM-N915 — Samsung N915FY (Europe), N915A (AT&T), N915T (T-Mobile), N915K/N915L/N915S (Korea), N915G (Singapore, Australia, Spain), N915D (Japan) released for markets in different countries.
