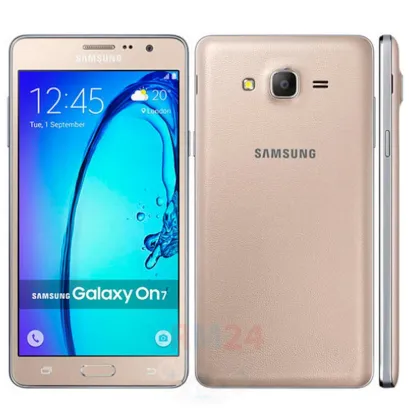

Samsung Galaxy On7 SM-G6000
Samsung Galaxy On7 SM-G6000
Teardown difficulty:
Moderate
Duration:
4 min

Recommended tools

Heat gun Heat gun
Screwdriver Phillips #000 Screwdriver phillips #000
Opening tool / Spudger Opening tool / spudger
Tweezers Tweezers

Disassembly/Repair of the mobile device Samsung Galaxy On7 SM-G6000 (Samsung G600FY (India, Brazil); Galaxy Wide G600S (Korea)) with each step description and the required set of tools.

Vadim Popoff

Author, currently - Quality Assurance Specialist

How to disassemble Samsung Galaxy On7 SM-G6000, Step 1/1

Step 1.

Open the back cover.

How to disassemble Samsung Galaxy On7 SM-G6000, Step 2/1 How to disassemble Samsung Galaxy On7 SM-G6000, Step 2/2

Step 2.

Lift and remove the battery.

How to disassemble Samsung Galaxy On7 SM-G6000, Step 3/1 How to disassemble Samsung Galaxy On7 SM-G6000, Step 3/2

Step 3.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 12 bolts in the frame of the phone.

How to disassemble Samsung Galaxy On7 SM-G6000, Step 4/1 How to disassemble Samsung Galaxy On7 SM-G6000, Step 4/2 How to disassemble Samsung Galaxy On7 SM-G6000, Step 4/3

Step 4.

Pry and remove the middle frame.

⚠️ Warning!

For careful separation, we recommend using a heat gun. At the same time, it is necessary to heat carefully in order, not to damage the surface of the device.

How to disassemble Samsung Galaxy On7 SM-G6000, Step 5/1 How to disassemble Samsung Galaxy On7 SM-G6000, Step 5/2

Step 5.

Pry and remove the buzzer (speaker).

How to disassemble Samsung Galaxy On7 SM-G6000, Step 6/1 How to disassemble Samsung Galaxy On7 SM-G6000, Step 6/2

Step 6.

Pry up the connector on PCB and remove the headphone jack/socket.

How to disassemble Samsung Galaxy On7 SM-G6000, Step 7/1 How to disassemble Samsung Galaxy On7 SM-G6000, Step 7/2 How to disassemble Samsung Galaxy On7 SM-G6000, Step 7/3

Step 7.

Disconnect the connector on PCB.

How to disassemble Samsung Galaxy On7 SM-G6000, Step 8/1 How to disassemble Samsung Galaxy On7 SM-G6000, Step 8/2

Step 8.

Remove the PCB.

How to disassemble Samsung Galaxy On7 SM-G6000, Step 9/1 How to disassemble Samsung Galaxy On7 SM-G6000, Step 9/2

Step 9.

Pry & remove the vibration motor.

How to disassemble Samsung Galaxy On7 SM-G6000, Step 10/1 How to disassemble Samsung Galaxy On7 SM-G6000, Step 10/2

Step 10.

Pry and remove the earpiece (speaker).

How to disassemble Samsung Galaxy On7 SM-G6000, Step 11/1 How to disassemble Samsung Galaxy On7 SM-G6000, Step 11/2 How to disassemble Samsung Galaxy On7 SM-G6000, Step 11/3

Step 11.

Parts are in the frame of the display module.

Detailed disassembly instructions of Samsung Galaxy On7 SM-G6000 in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

#instructions #Samsung #Samsung Galaxy On7 SM-G6000
Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer

Disassembling\Repair has medium complexity and takes about 4 minutes in time.
Our manual is suitable for all models Samsung Galaxy On7 SM-G6000 — Samsung G600FY (India, Brazil); Galaxy Wide G600S (Korea) released for markets in different countries.
