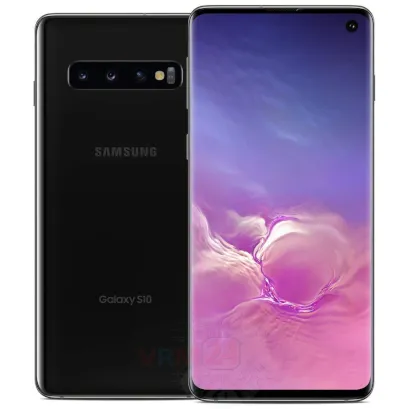

Disassembly/Repair of the mobile device Samsung Galaxy S10 SM-G973 (Samsung SM-G973F/DS (Global); SM-G973U (USA); SM-G973W (Canada); SM-G9730 (China)) with each step description and the required set of tools.


Specialist in content creation, distribution and content management.


How to disassemble Samsung Galaxy S10 SM-G973, Step 1/1 How to disassemble Samsung Galaxy S10 SM-G973, Step 1/2

Step 1.

Using the key tool, open the SIM and Micro SD cards tray and remove it.

⚠️ Warning!

Do not push too hard this may cause damage.


How to disassemble Samsung Galaxy S10 SM-G973, Step 2/1 How to disassemble Samsung Galaxy S10 SM-G973, Step 2/2

Step 2.

Open the back cover.

⚠️ Warning!

For careful separation, we recommend using a heat gun. At the same time, it is necessary to heat carefully in order, not to damage the surface of the device.


How to disassemble Samsung Galaxy S10 SM-G973, Step 3/1 How to disassemble Samsung Galaxy S10 SM-G973, Step 3/2

Step 3.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 15 bolts in the frame of the phone.


How to disassemble Samsung Galaxy S10 SM-G973, Step 4/1 How to disassemble Samsung Galaxy S10 SM-G973, Step 4/2

Step 4.

Remove the covers with NFC tag and loud speaker.


How to disassemble Samsung Galaxy S10 SM-G973, Step 5/1 How to disassemble Samsung Galaxy S10 SM-G973, Step 5/2 How to disassemble Samsung Galaxy S10 SM-G973, Step 5/3

Step 5.

Disconnect the battery connector.

⚠️ Warning!

We strongly recommend disconnecting the connector to avoid a possible short circuit during disassembly.


How to disassemble Samsung Galaxy S10 SM-G973, Step 6/1 How to disassemble Samsung Galaxy S10 SM-G973, Step 6/2

Step 6.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 3 bolts in the PCB.


How to disassemble Samsung Galaxy S10 SM-G973, Step 7/1 How to disassemble Samsung Galaxy S10 SM-G973, Step 7/2

Step 7.

Disconnect the connector on PCB, and remove the front (selfie) camera.


How to disassemble Samsung Galaxy S10 SM-G973, Step 8/1 How to disassemble Samsung Galaxy S10 SM-G973, Step 8/2 How to disassemble Samsung Galaxy S10 SM-G973, Step 8/3

Step 8.

Pry up the connector on PCB and remove the headphone jack/socket.


How to disassemble Samsung Galaxy S10 SM-G973, Step 9/1 How to disassemble Samsung Galaxy S10 SM-G973, Step 9/2 How to disassemble Samsung Galaxy S10 SM-G973, Step 9/3

Step 9.

Disconnect connectors on the PCB.


How to disassemble Samsung Galaxy S10 SM-G973, Step 10/1 How to disassemble Samsung Galaxy S10 SM-G973, Step 10/2

Step 10.

Remove the PCB.


How to disassemble Samsung Galaxy S10 SM-G973, Step 11/1 How to disassemble Samsung Galaxy S10 SM-G973, Step 11/2

Step 11.

Disconnect the connectors on PCB, and remove three rear cameras assembly.


How to disassemble Samsung Galaxy S10 SM-G973, Step 12/1 How to disassemble Samsung Galaxy S10 SM-G973, Step 12/2 How to disassemble Samsung Galaxy S10 SM-G973, Step 12/3

Step 12.

Parts are in the frame of the display module.

Detailed disassembly instructions of Samsung Galaxy S10 SM-G973 in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.


Disassembling\Repair has medium complexity and takes about 10 minutes in time.
Our manual is suitable for all models Samsung Galaxy S10 SM-G973 — Samsung SM-G973F/DS (Global); SM-G973U (USA); SM-G973W (Canada); SM-G9730 (China) released for markets in different countries.
