Samsung Galaxy S10e SM-G970
Samsung Galaxy S10e SM-G970
Teardown difficulty:
Moderate
Duration:
14 min

Recommended tools

Heat gun Heat gun
Screwdriver Phillips #000 Screwdriver phillips #000
Opening tool / Spudger Opening tool / spudger
Tweezers Tweezers

Disassembly/Repair of the mobile device Samsung Galaxy S10e SM-G970 (Samsung SM-G970F/DS (Global); SM-G970U (USA); SM-G970W (Canada)) with each step description and the required set of tools.

Vadim Popoff

Author, currently - Quality Assurance Specialist

How to disassemble Samsung Galaxy S10e SM-G970, Step 1/1 How to disassemble Samsung Galaxy S10e SM-G970, Step 1/2

Step 1.

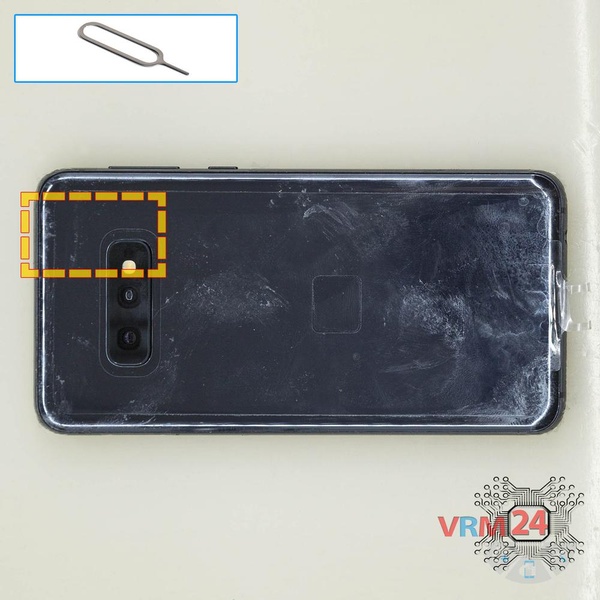

Using the key tool, open the SIM and Micro SD cards tray and remove it.

⚠️ Warning!

Do not push too hard this may cause damage.

How to disassemble Samsung Galaxy S10e SM-G970, Step 2/1 How to disassemble Samsung Galaxy S10e SM-G970, Step 2/2

Step 2.

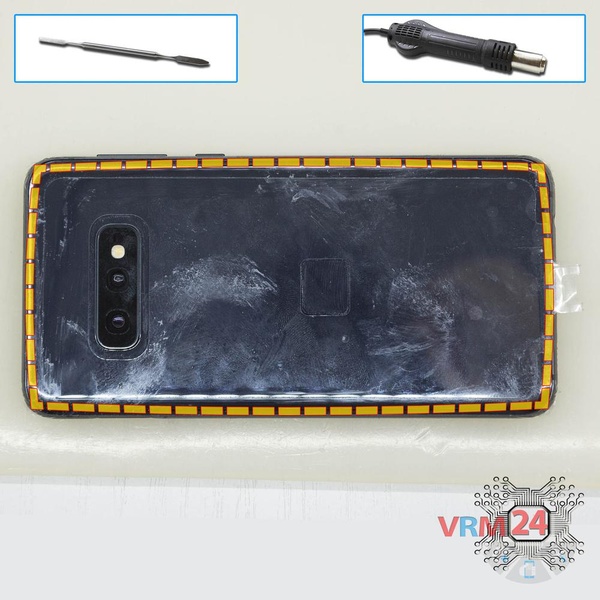

Open the back cover.

⚠️ Warning!

For careful separation, we recommend using a heat gun. At the same time, it is necessary to heat carefully in order, not to damage the surface of the device.

How to disassemble Samsung Galaxy S10e SM-G970, Step 3/1 How to disassemble Samsung Galaxy S10e SM-G970, Step 3/2

Step 3.

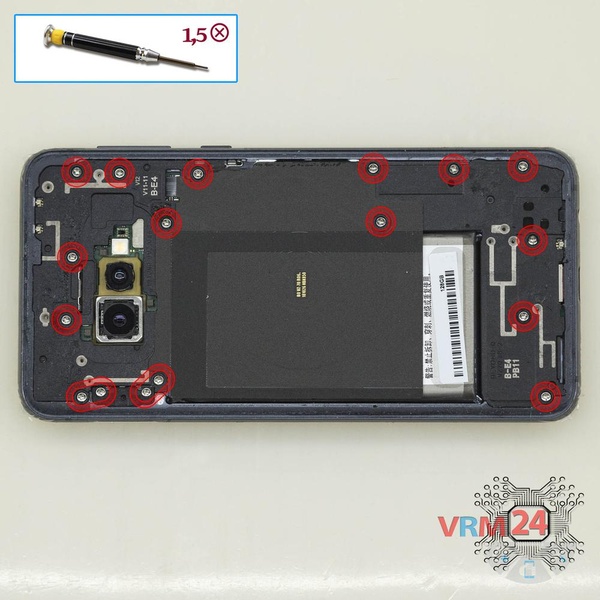

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 17 bolts in the frame of the phone.

How to disassemble Samsung Galaxy S10e SM-G970, Step 4/1 How to disassemble Samsung Galaxy S10e SM-G970, Step 4/2

Step 4.

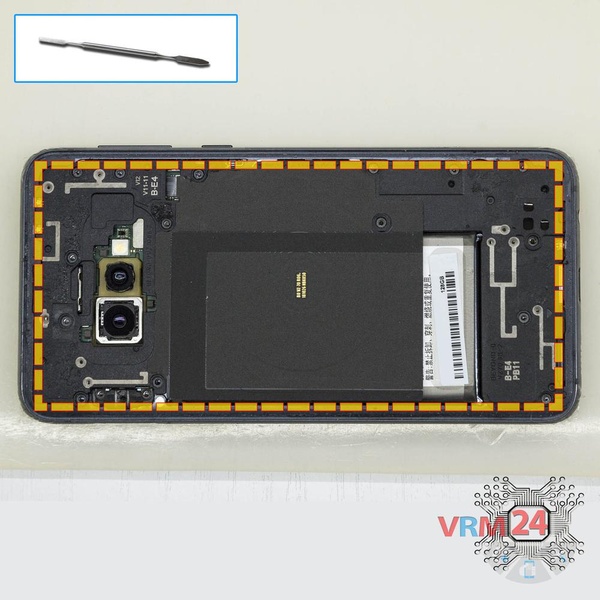

Remove the middle cover with NFC tag and antennas.

How to disassemble Samsung Galaxy S10e SM-G970, Step 5/1 How to disassemble Samsung Galaxy S10e SM-G970, Step 5/2 How to disassemble Samsung Galaxy S10e SM-G970, Step 5/3

Step 5.

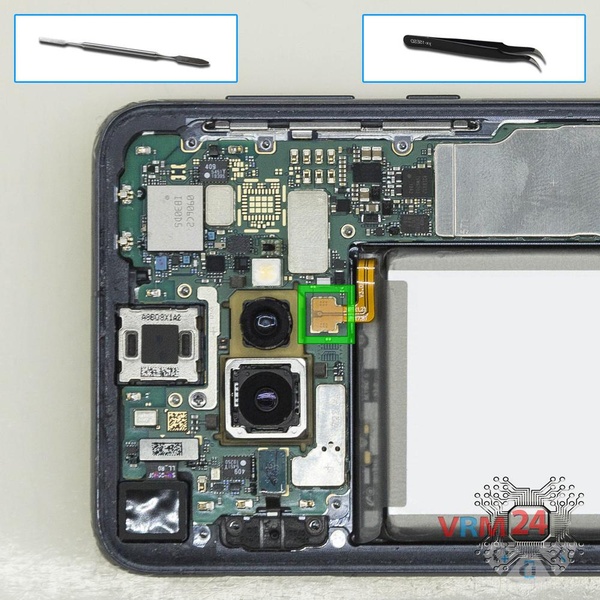

Disconnect the battery connector.

⚠️ Warning!

We strongly recommend disconnecting the connector to avoid a possible short circuit during disassembly.

How to disassemble Samsung Galaxy S10e SM-G970, Step 6/1 How to disassemble Samsung Galaxy S10e SM-G970, Step 6/2

Step 6.

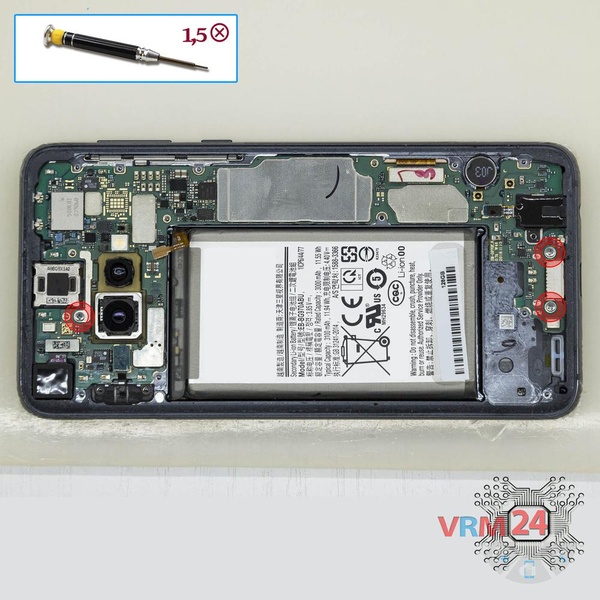

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 3 bolts in the PCB.

How to disassemble Samsung Galaxy S10e SM-G970, Step 7/1 How to disassemble Samsung Galaxy S10e SM-G970, Step 7/2 How to disassemble Samsung Galaxy S10e SM-G970, Step 7/3

Step 7.

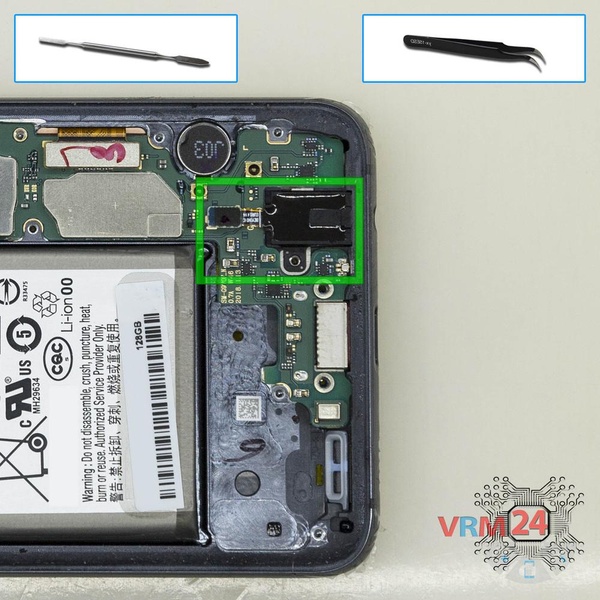

Pry up the connector on PCB and remove the headphone jack/socket.

How to disassemble Samsung Galaxy S10e SM-G970, Step 8/1 How to disassemble Samsung Galaxy S10e SM-G970, Step 8/2

Step 8.

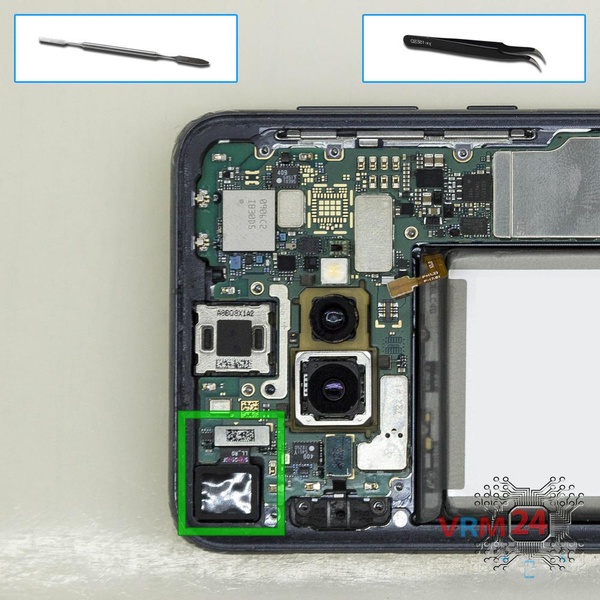

Disconnect the connector on PCB, and remove the front (selfie) camera.

How to disassemble Samsung Galaxy S10e SM-G970, Step 9/1 How to disassemble Samsung Galaxy S10e SM-G970, Step 9/2

Step 9.

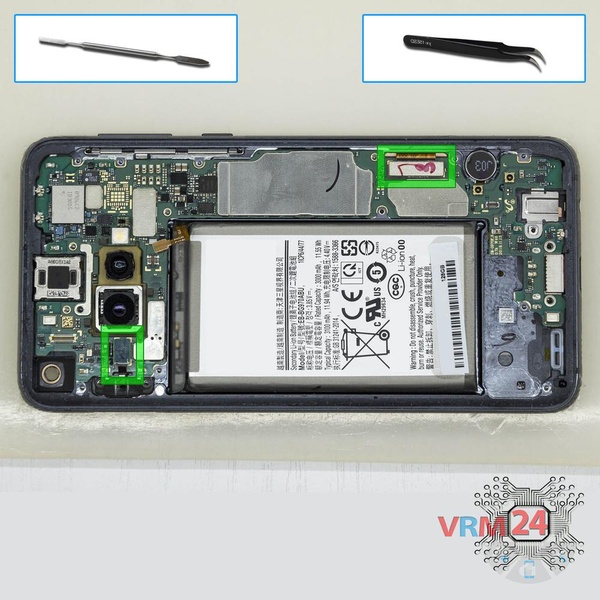

Disconnect connectors on the motherboard.

How to disassemble Samsung Galaxy S10e SM-G970, Step 10/1 How to disassemble Samsung Galaxy S10e SM-G970, Step 10/2

Step 10.

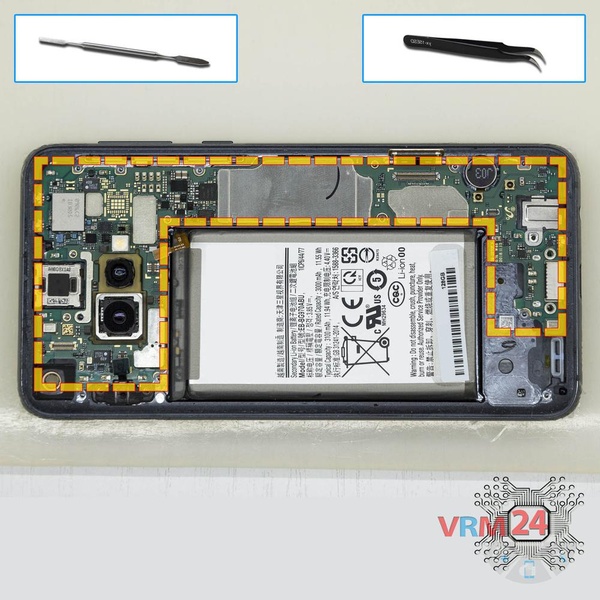

Remove the PCB.

How to disassemble Samsung Galaxy S10e SM-G970, Step 11/1 How to disassemble Samsung Galaxy S10e SM-G970, Step 11/2

Step 11.

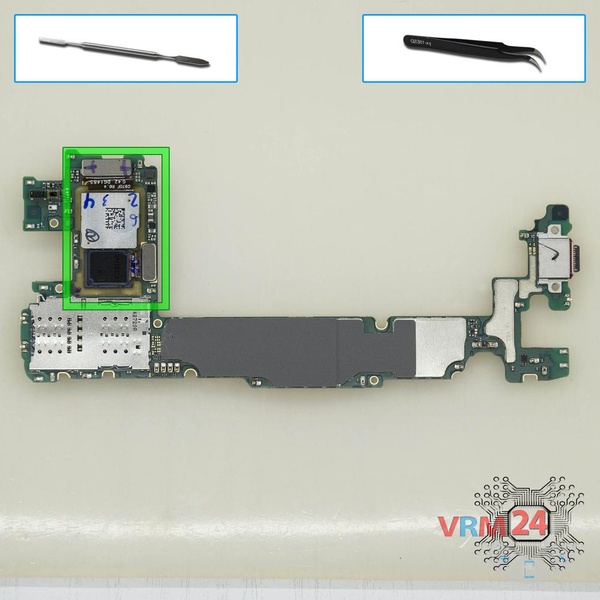

Disconnect connectors on PCB and remove assembly of two rear cameras.

Detailed disassembly instructions of Samsung Galaxy S10e SM-G970 in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

#instructions #Samsung #Samsung Galaxy S10e SM-G970
Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer

Disassembling\Repair has medium complexity and takes about 14 minutes in time.
Our manual is suitable for all models Samsung Galaxy S10e SM-G970 — Samsung SM-G970F/DS (Global); SM-G970U (USA); SM-G970W (Canada) released for markets in different countries.
