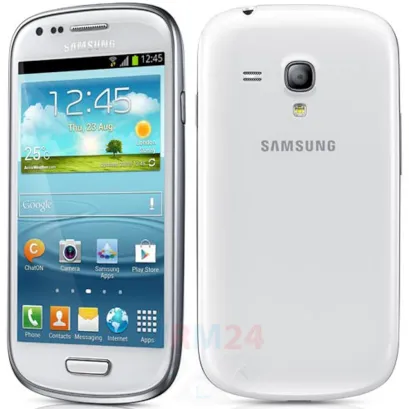

Samsung Galaxy S3 Mini GT-i8190
Samsung Galaxy S3 Mini GT-i8190
Teardown difficulty:
Easy
Duration:
3 min

Recommended tools

Screwdriver Phillips #000 Screwdriver phillips #000
Opening tool / Spudger Opening tool / spudger
Tweezers Tweezers

Disassembly/Repair of the mobile device Samsung Galaxy S3 Mini GT-i8190 (Samsung I8190N Galaxy S3 mini with NFC) with each step description and the required set of tools.

Vadim Popoff

Author, currently - Quality Assurance Specialist

How to disassemble Samsung Galaxy S3 Mini GT-i8190, Step 1/1 How to disassemble Samsung Galaxy S3 Mini GT-i8190, Step 1/2

Step 1.

Open the back cover.

How to disassemble Samsung Galaxy S3 Mini GT-i8190, Step 2/1 How to disassemble Samsung Galaxy S3 Mini GT-i8190, Step 2/2

Step 2.

Lift and remove the battery.

How to disassemble Samsung Galaxy S3 Mini GT-i8190, Step 3/1 How to disassemble Samsung Galaxy S3 Mini GT-i8190, Step 3/2

Step 3.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 10 bolts in the frame of the phone.

How to disassemble Samsung Galaxy S3 Mini GT-i8190, Step 4/1 How to disassemble Samsung Galaxy S3 Mini GT-i8190, Step 4/2

Step 4.

Pry and remove the middle frame.

How to disassemble Samsung Galaxy S3 Mini GT-i8190, Step 5/1 How to disassemble Samsung Galaxy S3 Mini GT-i8190, Step 5/2 How to disassemble Samsung Galaxy S3 Mini GT-i8190, Step 5/3 How to disassemble Samsung Galaxy S3 Mini GT-i8190, Step 5/4

Step 5.

Disconnect connectors on the PCB and remove it.

How to disassemble Samsung Galaxy S3 Mini GT-i8190, Step 6/1 How to disassemble Samsung Galaxy S3 Mini GT-i8190, Step 6/2 How to disassemble Samsung Galaxy S3 Mini GT-i8190, Step 6/3 How to disassemble Samsung Galaxy S3 Mini GT-i8190, Step 6/4

Step 6.

Parts are in the frame of the display module.

Detailed disassembly instructions of Samsung Galaxy S3 Mini GT-i8190 in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

#instructions #Samsung #Samsung Galaxy S3 Mini GT-i8190
Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer

Disassembling\Repair has easy complexity and takes about 3 minutes in time.
Our manual is suitable for all models Samsung Galaxy S3 Mini GT-i8190 — Samsung I8190N Galaxy S3 mini with NFC released for markets in different countries.
