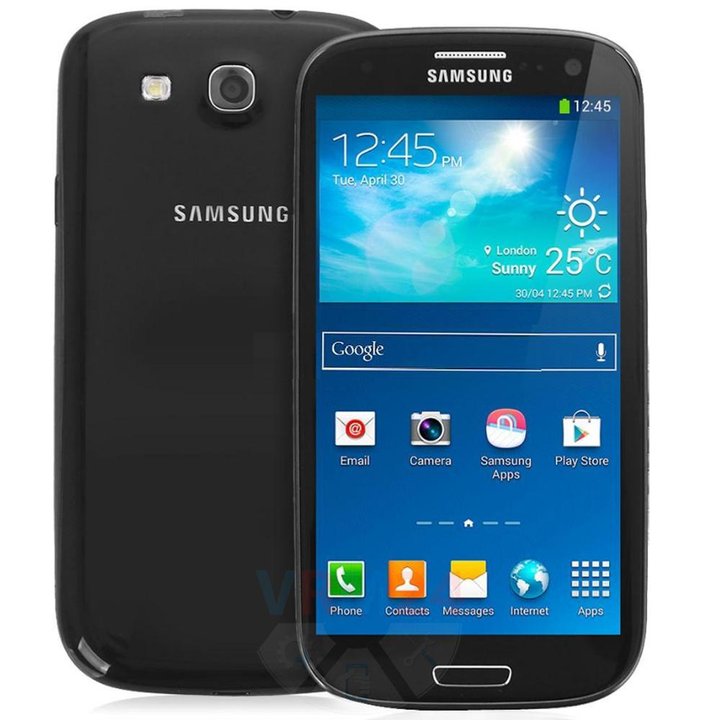

Samsung Galaxy S3 Neo GT-I9301i
Samsung Galaxy S3 Neo GT-I9301i
Teardown difficulty:
Easy
Duration:
3 min

Recommended tools

Screwdriver Phillips #000 Screwdriver phillips #000
Opening tool / Spudger Opening tool / spudger
Tweezers Tweezers

Disassembly/Repair of the mobile device Samsung Galaxy S3 Neo GT-I9301i (Samsung GT-I9300RWI with no NFC connectivity) with each step description and the required set of tools.

Vadim Popoff

Author, currently - Quality Assurance Specialist

How to disassemble Samsung Galaxy S3 Neo GT-I9301i, Step 1/1 How to disassemble Samsung Galaxy S3 Neo GT-I9301i, Step 1/2

Step 1.

Open the back cover.

How to disassemble Samsung Galaxy S3 Neo GT-I9301i, Step 2/1 How to disassemble Samsung Galaxy S3 Neo GT-I9301i, Step 2/2

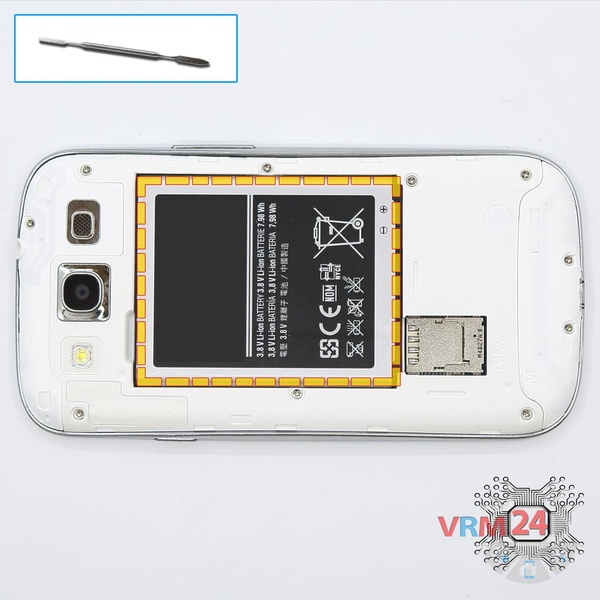

Step 2.

Lift and remove the battery.

How to disassemble Samsung Galaxy S3 Neo GT-I9301i, Step 3/1 How to disassemble Samsung Galaxy S3 Neo GT-I9301i, Step 3/2

Step 3.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 10 bolts in the frame of the phone.

How to disassemble Samsung Galaxy S3 Neo GT-I9301i, Step 4/1 How to disassemble Samsung Galaxy S3 Neo GT-I9301i, Step 4/2

Step 4.

Pry and remove the middle frame.

How to disassemble Samsung Galaxy S3 Neo GT-I9301i, Step 5/1 How to disassemble Samsung Galaxy S3 Neo GT-I9301i, Step 5/2 How to disassemble Samsung Galaxy S3 Neo GT-I9301i, Step 5/3

Step 5.

Disconnect the connector on PCB and remove the buzzer (speaker) assembly.

How to disassemble Samsung Galaxy S3 Neo GT-I9301i, Step 6/1 How to disassemble Samsung Galaxy S3 Neo GT-I9301i, Step 6/2

Step 6.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 1 bolt in the PCB.

How to disassemble Samsung Galaxy S3 Neo GT-I9301i, Step 7/1 How to disassemble Samsung Galaxy S3 Neo GT-I9301i, Step 7/2 How to disassemble Samsung Galaxy S3 Neo GT-I9301i, Step 7/3

Step 7.

Disconnect connectors on the PCB.

How to disassemble Samsung Galaxy S3 Neo GT-I9301i, Step 8/1 How to disassemble Samsung Galaxy S3 Neo GT-I9301i, Step 8/2

Step 8.

Remove the PCB.

How to disassemble Samsung Galaxy S3 Neo GT-I9301i, Step 9/1 How to disassemble Samsung Galaxy S3 Neo GT-I9301i, Step 9/2 How to disassemble Samsung Galaxy S3 Neo GT-I9301i, Step 9/3

Step 9.

Parts are in the frame of the display module.

Detailed disassembly instructions of Samsung Galaxy S3 Neo GT-I9301i in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

#instructions #Samsung #Samsung Galaxy S3 Neo GT-I9301i
Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer

Disassembling\Repair has easy complexity and takes about 3 minutes in time.
Our manual is suitable for all models Samsung Galaxy S3 Neo GT-I9301i — Samsung GT-I9300RWI with no NFC connectivity released for markets in different countries.
