Teardown difficulty:
Easy
Duration:
6 min

Recommended tools

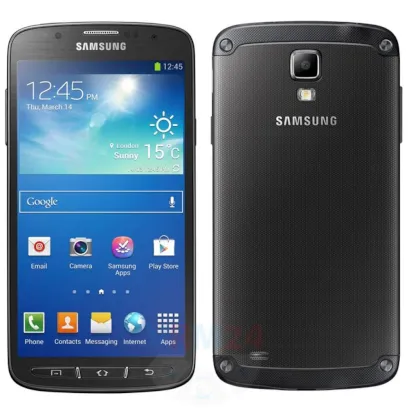

Disassembly of the mobile device Samsung Galaxy S4 Active GT-I9295 (Samsung I537 for AT&T) with each step description and the required set of tools.


Specialist in content creation, distribution and content management.


How to disassemble Samsung Galaxy S4 Active GT-I9295, Step 1/1 How to disassemble Samsung Galaxy S4 Active GT-I9295, Step 1/2
Step 1

Open the back cover.

How to disassemble Samsung Galaxy S4 Active GT-I9295, Step 2/1 How to disassemble Samsung Galaxy S4 Active GT-I9295, Step 2/2
Step 2

Lift and remove the battery.

How to disassemble Samsung Galaxy S4 Active GT-I9295, Step 3/1 How to disassemble Samsung Galaxy S4 Active GT-I9295, Step 3/2
Step 3

Remove the caps hiding the screws.

How to disassemble Samsung Galaxy S4 Active GT-I9295, Step 4/1 How to disassemble Samsung Galaxy S4 Active GT-I9295, Step 4/2
Step 4

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 12 bolts in the frame of the phone.

How to disassemble Samsung Galaxy S4 Active GT-I9295, Step 5/1 How to disassemble Samsung Galaxy S4 Active GT-I9295, Step 5/2
Step 5

Pry and remove the middle frame.

How to disassemble Samsung Galaxy S4 Active GT-I9295, Step 6/1 How to disassemble Samsung Galaxy S4 Active GT-I9295, Step 6/2
Step 6

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 2 bolts and remove the bracket holding the charging port.

How to disassemble Samsung Galaxy S4 Active GT-I9295, Step 7/1 How to disassemble Samsung Galaxy S4 Active GT-I9295, Step 7/2
Step 7

Disconnect connectors and remove the coaxial cable.

How to disassemble Samsung Galaxy S4 Active GT-I9295, Step 8/1 How to disassemble Samsung Galaxy S4 Active GT-I9295, Step 8/2 How to disassemble Samsung Galaxy S4 Active GT-I9295, Step 8/3 How to disassemble Samsung Galaxy S4 Active GT-I9295, Step 8/4
Step 8

Disconnect the connector on the main PCB and remove the lower board.

How to disassemble Samsung Galaxy S4 Active GT-I9295, Step 9/1 How to disassemble Samsung Galaxy S4 Active GT-I9295, Step 9/2 How to disassemble Samsung Galaxy S4 Active GT-I9295, Step 9/3 How to disassemble Samsung Galaxy S4 Active GT-I9295, Step 9/4 How to disassemble Samsung Galaxy S4 Active GT-I9295, Step 9/5
Step 9

Disconnect connectors on the PCB.

How to disassemble Samsung Galaxy S4 Active GT-I9295, Step 10/1 How to disassemble Samsung Galaxy S4 Active GT-I9295, Step 10/2
Step 10

Remove the PCB.

How to disassemble Samsung Galaxy S4 Active GT-I9295, Step 11/1 How to disassemble Samsung Galaxy S4 Active GT-I9295, Step 11/2
Step 11

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 1 bolt and remove the bracket holding the camera and proximity sensor.

How to disassemble Samsung Galaxy S4 Active GT-I9295, Step 12/1 How to disassemble Samsung Galaxy S4 Active GT-I9295, Step 12/2
Step 12

Pry & remove the front (selfie) camera and proximity sensor.

How to disassemble Samsung Galaxy S4 Active GT-I9295, Step 13/1 How to disassemble Samsung Galaxy S4 Active GT-I9295, Step 13/2
Step 13

Pry and remove the earpiece (speaker).

How to disassemble Samsung Galaxy S4 Active GT-I9295, Step 14/1 How to disassemble Samsung Galaxy S4 Active GT-I9295, Step 14/2 How to disassemble Samsung Galaxy S4 Active GT-I9295, Step 14/3
Step 14

Parts are in the frame of the display module.

Detailed disassembly instructions of Samsung Galaxy S4 Active GT-I9295 in the video, made by our mobile repair & service center:


Disassembling\Repair has easy complexity and takes about 6 minutes in time.
Our manual is suitable for all models Samsung Galaxy S4 Active GT-I9295 — Samsung I537 for AT&T released for markets in different countries.
