Samsung Galaxy S4 GT-i9500
Samsung Galaxy S4 GT-i9500
Teardown difficulty:
Easy
Duration:
4 min

Recommended tools

Screwdriver Phillips #000 Screwdriver phillips #000
Opening tool / Spudger Opening tool / spudger
Tweezers Tweezers

Disassembly/Repair of the mobile device Samsung Galaxy S4 GT-i9500 with each step description and the required set of tools.

Vadim Popoff

Author / Content specialist with 10+ years of experience

How to disassemble Samsung Galaxy S4 GT-i9500, Step 1/1

Step 1.

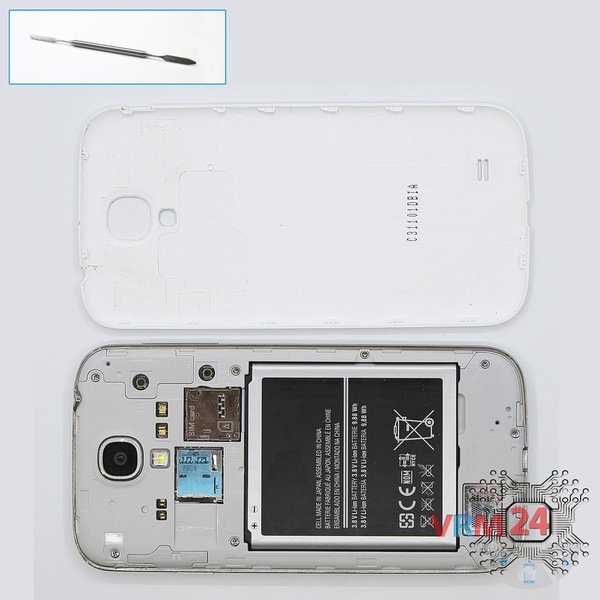

Open the back cover.

How to disassemble Samsung Galaxy S4 GT-i9500, Step 2/1 How to disassemble Samsung Galaxy S4 GT-i9500, Step 2/2

Step 2.

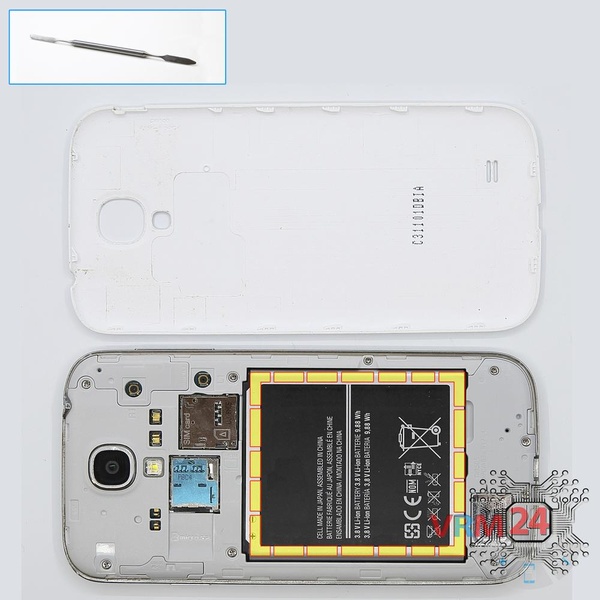

Lift and remove the battery.

How to disassemble Samsung Galaxy S4 GT-i9500, Step 3/1 How to disassemble Samsung Galaxy S4 GT-i9500, Step 3/2

Step 3.

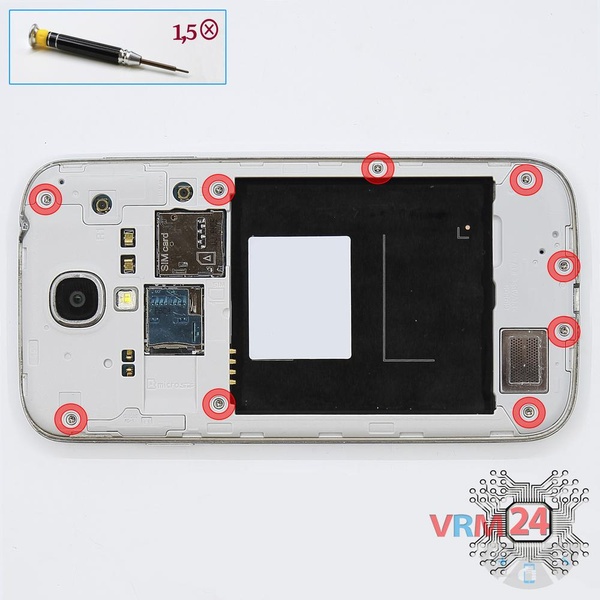

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 9 bolts in the frame of the phone.

How to disassemble Samsung Galaxy S4 GT-i9500, Step 4/1 How to disassemble Samsung Galaxy S4 GT-i9500, Step 4/2

Step 4.

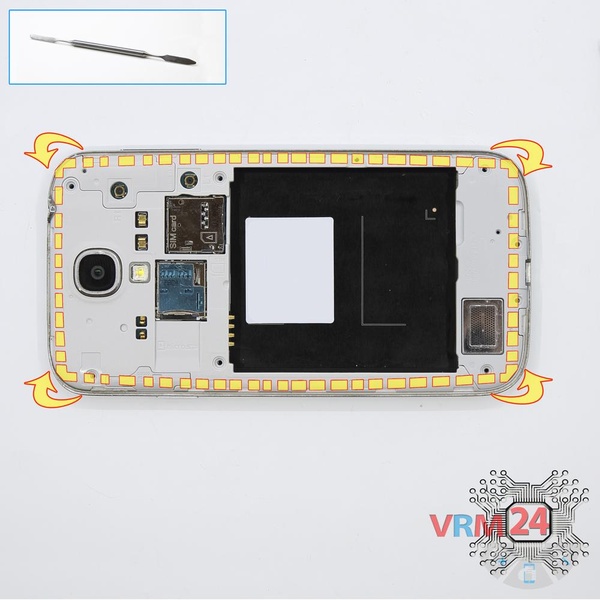

Pry and remove the middle frame.

How to disassemble Samsung Galaxy S4 GT-i9500, Step 5/1 How to disassemble Samsung Galaxy S4 GT-i9500, Step 5/2 How to disassemble Samsung Galaxy S4 GT-i9500, Step 5/3

Step 5.

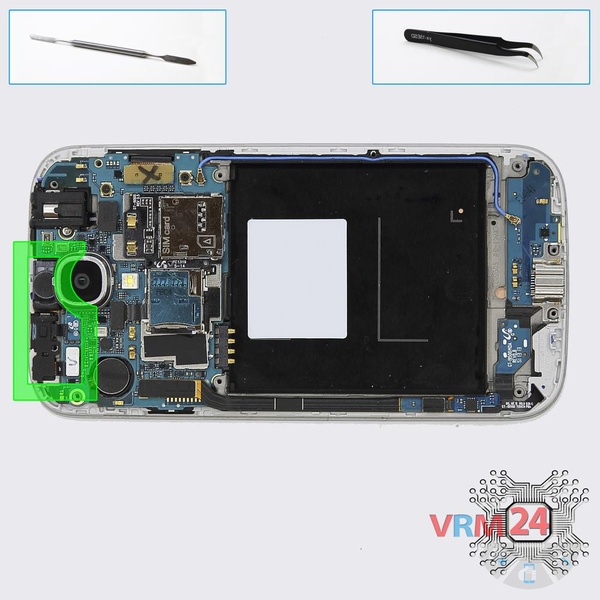

Disconnect connectors on PCB and remove the bracket, front (selfie) camera and proximity sensor.

How to disassemble Samsung Galaxy S4 GT-i9500, Step 6/1 How to disassemble Samsung Galaxy S4 GT-i9500, Step 6/2 How to disassemble Samsung Galaxy S4 GT-i9500, Step 6/3

Step 6.

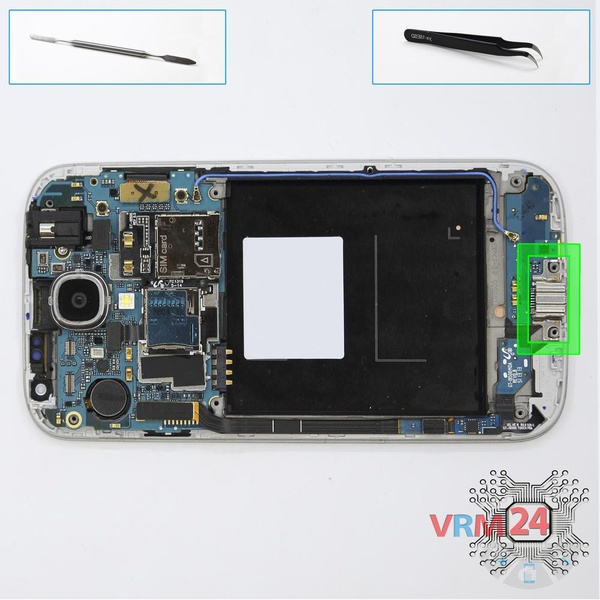

Remove the bracket holding the charging port.

How to disassemble Samsung Galaxy S4 GT-i9500, Step 7/1 How to disassemble Samsung Galaxy S4 GT-i9500, Step 7/2

Step 7.

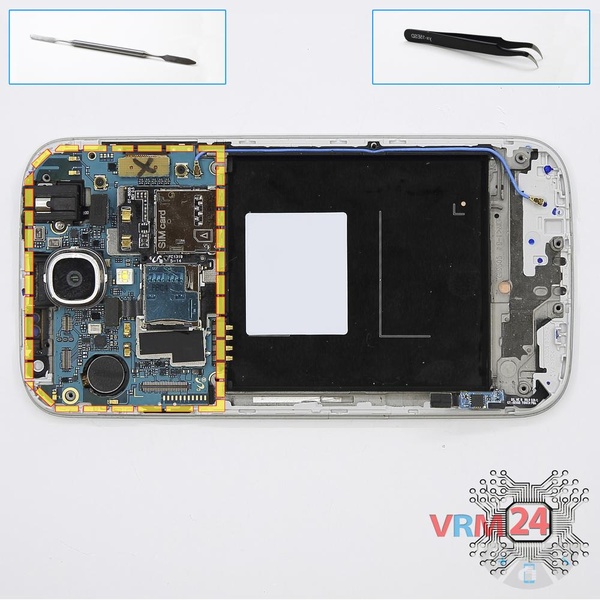

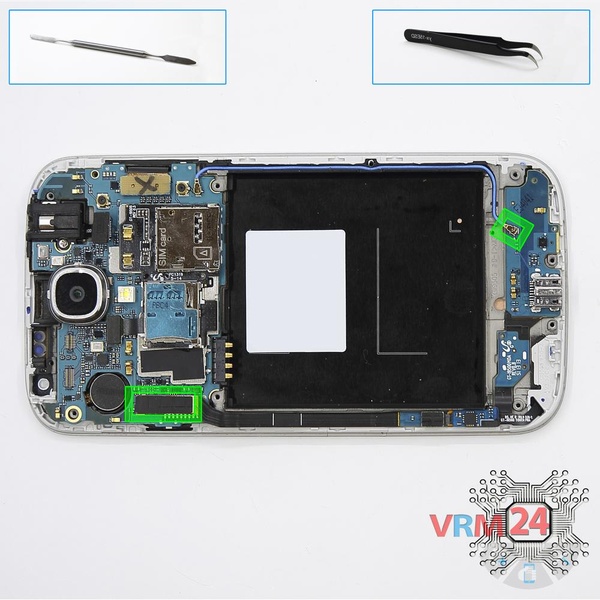

Disconnect connectors on both PCBs and remove it.

How to disassemble Samsung Galaxy S4 GT-i9500, Step 8/1 How to disassemble Samsung Galaxy S4 GT-i9500, Step 8/2 How to disassemble Samsung Galaxy S4 GT-i9500, Step 8/3 How to disassemble Samsung Galaxy S4 GT-i9500, Step 8/4

Step 8.

Disconnect connectors on the PCB and remove it.

How to disassemble Samsung Galaxy S4 GT-i9500, Step 9/1 How to disassemble Samsung Galaxy S4 GT-i9500, Step 9/2 How to disassemble Samsung Galaxy S4 GT-i9500, Step 9/3

Step 9.

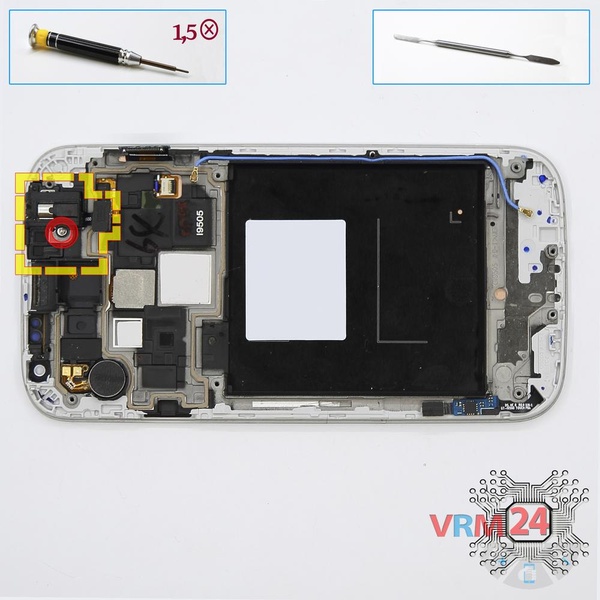

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 1 bolt and remove the headphone jack/socket

How to disassemble Samsung Galaxy S4 GT-i9500, Step 10/1 How to disassemble Samsung Galaxy S4 GT-i9500, Step 10/2 How to disassemble Samsung Galaxy S4 GT-i9500, Step 10/3 How to disassemble Samsung Galaxy S4 GT-i9500, Step 10/4 How to disassemble Samsung Galaxy S4 GT-i9500, Step 10/5

Step 10.

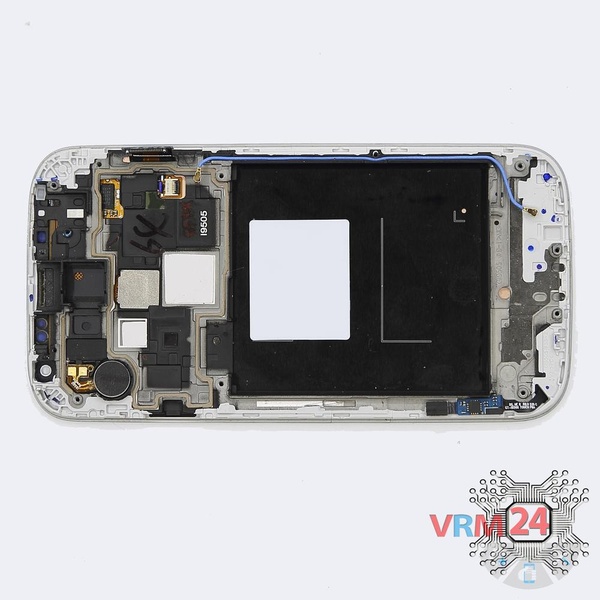

Parts are in the frame of the display module.

Detailed disassembly instructions of Samsung Galaxy S4 GT-i9500 in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

#instructions #Samsung #Samsung Galaxy S4 GT-i9500
Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer

Disassembling\Repair has easy complexity and takes about 4 minutes in time.
Our manual is suitable for all models Samsung Galaxy S4 GT-i9500 released for markets in different countries.
