Samsung Galaxy S4 Mini GT-i9190

Teardown difficulty:
Easy

Duration:
3 min

Recommended tools

Screwdriver phillips #000

Opening tool / spudger

Tweezers

Disassembly/Repair of the mobile device Samsung Galaxy S4 Mini GT-i9190 (Samsung I9190 Galaxy S IV mini; Samsung I9190 Galaxy S4 mini Duos) with each step description and the required set of tools.

Vadim Popoff

Quality assurance specialist

Author, currently - Quality Assurance Specialist

Step 1.

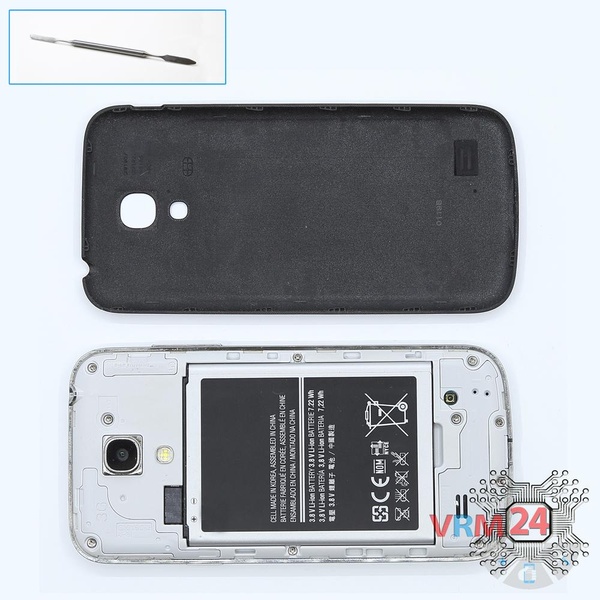

Open the back cover.

How to disassemble Samsung Galaxy S4 Mini GT-i9190, Step 2/1

How to disassemble Samsung Galaxy S4 Mini GT-i9190, Step 2/2

Step 2.

1 Remove the battery.

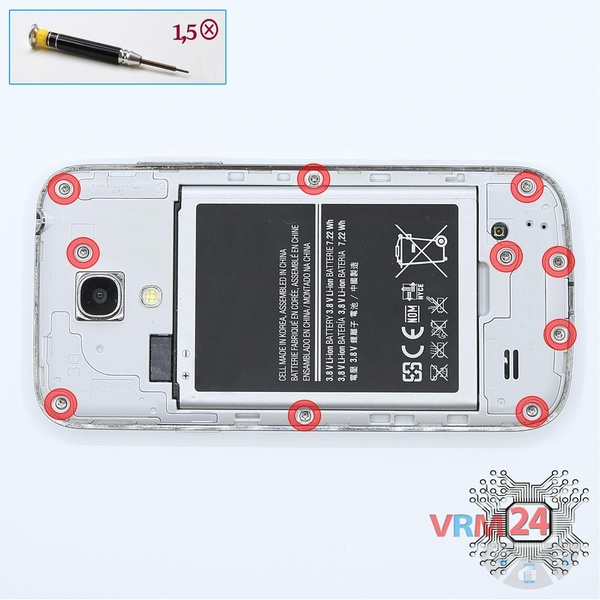

2 Using a screwdriver (Phillips 1.5 mm PH000), unscrew 10 bolts in the frame of the phone.

How to disassemble Samsung Galaxy S4 Mini GT-i9190, Step 3/1

How to disassemble Samsung Galaxy S4 Mini GT-i9190, Step 3/2

Step 3.

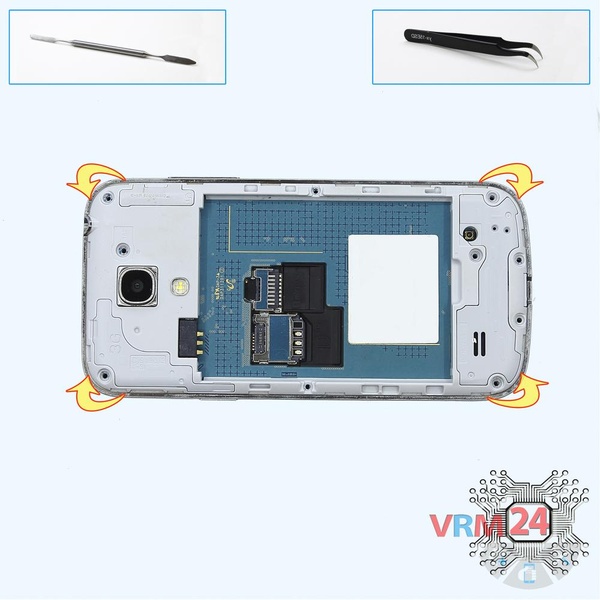

Pry and remove the middle frame.

How to disassemble Samsung Galaxy S4 Mini GT-i9190, Step 4/1

How to disassemble Samsung Galaxy S4 Mini GT-i9190, Step 4/2

How to disassemble Samsung Galaxy S4 Mini GT-i9190, Step 4/3

How to disassemble Samsung Galaxy S4 Mini GT-i9190, Step 4/4

Step 4.

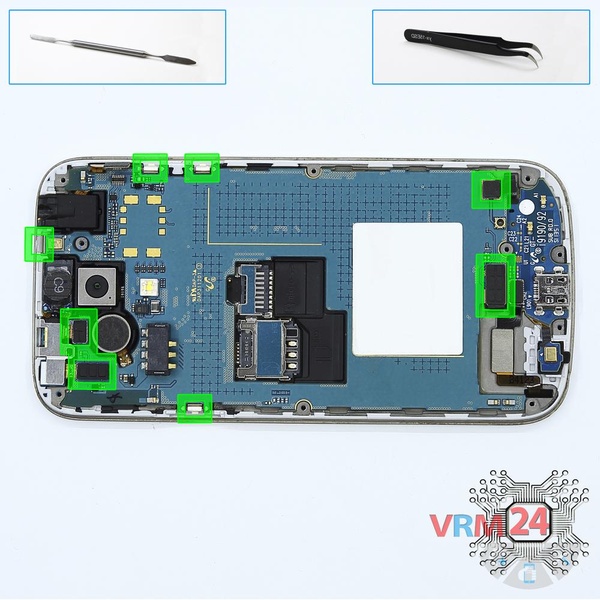

Disconnect connectors on the PCB and remove it.

How to disassemble Samsung Galaxy S4 Mini GT-i9190, Step 5/1

How to disassemble Samsung Galaxy S4 Mini GT-i9190, Step 5/2

Step 5.

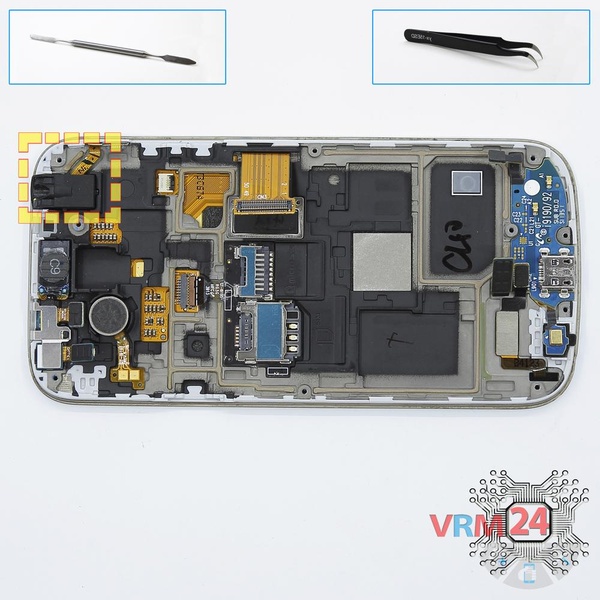

Remove the headphone jack/socket.

How to disassemble Samsung Galaxy S4 Mini GT-i9190, Step 6/1

How to disassemble Samsung Galaxy S4 Mini GT-i9190, Step 6/2

Step 6.

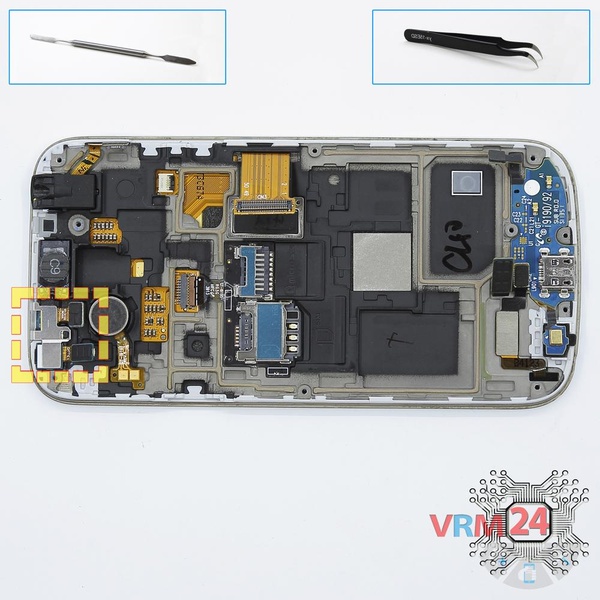

Pry and remove the earpiece (speaker) and front (selfie) camera.

How to disassemble Samsung Galaxy S4 Mini GT-i9190, Step 7/1

How to disassemble Samsung Galaxy S4 Mini GT-i9190, Step 7/2

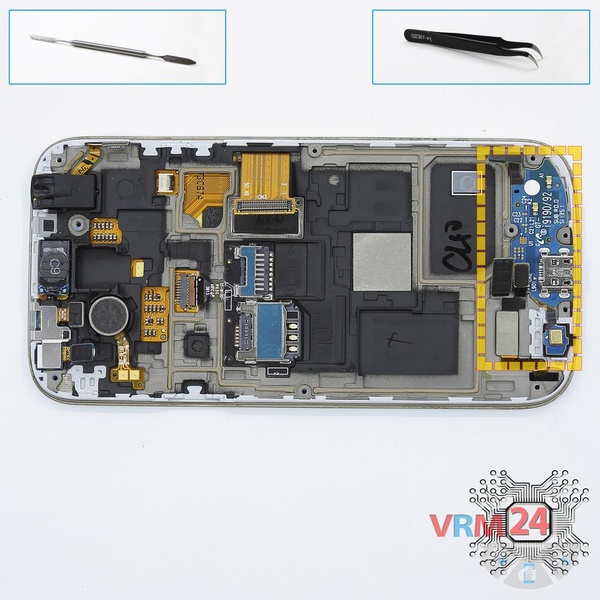

Step 7.

Remove the lower PCB.

How to disassemble Samsung Galaxy S4 Mini GT-i9190, Step 8/1

How to disassemble Samsung Galaxy S4 Mini GT-i9190, Step 8/2

Step 8.

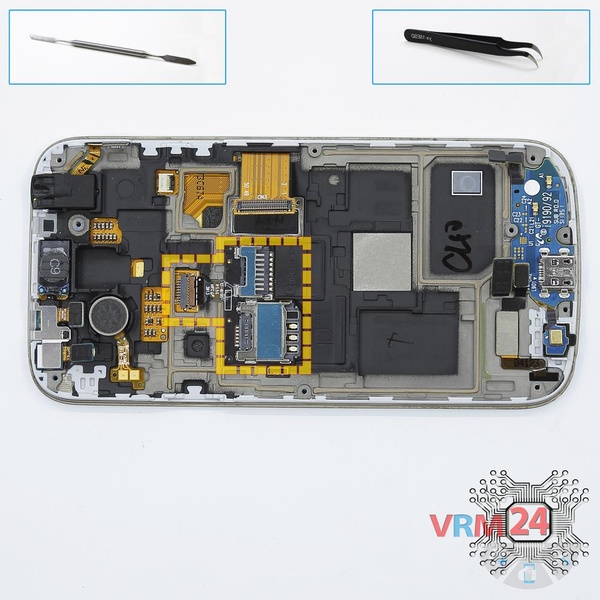

Remove the cable with a SIM and Micro SD card holders.

How to disassemble Samsung Galaxy S4 Mini GT-i9190, Step 9/1

How to disassemble Samsung Galaxy S4 Mini GT-i9190, Step 9/2

How to disassemble Samsung Galaxy S4 Mini GT-i9190, Step 9/3

How to disassemble Samsung Galaxy S4 Mini GT-i9190, Step 9/4

Step 9.

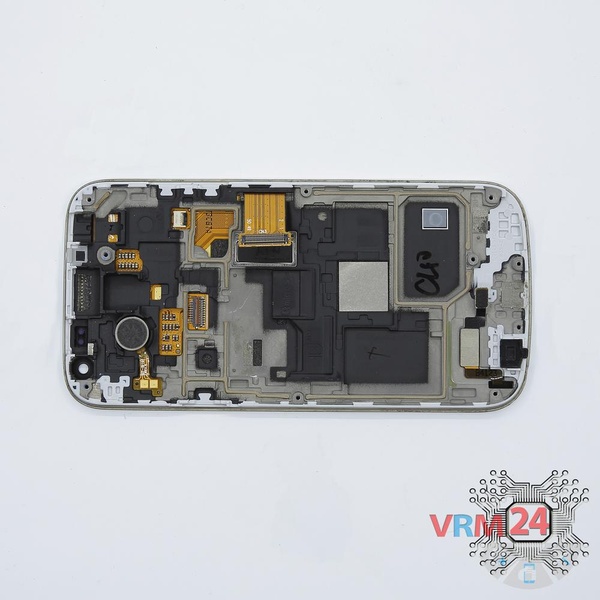

Parts are in the frame of the display module.

Detailed disassembly instructions of Samsung Galaxy S4 Mini GT-i9190 in the video, made by our mobile repair & service center:
