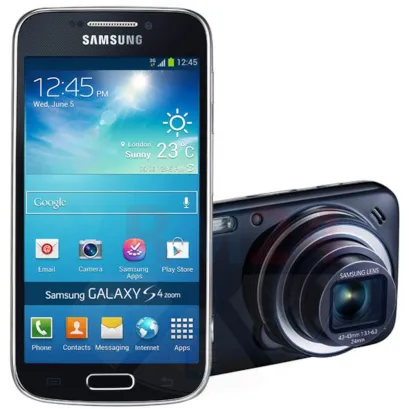

Disassembly of the mobile device Samsung Galaxy S4 Zoom SM-C101 with each step description and the required set of tools.

Load more
Teardown difficulty:
Easy
Duration:
10 min

Specialist in content creation, distribution and content management.

Recommended tools

How to disassemble Samsung Galaxy S4 Zoom SM-C101, Step 1/1

Step 1. Before disassembling!

⚠️ Before disassembling, do not forget to turn your phone off.


How to disassemble Samsung Galaxy S4 Zoom SM-C101, Step 2/1 How to disassemble Samsung Galaxy S4 Zoom SM-C101, Step 2/2 How to disassemble Samsung Galaxy S4 Zoom SM-C101, Step 2/3

Step 2. Remove the battery

Open the bottom hatch and remove the battery.


How to disassemble Samsung Galaxy S4 Zoom SM-C101, Step 3/1 How to disassemble Samsung Galaxy S4 Zoom SM-C101, Step 3/2

Step 3. Unscrew the screws

Using a screwdriver (Phillips 1.5 mm PH000), unscrew/drive 2 screws out at the end of the phone.


How to disassemble Samsung Galaxy S4 Zoom SM-C101, Step 4/1 How to disassemble Samsung Galaxy S4 Zoom SM-C101, Step 4/2

Step 4. Open the cover

Open the front cover.


How to disassemble Samsung Galaxy S4 Zoom SM-C101, Step 5/1 How to disassemble Samsung Galaxy S4 Zoom SM-C101, Step 5/2

Step 5. Open the cover

Remove the cover with antennas.


How to disassemble Samsung Galaxy S4 Zoom SM-C101, Step 6/1 How to disassemble Samsung Galaxy S4 Zoom SM-C101, Step 6/2

Step 6. Unscrew the screws

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 8 screws.

If the screws are different: ℹ️️ Be sure to note the location of the screws before disassembling. When assembling the device, screwing the screw in the wrong place may damage the device or its part. To avoid damage, the removed screws and individual pieces (as gaskets or brackets) must be laid out in the appropriate order, or the screws and their holes in the phone must be marked with colored markers.


How to disassemble Samsung Galaxy S4 Zoom SM-C101, Step 7/1 How to disassemble Samsung Galaxy S4 Zoom SM-C101, Step 7/2

Step 7. Remove the flash

Pry up the connector and remove the circular flash.


How to disassemble Samsung Galaxy S4 Zoom SM-C101, Step 8/1 How to disassemble Samsung Galaxy S4 Zoom SM-C101, Step 8/2

Step 8. Unscrew the screws

Using a screwdriver (Phillips 1.5 mm PH000), unscrew two screws.


How to disassemble Samsung Galaxy S4 Zoom SM-C101, Step 9/1 How to disassemble Samsung Galaxy S4 Zoom SM-C101, Step 9/2

Step 9. Open the middle cover

Carefully remove the middle cover.


How to disassemble Samsung Galaxy S4 Zoom SM-C101, Step 10/1 How to disassemble Samsung Galaxy S4 Zoom SM-C101, Step 10/2

Step 10. Remove the main camera

Pry up the connectors and remove the rear cameras.


How to disassemble Samsung Galaxy S4 Zoom SM-C101, Step 11/1 How to disassemble Samsung Galaxy S4 Zoom SM-C101, Step 11/2

Step 11. Unscrew one screw

Using a screwdriver (Phillips 1.5 mm PH000), unscrew one screw.


How to disassemble Samsung Galaxy S4 Zoom SM-C101, Step 12/1 How to disassemble Samsung Galaxy S4 Zoom SM-C101, Step 12/2

Step 12. Unscrew one screw

Using a screwdriver (Phillips 1.5 mm PH000), unscrew one screw securing the flash.


How to disassemble Samsung Galaxy S4 Zoom SM-C101, Step 13/1 How to disassemble Samsung Galaxy S4 Zoom SM-C101, Step 13/2

Step 13. Remove the flash

Pry up the connector and remove the flash mechanism.


How to disassemble Samsung Galaxy S4 Zoom SM-C101, Step 14/1

Step 14. Disconnect the connectors

Disconnect the coaxial cable connector, cable to the display, and sub-screen buttons cable.

⚠️ Do not pull on the cable or pry it with a sharp tool, the connectors are pretty weak and break easily, or the cable falls out of the end (lug).


How to disassemble Samsung Galaxy S4 Zoom SM-C101, Step 15/1 How to disassemble Samsung Galaxy S4 Zoom SM-C101, Step 15/2

Step 15. Turn over the motherboard

Turn the motherboard over.


How to disassemble Samsung Galaxy S4 Zoom SM-C101, Step 16/1 How to disassemble Samsung Galaxy S4 Zoom SM-C101, Step 16/2

Step 16. Disconnect the connector

Disconnect the connector of the cable leading to the upper board and remove the motherboard.


How to disassemble Samsung Galaxy S4 Zoom SM-C101, Step 17/1 How to disassemble Samsung Galaxy S4 Zoom SM-C101, Step 17/2

Step 17. Unscrew the screws

Using a screwdriver (Philips 1.5 mm PH000), unscrew two screws.


How to disassemble Samsung Galaxy S4 Zoom SM-C101, Step 18/1 How to disassemble Samsung Galaxy S4 Zoom SM-C101, Step 18/2

Step 18. Remove the loudspeaker

Remove the loudspeaker assembly with antennas.


How to disassemble Samsung Galaxy S4 Zoom SM-C101, Step 19/1

Step 19. Disconnect the connectors

Disconnect the connectors of the coaxial cable and earpiece speaker.


How to disassemble Samsung Galaxy S4 Zoom SM-C101, Step 20/1 How to disassemble Samsung Galaxy S4 Zoom SM-C101, Step 20/2

Step 20. Remove the sub-board

Carefully remove the upper board.


How to disassemble Samsung Galaxy S4 Zoom SM-C101, Step 21/1 How to disassemble Samsung Galaxy S4 Zoom SM-C101, Step 21/2

Step 21. Open the cover

Remove the cover with a vibration motor.

Detailed disassembly instructions of Samsung Galaxy S4 Zoom SM-C101 in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

Load more

Disassembling\Repair has easy complexity and takes about 10 minutes in time. Our manual is suitable for all models Samsung Galaxy S4 Zoom SM-C101 — Самсунг Галэкси С4 Зум SM-C101 released for markets in different countries.
