Teardown difficulty:
Hard
Duration:
16 min

Recommended tools

Disassembly/Repair of the mobile device Samsung Galaxy S6 Active SM-G890 with each step description and the required set of tools.


Specialist in content creation, distribution and content management.


How to disassemble Samsung Galaxy S6 Active SM-G890, Step 1/1 How to disassemble Samsung Galaxy S6 Active SM-G890, Step 1/2

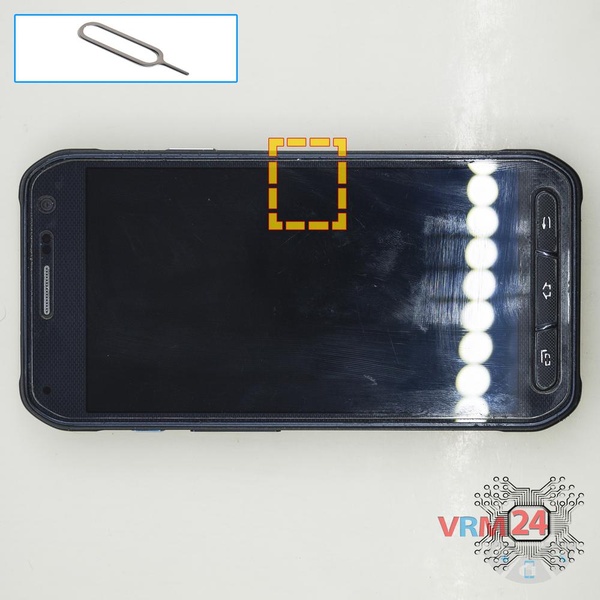

Step 1.

Using the key tool, open the SIM card tray and remove it.

⚠️ Warning!

Do not push too hard this may cause damage.


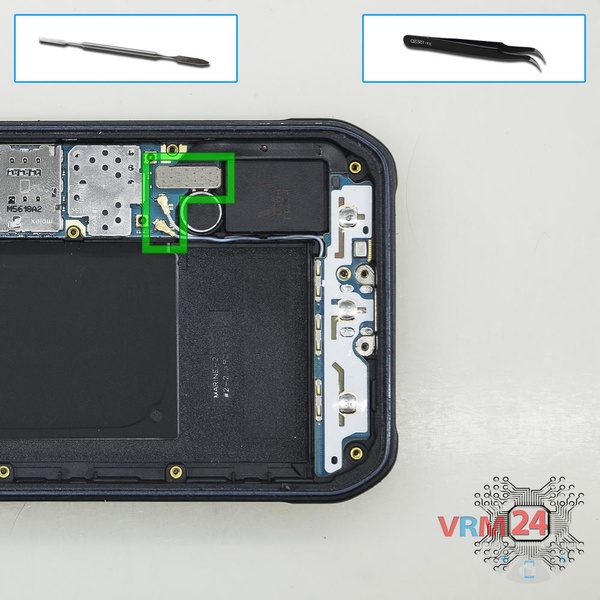

How to disassemble Samsung Galaxy S6 Active SM-G890, Step 2/1 How to disassemble Samsung Galaxy S6 Active SM-G890, Step 2/2

Step 2.

Separate the display module, disconnect the connector and remove it. More in our video

⚠️ Warning!

For careful separation, we recommend using a heat gun. At the same time, it is necessary to heat carefully in order, not to damage the surface of the device.




How to disassemble Samsung Galaxy S6 Active SM-G890, Step 3/1 How to disassemble Samsung Galaxy S6 Active SM-G890, Step 3/2 How to disassemble Samsung Galaxy S6 Active SM-G890, Step 3/3 How to disassemble Samsung Galaxy S6 Active SM-G890, Step 3/4

Step 3.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 1 bolt and remove the bracket and disconnect the battery connector.

⚠️ Warning!

We strongly recommend disconnecting the connector to avoid a possible short circuit during disassembly.


How to disassemble Samsung Galaxy S6 Active SM-G890, Step 4/1 How to disassemble Samsung Galaxy S6 Active SM-G890, Step 4/2

Step 4.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 15 bolts in the frame of the phone.


How to disassemble Samsung Galaxy S6 Active SM-G890, Step 5/1 How to disassemble Samsung Galaxy S6 Active SM-G890, Step 5/2

Step 5.

Pry and remove the middle frame.


How to disassemble Samsung Galaxy S6 Active SM-G890, Step 6/1 How to disassemble Samsung Galaxy S6 Active SM-G890, Step 6/2

Step 6.

Disconnect connectors on the lower PCB.


How to disassemble Samsung Galaxy S6 Active SM-G890, Step 7/1 How to disassemble Samsung Galaxy S6 Active SM-G890, Step 7/2

Step 7.

Remove the lower PCB.


How to disassemble Samsung Galaxy S6 Active SM-G890, Step 8/1 How to disassemble Samsung Galaxy S6 Active SM-G890, Step 8/2

Step 8.

Remove the main PCB and the main camera.


How to disassemble Samsung Galaxy S6 Active SM-G890, Step 9/1 How to disassemble Samsung Galaxy S6 Active SM-G890, Step 9/2 How to disassemble Samsung Galaxy S6 Active SM-G890, Step 9/3

Step 9.

Parts in the frame of the display module.

Detailed disassembly instructions of Samsung Galaxy S6 Active SM-G890 in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.


Disassembling\Repair has hard complexity and takes about 16 minutes in time.
Our manual is suitable for all models Samsung Galaxy S6 Active SM-G890 released for markets in different countries.
