Teardown difficulty:
Hard
Duration:
8 min

Recommended tools

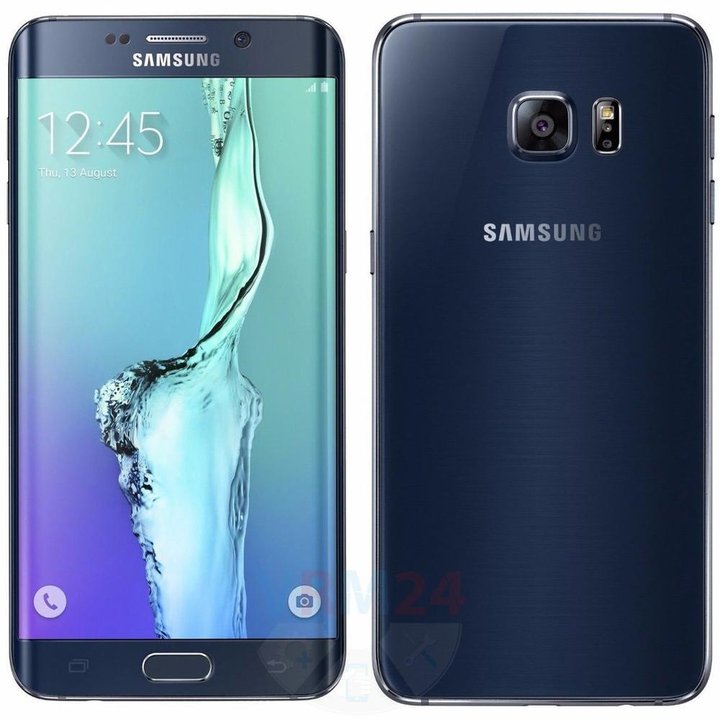

Disassembly of the mobile device Samsung Galaxy S6 Edge Plus SM-G928 (Samsung G928F (Europe); G928G (India); G928T (T-Mobile); G928A (AT&T); G928I (Australia, New Zealand, Singapore)) with each step description and the required set of tools.

Load more

Specialist in content creation, distribution and content management.


How to disassemble Samsung Galaxy S6 Edge Plus SM-G928, Step 1/1

Step 1

Open the back cover.


How to disassemble Samsung Galaxy S6 Edge Plus SM-G928, Step 2/1 How to disassemble Samsung Galaxy S6 Edge Plus SM-G928, Step 2/2

Step 2

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 18 bolts in the frame of the phone.


How to disassemble Samsung Galaxy S6 Edge Plus SM-G928, Step 3/1 How to disassemble Samsung Galaxy S6 Edge Plus SM-G928, Step 3/2

Step 3

Using the key tool, open the SIM and Micro SD cards tray and remove it.

⚠️ Warning!

Do not push too hard this may cause damage.


How to disassemble Samsung Galaxy S6 Edge Plus SM-G928, Step 4/1 How to disassemble Samsung Galaxy S6 Edge Plus SM-G928, Step 4/2

Step 4

Pry and remove the middle frame.


How to disassemble Samsung Galaxy S6 Edge Plus SM-G928, Step 5/1

Step 5

The middle frame.


How to disassemble Samsung Galaxy S6 Edge Plus SM-G928, Step 6/1 How to disassemble Samsung Galaxy S6 Edge Plus SM-G928, Step 6/2 How to disassemble Samsung Galaxy S6 Edge Plus SM-G928, Step 6/3

Step 6

Disconnect the battery connector.

⚠️ Warning!

We strongly recommend disconnecting the connector to avoid a possible short circuit during disassembly.


How to disassemble Samsung Galaxy S6 Edge Plus SM-G928, Step 7/1 How to disassemble Samsung Galaxy S6 Edge Plus SM-G928, Step 7/2 How to disassemble Samsung Galaxy S6 Edge Plus SM-G928, Step 7/3 How to disassemble Samsung Galaxy S6 Edge Plus SM-G928, Step 7/4 How to disassemble Samsung Galaxy S6 Edge Plus SM-G928, Step 7/5

Step 7

Disconnect connectors on the PCB.


How to disassemble Samsung Galaxy S6 Edge Plus SM-G928, Step 8/1 How to disassemble Samsung Galaxy S6 Edge Plus SM-G928, Step 8/2 How to disassemble Samsung Galaxy S6 Edge Plus SM-G928, Step 8/3

Step 8

Lift the board up, disconnect the connector from the inside and remove it.


How to disassemble Samsung Galaxy S6 Edge Plus SM-G928, Step 9/1 How to disassemble Samsung Galaxy S6 Edge Plus SM-G928, Step 9/2

Step 9

Pry and remove the earpiece (speaker) and cable with a microphone and proximity sensor.


How to disassemble Samsung Galaxy S6 Edge Plus SM-G928, Step 10/1 How to disassemble Samsung Galaxy S6 Edge Plus SM-G928, Step 10/2

Step 10

Pry and remove the vibration motor.


How to disassemble Samsung Galaxy S6 Edge Plus SM-G928, Step 11/1 How to disassemble Samsung Galaxy S6 Edge Plus SM-G928, Step 11/2 How to disassemble Samsung Galaxy S6 Edge Plus SM-G928, Step 11/3

Step 11

Parts are in the frame of the display module.

Detailed disassembly instructions of Samsung Galaxy S6 Edge Plus SM-G928 in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

Load more

Disassembling\Repair has hard complexity and takes about 8 minutes in time.
Our manual is suitable for all models Samsung Galaxy S6 Edge Plus SM-G928 — Samsung G928F (Europe); G928G (India); G928T (T-Mobile); G928A (AT&T); G928I (Australia, New Zealand, Singapore) released for markets in different countries.
