Disassembly of the mobile device Samsung Galaxy S6 SM-G920 Duos (Samsung G920F (Europe); G920FD (Philippines, Pakistan, Russia, Ukraine); G920FQ (Turkey); G920I (LATAM, Singapore, India, Australia, New Zealand); G920A (AT&T); G920T (T-Mobile); G920S/K (Korea); G9200 (Hong Kong); G9208 (China); G9208/SS (China); G9209) with each step description and the required set of tools.


Specialist in content creation, distribution and content management.


How to disassemble Samsung Galaxy S6 SM-G920 Duos, Step 1/1 How to disassemble Samsung Galaxy S6 SM-G920 Duos, Step 1/2
Step 1

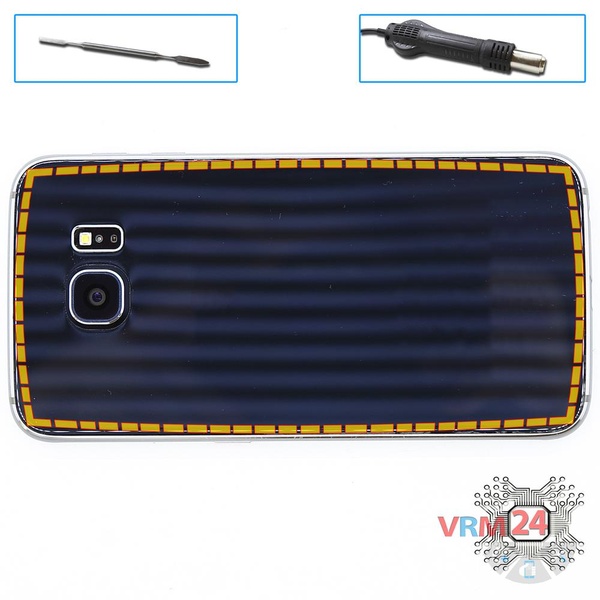

Open the back cover.

Warning!

For careful separation, we recommend using a heat gun. At the same time, it is necessary to heat carefully in order, not to damage the surface of the device.

How to disassemble Samsung Galaxy S6 SM-G920 Duos, Step 2/1 How to disassemble Samsung Galaxy S6 SM-G920 Duos, Step 2/2

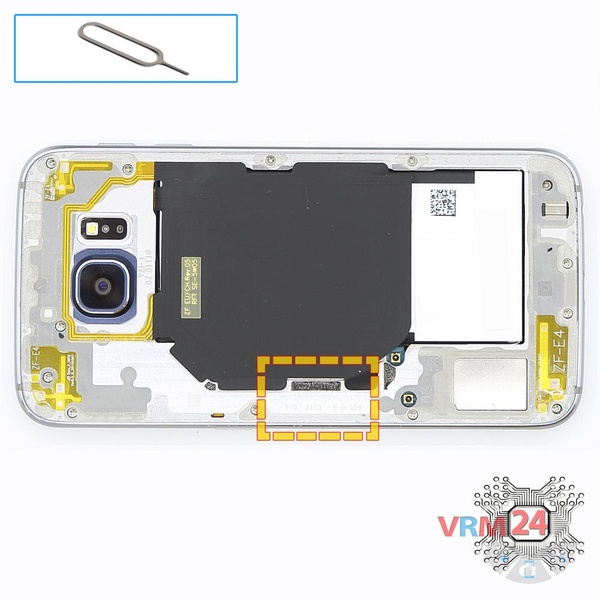

Step 2

Using the key tool, open the SIM card tray and remove it.

Warning!

Do not push too hard this may cause damage.

How to disassemble Samsung Galaxy S6 SM-G920 Duos, Step 3/1 How to disassemble Samsung Galaxy S6 SM-G920 Duos, Step 3/2
Step 3

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 13 bolts in the frame of the phone.

How to disassemble Samsung Galaxy S6 SM-G920 Duos, Step 4/1 How to disassemble Samsung Galaxy S6 SM-G920 Duos, Step 4/2
Step 4

Pry and remove the middle frame.

How to disassemble Samsung Galaxy S6 SM-G920 Duos, Step 5/1 How to disassemble Samsung Galaxy S6 SM-G920 Duos, Step 5/2
Step 5

Disconnect the connector on PCB, and remove the front (selfie) camera.

How to disassemble Samsung Galaxy S6 SM-G920 Duos, Step 6/1 How to disassemble Samsung Galaxy S6 SM-G920 Duos, Step 6/2 How to disassemble Samsung Galaxy S6 SM-G920 Duos, Step 6/3 How to disassemble Samsung Galaxy S6 SM-G920 Duos, Step 6/4
Step 6

Disconnect connectors on the PCB.

Warning!

The main PCB connects to the lower board from the inside. Need to separate it carefully.

How to disassemble Samsung Galaxy S6 SM-G920 Duos, Step 7/1 How to disassemble Samsung Galaxy S6 SM-G920 Duos, Step 7/2
Step 7

Remove the PCB.

How to disassemble Samsung Galaxy S6 SM-G920 Duos, Step 8/1 How to disassemble Samsung Galaxy S6 SM-G920 Duos, Step 8/2 How to disassemble Samsung Galaxy S6 SM-G920 Duos, Step 8/3 How to disassemble Samsung Galaxy S6 SM-G920 Duos, Step 8/4
Step 8

Parts are in the frame of the display module.

Detailed disassembly instructions of Samsung Galaxy S6 SM-G920 Duos in the video, made by our mobile repair & service center:


Disassembling\Repair has hard complexity and takes about 6 minutes in time.
Our manual is suitable for all models Samsung Galaxy S6 SM-G920 Duos — Samsung G920F (Europe); G920FD (Philippines, Pakistan, Russia, Ukraine); G920FQ (Turkey); G920I (LATAM, Singapore, India, Australia, New Zealand); G920A (AT&T); G920T (T-Mobile); G920S/K (Korea); G9200 (Hong Kong); G9208 (China); G9208/SS (China); G9209 released for markets in different countries.
