Samsung Galaxy S9 Plus SM-G965

Teardown difficulty:
Moderate

Duration:
13 min

Recommended tools

Heat gun

Screwdriver phillips #000

Opening tool / spudger

Tweezers

Disassembly/Repair of the mobile device Samsung Galaxy S9 Plus SM-G965 (Samsung G965F (Europe, Global Single-SIM); G965F/DS (Europe, Global Dual-SIM); G965U (USA); G965W (Canada); G9650 (China, LATAM)) with each step description and the required set of tools.

Vadim Popoff

Quality assurance specialist

Author, currently - Quality Assurance Specialist

How to disassemble Samsung Galaxy S9 Plus SM-G965, Step 1/1

How to disassemble Samsung Galaxy S9 Plus SM-G965, Step 1/2

Step 1.

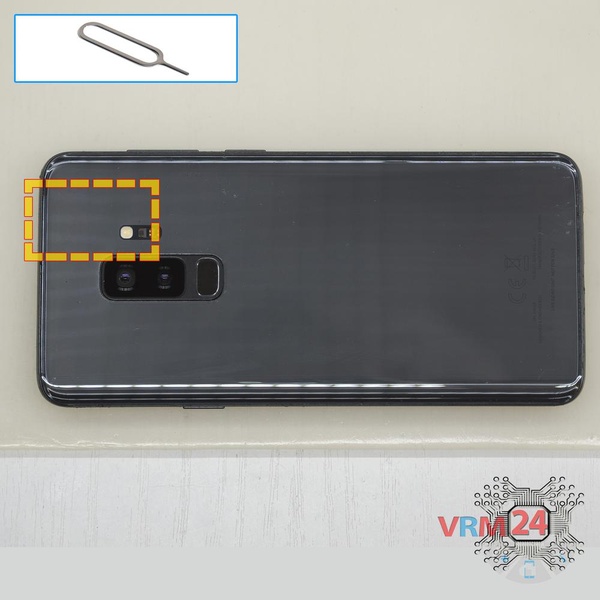

Using the key tool, open the SIM card tray and remove it.

⚠️ Warning!

Do not push too hard this may cause damage.

How to disassemble Samsung Galaxy S9 Plus SM-G965, Step 2/1

How to disassemble Samsung Galaxy S9 Plus SM-G965, Step 2/2

Step 2.

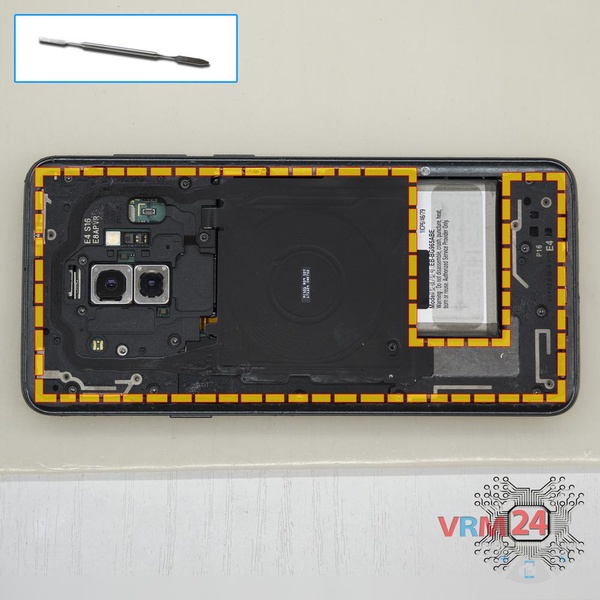

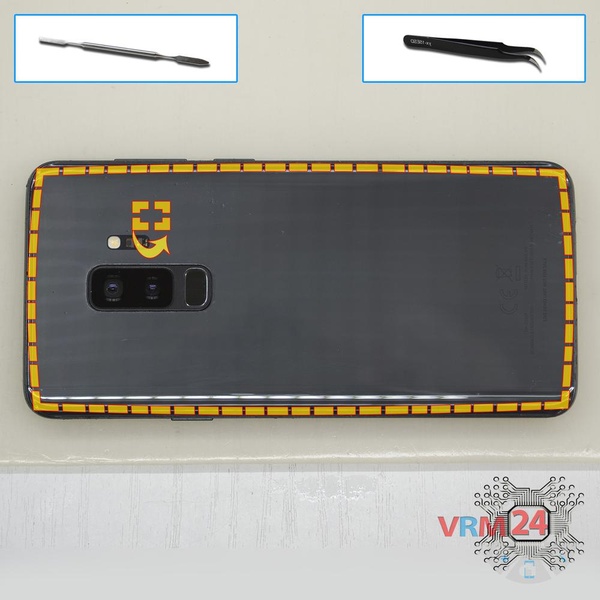

Open the back cover.

⚠️ Warning!

For careful separation, we recommend using a heat gun. At the same time, it is necessary to heat carefully in order, not to damage the surface of the device.

How to disassemble Samsung Galaxy S9 Plus SM-G965, Step 3/1

How to disassemble Samsung Galaxy S9 Plus SM-G965, Step 3/2

Step 3.

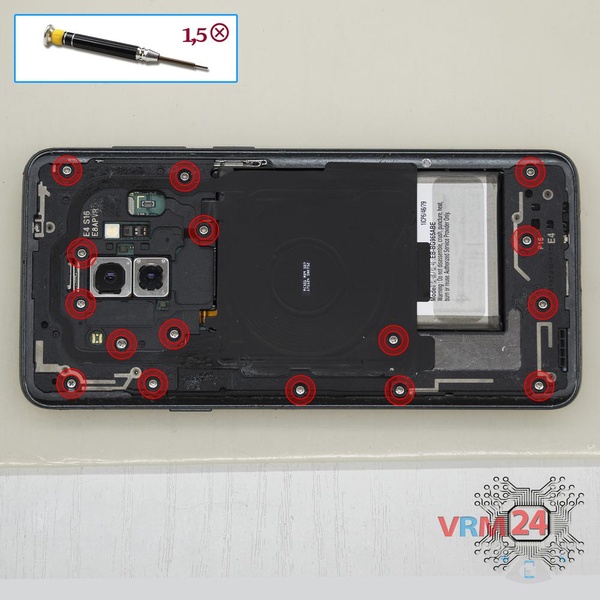

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 16 bolts in the frame of the phone.

How to disassemble Samsung Galaxy S9 Plus SM-G965, Step 4/1

How to disassemble Samsung Galaxy S9 Plus SM-G965, Step 4/2

Step 4.

Pry and remove the covers with antennas and NFC.

How to disassemble Samsung Galaxy S9 Plus SM-G965, Step 5/1

How to disassemble Samsung Galaxy S9 Plus SM-G965, Step 5/2

How to disassemble Samsung Galaxy S9 Plus SM-G965, Step 5/3

Step 5.

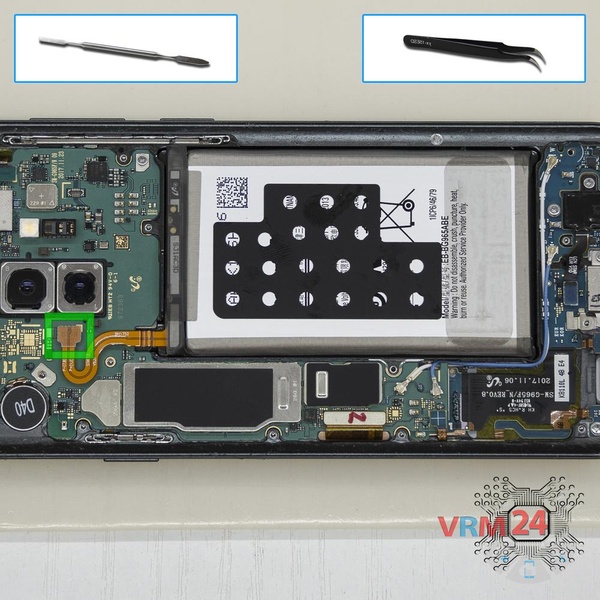

Disconnect the battery connector.

⚠️ Warning!

We strongly recommend disconnecting the connector to avoid a possible short circuit during disassembly.

How to disassemble Samsung Galaxy S9 Plus SM-G965, Step 6/1

How to disassemble Samsung Galaxy S9 Plus SM-G965, Step 6/2

Step 6.

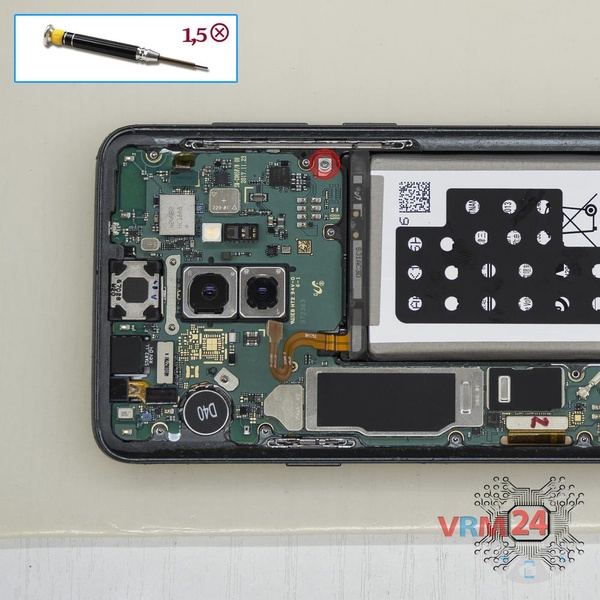

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 1 bolt in the PCB.

How to disassemble Samsung Galaxy S9 Plus SM-G965, Step 7/1

How to disassemble Samsung Galaxy S9 Plus SM-G965, Step 7/2

Step 7.

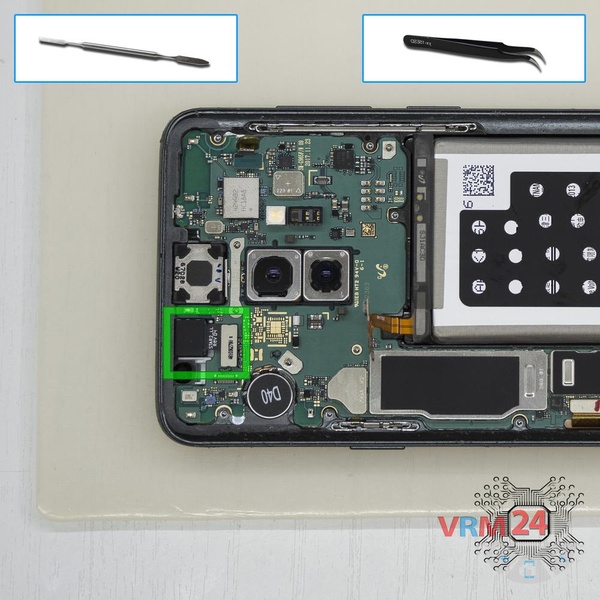

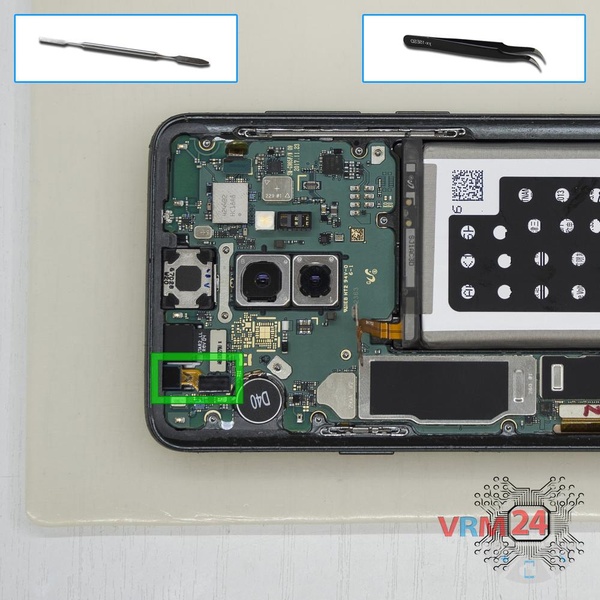

Disconnect connector on the PCB and remove the front (selfie) camera.

How to disassemble Samsung Galaxy S9 Plus SM-G965, Step 8/1

How to disassemble Samsung Galaxy S9 Plus SM-G965, Step 8/2

Step 8.

Disconnect connector on the PCB and remove the front (selfie) camera.

How to disassemble Samsung Galaxy S9 Plus SM-G965, Step 9/1

How to disassemble Samsung Galaxy S9 Plus SM-G965, Step 9/2

How to disassemble Samsung Galaxy S9 Plus SM-G965, Step 9/3

Step 9.

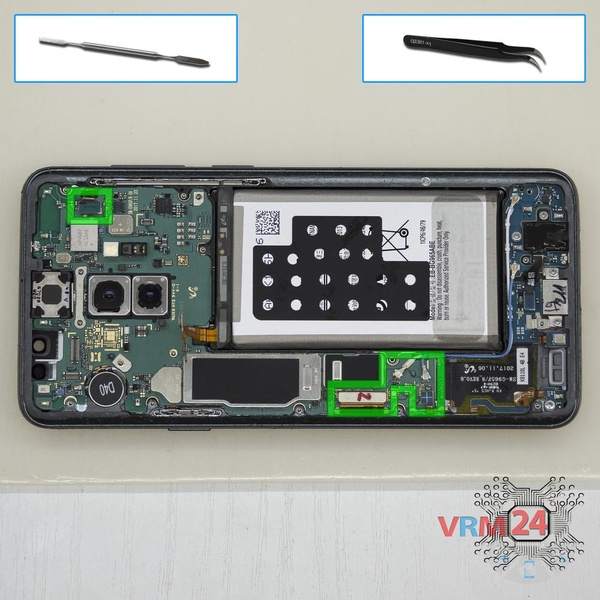

Disconnect connectors on the PCB.

⚠️ Warning!

Boards connect by the connector.

How to disassemble Samsung Galaxy S9 Plus SM-G965, Step 10/1

How to disassemble Samsung Galaxy S9 Plus SM-G965, Step 10/2

Step 10.

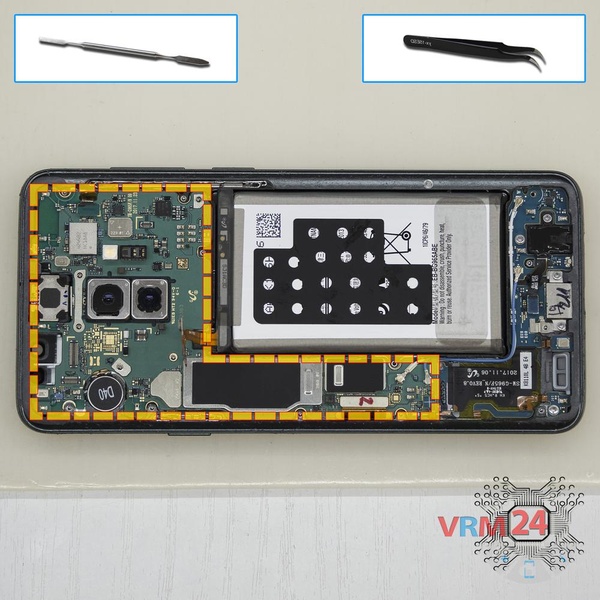

Remove the PCB.

How to disassemble Samsung Galaxy S9 Plus SM-G965, Step 11/1

How to disassemble Samsung Galaxy S9 Plus SM-G965, Step 11/2

Step 11.

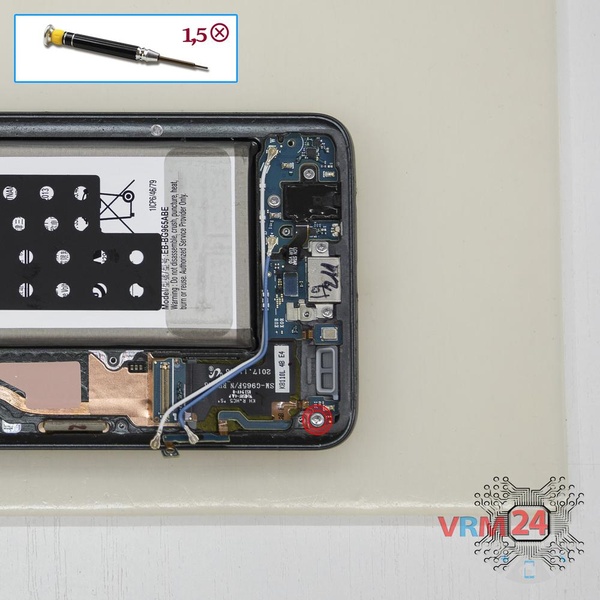

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 1 non-magnetic bolt.

How to disassemble Samsung Galaxy S9 Plus SM-G965, Step 12/1

How to disassemble Samsung Galaxy S9 Plus SM-G965, Step 12/2

Step 12.

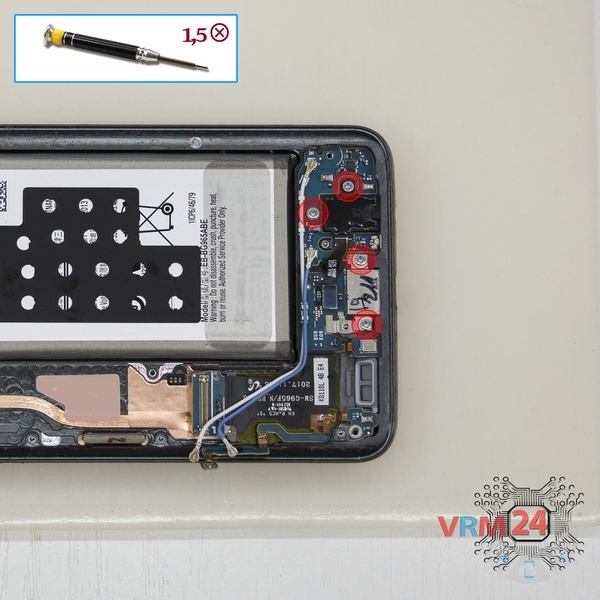

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 4 bolts in the lower PCB.

How to disassemble Samsung Galaxy S9 Plus SM-G965, Step 13/1

How to disassemble Samsung Galaxy S9 Plus SM-G965, Step 13/2

How to disassemble Samsung Galaxy S9 Plus SM-G965, Step 13/3

Step 13.

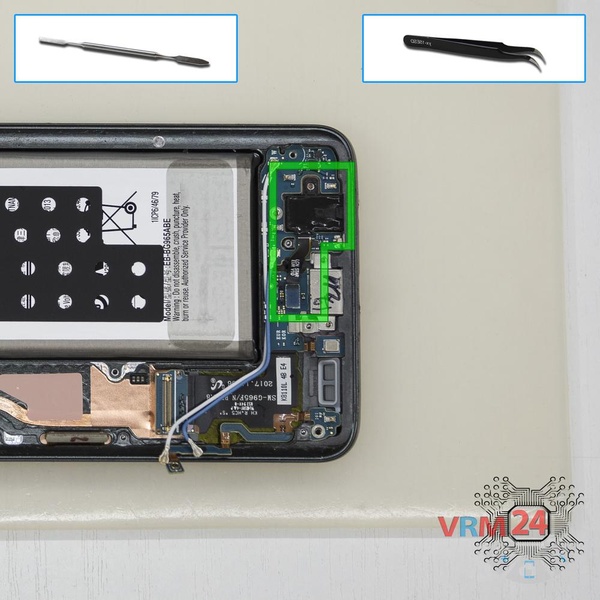

Disconnect connector on the lower PCB and remove the headphone jack/socket.

How to disassemble Samsung Galaxy S9 Plus SM-G965, Step 14/1

How to disassemble Samsung Galaxy S9 Plus SM-G965, Step 14/2

Step 14.

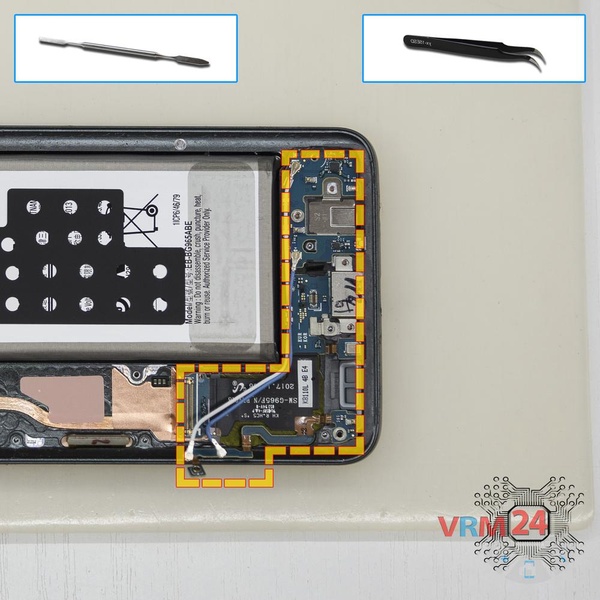

Remove the lower PCB.

How to disassemble Samsung Galaxy S9 Plus SM-G965, Step 15/1

How to disassemble Samsung Galaxy S9 Plus SM-G965, Step 15/2

How to disassemble Samsung Galaxy S9 Plus SM-G965, Step 15/3

Step 15.

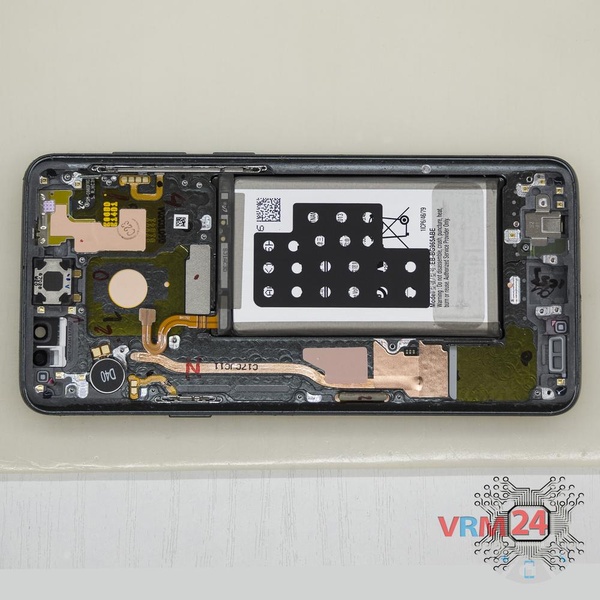

Parts in the frame of the display module.

Detailed disassembly instructions of Samsung Galaxy S9 Plus SM-G965 in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

#instructions #Samsung #Samsung Galaxy S9 Plus SM-G965

Evgenii Kuzmin

Senior maintenance service and repair engineer

Disassembling\Repair has medium complexity and takes about 13 minutes in time.
Our manual is suitable for all models Samsung Galaxy S9 Plus SM-G965 — Samsung G965F (Europe, Global Single-SIM); G965F/DS (Europe, Global Dual-SIM); G965U (USA); G965W (Canada); G9650 (China, LATAM) released for markets in different countries.
